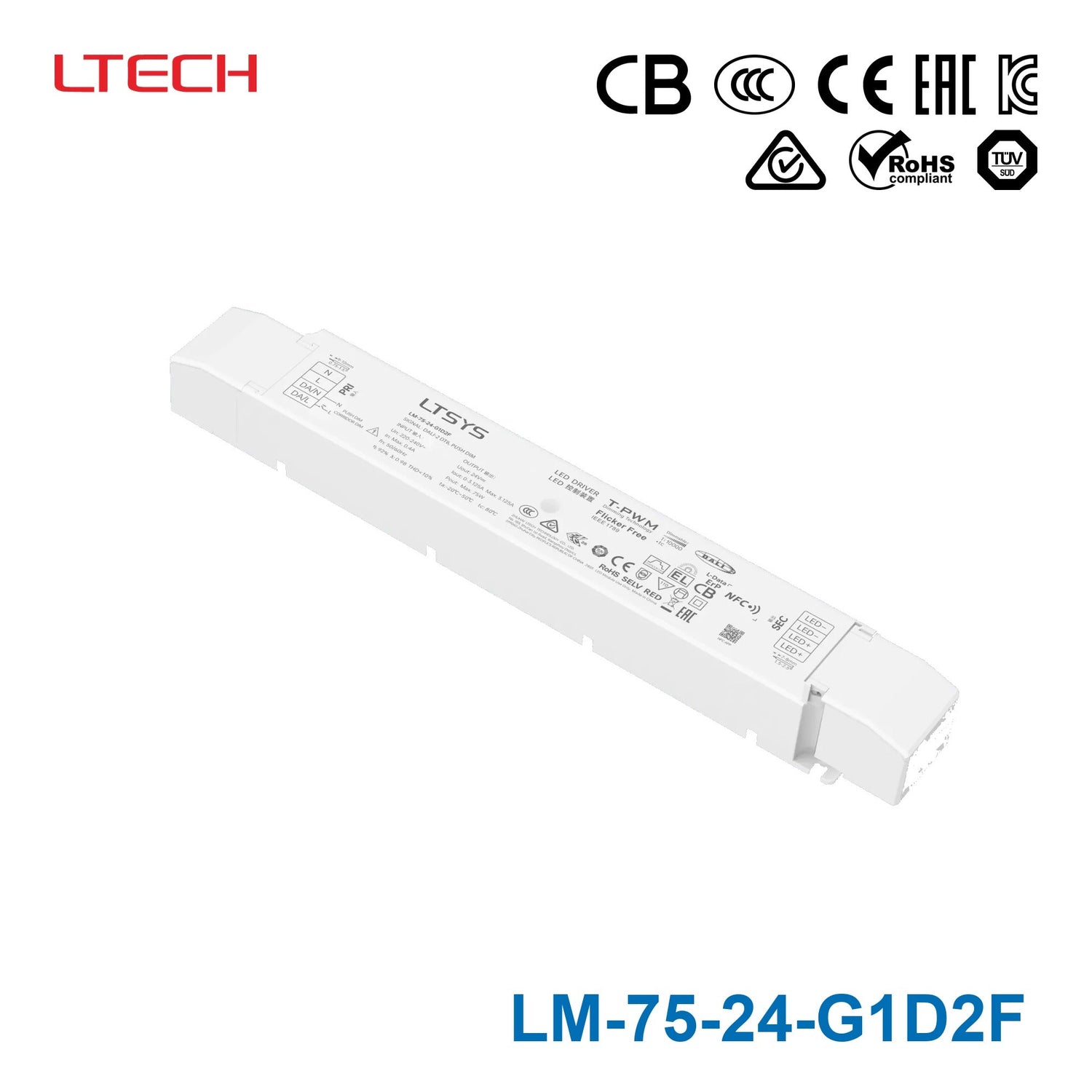

LM-75-24-G1D2F
Description
Description
Features
- Housing made from SAMSUNG/COVESTRO V0 flame retardant PC materials
- Screwless wire-pressing flip cover design with detachable end caps — adjustable shell length
- Full-command NFC fast programming via mobile app: modify dimming mode, brightness range, DALI templates and more
- Two independent SELV constant voltage output channels
- Supports DALI-2 DT6, Push DIM, and corridor light DIM modes
- Compatible with L-Data and DALI Part 251, 252, 253
- Deep dimming from 0–100%, minimum dimming level 0.01%
- EU ERP compliant: no-load power <0.5W, network standby <0.5W
- Overheat, over voltage, overload and short circuit protection with automatic recovery
- Suitable for Class I/II/III indoor luminaires, service life up to 100,000 hours
- 5-year warranty (Rubycon capacitor)
General Specification
Input Voltage
220–240VAC, 50/60Hz
Output Voltage
24Vdc
Output Current
Max. 3.125A
Output Power
0–75W
Power Factor
PF > 0.98 / 230V~ (at full load)
Efficiency
92% (typ.)
Dimming Interface
DALI-2 DT6, PUSH DIM
Dimming Range
0–100%, down to 0.01%
PWM Frequency
300–22,000Hz
IP Rating
IP20
Working Temperature
-20°C ~ +50°C
Dimensions (L×W×H)
293 × 43 × 30mm
Weight
0.29kg
Specifications
Specifications
-
BrandLtech
-
Input Voltage220V~240V
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,KC,RCM,ROHS,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.64 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED lighting is the Ltech LM-75-24-G1D2F designed for?
This model is a 75W constant voltage LED driver with a 24Vdc output, so it is intended for 24V constant voltage LED lighting applications. It is suited to indoor luminaires that need DALI-2 DT6 or Push DIM control and benefit from deep dimming performance.
Does this LED driver support DALI-2 control?
Yes. The LM-75-24-G1D2F supports DALI-2 DT6 and also works with Push DIM and corridor light dimming modes. It is additionally listed as compatible with L-Data and DALI Parts 251, 252, and 253.
What are the main output specifications of this model?
The LM-75-24-G1D2F provides a 24Vdc output with a maximum output current of 3.125A and a power range of 0 to 75W. It also features two independent SELV constant voltage output channels.
How low can this driver dim?
This model supports dimming from 0 to 100%, with a minimum dimming level down to 0.01%. That makes it a strong option for projects that need very fine low-end dimming control rather than only basic on/off or limited dimming range.
Can this driver be programmed without dedicated hardware tools?
Yes. The LM-75-24-G1D2F supports full-command NFC fast programming via a mobile app, allowing supported parameters such as dimming mode, brightness range, and DALI templates to be modified. This can be useful for commercial projects that need model-specific configuration flexibility.
Is this LED driver suitable for indoor commercial environments?
Yes, it is designed for indoor use and carries an IP20 rating. Its operating temperature range is -20°C to +50°C, and it is suitable for Class I, II, and III indoor luminaires.
What efficiency and energy performance does this driver offer?
The LM-75-24-G1D2F has a typical efficiency of 92% and a power factor above 0.98 at 230V under full load. It is also EU ERP compliant, with no-load power consumption below 0.5W and network standby below 0.5W.
What protections and warranty are included with this model?
This driver includes overheat, over-voltage, overload, and short-circuit protection with automatic recovery. It is backed by a 5-year warranty and is rated for a service life of up to 100,000 hours.
