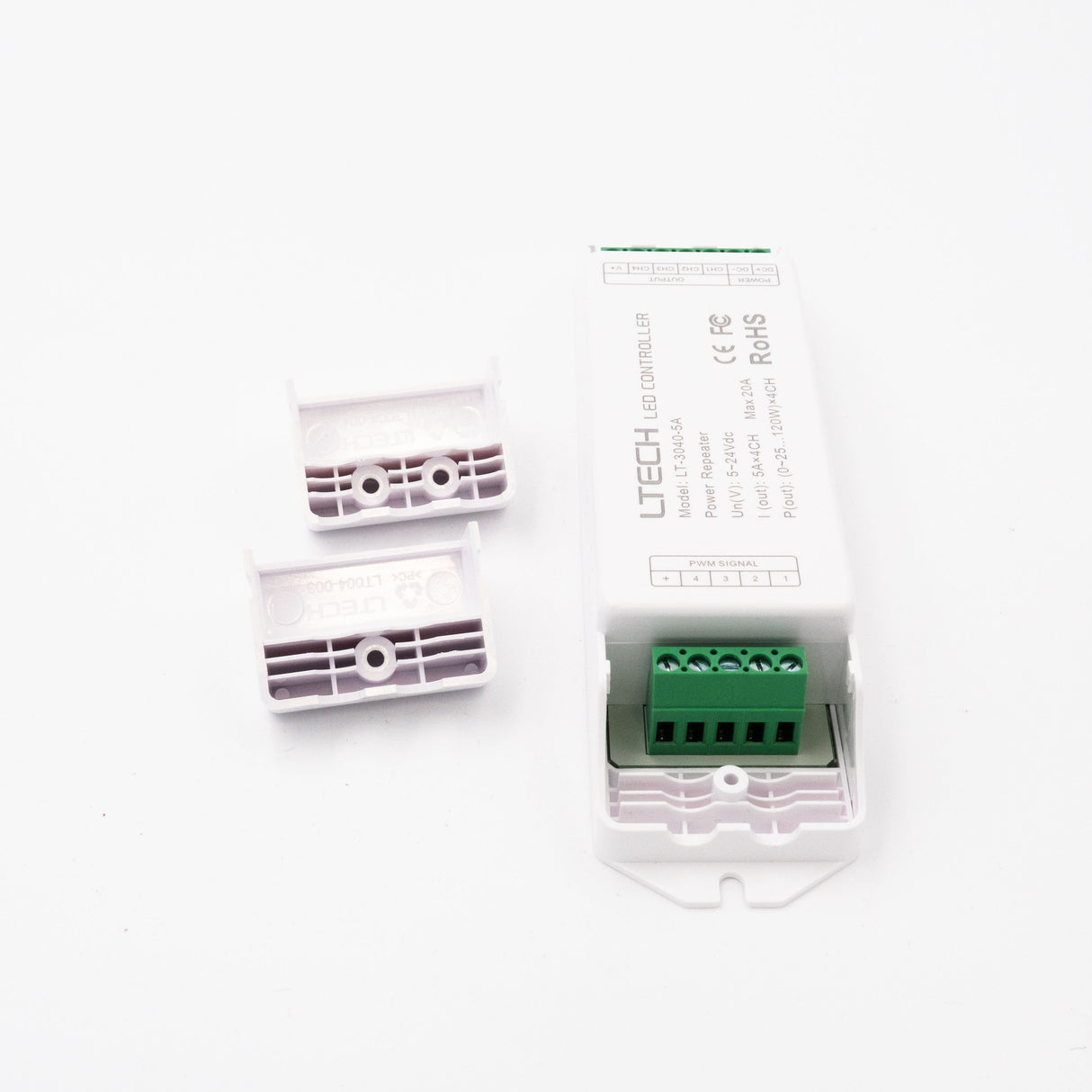

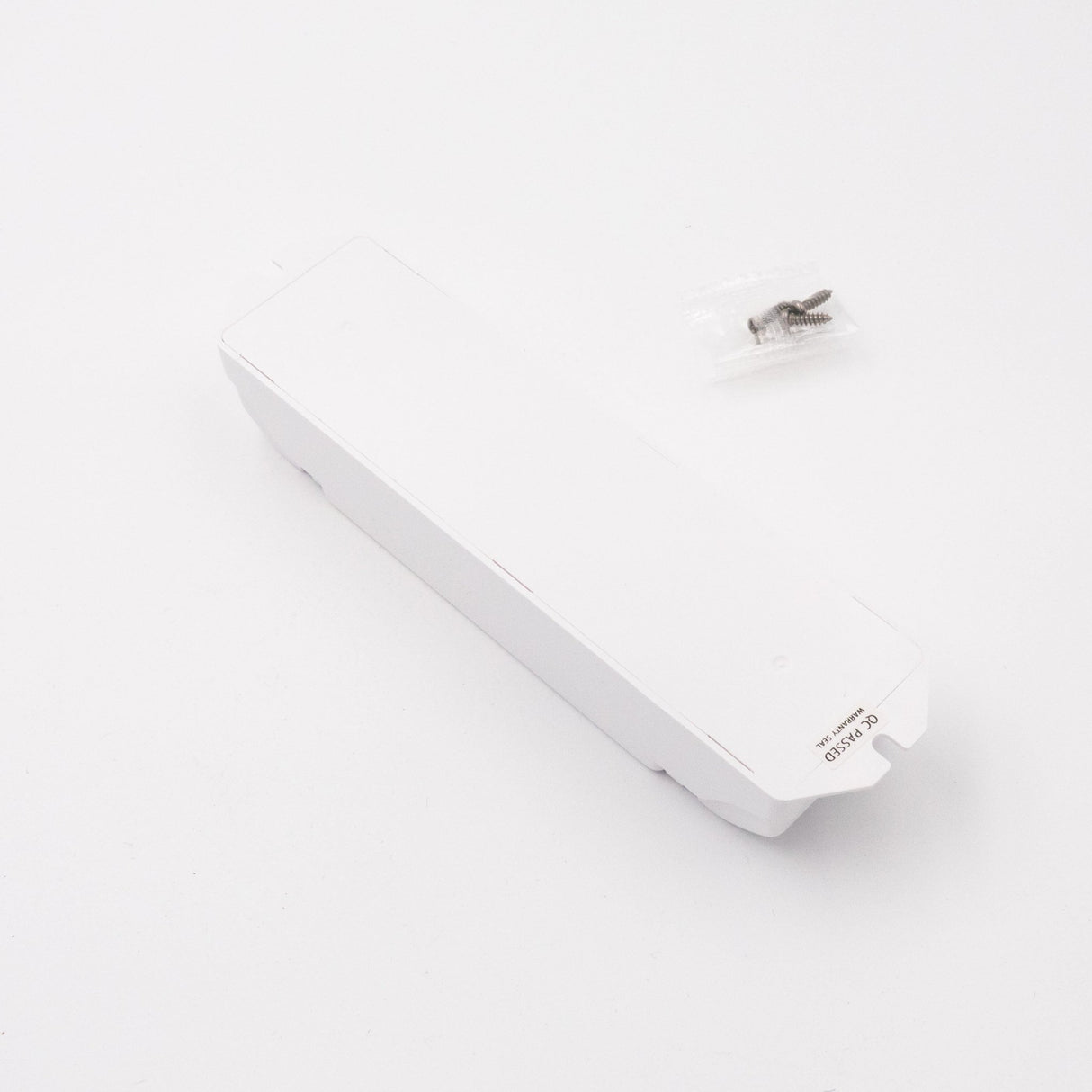

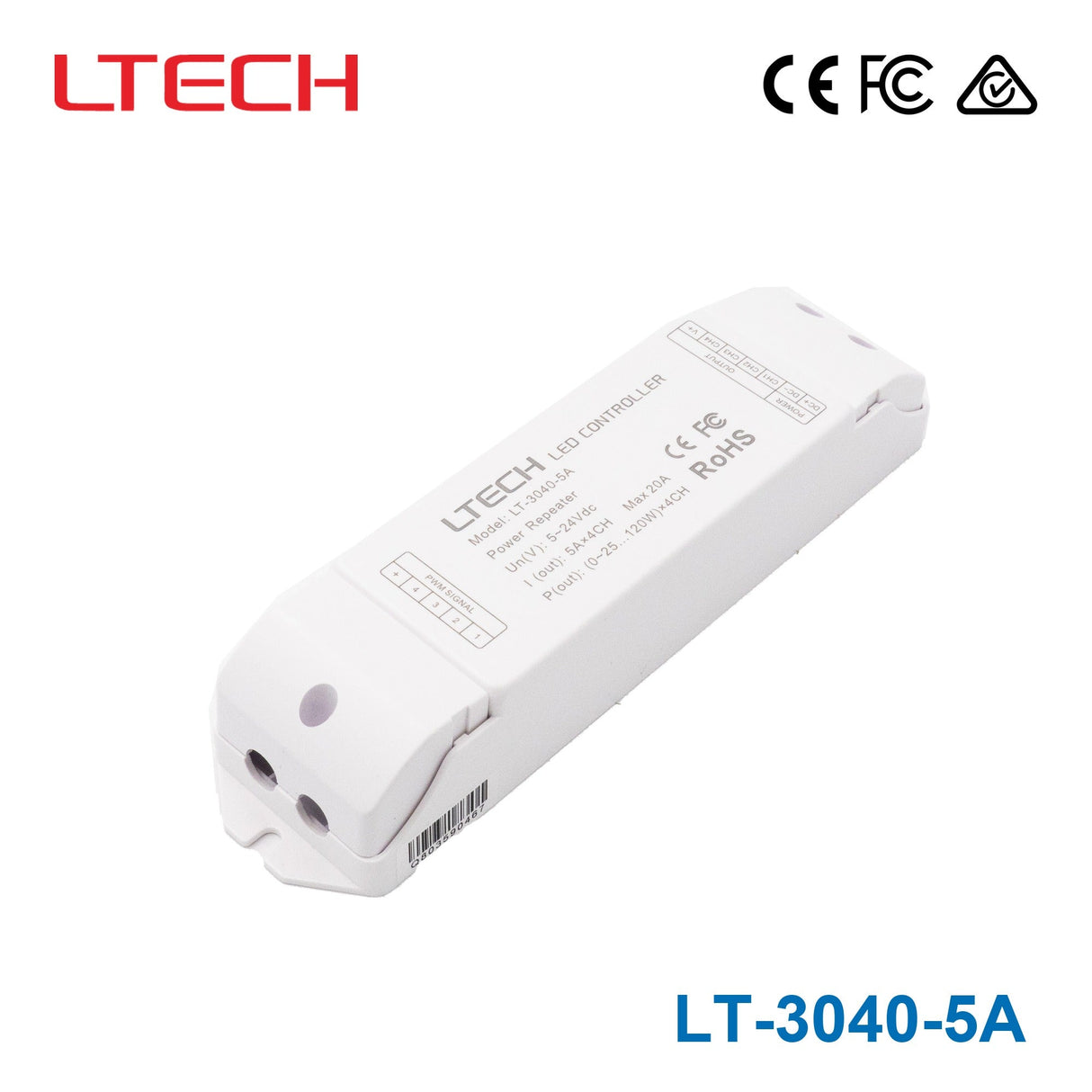

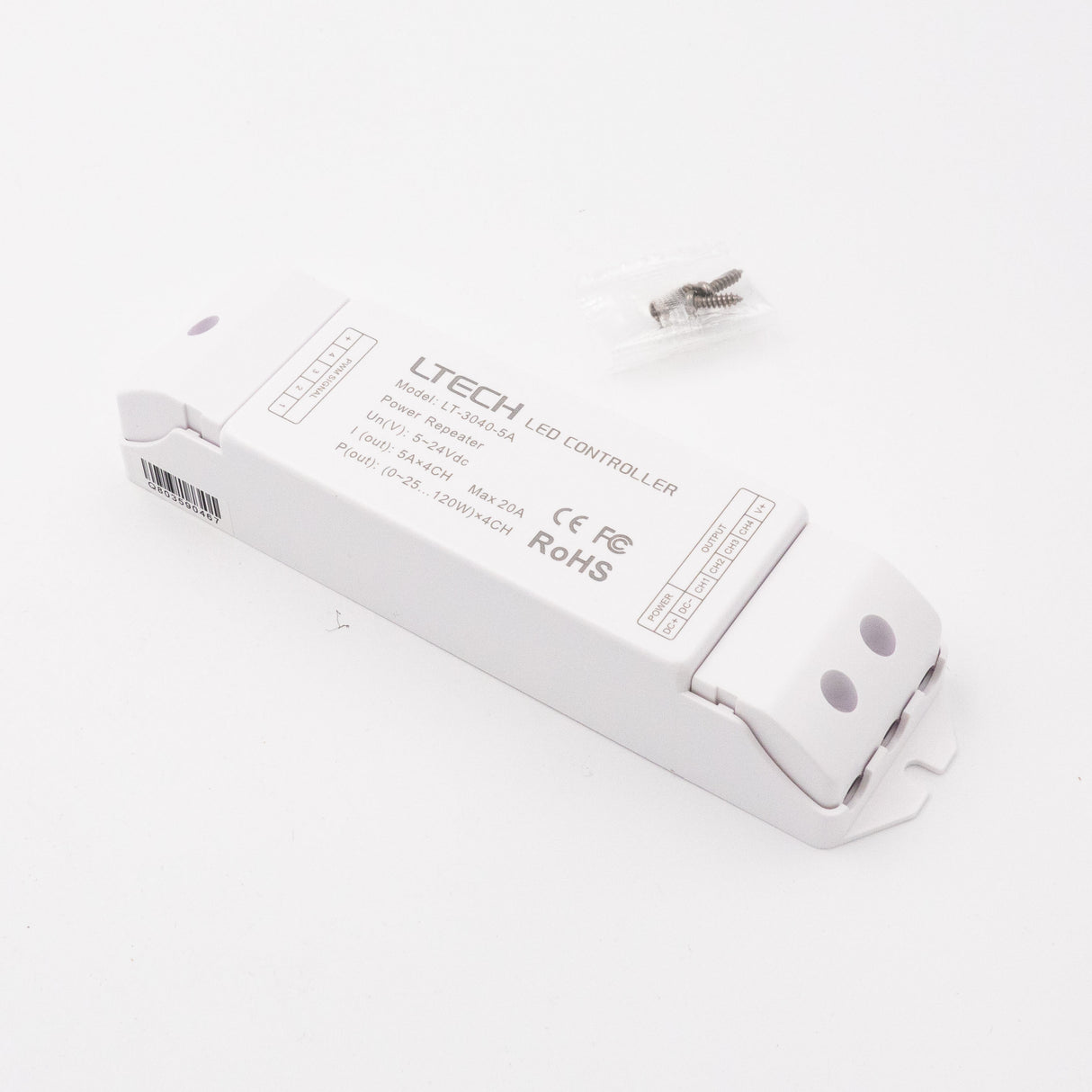

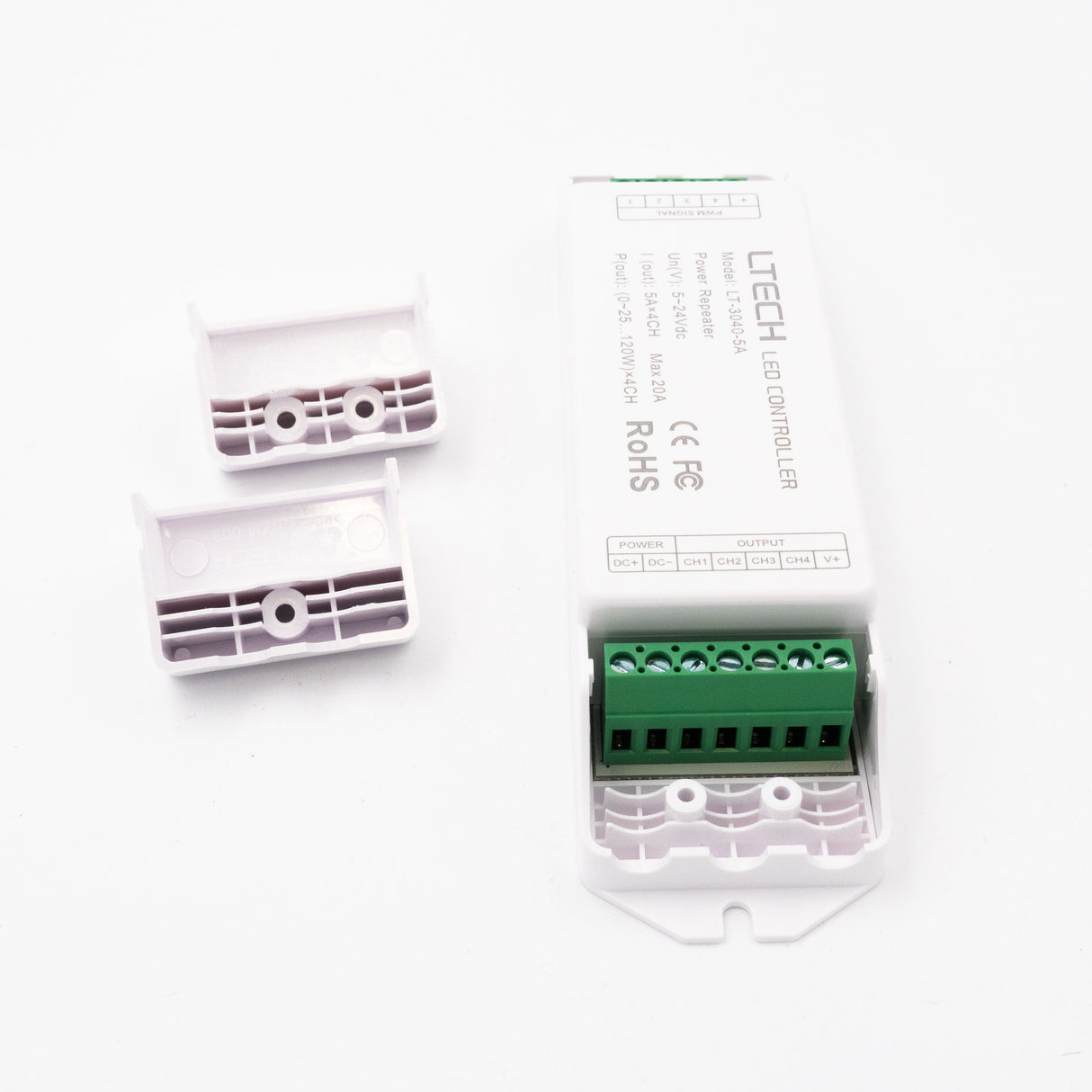

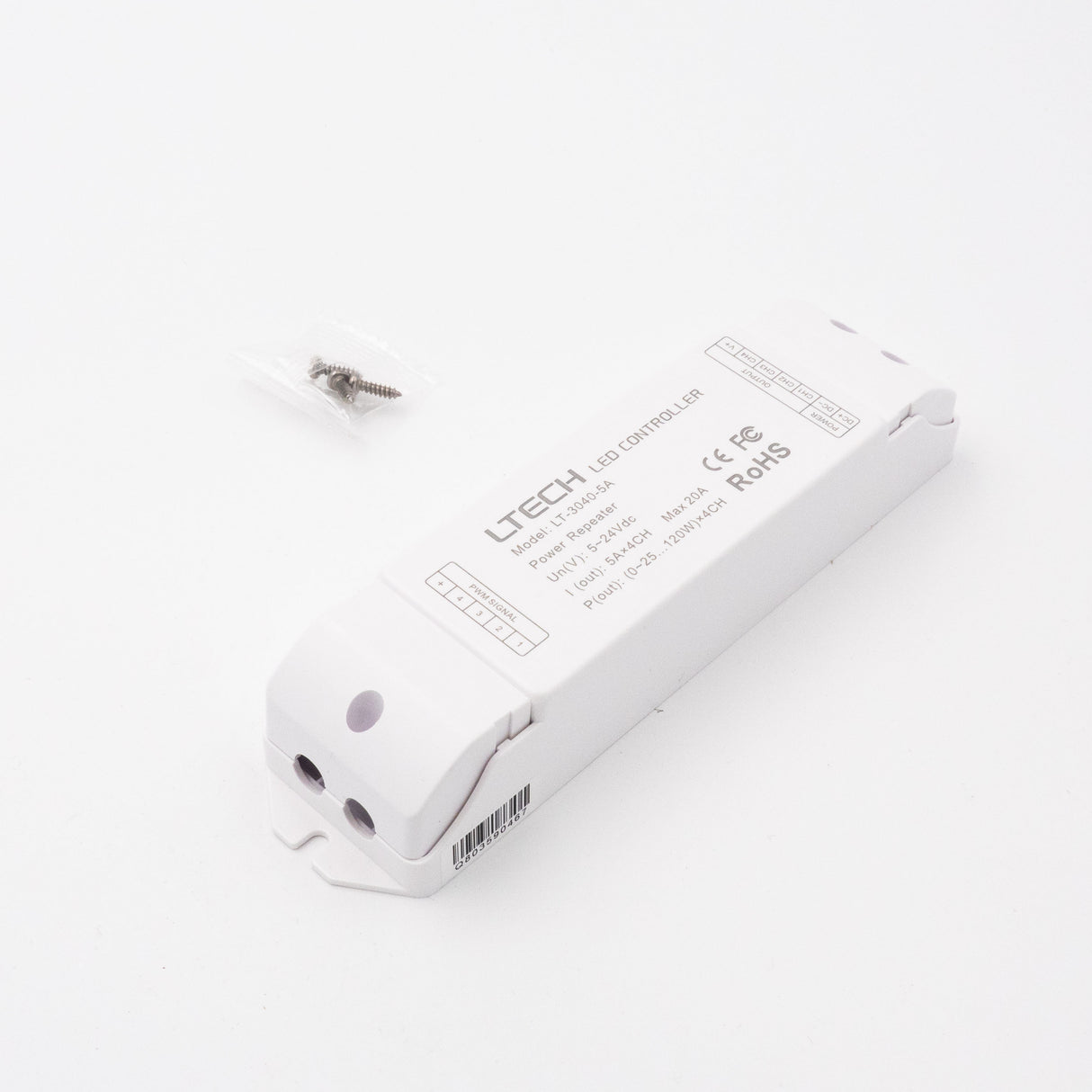

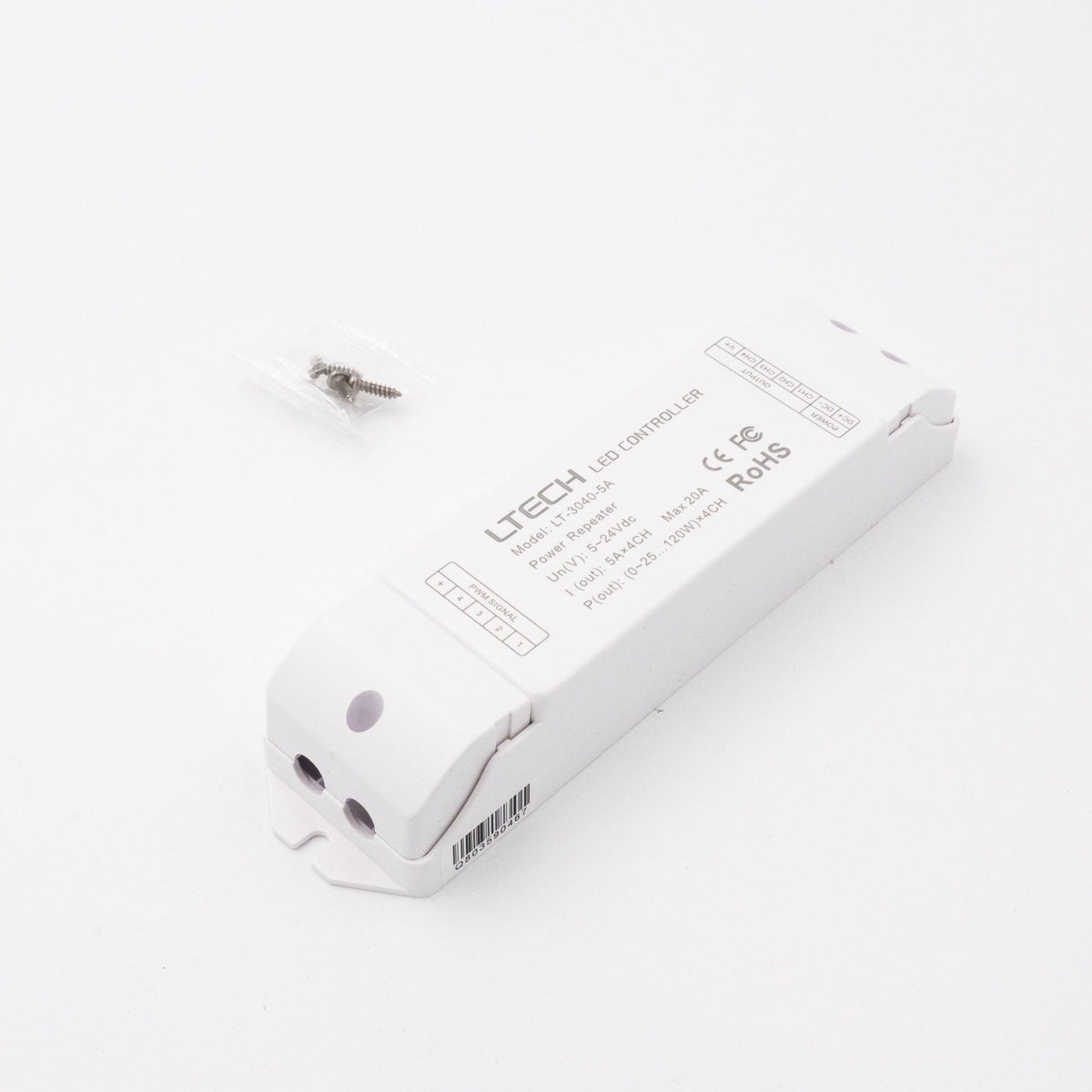

Ltech LT-3040-5A PWM Constant Voltage Repeater - RGBW
The LT-3040-5A is a PWM constant voltage repeater designed to expand the power capacity of compatible LED control systems. It is intended for RGBW applications and accepts PWM control so larger lighting loads can be supported without changing the control method.
Input 5~24VDC. 4 channels at 5A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 5~24VDC
- ✓Output signal: PWM
- ✓Output channels: 5A - 4 Channel
- ✓Maximum load: 5A per channel
- ✓Maximum total load: 480W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 175 x 44 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Repeater
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage5V~24V
-
No of Output4
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-3040-5A do in an LED control system?
The LT-3040-5A is a PWM constant voltage repeater designed to expand the power capacity of compatible LED control systems. It is intended for RGBW applications and accepts PWM control so larger lighting loads can be supported without changing the control method.
What voltage and power rating does the LT-3040-5A support?
This model is rated for 24 V output voltage and up to 480 W total power. It also has a rated current of 20 A, which makes it suitable for higher-capacity constant voltage LED loads within that rating.
Is the LT-3040-5A compatible with RGBW LED control applications?
Yes. This repeater is specifically identified as an RGBW model, so it is intended for RGBW constant voltage LED control setups that use PWM control. Buyers looking for a repeater for single-color or different channel formats should confirm they are selecting the correct model family.
What kind of control signal does the LT-3040-5A use?
The LT-3040-5A accepts PWM control. That makes it appropriate for systems using PWM-based constant voltage LED control rather than products that rely on a different dimming method.
Can this repeater be used in demanding commercial environments?
It is built for a wide operating temperature range of -30 °C to 55 °C, which supports use in many demanding indoor or protected commercial environments. The unit also includes photoelectric isolation protection rated at 3 kV for signal input and output, as described by the manufacturer.
How does the LT-3040-5A compare with a standard LED controller?
A standard LED controller manages the control signal, while the LT-3040-5A is used to expand available output capacity in compatible PWM constant voltage systems. For buyers scaling up RGBW loads, this model is better understood as a power expansion repeater rather than a standalone dimming controller.
What warranty comes with the Ltech LT-3040-5A?
This model includes a 5-year warranty period. That can be useful for commercial buyers who want longer coverage on control components used in LED lighting projects.
