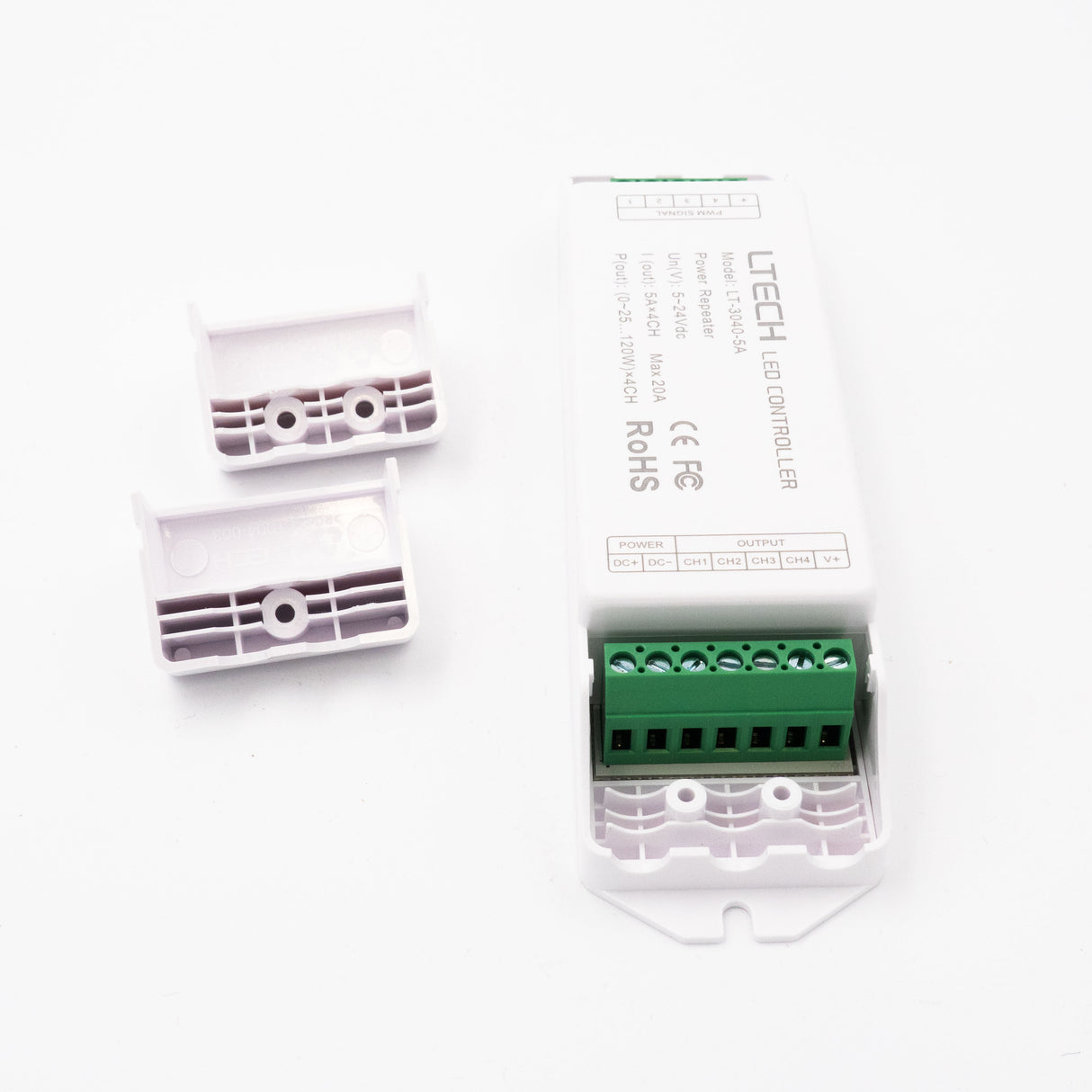

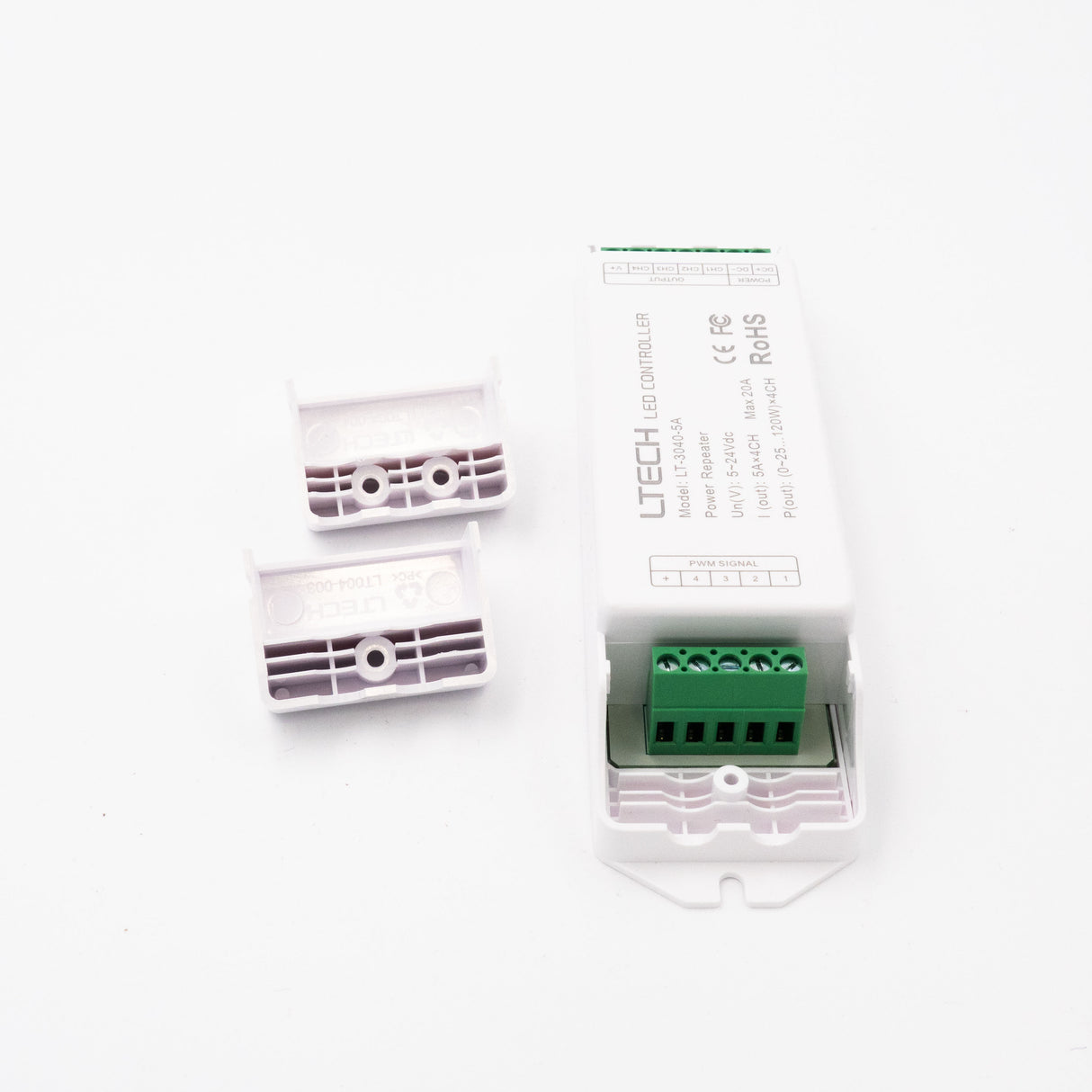

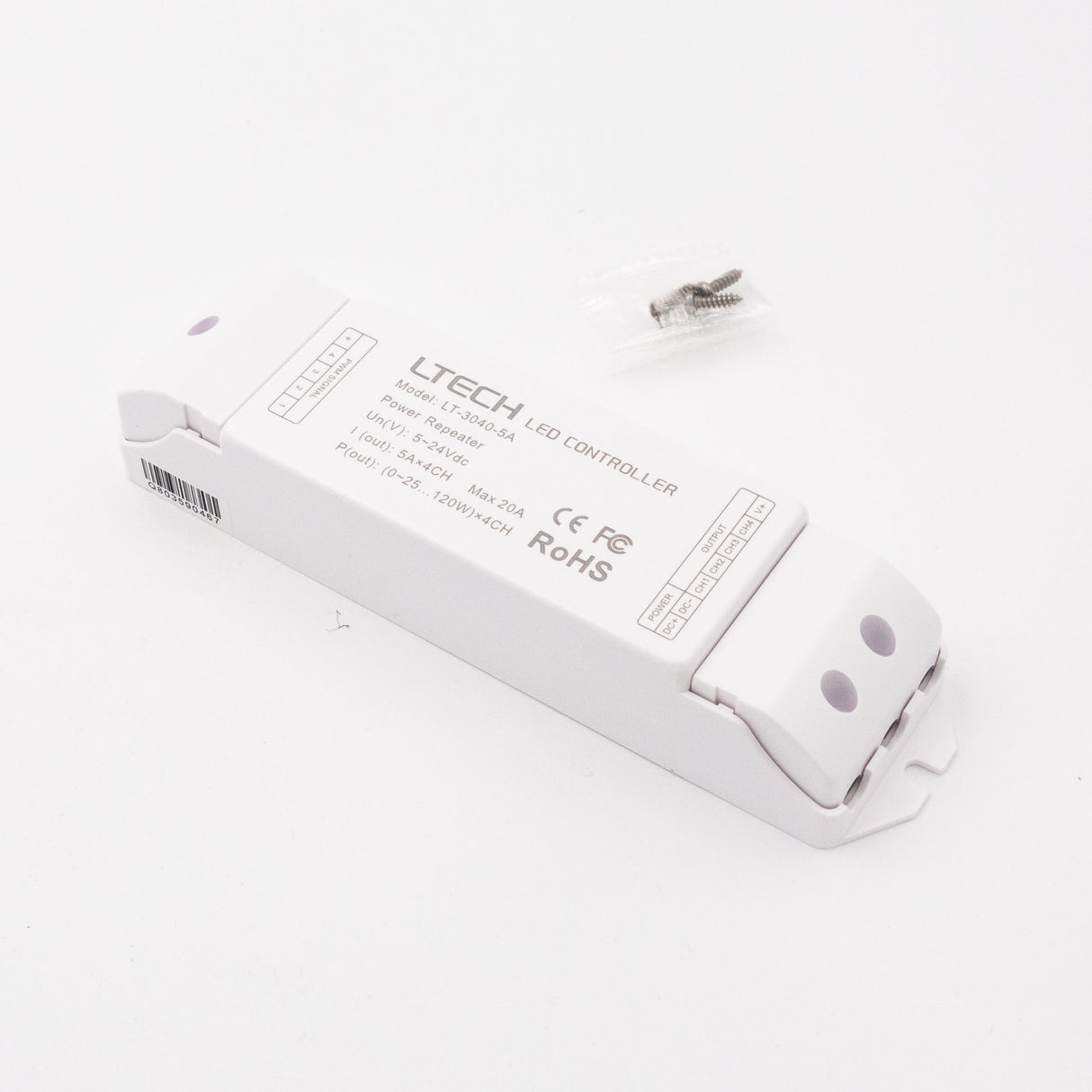

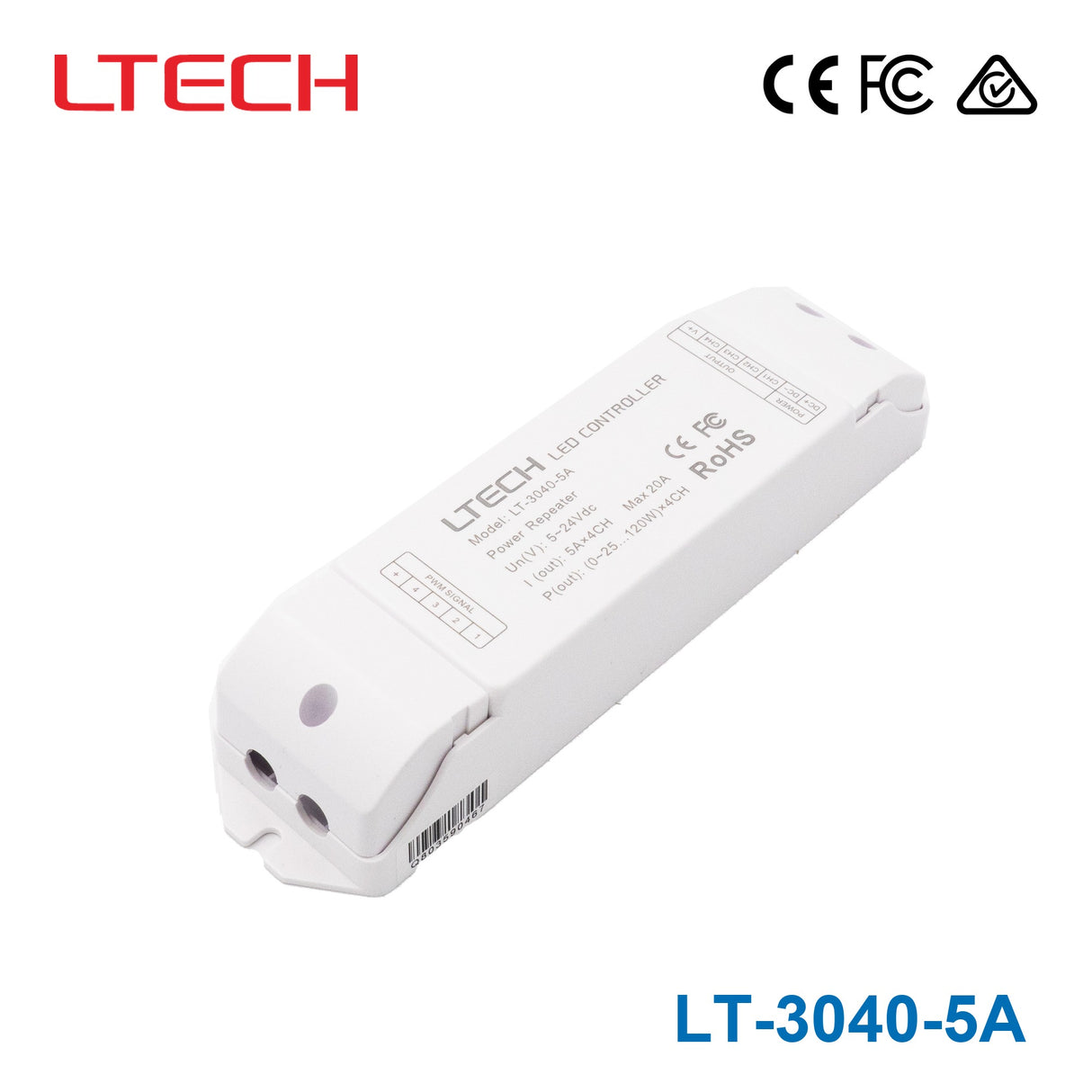

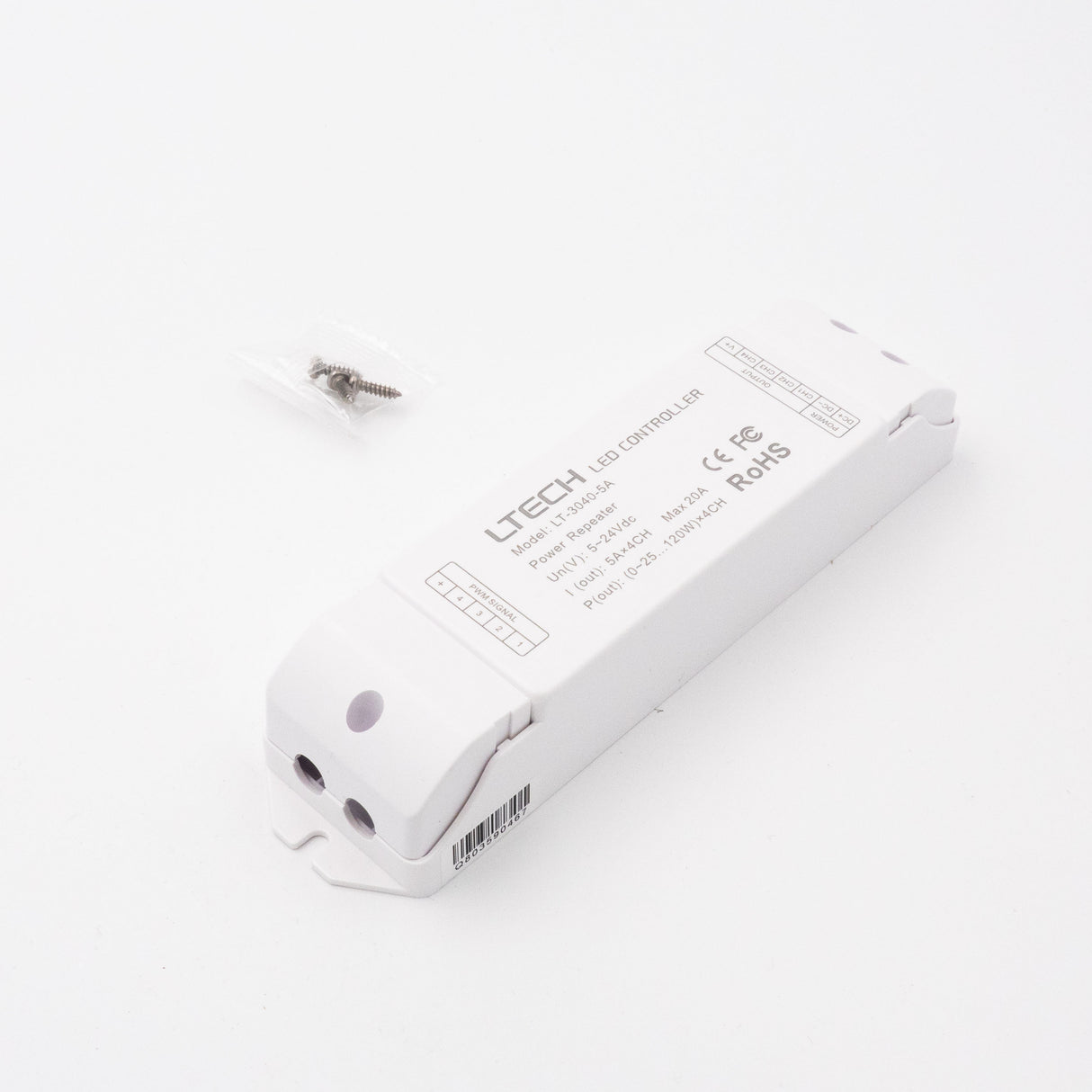

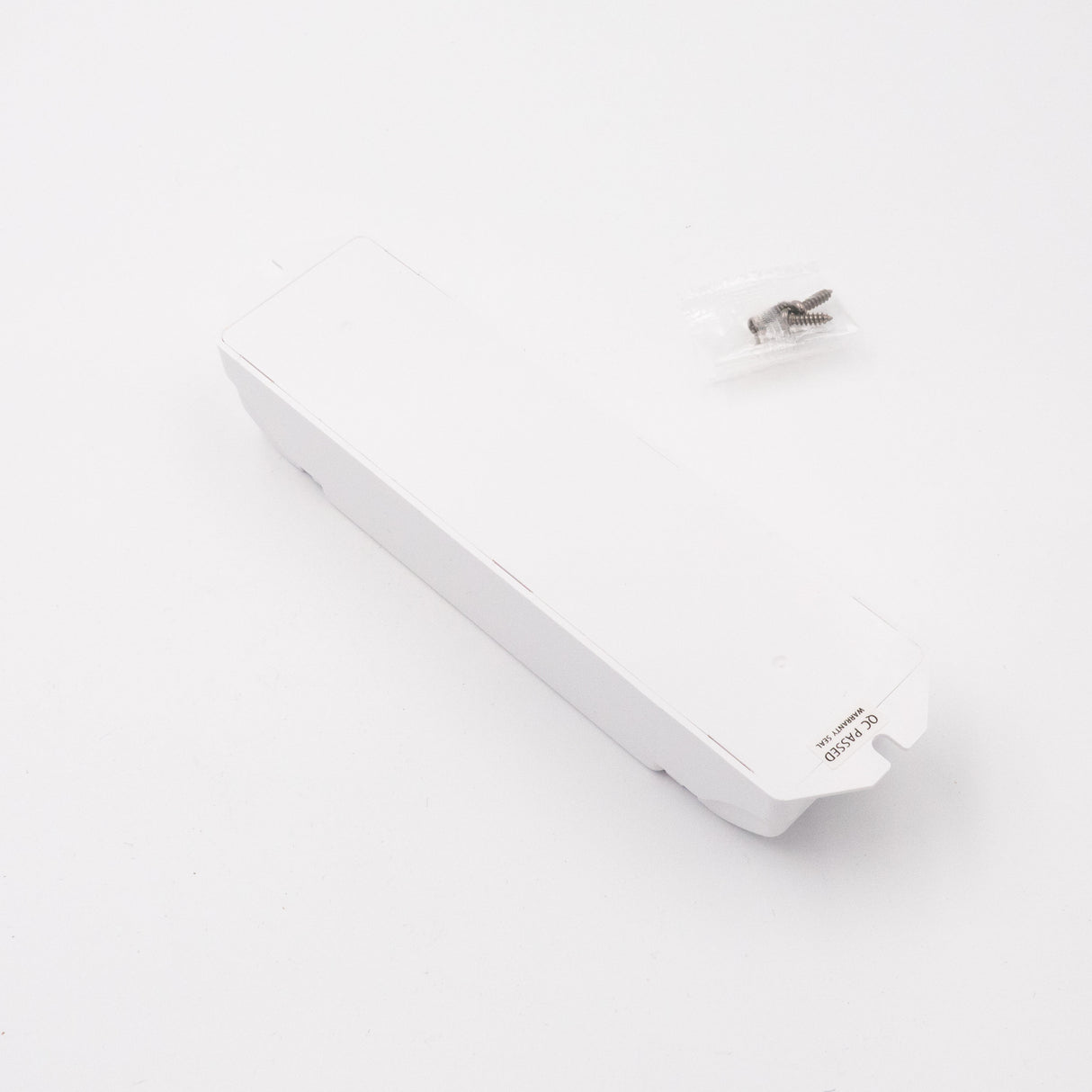

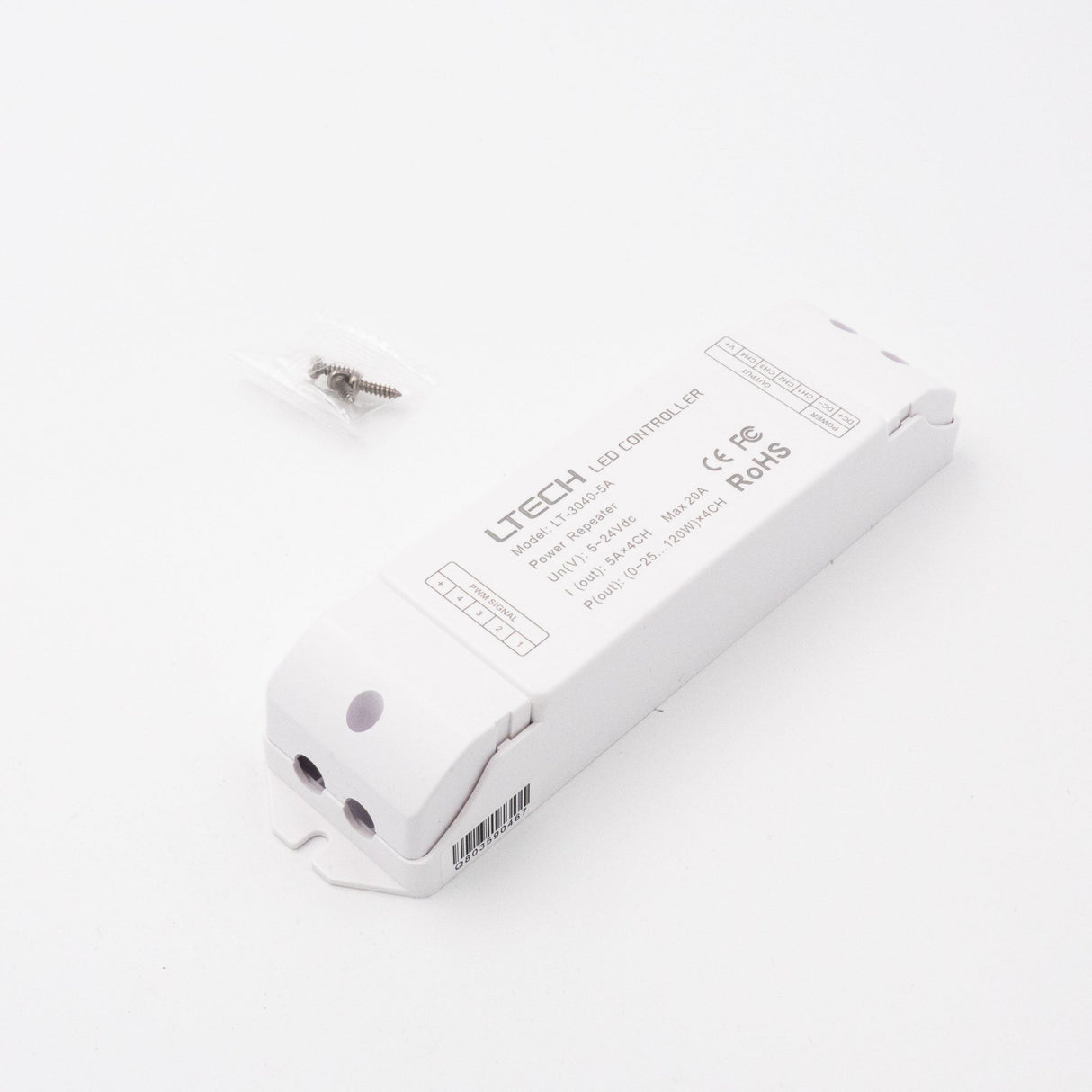

Ltech LT-3040-5A PWM Constant Voltage Repeater - RGBW
The LT-3040-5A is a PWM constant voltage repeater designed to expand the power capacity of compatible LED control systems. It is intended for RGBW applications and accepts PWM control so larger lighting loads can be supported without changing the control method.
Input 5~24VDC. 4 channels at 5A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 5~24VDC
- ✓Output signal: PWM
- ✓Output channels: 5A - 4 Channel
- ✓Maximum load: 5A per channel
- ✓Maximum total load: 480W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 175 x 44 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Repeater
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage5V~24V
-
No of Output4
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.33 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LT-3040 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Ltech LT-3040-CC PWM Constant Current Repeater - RGBW | 193.2W | — | — | Indoor | $42.75 | View |
