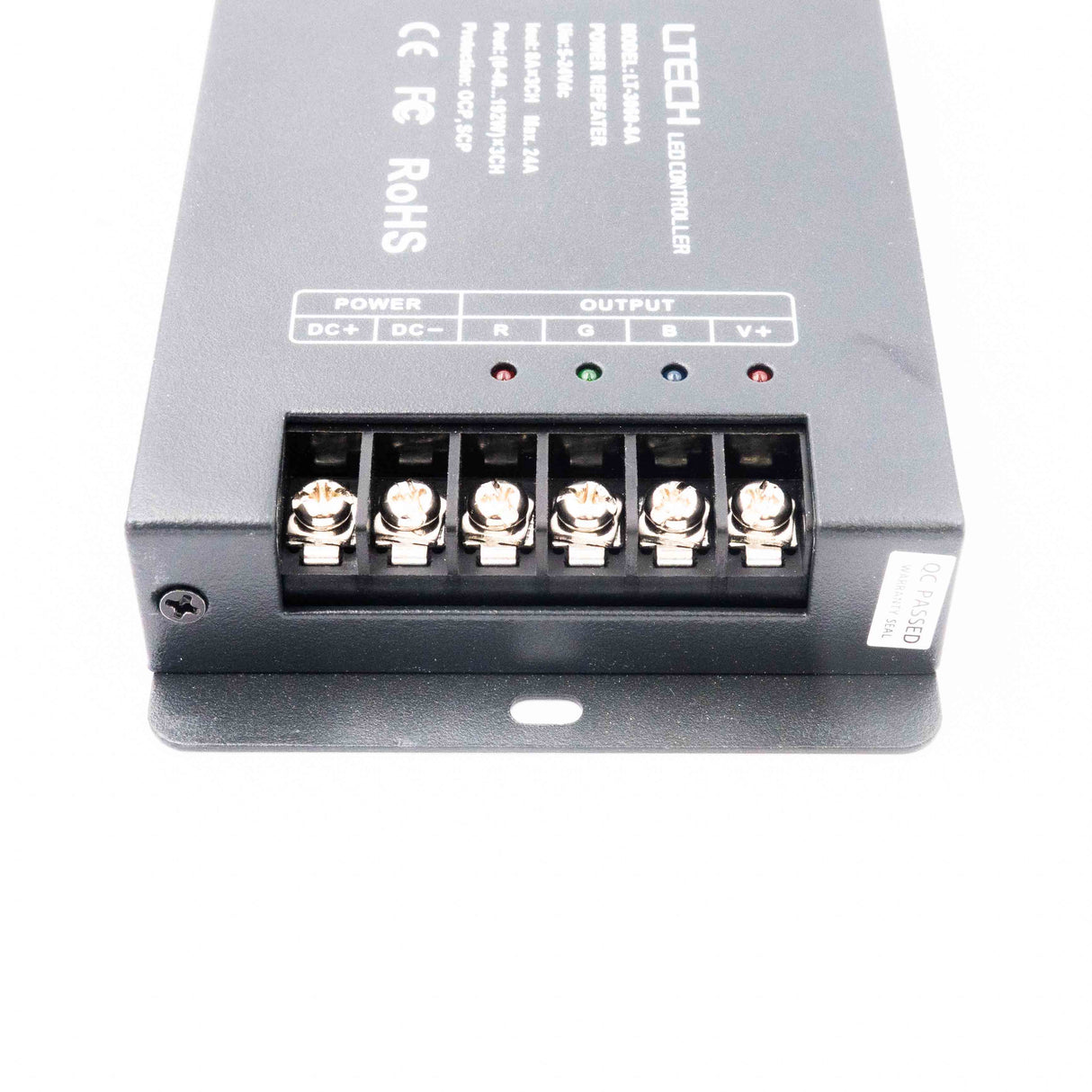

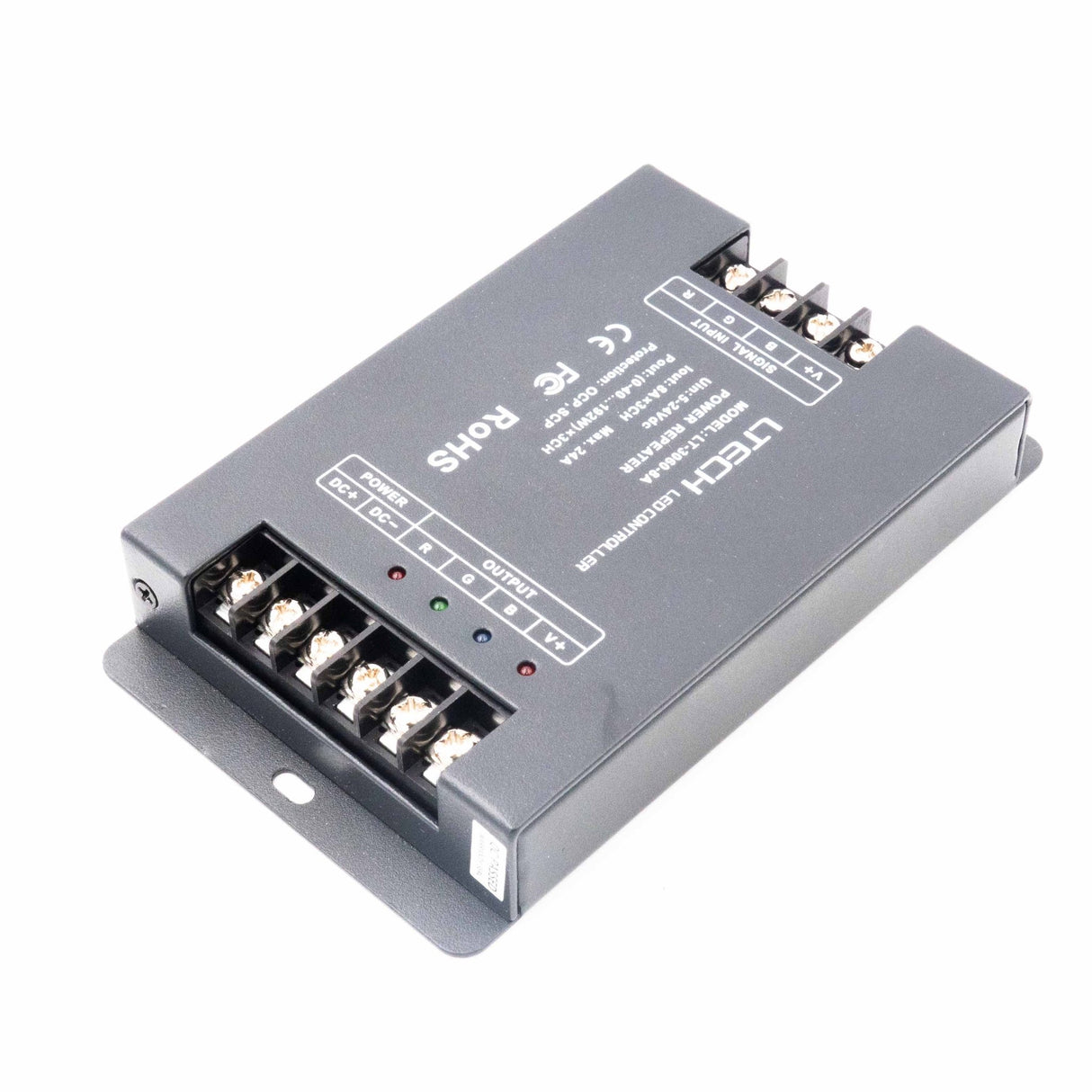

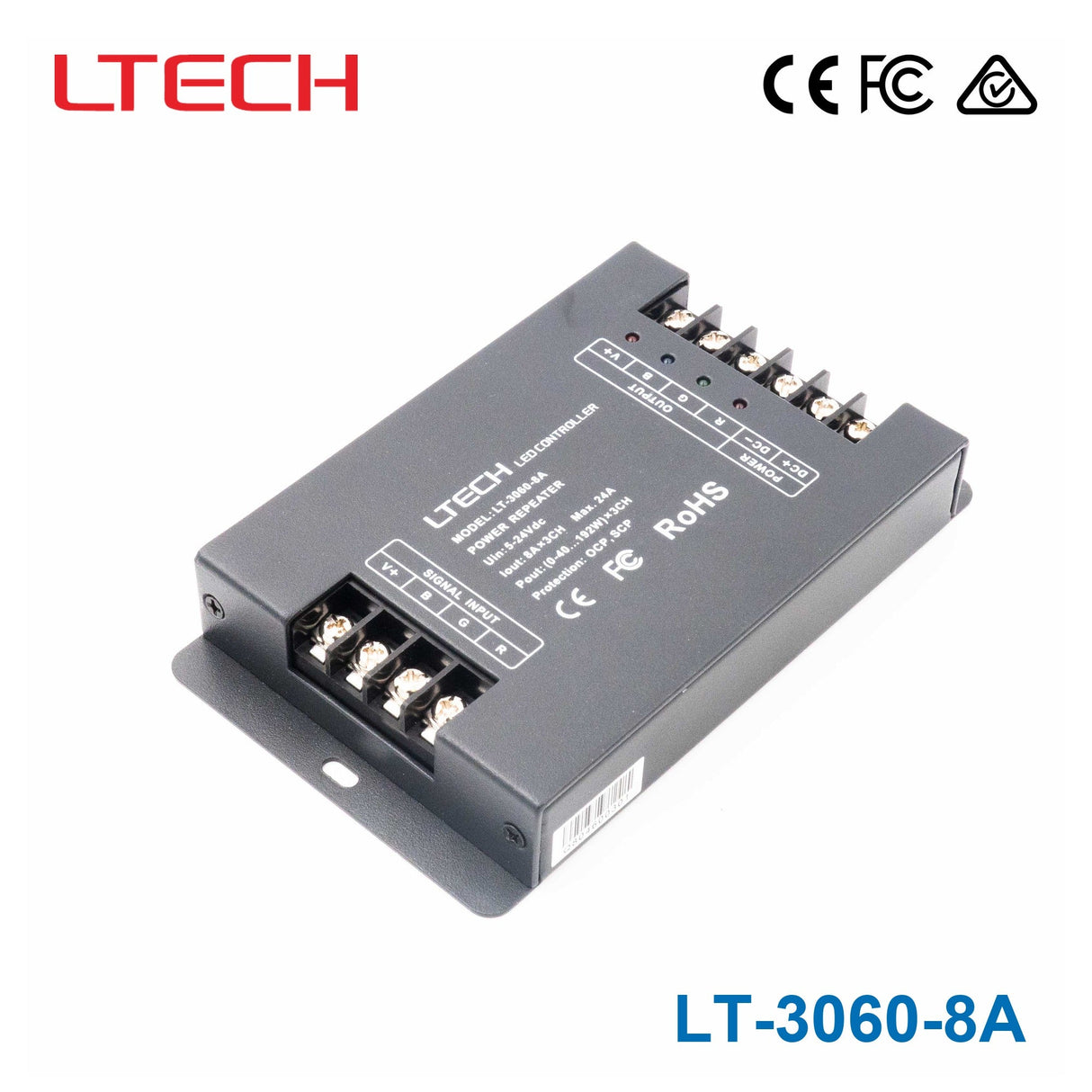

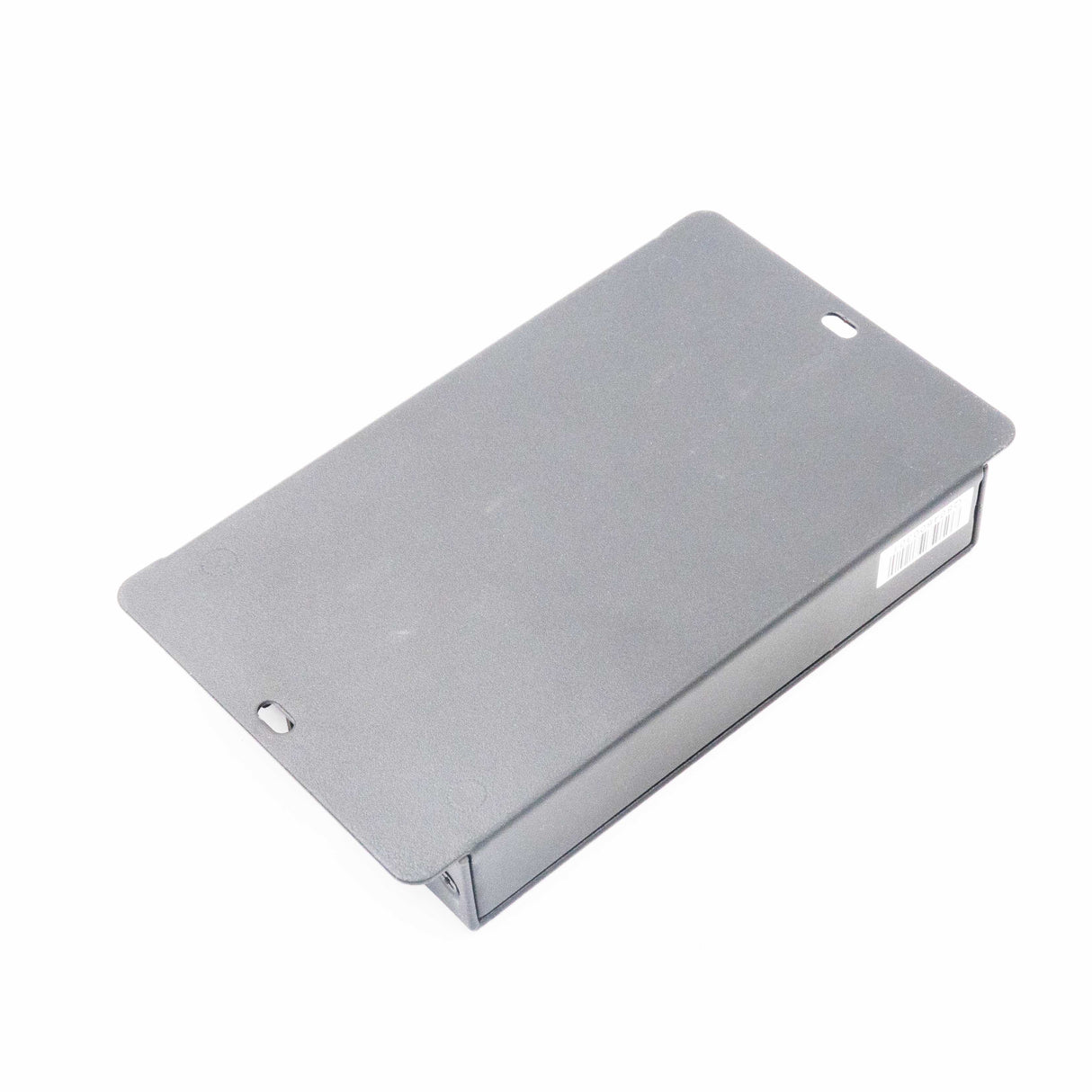

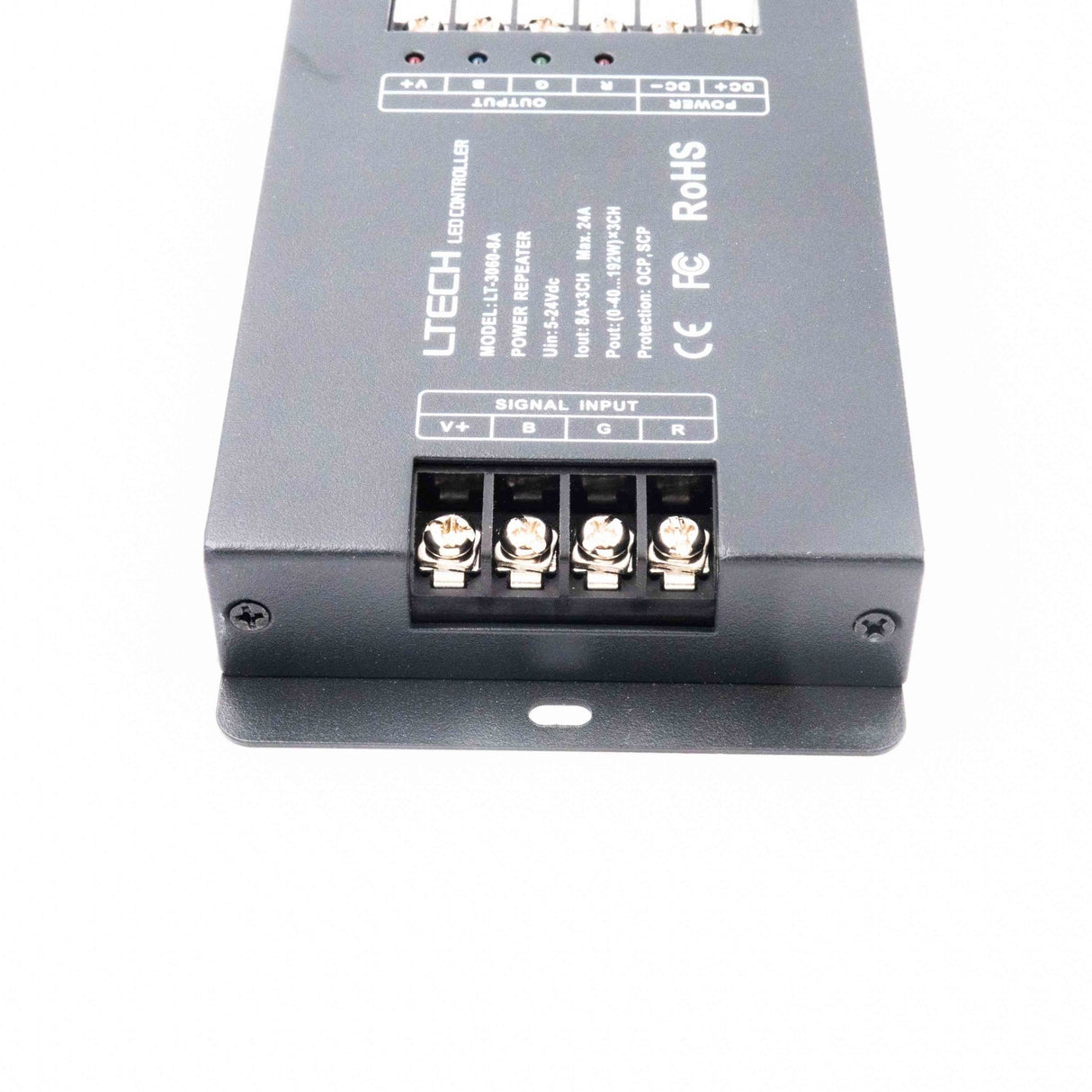

Ltech LT-3060-8A PWM Constant Voltage Repeater - RGB
The LT-3060-8A is a PWM constant voltage repeater designed to expand the output capacity of compatible LTECH LED control systems. This RGB model is used when a controller needs to handle more LED load than its original output can support.
Input 5~24VDC. 3 channels at 8A each. Operating temperature -30~+65°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 5~24VDC
- ✓Output signal: PWM
- ✓Output channels: 8A - 3 Channel
- ✓Maximum load: 8A per channel
- ✓Maximum total load: 576W
- ✓Operating temperature: -30~+65°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 148 x 87 x 23mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Repeater
-
Power Rating576 Watt
-
Output Voltage24 Volt
-
Rated Current24 Ampere
-
Input Voltage5V~24V
-
No of Output3
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length5.83 in
-
Width3.43 in
-
Height0.91 in
-
Weight0.84 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-3060-8A do?
The LT-3060-8A is a PWM constant voltage repeater designed to expand the output capacity of compatible LTECH LED control systems. This RGB model is used when a controller needs to handle more LED load than its original output can support.
Is the LT-3060-8A a standalone LED controller?
No. The LT-3060-8A is a repeater, not a standalone controller, so its role is power expansion within a PWM-controlled LED system. It is intended to extend the controlled LED quantity for compatible LTECH control types such as DIM, CT, and RGB systems.
What are the electrical ratings of the LT-3060-8A?
This model is rated for 24 V output voltage, 24 A rated current, and 576 W power. Those specs make it suitable for higher-load constant-voltage LED applications that need output expansion.
What type of LED systems is this repeater compatible with?
According to the product description, it is suitable for LTECH power-type LED controller expansion and accepts PWM control. It is described as supporting DIM, CT, and RGB controller power expansion, with this specific model identified as an RGB repeater.
Can the LT-3060-8A be used in demanding commercial environments?
It is built for a wide operating temperature range of -30°C to 65°C, which supports use in challenging environments. The unit also includes short circuit, over current, and anti-reverse connection protection for added operating safety.
Does the LT-3060-8A include a warranty?
Yes. The listed warranty period for the LT-3060-8A is 5 years. That can be a useful consideration for buyers specifying components for long-term commercial or professional LED projects.
