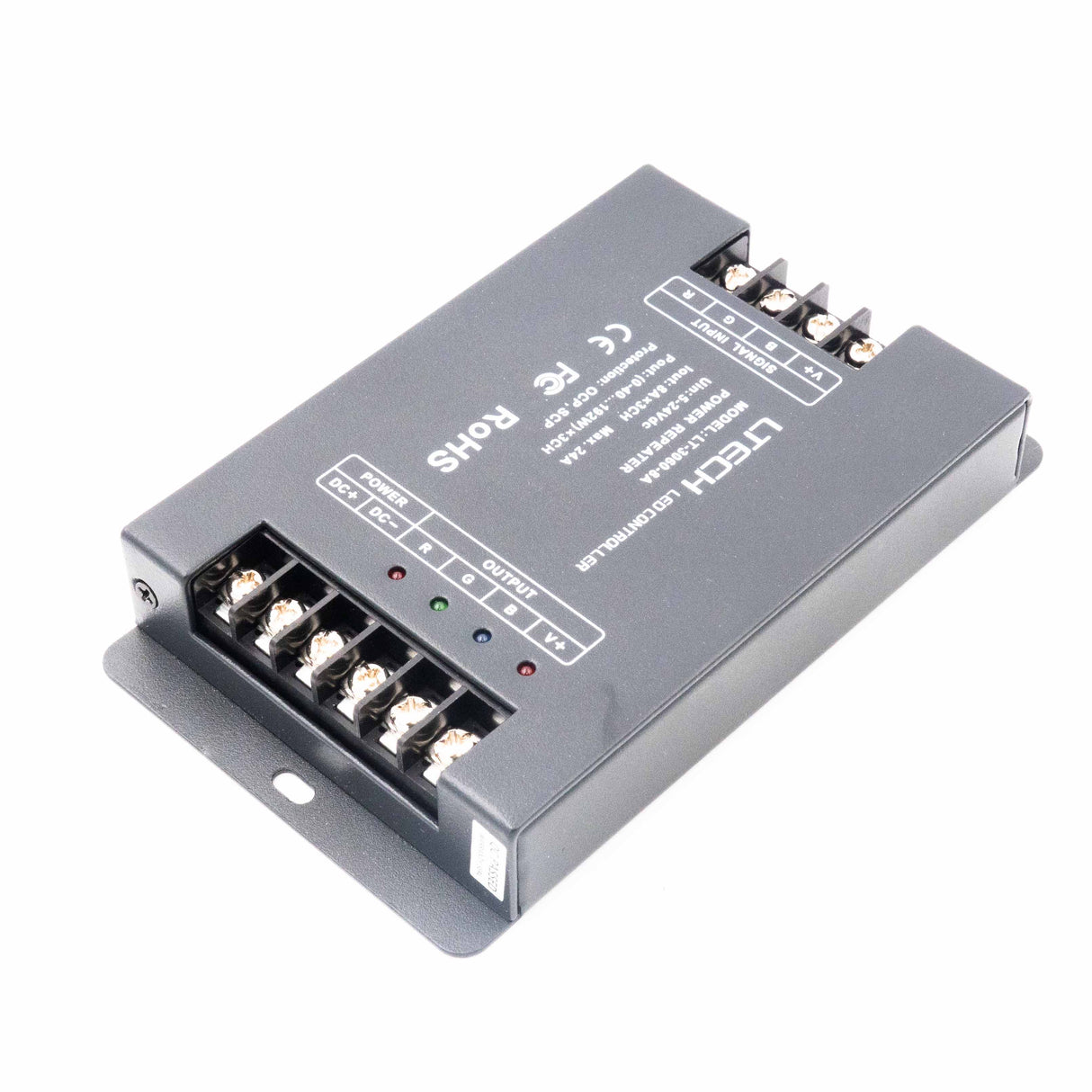

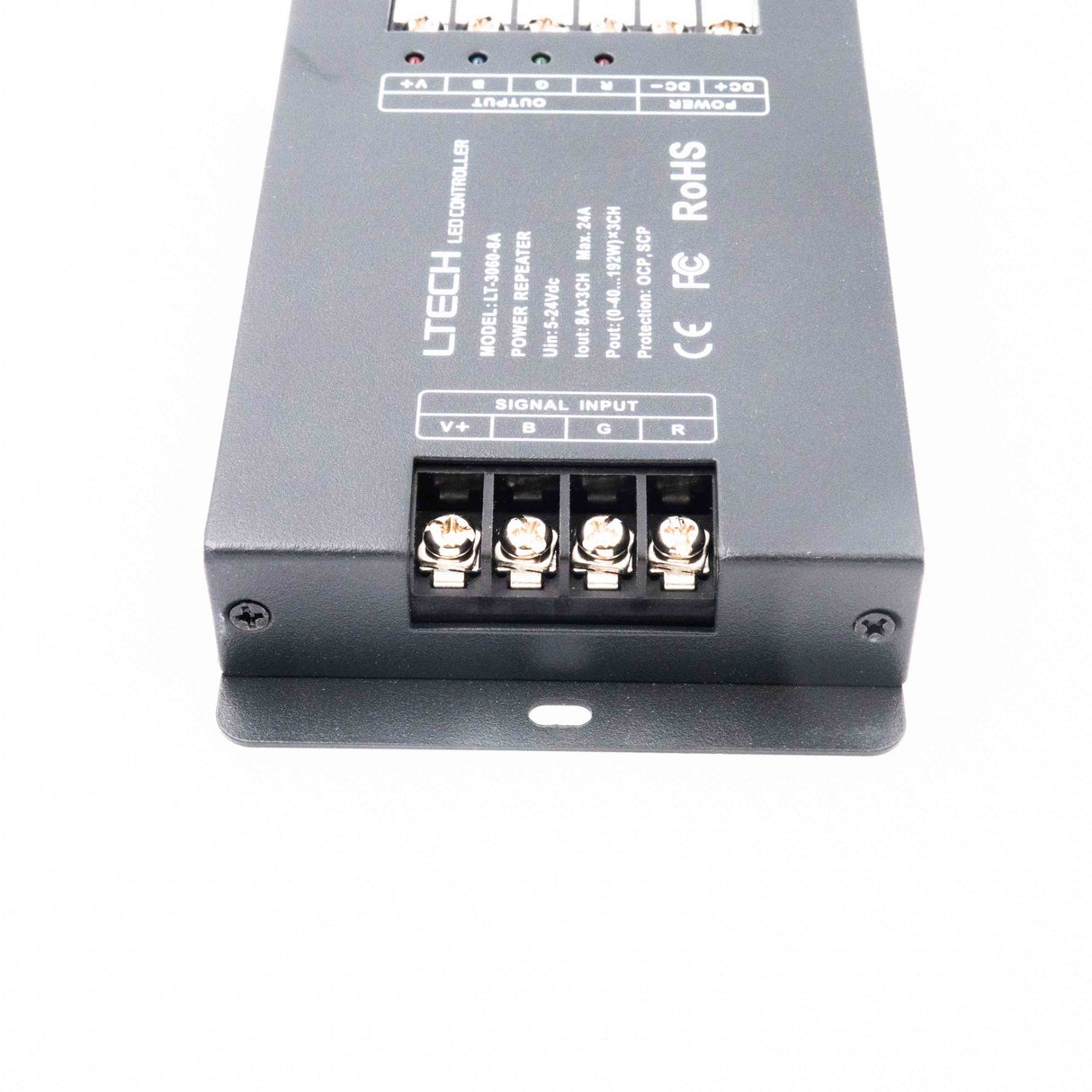

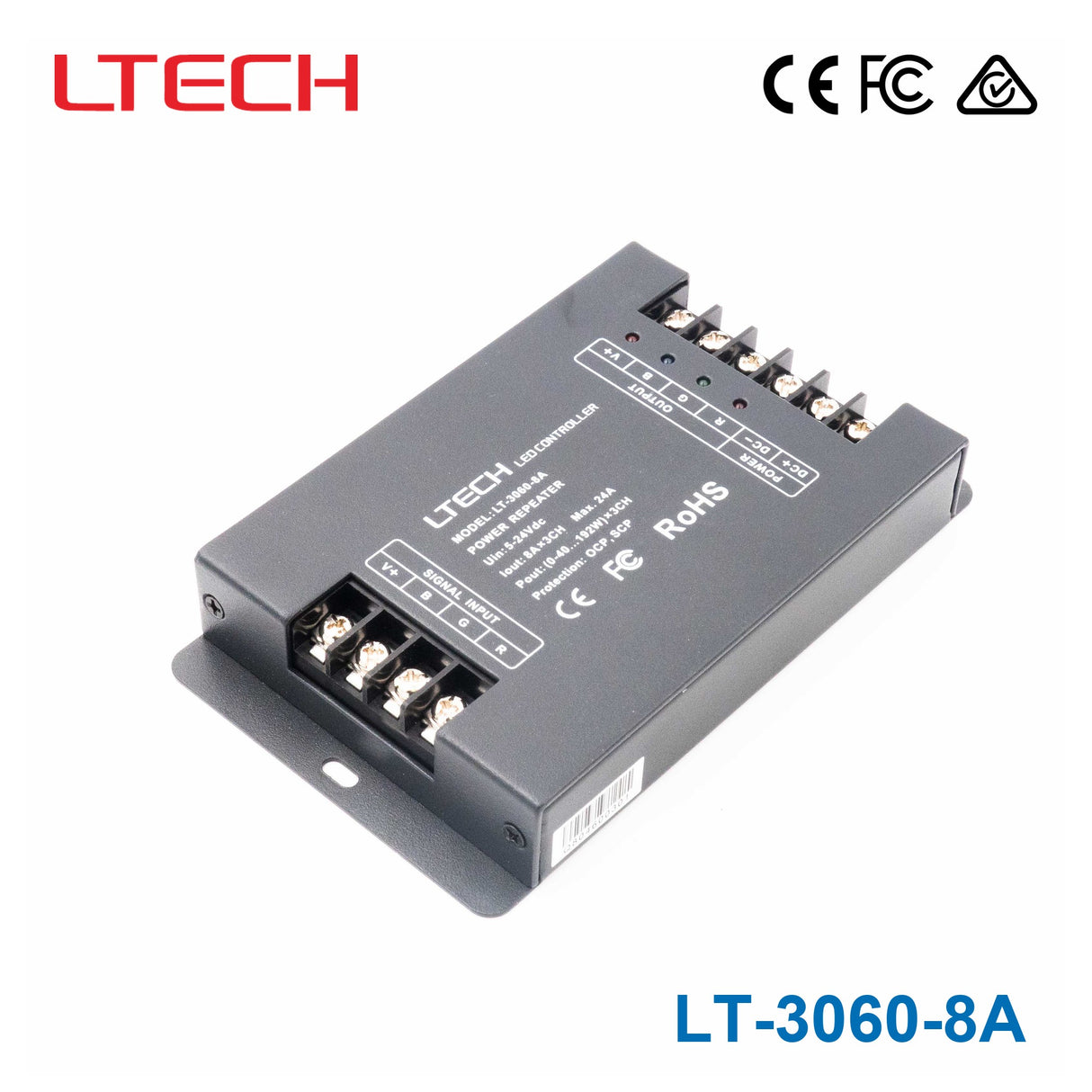

Ltech LT-3060-8A PWM Constant Voltage Repeater - RGB

$58.92 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

LED power repeater is suitable for all of LTECH power types(DIM,CT,RGB) LED controller’s power expansion. It accepts PWM control. The controlled LED quantities would be double or triple by adding one more power repeater. Unlimited power repeaters could be connected theoretically. It has Short circuit/Over current/anti-reverse connection safety protection. Constant voltage and constant current LED power repeater can be mixed connect, facilitate different voltage, high power and low power LED lamps controlled by one controller.

Specifications

  • Brand
    Ltech
  • Series
    Ltech Repeater
  • Power Rating
    576 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    24 Ampere
  • Input Voltage
    5V~24V
  • No of Output
    3
  • Dimming Control
    None
  • Standards Met
    CE,FCC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~65°C
  • Warranty
    5 Year
  • Length
    5.83 in
  • Width
    3.43 in
  • Height
    0.91 in
  • Weight
    0.84 lb
