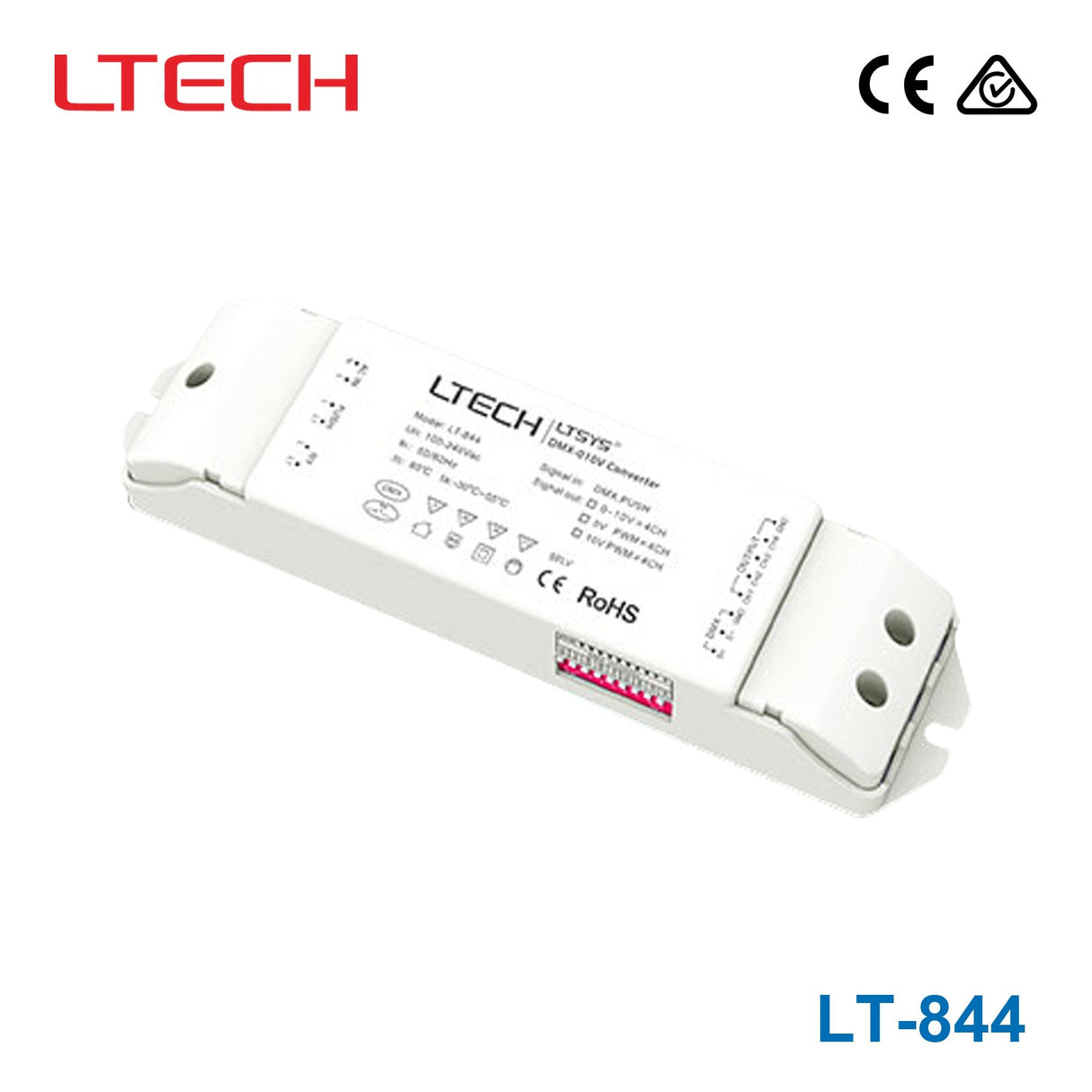

Ltech LT-844 Signal Converter - DMX/Push to PWM/0-10V
- Dimming interface: DMX/RDM
- Push Dim.
- Option
- output: 0-10V
- 5V PWM
- 10V PWM.
- With the RDM remote device management protocol.
- Supports DMX512 signal bi-directional. communication.
- 4 channels output.
- Built-in relay for ON/OFF control of LED driver
- Dimming range: 0-100%.
- Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor environments.
-
BrandLtech
-
SeriesLtech Signal Converter
-
Input Voltage100V~240V
-
No of Output4
-
Dimming ControlDMX,Push Dimming
-
Standards MetCE,RCM
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.26 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-844 do?
The Ltech LT-844 is a signal converter that takes DMX/RDM or Push Dim control input and provides dimming output in either 0-10V, 5V PWM, or 10V PWM. It is designed for applications that need a compact controller for translating lighting control signals into common dimming formats.
What control methods are supported on the LT-844?
This model supports DMX, RDM, and Push Dim control. It also supports bi-directional DMX512 signal communication and includes RDM remote device management functionality.
What output types are available on the LT-844?
The LT-844 offers output options for 0-10V, 5V PWM, and 10V PWM dimming. That makes it suitable for projects where the downstream equipment requires one of those standard control signal types.
How many channels does the Ltech LT-844 provide?
The LT-844 provides 4 output channels. It also includes a built-in relay for ON/OFF control of an LED driver, which can be useful in commercial lighting control applications.
Is the LT-844 suitable for indoor commercial environments?
Yes, this model is intended for indoor environments and uses a full protective plastic housing. It is rated for operation from -30°C to 55°C and is compliant with Safety Extra Low Voltage standards.
What is the dimming range of the Ltech LT-844?
The LT-844 supports a dimming range from 0% to 100%. This allows full-range dimming control for compatible lighting systems using its supported output formats.
