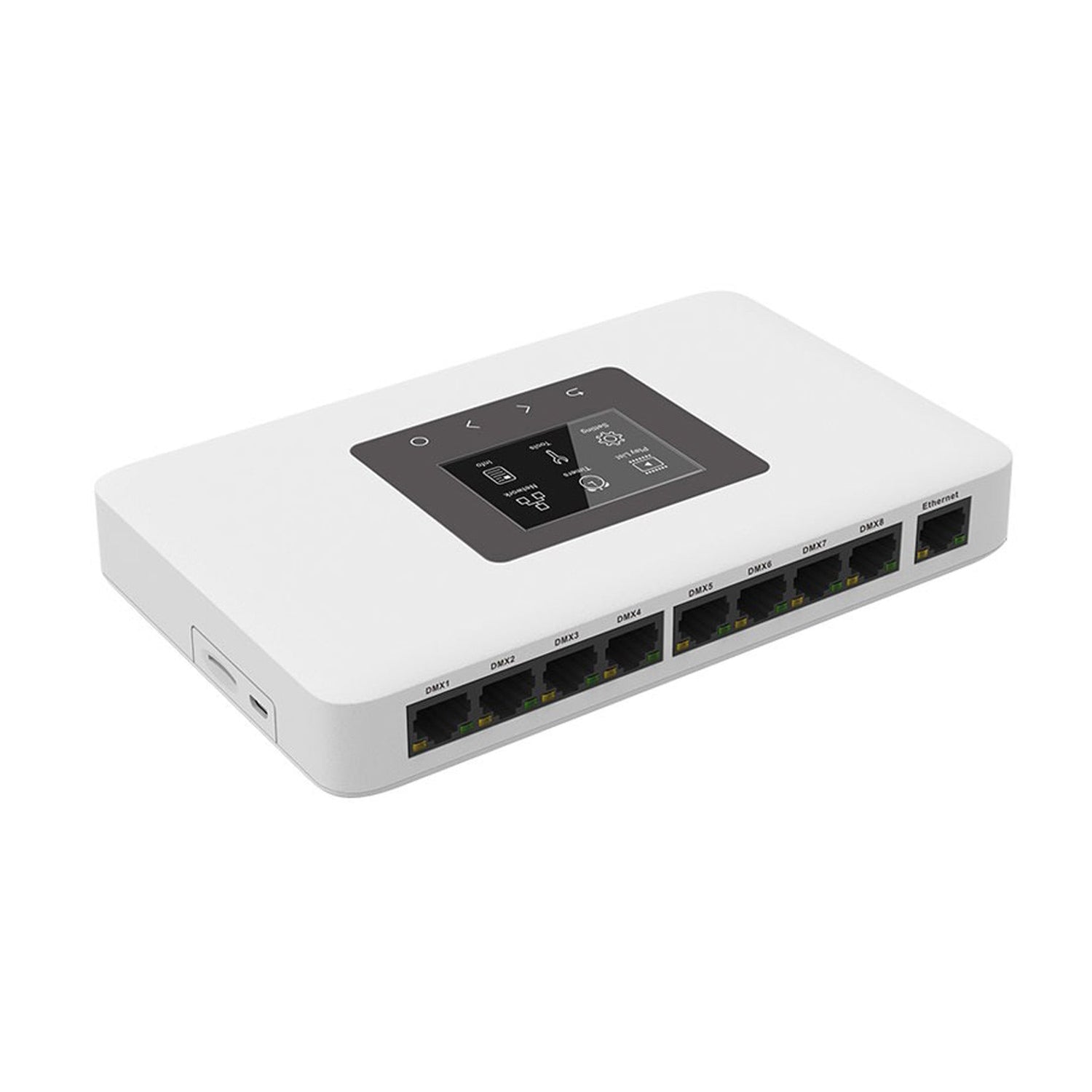

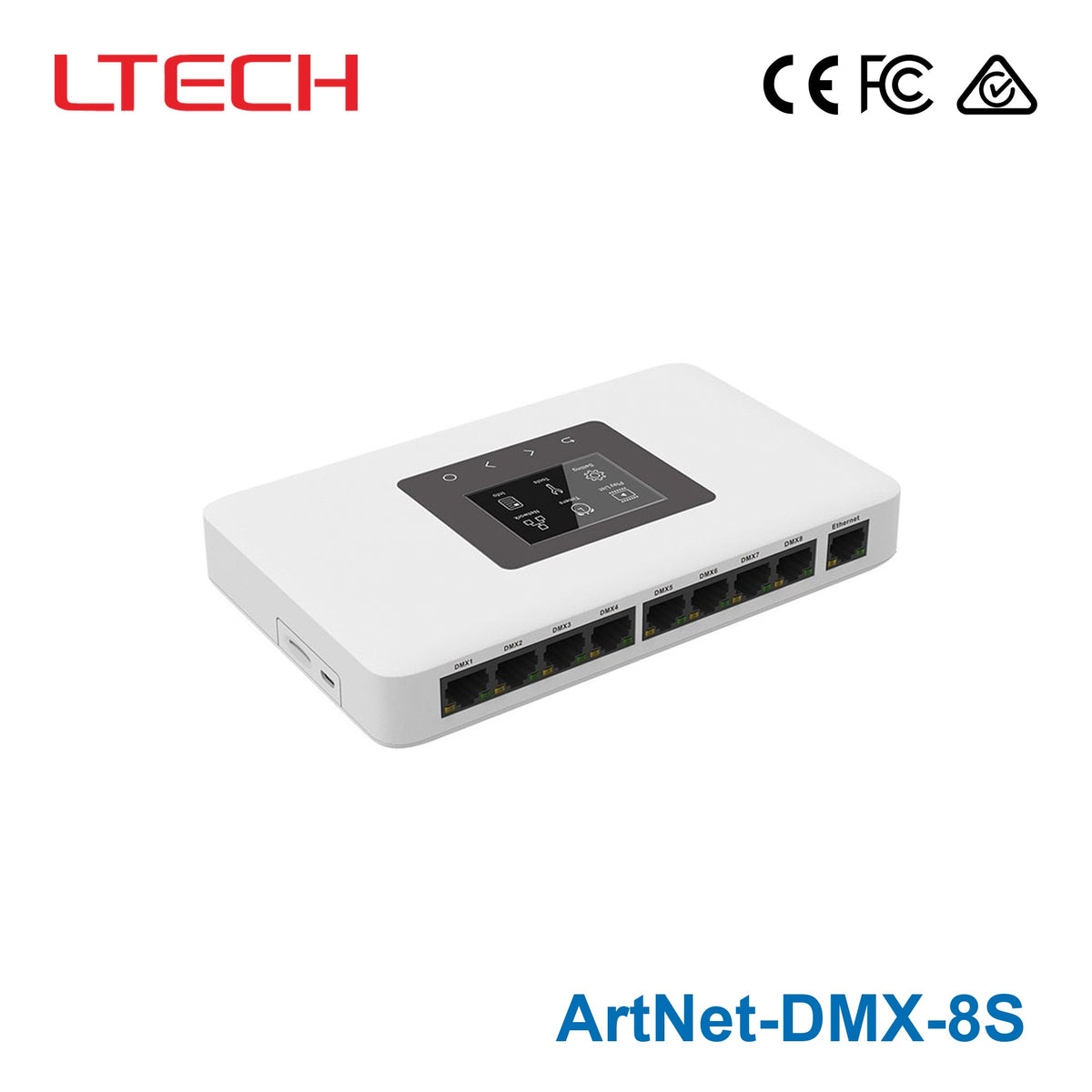

Ltech Artnet-DMX-8S Signal Converter - Ethernet to DMX
The Ltech Artnet-DMX-8S is designed to convert Art-Net network data into DMX512 data for lighting control systems. It is intended for applications that need Ethernet-based control with DMX output, including LED dot matrix projects and stage lighting networks.
Input 5VDC. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 5VDC
- ✓Control protocol: Ethernet
- ✓Output signal: DMX Signal
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 185 x 115 x 29mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Signal Converter
-
Input Voltage5V~5V
-
No of Output8
-
Dimming ControlEthernet
-
Standards MetCE,FCC,RCM
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length7.28 in
-
Width4.53 in
-
Height1.14 in
-
Weight0.88 lb
::specification::
Frequently Asked Questions
What does the Ltech Artnet-DMX-8S Signal Converter do?
The Ltech Artnet-DMX-8S is designed to convert Art-Net network data into DMX512 data for lighting control systems. It is intended for applications that need Ethernet-based control with DMX output, including LED dot matrix projects and stage lighting networks.
What types of projects is the ArtNet-DMX-8S best suited for?
This model is well suited for commercial and professional lighting environments that need to handle large amounts of DMX512 data. Typical use cases mentioned for this converter include TV station recorded scenes, stage performances, entertainment venues, and LED dot matrix control systems.
Is the ArtNet-DMX-8S compatible with Art-Net lighting software?
Yes, the ArtNet-DMX-8S is compatible with lighting software based on the Art-Net protocol. That makes it a practical option for systems that already use Art-Net as part of their networked lighting control workflow.
Can the Ltech ArtNet-DMX-8S operate without staying online to a control system?
Yes, this converter supports program record and offline playback. That gives it added flexibility for installations or shows where playback from a recorded program is needed without relying on constant live network control.
What interface and on-device controls does the ArtNet-DMX-8S include?
This model supports an RJ45 network interface and DMX512 with RJ45 output interface. It also includes a 2.4-inch TFT LCD screen and 4 touch keys, which are intended to make local setting adjustments more convenient.
Is the ArtNet-DMX-8S suitable for demanding operating environments?
The listed operating temperature range is -30 degrees C to 55 degrees C, which supports use in a wide range of indoor or controlled commercial environments. Buyers evaluating reliability may also note that it uses a high-speed ARM processor described as stable and reliable.
How is the ArtNet-DMX-8S maintained over time?
The unit supports firmware updates by SD card or over the network. It also carries a 5-year warranty, which is a meaningful consideration for buyers sourcing controllers for long-term commercial use.
