Mean Well SP-320-36 Power Supply 320W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours

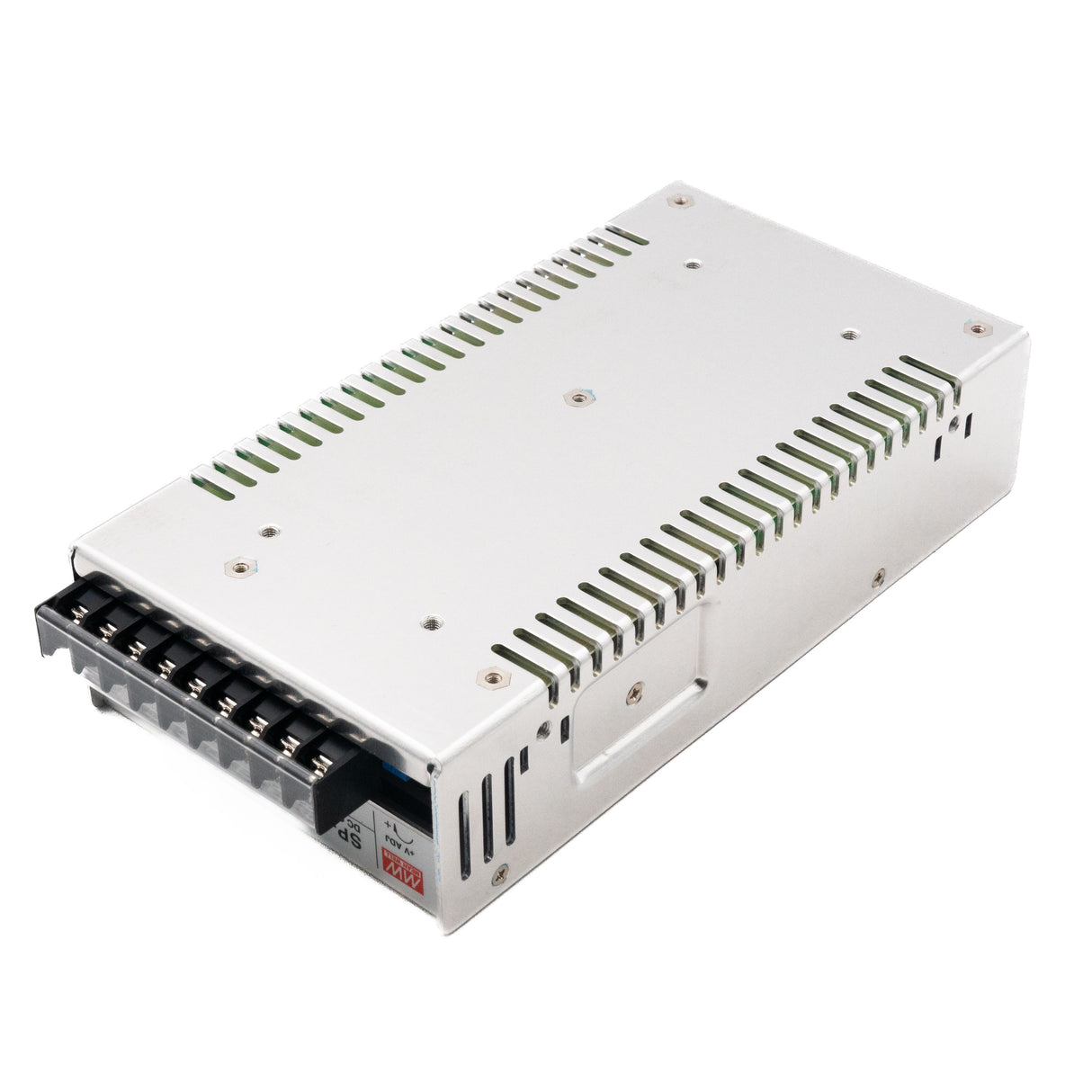

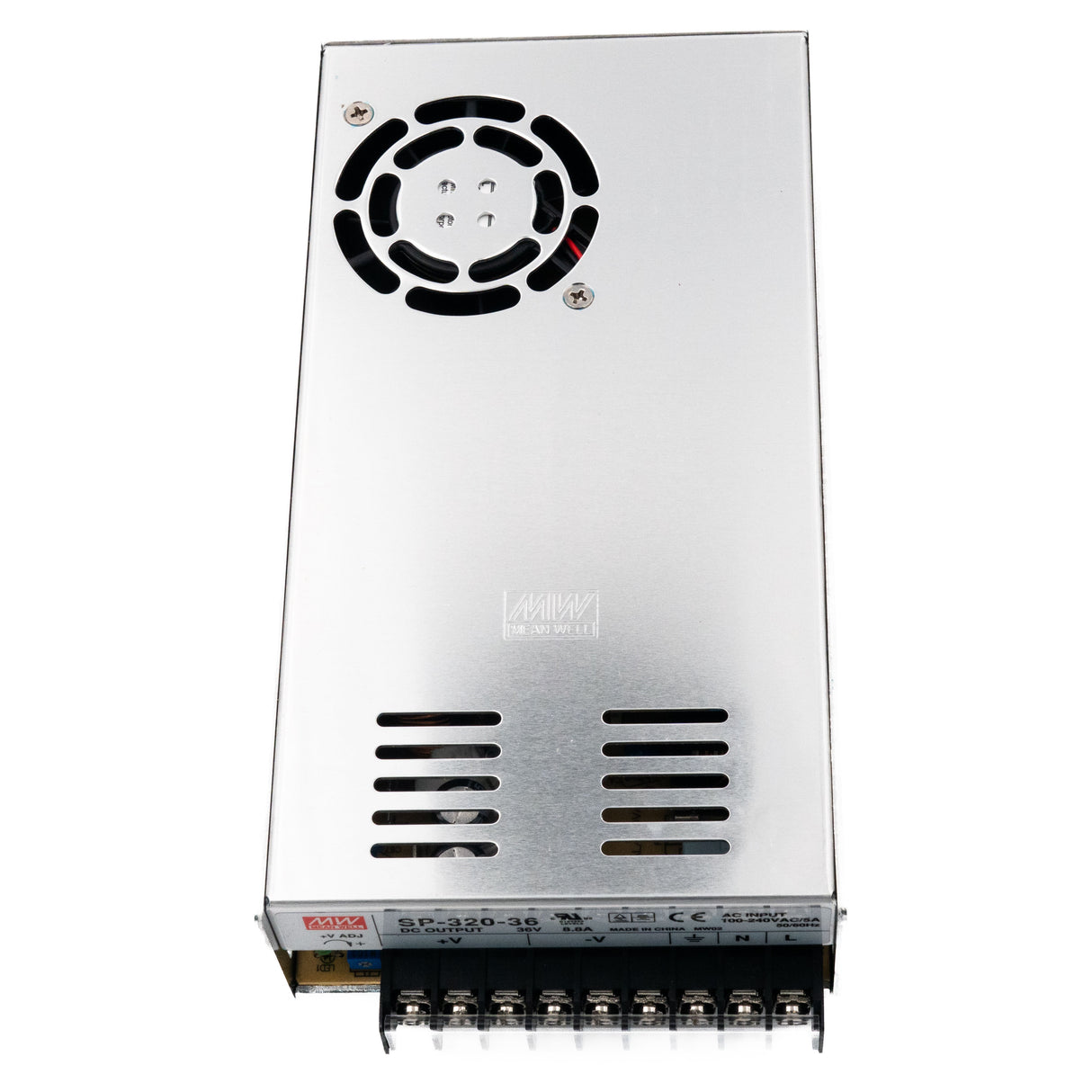

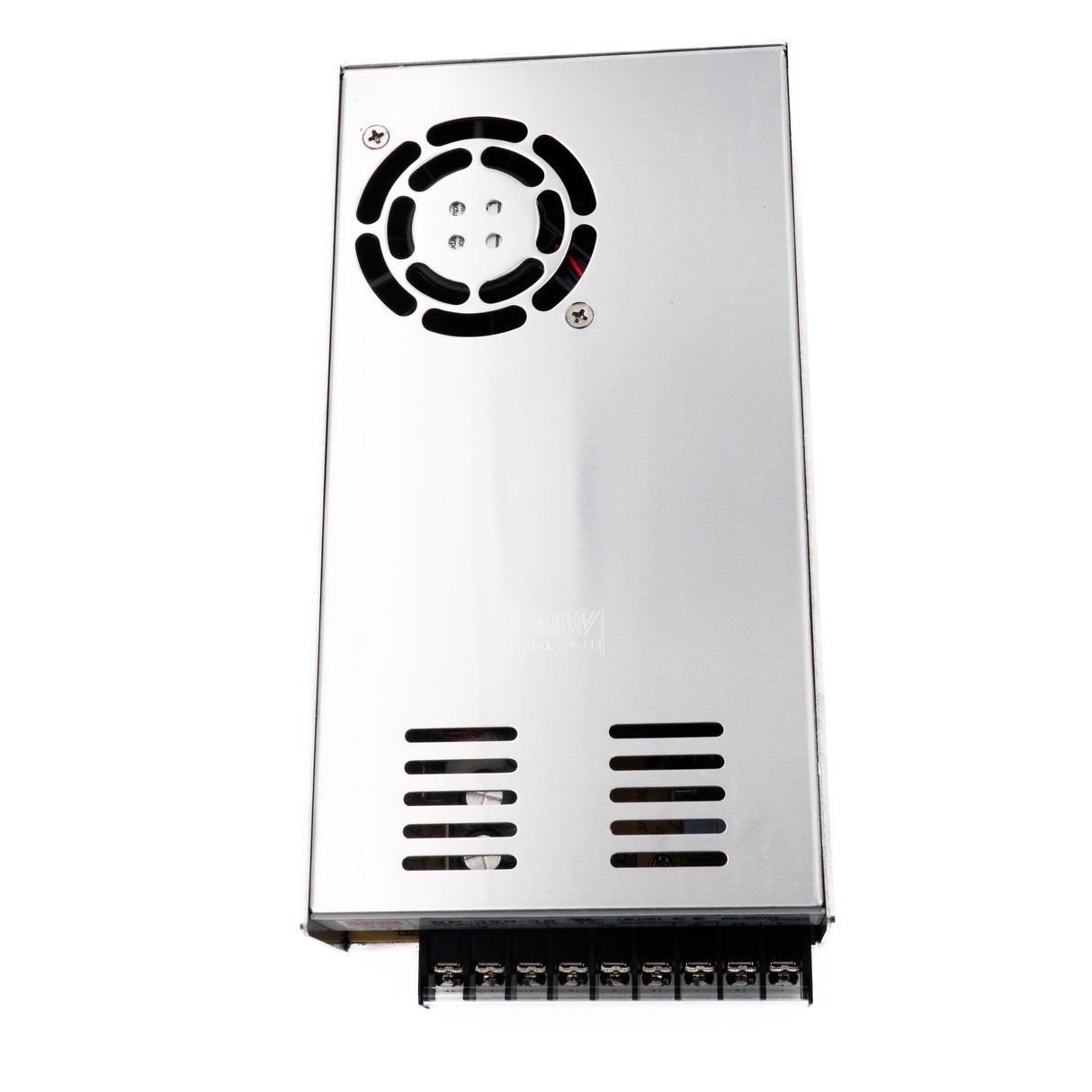

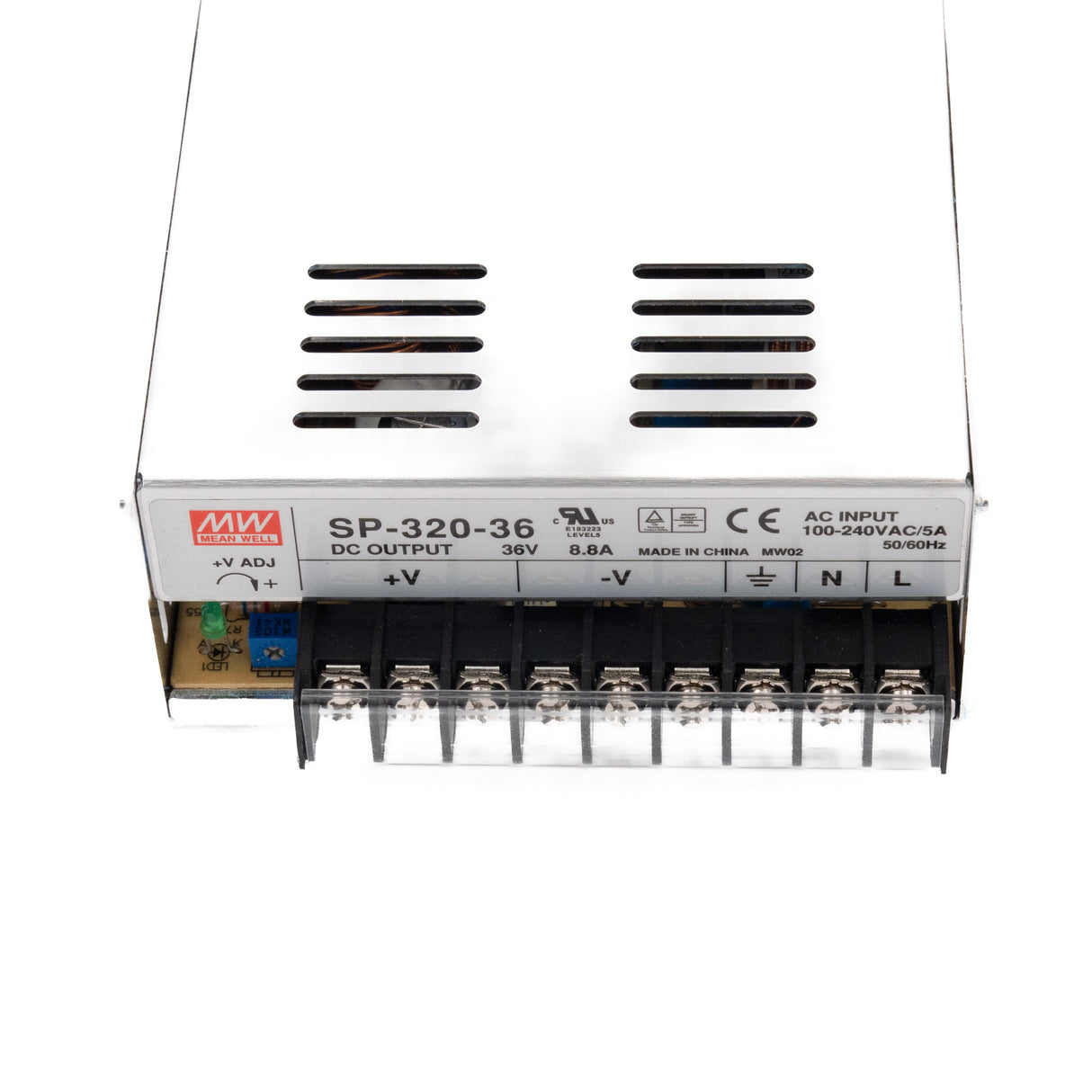

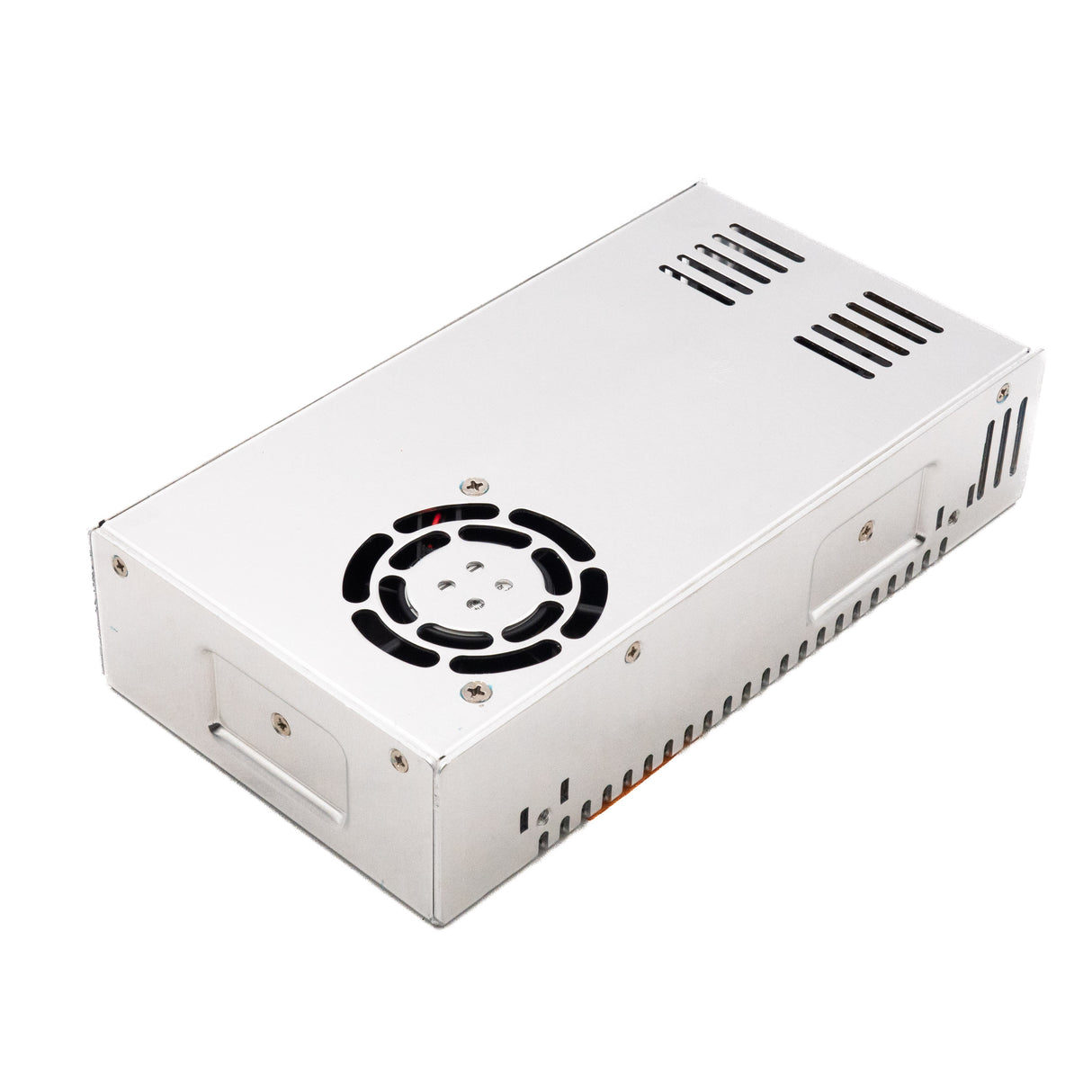

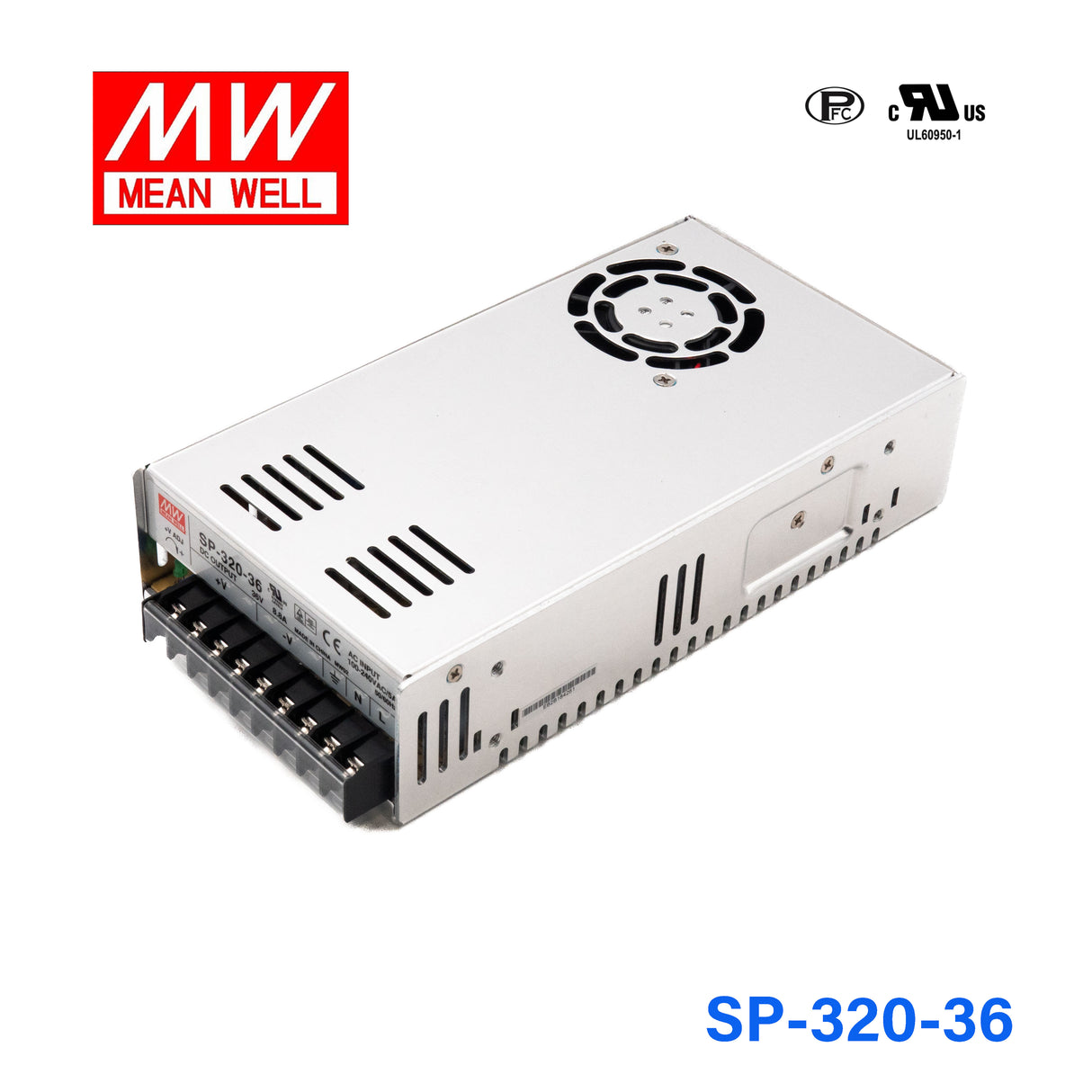

Mean Well SP-320-36 Power Supply 320W 36V
The SP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating320 Watt
-
Output Voltage36 Volt
-
Rated Current8.9 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the SP-320-36 for industrial equipment that needs 36V DC?
Yes, this model is designed for 36V DC loads and can supply up to 8.9A with a 320W output rating. It is a fit for industrial or embedded equipment that specifically requires a regulated 36V source.
Is the SP-320-36 suitable for a 36V motion, control, or automation system?
It can be used where the system is designed for 36V DC and total demand stays within 320W and 8.9A. That makes it relevant for 36V automation hardware, control assemblies, and other DC equipment in that voltage class.
Would this model work for a 36V embedded or industrial electronics platform?
Yes, as long as the platform requires constant voltage 36V input and does not exceed 320W or 8.9A. The wide 88-264VAC input also supports use in facilities with different AC mains standards.
Can the SP-320-36 power multiple 36V loads from one supply?
It can support multiple 36V devices if the combined load remains within the 320W and 8.9A limits. This can be useful in control cabinets or lab setups where several 36V devices share one DC source.
Is the SP-320-36 suitable for outdoor or washdown environments?
The product data specifies an operating temperature range of -20°C to +65°C, but no IP rating is listed. That means thermal limits are defined, while protection against water or dust ingress is not established in the provided specs.
How does the SP-320-36 compare with other SP-320 models?
The listed SP-320 options are SP-320-12 at 320.4W, 12V, 26.7A; SP-320-27 at 320W, 27V, 11.9A; SP-320-36 at 320W, 36V, 8.9A; and SP-320-48 at 320W, 48V, 6.7A. The main distinction across these models is the output voltage and the corresponding current available at that voltage.
