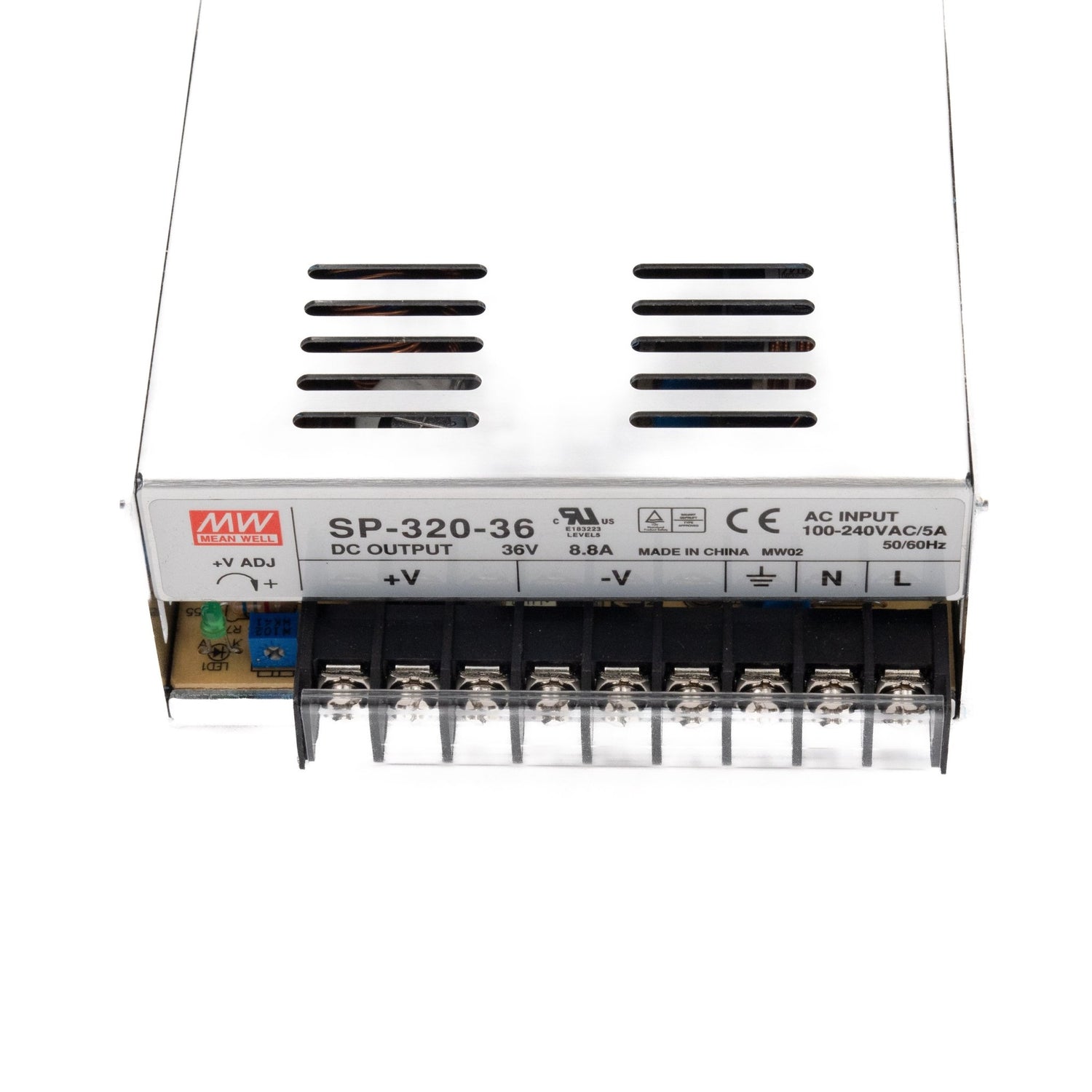

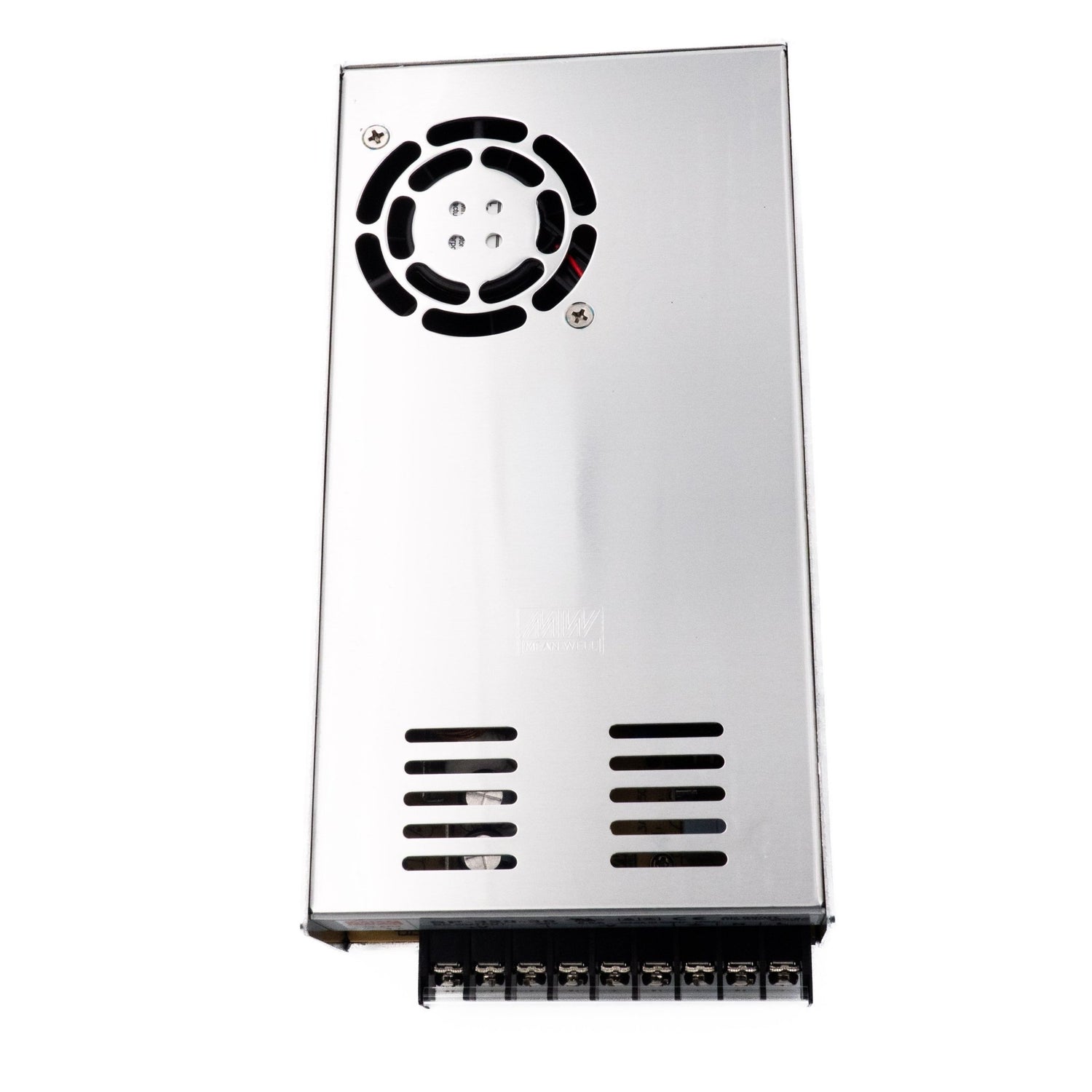

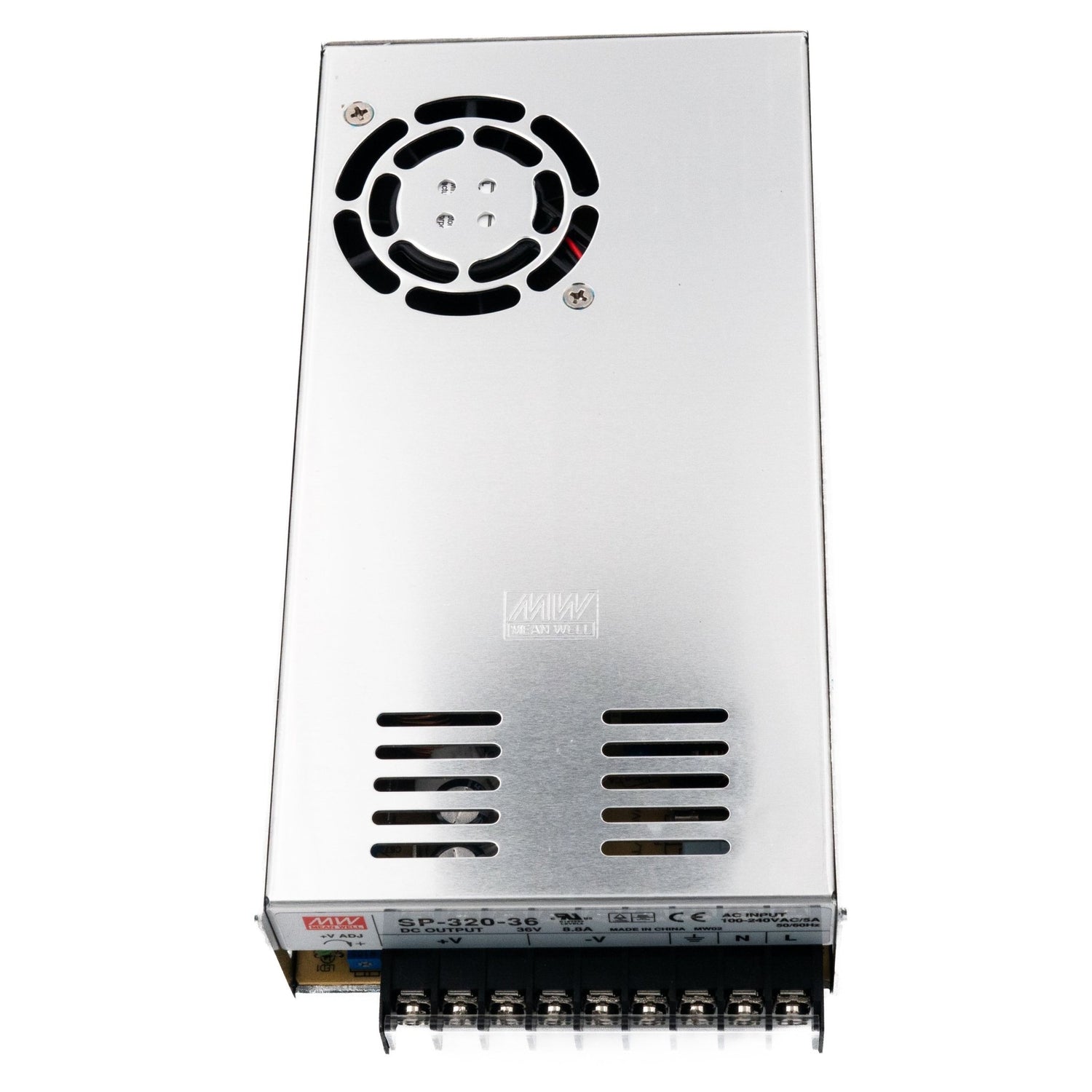

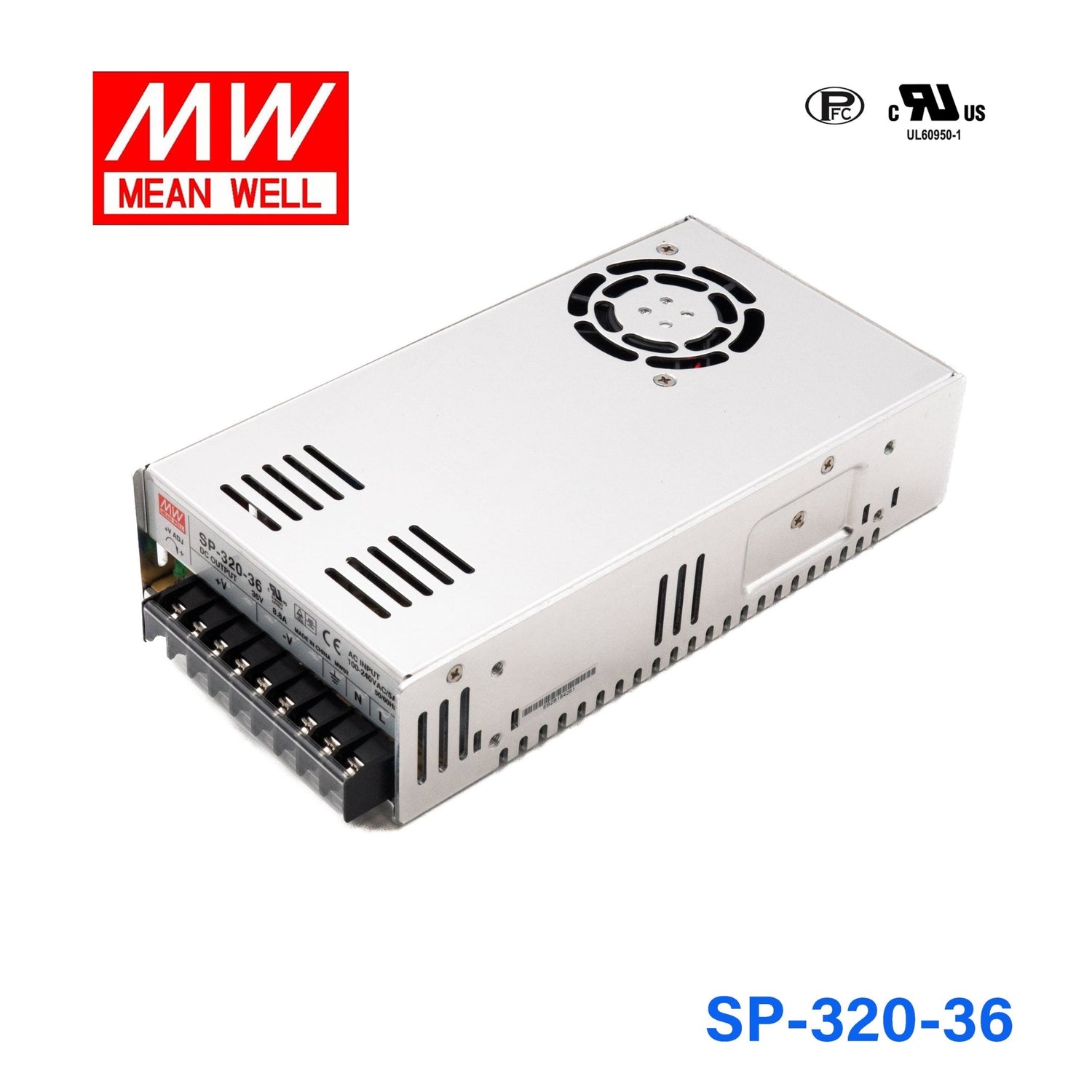

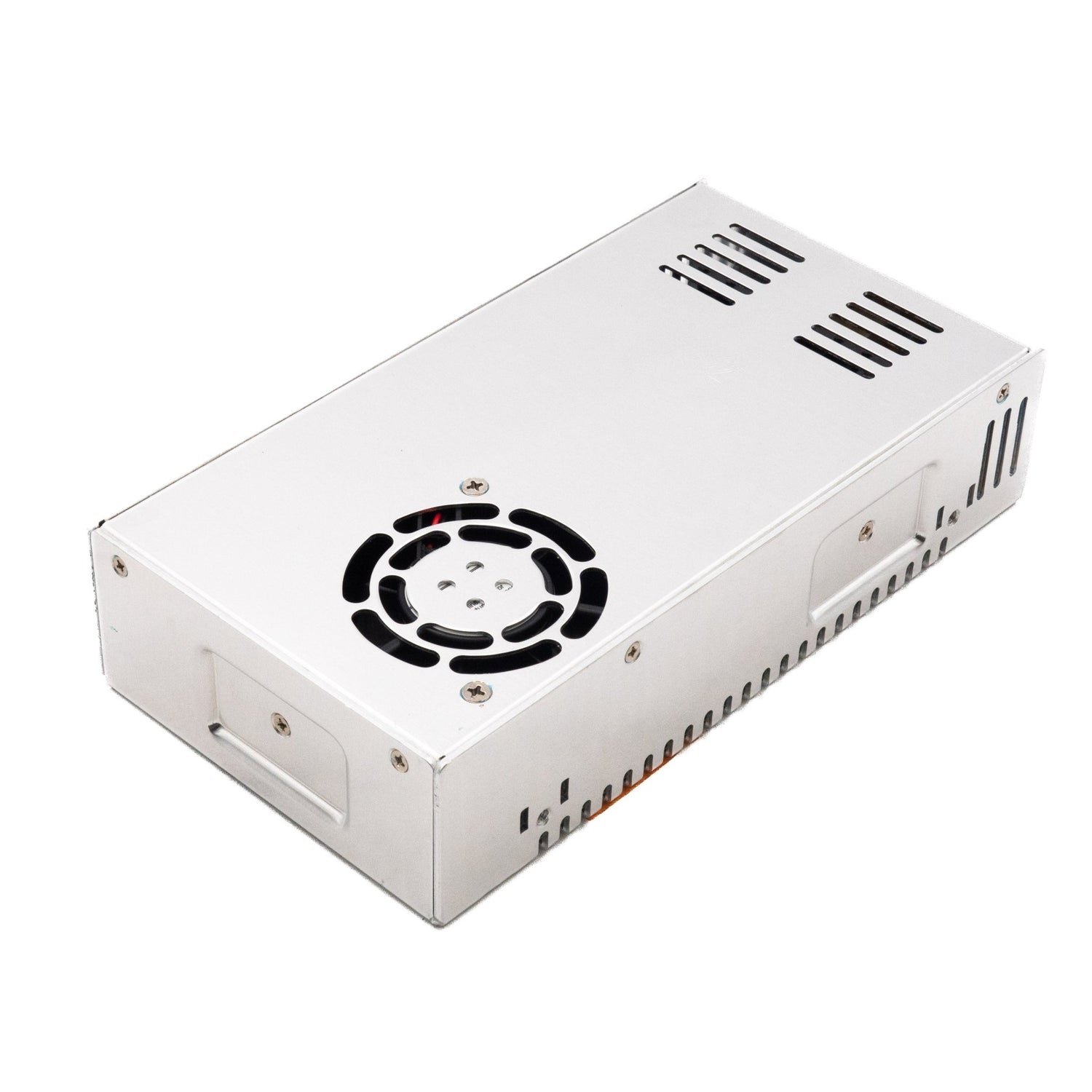

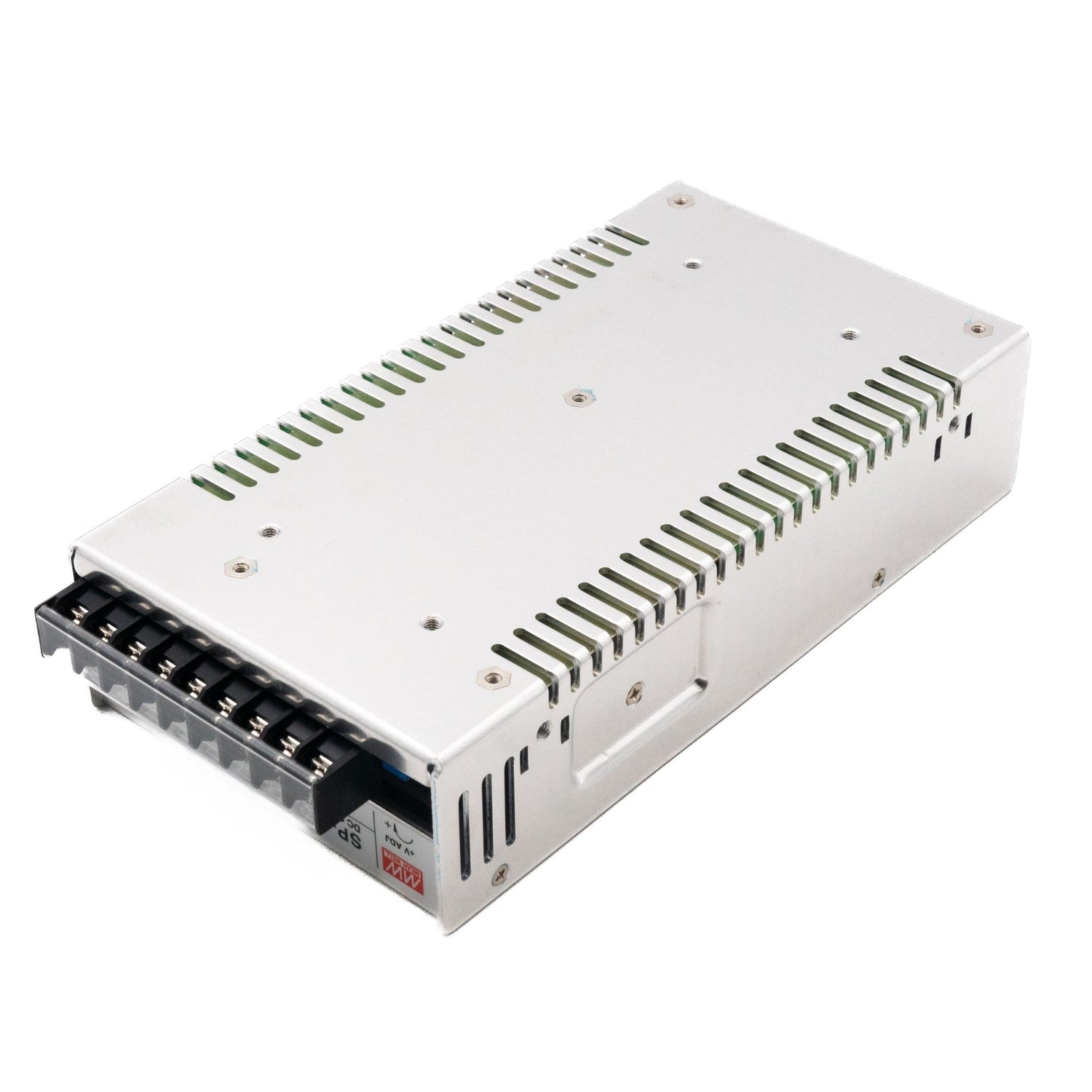

Mean Well SP-320-36 Power Supply 320W 36V
$53.07 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well SP-320-36 Power Supply 320W 36V
$53.07 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function PF>0.93 |
| Protections:Short circuit/ Overload / Over voltage |
| Forced air cooling by built-in DC Fan |
| Built-in fan speed control |
| Fixed switching frequency at PFC:100KHz |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |
| Connection Input | 9P / 9.5mm pitch terminal block |
| Connection Output | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
| Case No. | 207A |
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating320 Watt
-
Output Voltage36 Volt
-
Rated Current8.9 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
