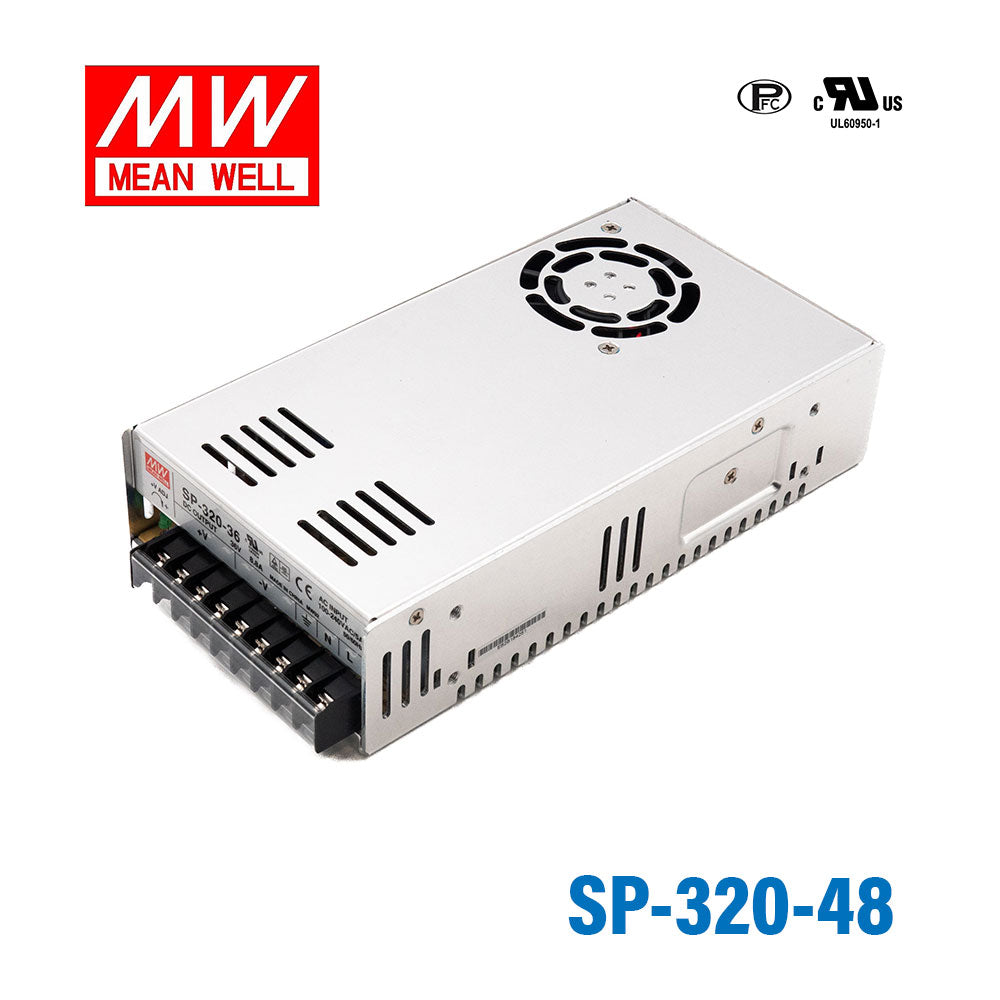

Mean Well SP-320-48 Power Supply 320W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-320-48 Power Supply 320W 48V
The SP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating320 Watt
-
Output Voltage48 Volt
-
Rated Current6.7 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the SP-320-48 for 48V telecom or networking equipment?
Yes, if the equipment is designed for 48V DC input and the total load stays within 320W and 6.7A. That makes it relevant for 48V communications, networking, and industrial electronics that need a regulated DC source.
Is the SP-320-48 suitable for a 48V industrial control system?
It can be used for 48V control hardware where the full connected demand does not exceed 320W or 6.7A. Its constant voltage output is intended for equipment that requires a fixed 48V DC supply.
Would this model work for 48V automation or embedded devices with moderate current demand?
Yes, provided the devices require 48V DC and the combined load remains at or below 320W and 6.7A. It fits applications where voltage is higher but current demand is lower than comparable 12V or 24V systems.
Can the SP-320-48 power several 48V loads from one supply?
It can, as long as the total output requirement across all connected 48V devices stays within 320W and 6.7A. That makes it practical for shared 48V DC distribution in control or communications environments.
Is the SP-320-48 intended for outdoor use?
The operating temperature range is specified as -20°C to +65°C, but no IP rating is provided in the available specs. Based on that information, temperature capability is known, while direct outdoor exposure suitability is not confirmed.
How does the SP-320-48 compare with the other SP-320 variants?
The listed SP-320 models include SP-320-12 at 320.4W, 12V, 26.7A; SP-320-27 at 320W, 27V, 11.9A; SP-320-36 at 320W, 36V, 8.9A; and SP-320-48 at 320W, 48V, 6.7A. They are in the same power class, with the differences centered on output voltage and resulting current capacity.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SP-320 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-320-12 Power Supply 320W 12V | 320.4W | 12V | 26.7A | Indoor | $53.07 | View |
| Mean Well SP-320-36 Power Supply 320W 36V | 320W | 36V | 8.9A | Indoor | $53.07 | View |
| Mean Well SP-320-27 Power Supply 320W 27V | 320W | 27V | 11.9A | Indoor | $53.07 | View |
