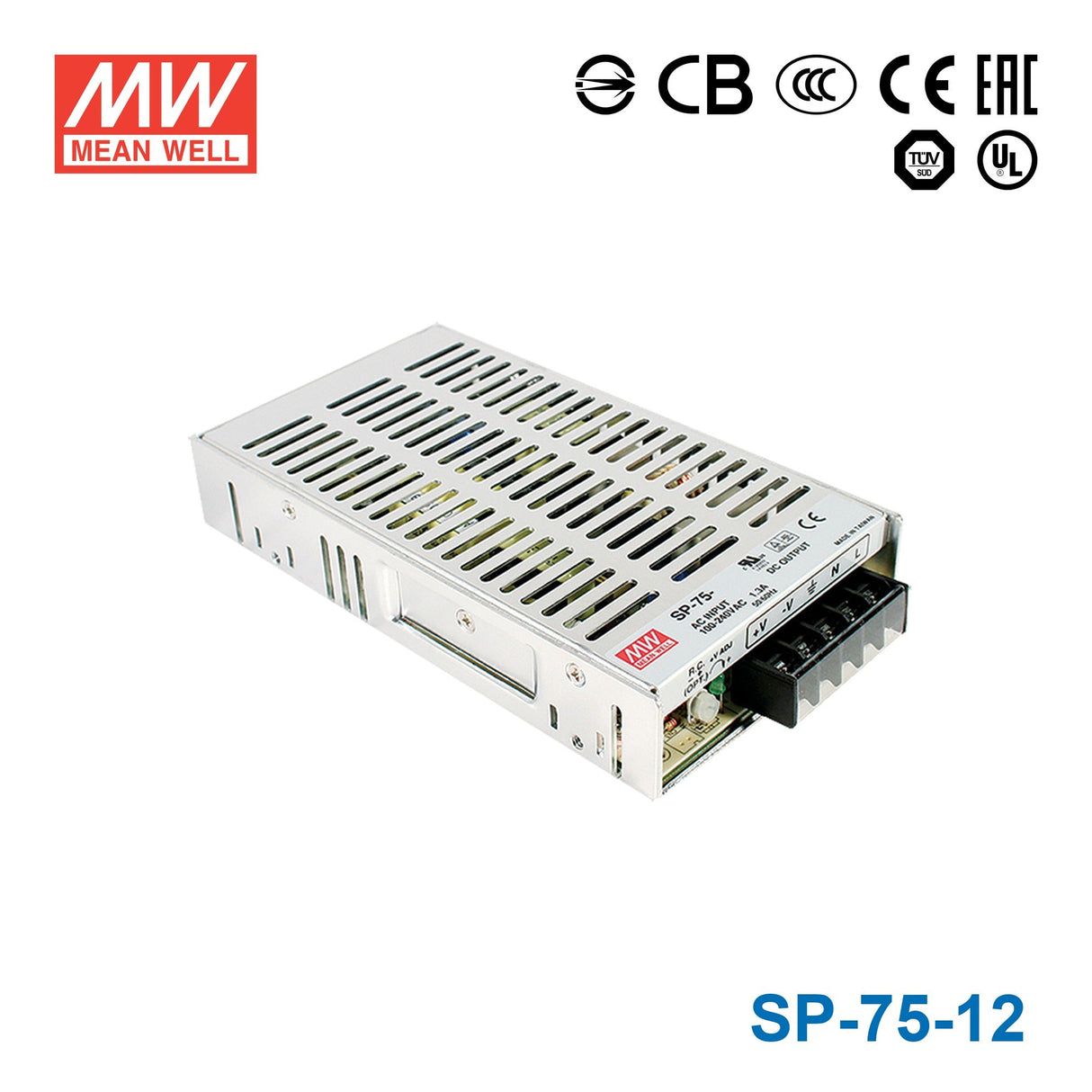

Mean Well SP-75-12 Power Supply 75W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-75-12 Power Supply 75W 12V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Low profile: 33mm thickness
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating75.6 Watt
-
Output Voltage12 Volt
-
Rated Current6.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.82 in
-
Height1.3 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can I use the SP-75-12 for a 12V industrial control panel?
Yes, this model is a constant voltage 12V supply rated for 75.6W and 6.3A. That makes it a fit for 12V industrial control loads that stay within 75.6W total demand.
Is the SP-75-12 suitable for 12V automation devices like relays, fans, and interface modules?
It can support 12V automation hardware when the combined load stays within 6.3A and 75.6W. The constant voltage output is intended for equipment that expects a fixed 12V source.
Can this power supply run a 12V embedded or test-bench load?
Yes, if the equipment needs a regulated 12V output and the total draw does not exceed 75.6W. Its 85-264VAC input also supports use in facilities with different AC input standards.
Is the SP-75-12 appropriate for indoor or outdoor use?
The operating temperature range is -20°C to +85°C, so the temperature range is broad. An IP rating is not listed in the provided specs, so outdoor exposure or wet-location suitability is not established from these specs alone.
When should I choose the SP-75-12 instead of a higher-current 12V model?
Choose it when your 12V load fits within 75.6W and 6.3A. If the application needs more than 6.3A at 12V, a higher-output 12V unit in the same series would be the better fit.
