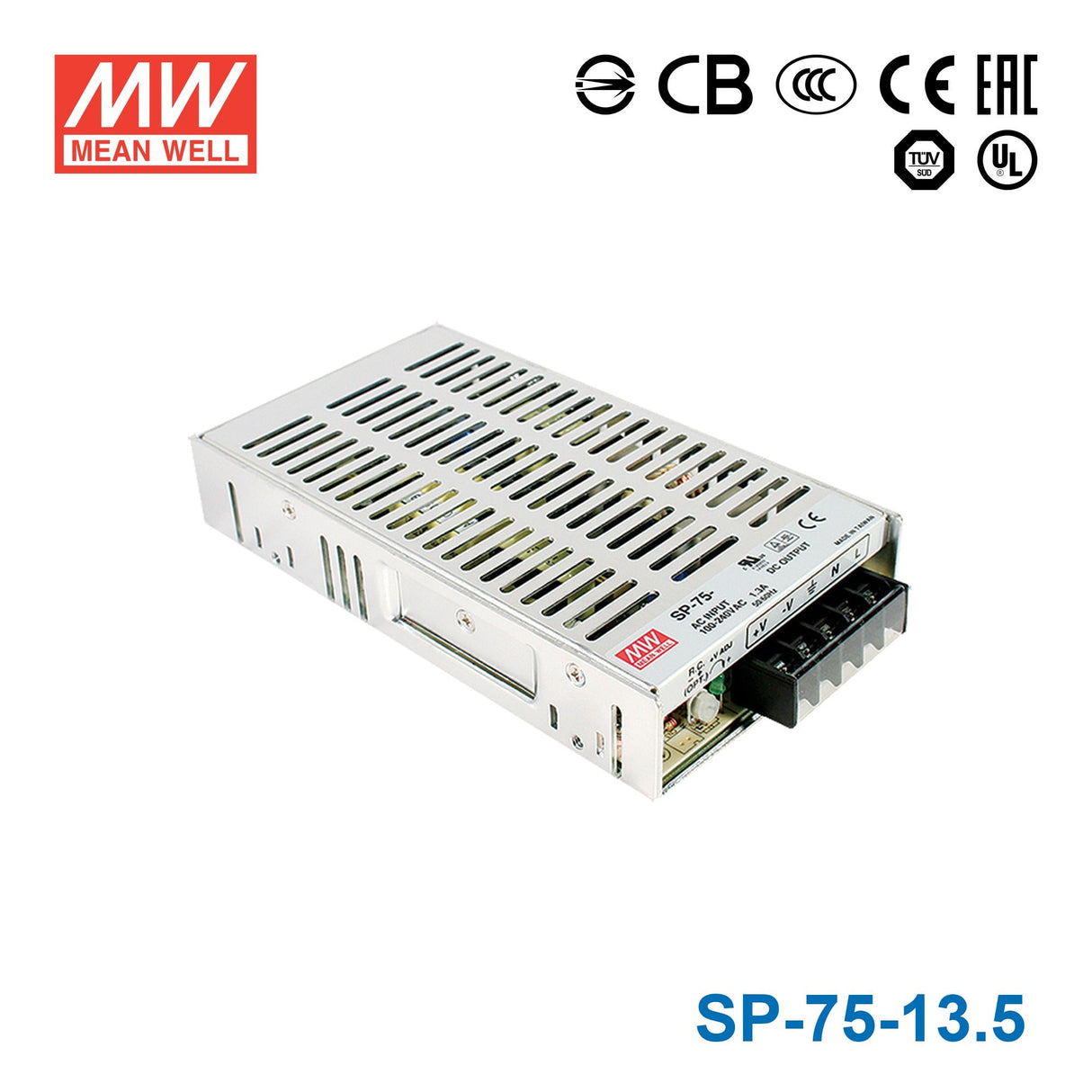

Mean Well SP-75-13.5 Power Supply 75W 13.5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-75-13.5 Power Supply 75W 13.5V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Low profile: 33mm thickness
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating75.6 Watt
-
Output Voltage13.5 Volt
-
Rated Current5.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.82 in
-
Height1.3 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can I use the SP-75-13.5 for 13.5V control or communications equipment?
Yes, this unit provides a constant voltage 13.5V output rated for 75.6W and 5.6A. It is suitable for 13.5V equipment as long as the total load stays within those limits.
Is the SP-75-13.5 a fit for alarm, access-control, or monitoring hardware that uses 13.5V DC?
It can be used for 13.5V DC hardware when the required power remains at or below 75.6W. The 5.6A output capacity matters most when several 13.5V devices share one supply.
Can this model support a 13.5V embedded system or service fixture?
Yes, if the system is designed for a fixed 13.5V source and does not exceed 5.6A. The 85-264VAC input also makes it practical where AC mains can vary by site.
Is the SP-75-13.5 meant for harsh indoor conditions or outdoor exposure?
Its specified operating temperature range is -20°C to +85°C, which covers a wide range of indoor industrial environments. No IP rating is provided, so outdoor or washdown suitability is not confirmed by these specs.
How do I know if 75.6W is enough for my 13.5V load?
This model is sized for loads up to 75.6W total at 13.5V, with up to 5.6A available. If your equipment needs more than 5.6A at 13.5V, you would need a higher-capacity 13.5V supply.
