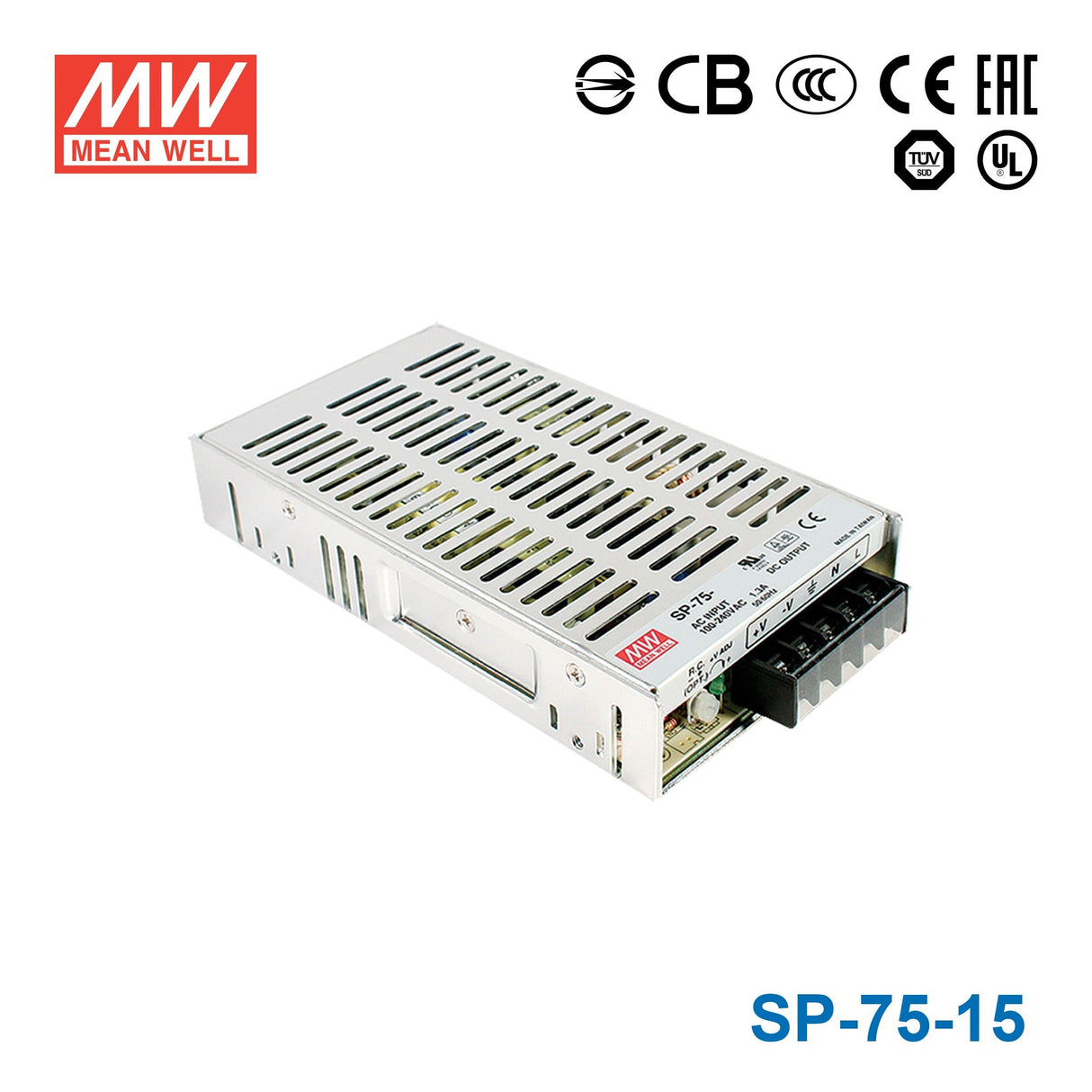

Mean Well SP-75-15 Power Supply 75W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-75-15 Power Supply 75W 15V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Low profile: 33mm thickness
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.82 in
-
Height1.3 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can the SP-75-15 power 15V industrial instrumentation or control electronics?
Yes, it delivers a constant voltage 15V output rated for 75W and 5A. It is appropriate for 15V industrial electronics that stay within that power and current range.
Is this 15V power supply suitable for embedded development or test equipment?
It can be used where a regulated 15V source is required and total draw does not exceed 5A. The 75W rating gives a clear upper limit for combined 15V loads on a bench or fixture.
Can I use the SP-75-15 for 15V sensors, interface boards, or automation modules?
Yes, for 15V automation or control hardware that needs constant voltage and remains within 75W total. It is best suited to grouped 15V loads whose combined current stays at or below 5A.
Does the SP-75-15 work in demanding indoor temperature conditions?
The listed operating temperature range is -20°C to +85°C, so it is specified for a broad temperature range. An IP rating is not listed, so the provided specs do not establish outdoor or wet-environment use.
Is this the right choice if my 15V system needs exactly 15V but not a large amount of current?
Yes, this model is intended for fixed 15V output and can supply up to 5A. If your 15V system needs more than 75W or more than 5A, you would need a larger 15V model.
