Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

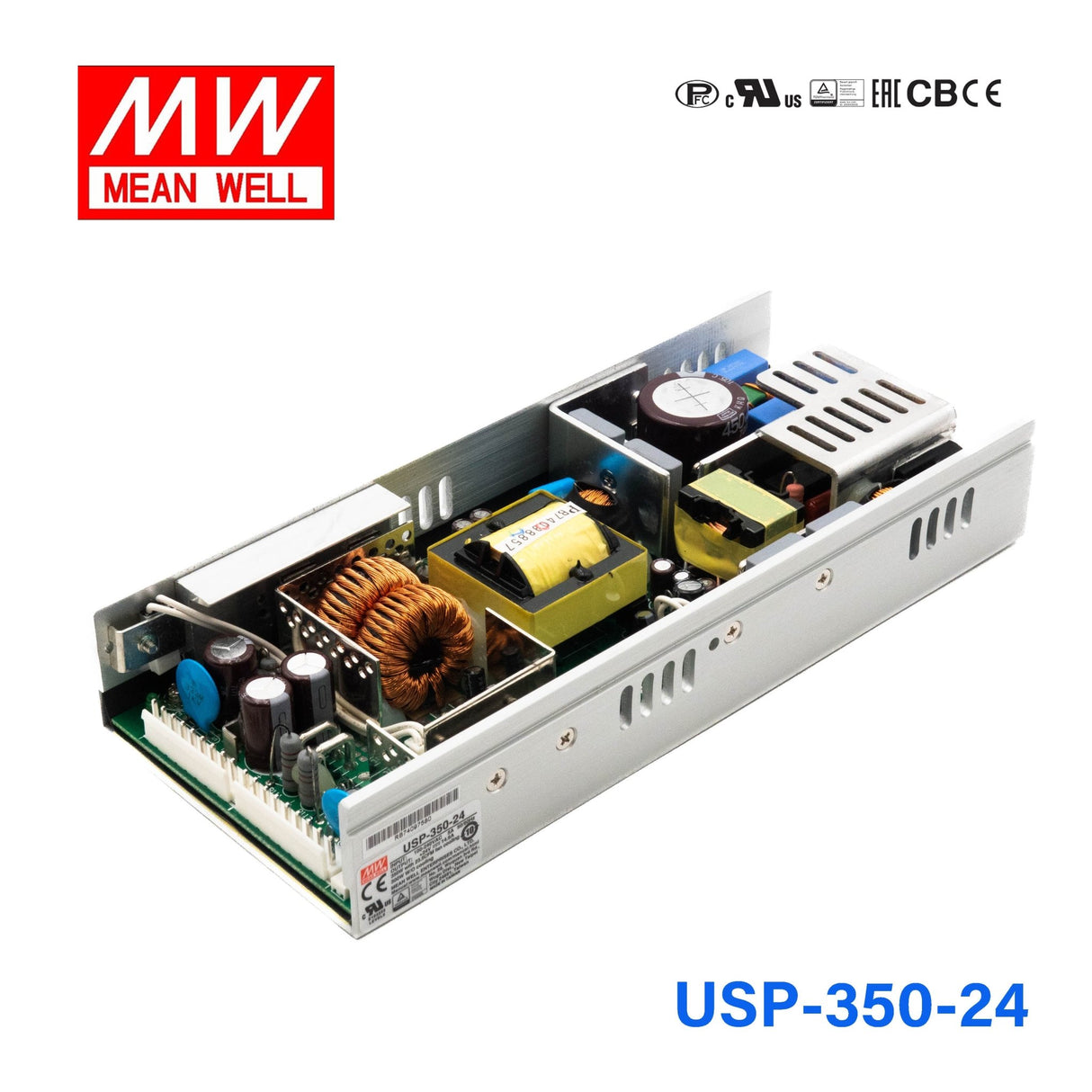

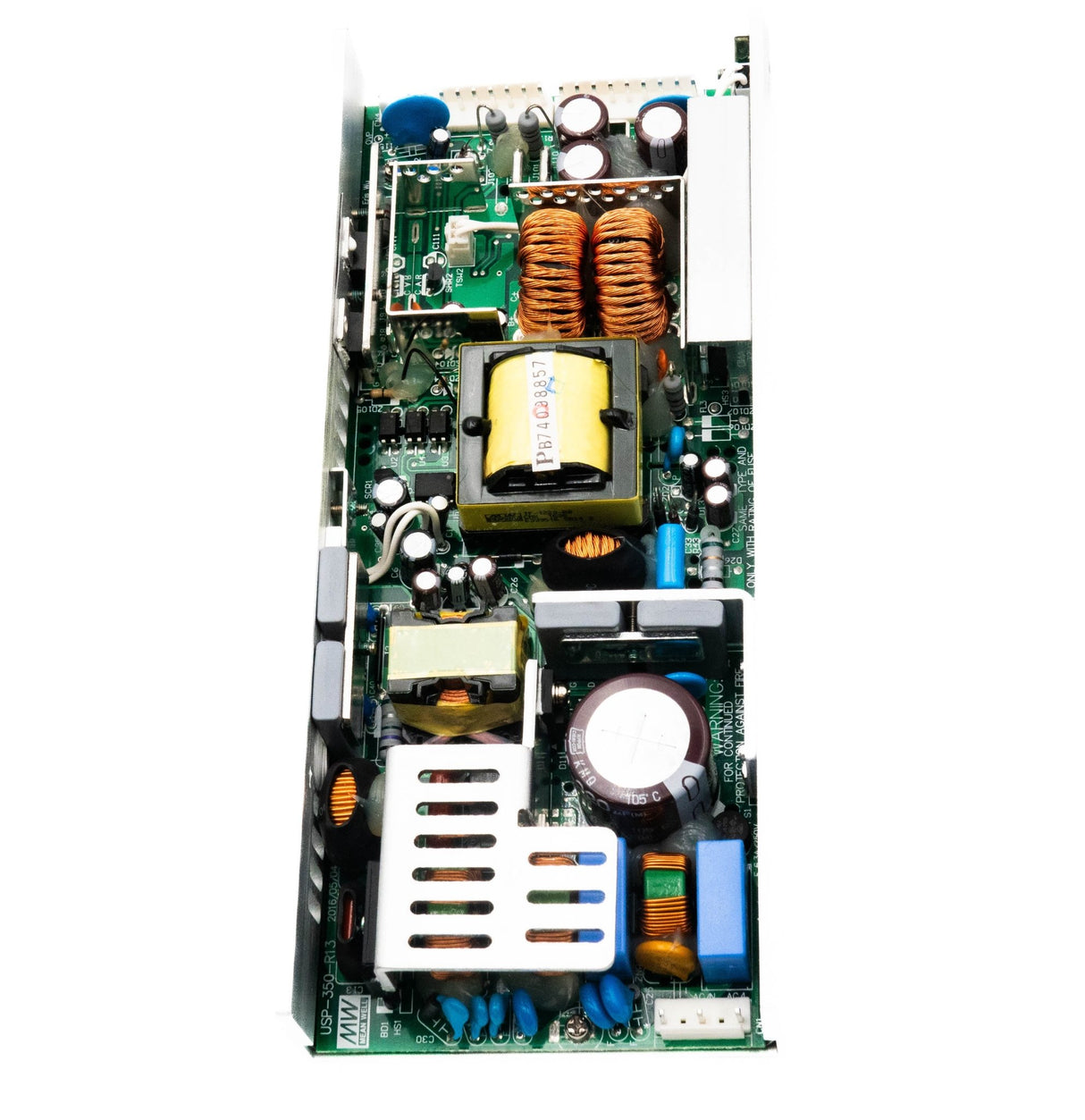

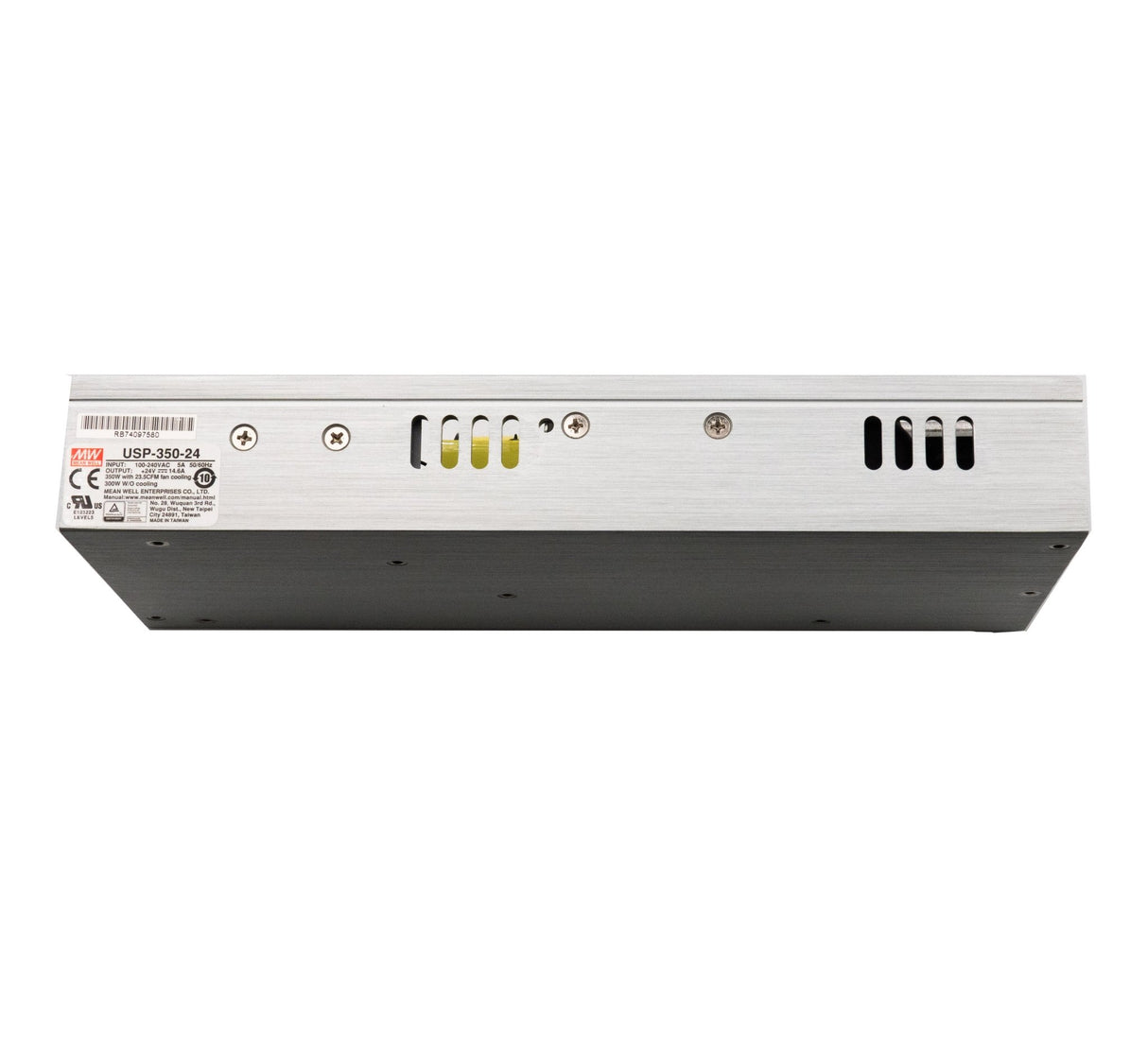

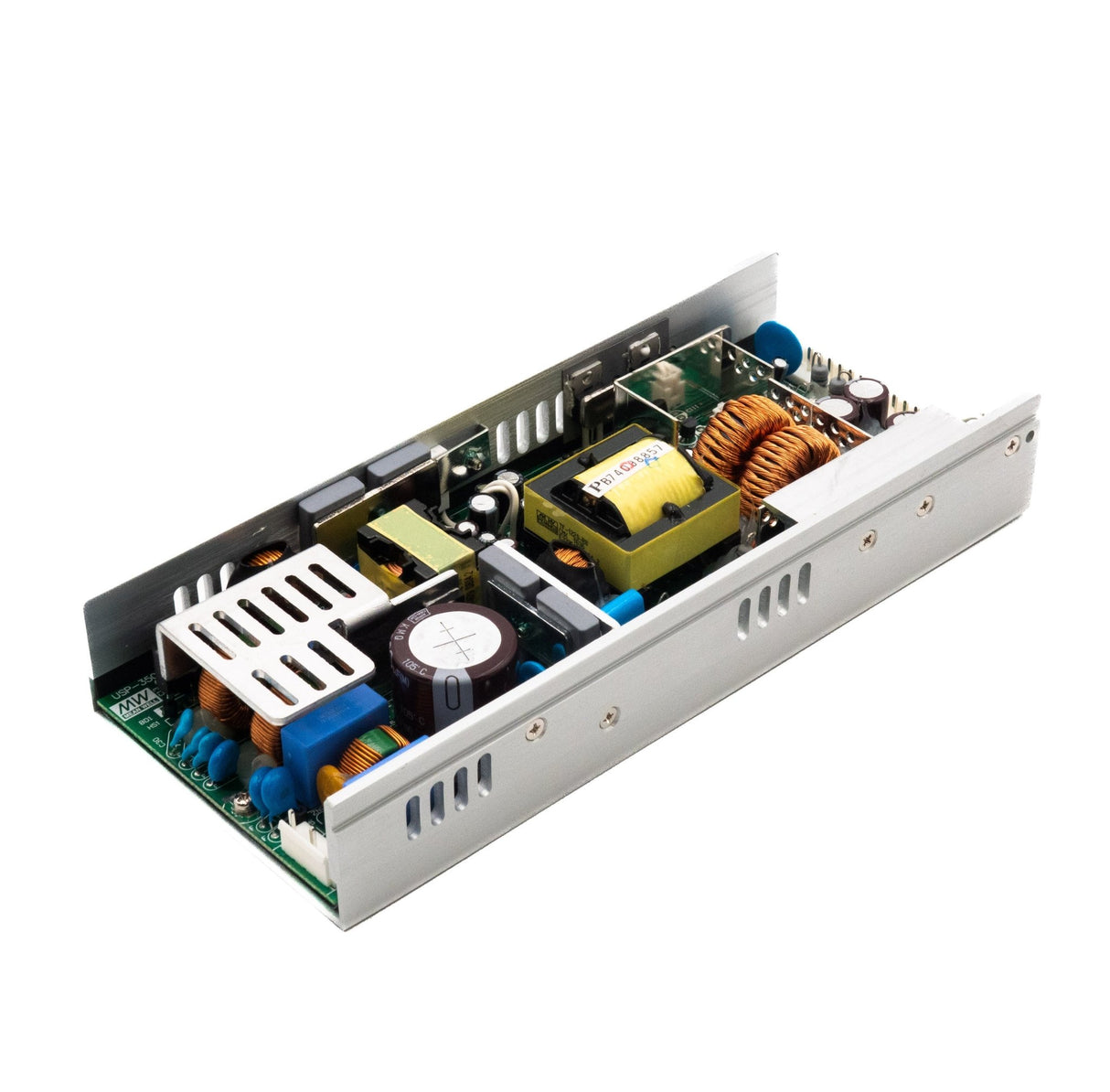

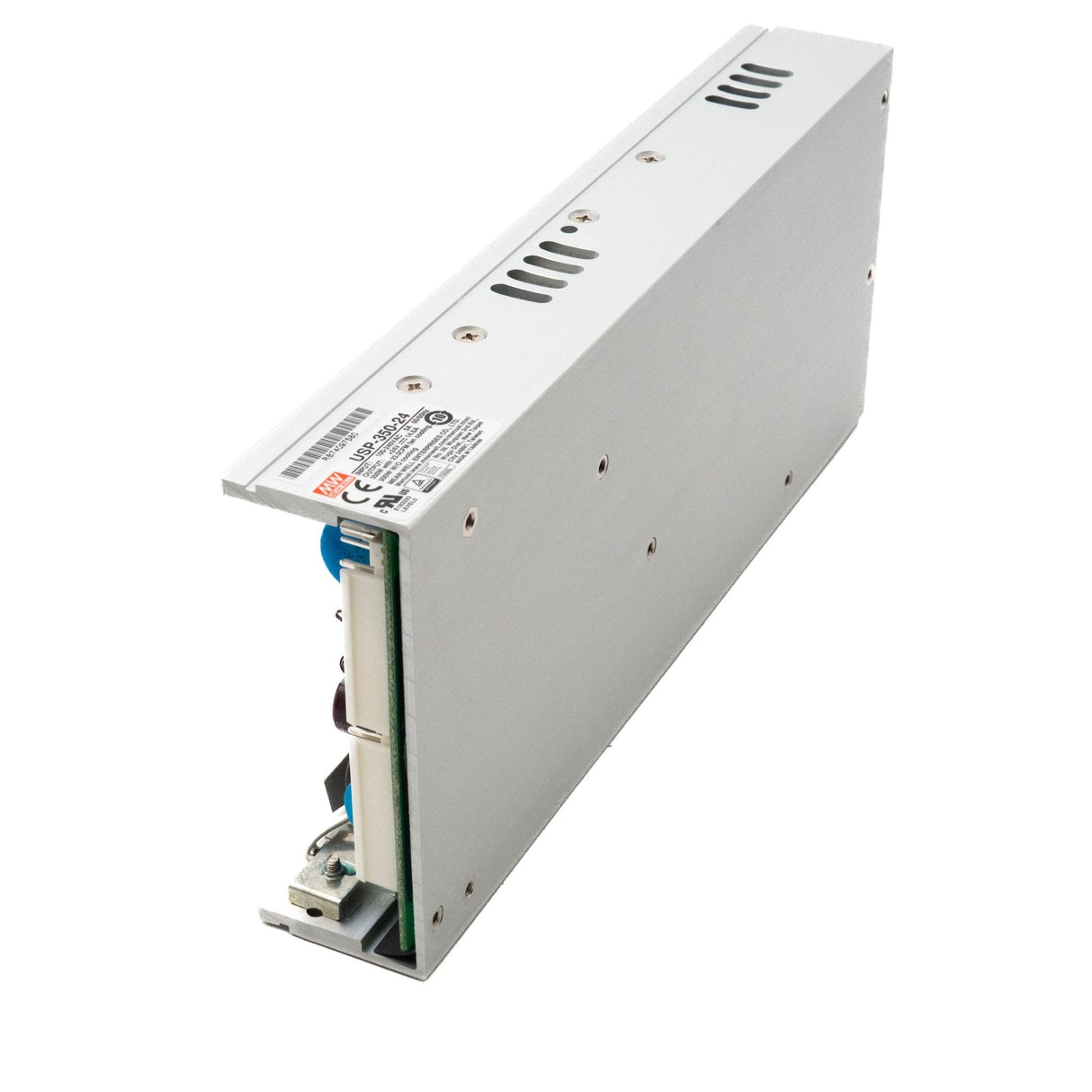

Mean Well USP-350-24 PFC Switching Power Supply
$61.17 USD
Unit price /
Unavailable
The USP-350 is a 350W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMean Well USP Series
-
Power Rating300 Watt
-
Output Voltage24 Volt
-
Rated Current14.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CE,EN,UL
-
Operating Temperature-10°C~65°C
-
Warranty3 Year
-
Length9.26 in
-
Width4 in
-
Height1.5 in
-
Weight2.43 lb
