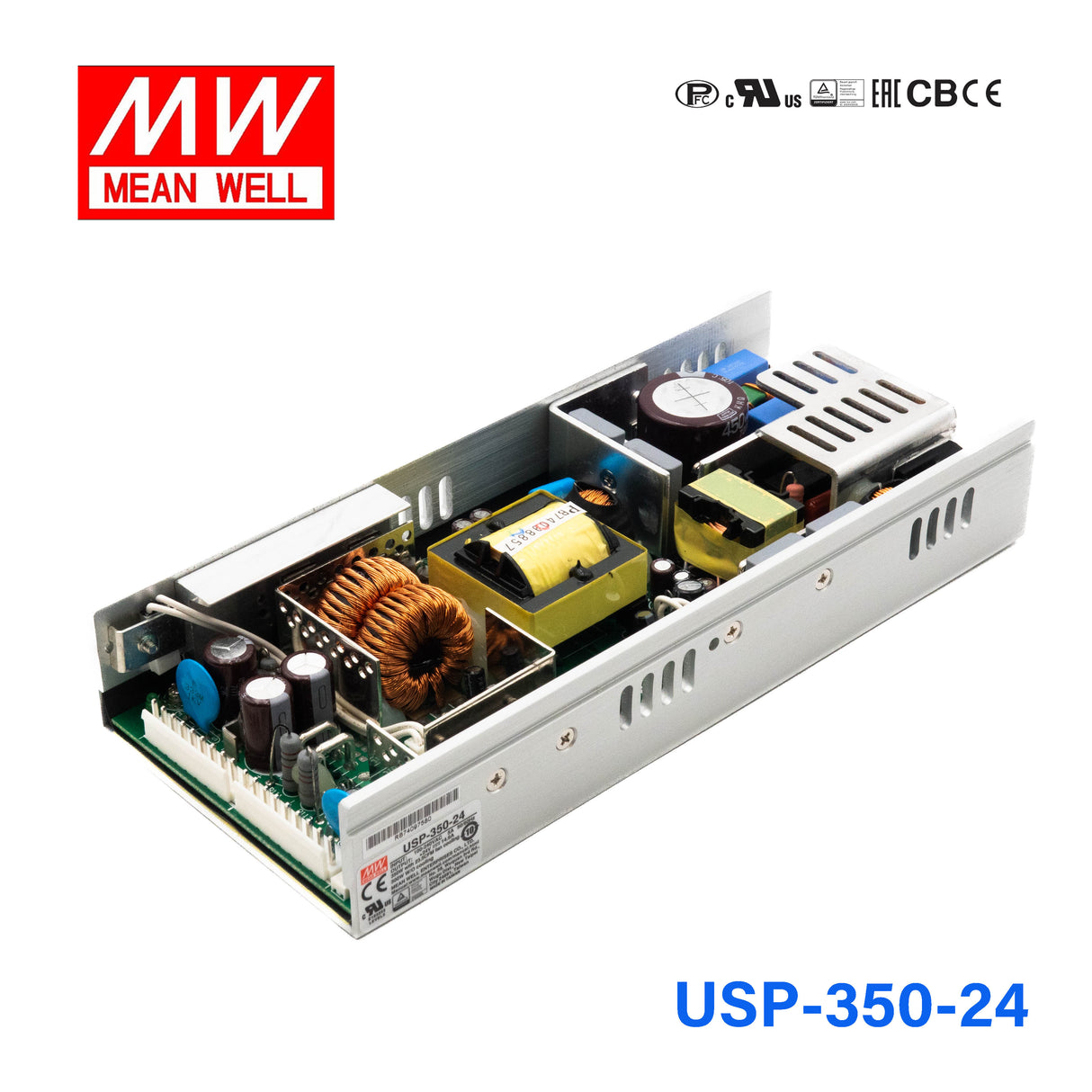

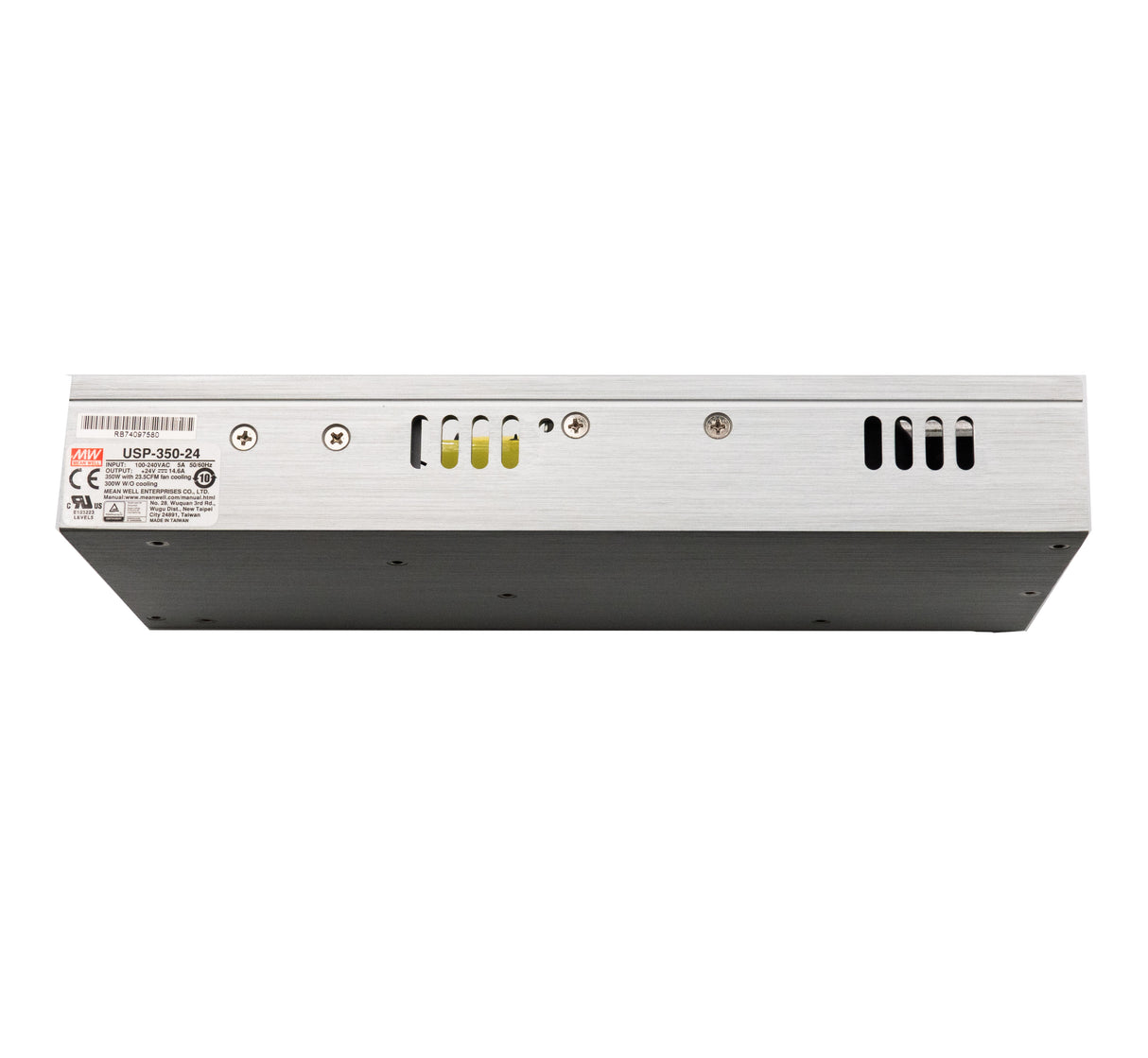

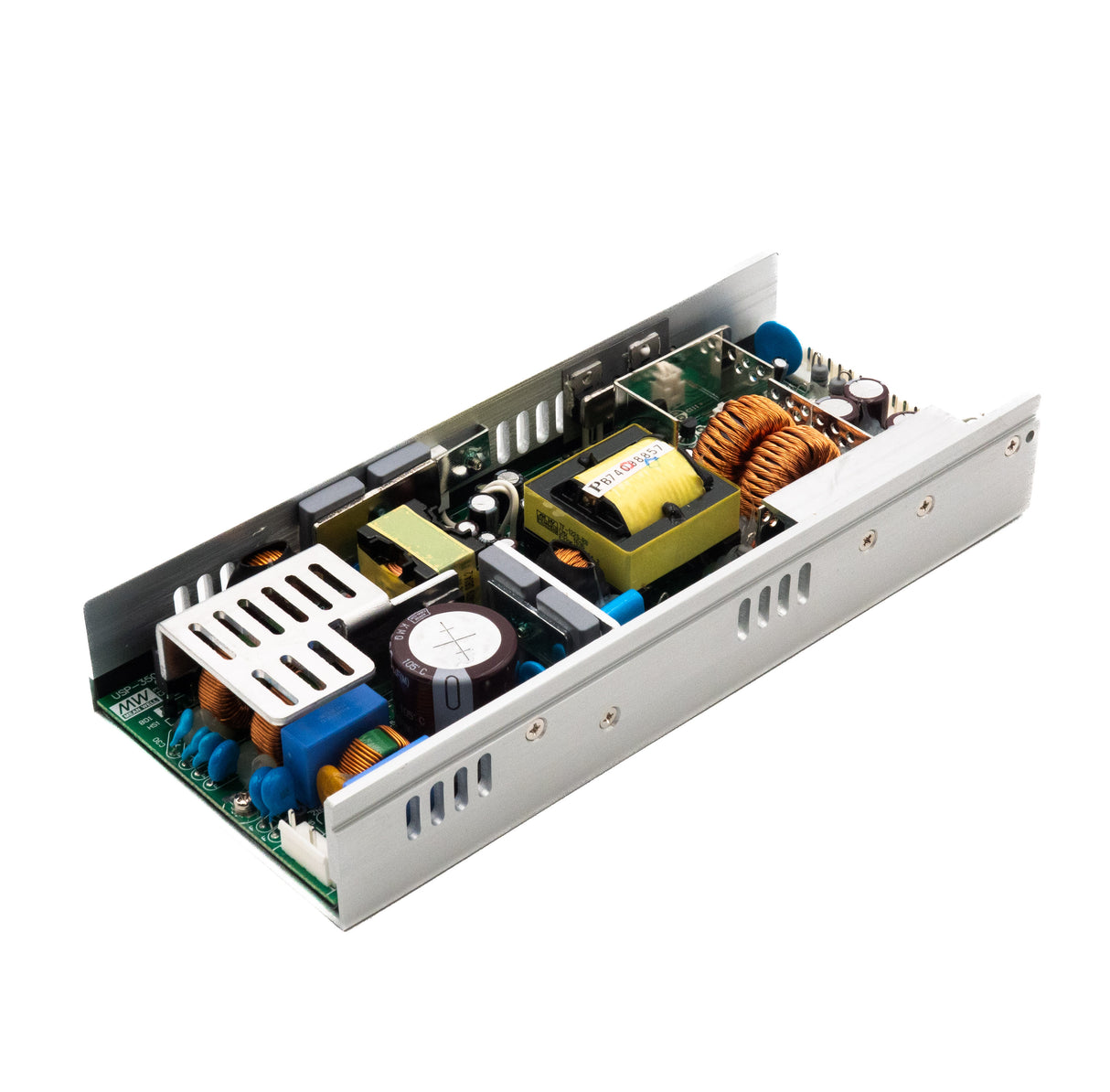

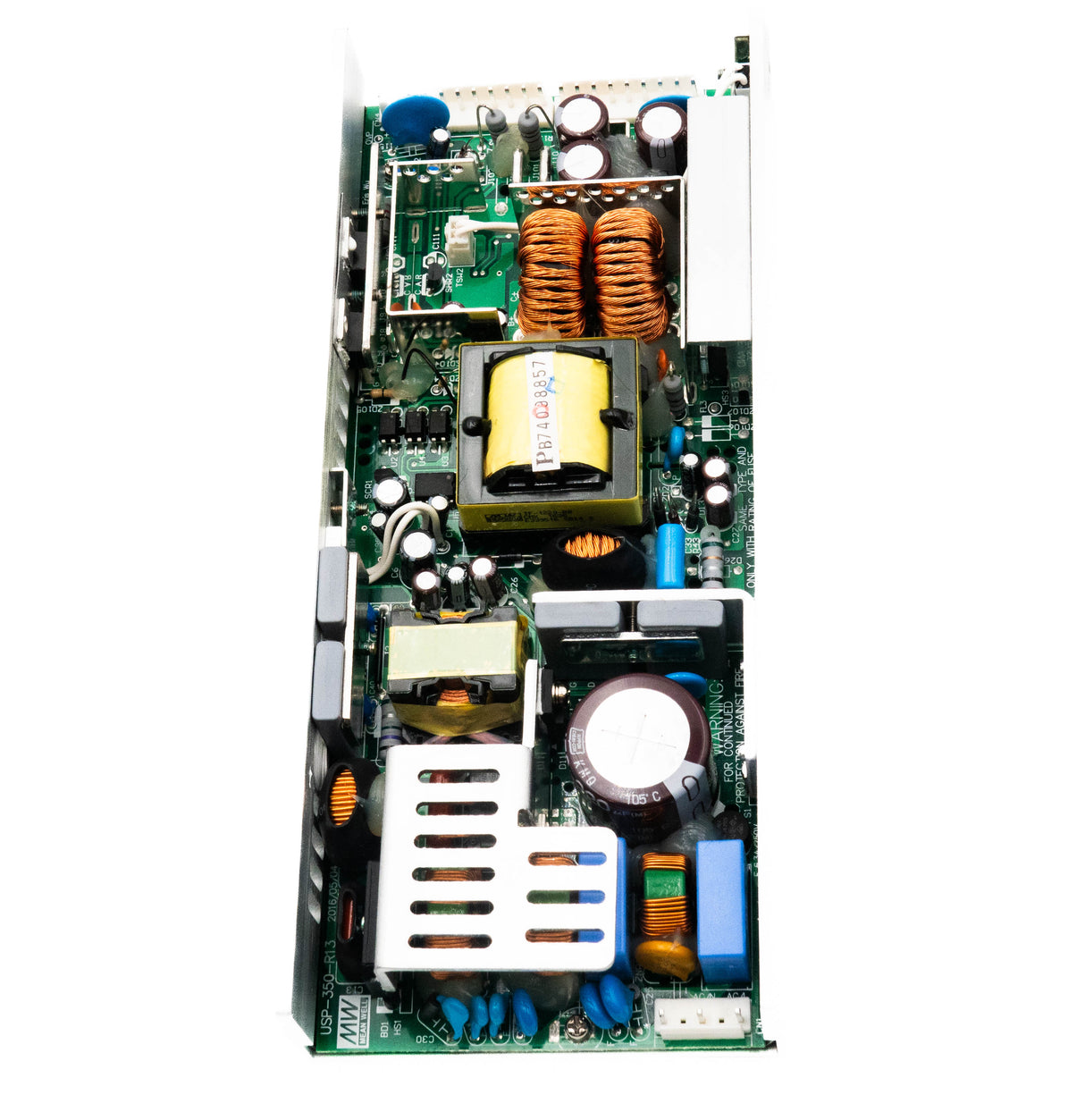

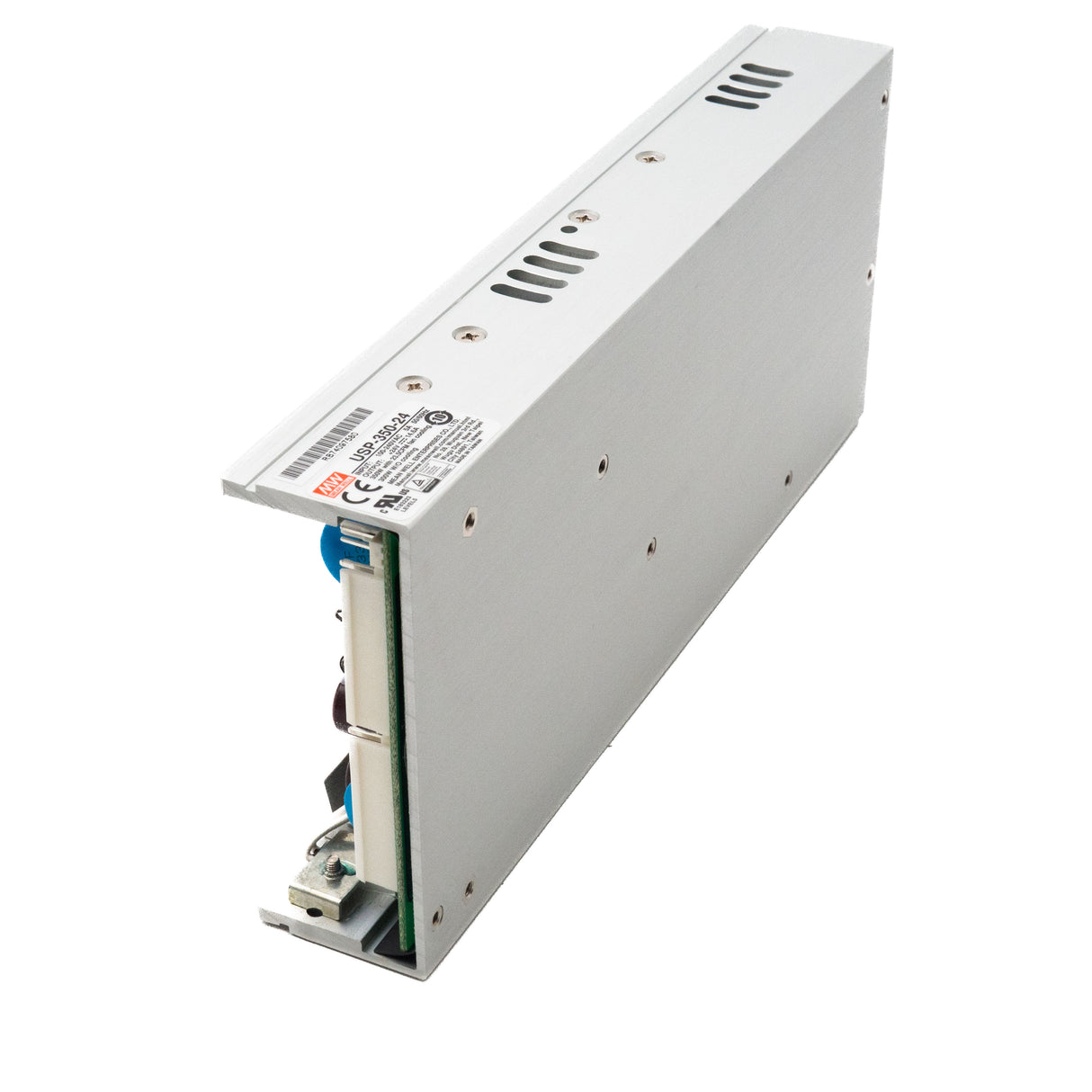

Mean Well USP-350-24 PFC Switching Power Supply 14.6A
$61.17 USD
Unit price /
Unavailable
Overview
USP-350-24 is the 24V output model of this series: rated current 14.6A, typical efficiency 88%.
Features
- Universal AC input / Full range
- Built in active PFC circuit compliance to EN61000-3-2
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Free air convection for 300W and 350W with 23.5CFM forced air
- High power density 6.3w/in³
- ZVS technology to reduce power dissipation
- Active AC surge current limiting
- U-bracket low profile:38mm
- 3 years warranty

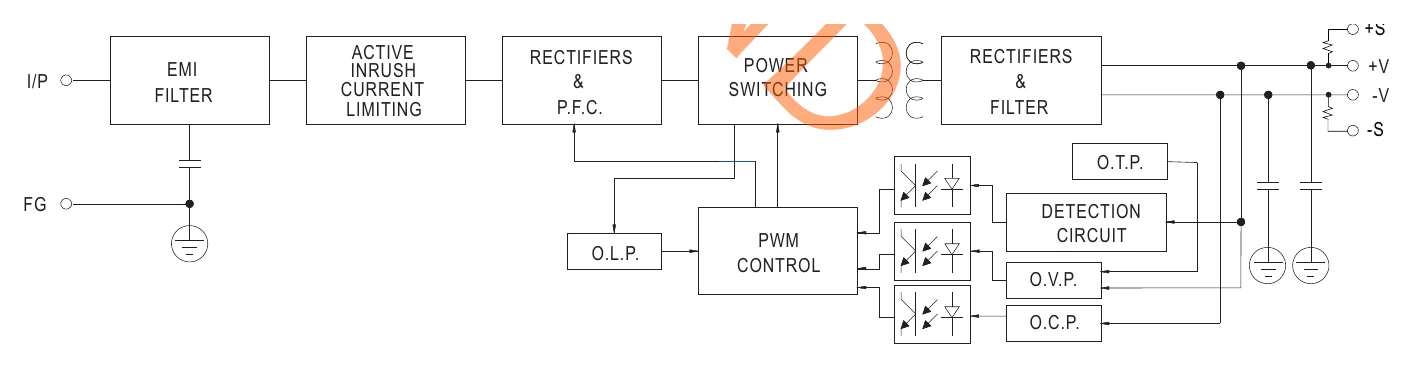

Specifications
USP-350-24Specifications from the official datasheet (2018-01-15 edition)Download datasheet PDF
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 14.6A
- CURRENT RANGE (convection)
- 0 ~ 12.5A
- CURRENT RANGE (23.5CFM FAN)
- 0 ~ 14.6A
- RATED POWER (convection)
- 300W
- RATED POWER (23.5CFM FAN)
- 350.4W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 21.6 ~ 26.4V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 2000ms, 100ms/230VAC 4000ms, 100ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 12ms/230VAC 16ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- 0.94/230VAC 0.95/230VAC 0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 88%
- AC CURRENT (Typ.)
- 4A/115VAC 2A/230VAC
- INRUSH CURRENT (Typ.)
- 22A/115VAC 44A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 120% rated output power 105 ~ 130% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 26.7 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- Shut down o/p voltage with auto-recovery
ENVIRONMENT
- WORKING TEMP.

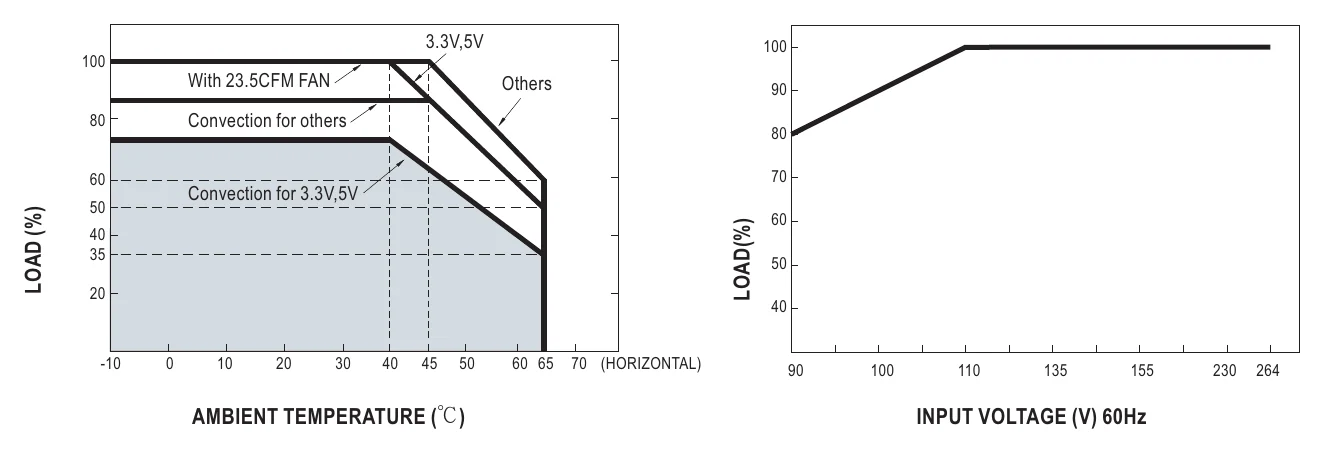

- -10 ~ +65℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 45℃ )
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL60950-1, TUV EN60950-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 106.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION

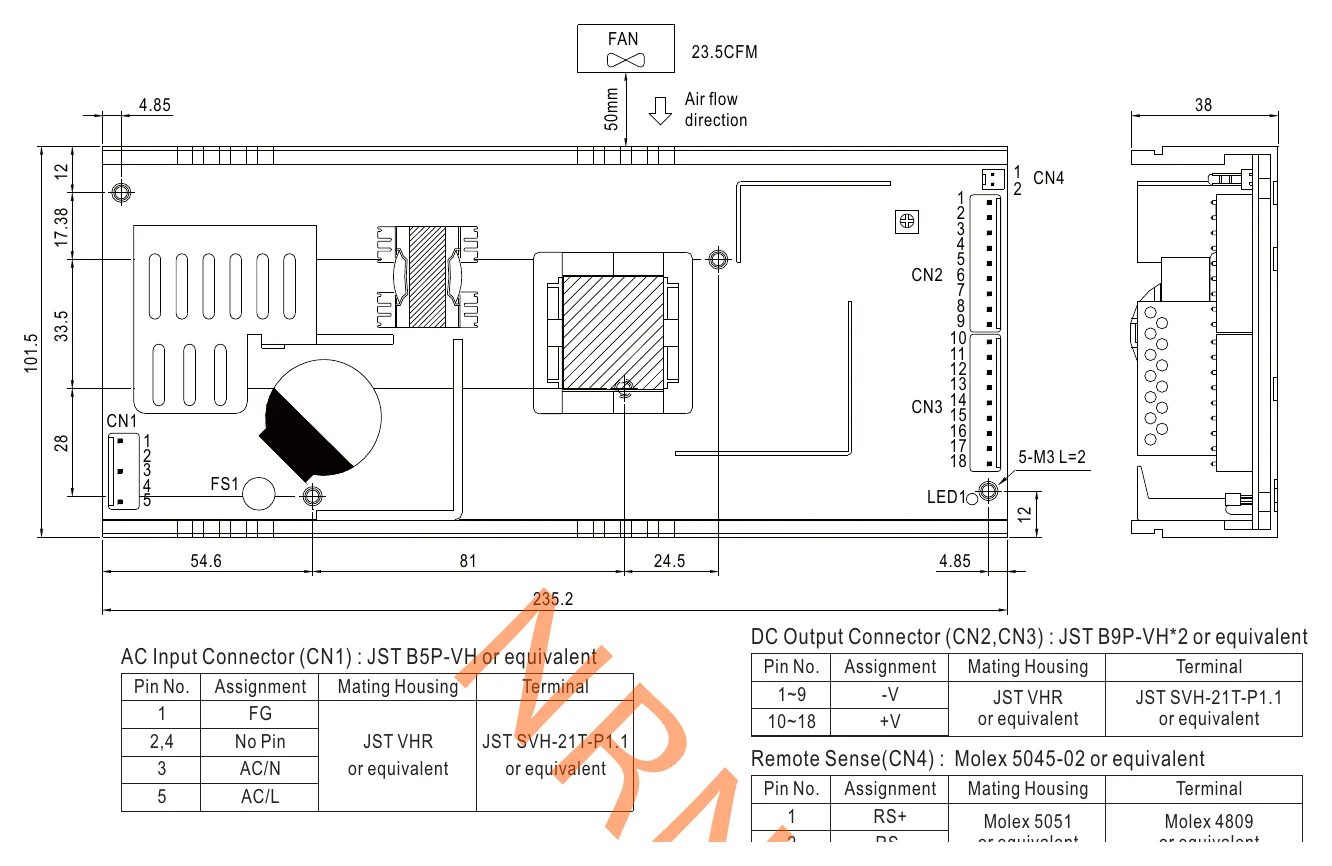

- 235.2*101.5*38mm (L*W*H)
- PACKING
- 1.1Kg; 16pcs/18Kg/0.72CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
