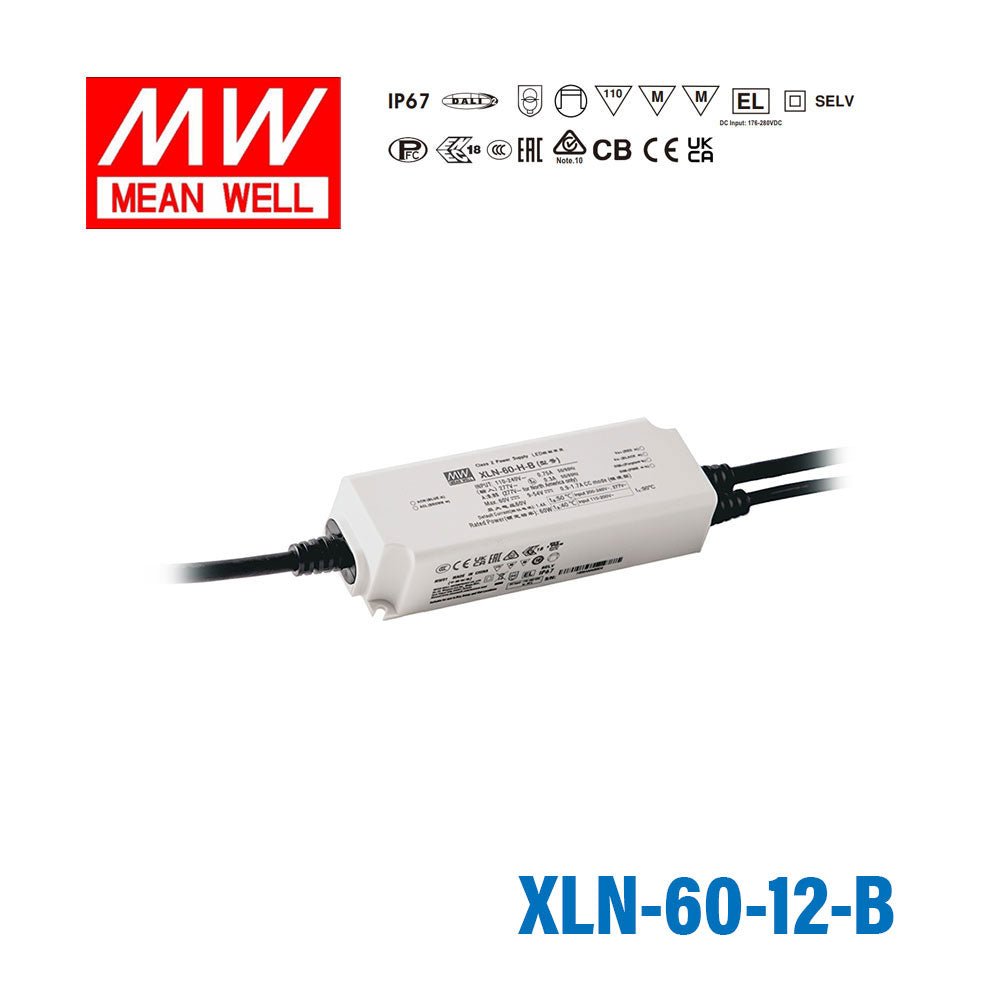

Mean Well XLN-60-12-B LED Driver 60W 12V IP67, 3 in 1 Dimming
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.57 in
-
Width1.26 in
-
Height1.93 in
::specification::
Frequently Asked Questions
What are the main output specs of the Mean Well XLN-60-12-B?
The XLN-60-12-B is a 60W LED driver with a 12V constant voltage output. Its rated output current is 5A, making it suitable for 12V LED loads within the 60W power rating.
Does the XLN-60-12-B support dimming?
Yes. This model supports 3-in-1 dimming, including 0-10V, 1-10V, PWM, and resistance dimming control types listed for this product. It also supports dim-to-off functionality.
Can the XLN-60-12-B be used in wet or outdoor environments?
The XLN-60-12-B is fully encapsulated and rated IP67. That rating makes it suitable for environments where protection from dust and water ingress is required, within the product's stated operating limits.
What temperature range is specified for the XLN-60-12-B?
This LED driver is specified with a minimum temperature of -25 °C and a maximum temperature of 90 °C. Buyers should verify that the final application keeps the driver within those stated limits.
What types of LED projects is the XLN-60-12-B intended for?
The XLN-60-12-B is intended for 12V LED driver applications that require up to 60W of output power. Its IP67 encapsulated plastic housing, flicker-free design, and dimming support make it relevant for commercial LED lighting projects where those features are required.
How is the XLN-60-12-B different from a non-dimmable 12V LED power supply?
Unlike a basic fixed-output 12V power supply, the XLN-60-12-B includes dimming support with 3-in-1 control options. It also includes features listed for this model such as flicker-free operation, PFC design, standby power consumption under 0.5W, and an IP67 encapsulated housing.
What warranty is listed for the Mean Well XLN-60-12-B?
The XLN-60-12-B is listed with a 5-year warranty. This warranty period is part of the product information provided for this specific model.
