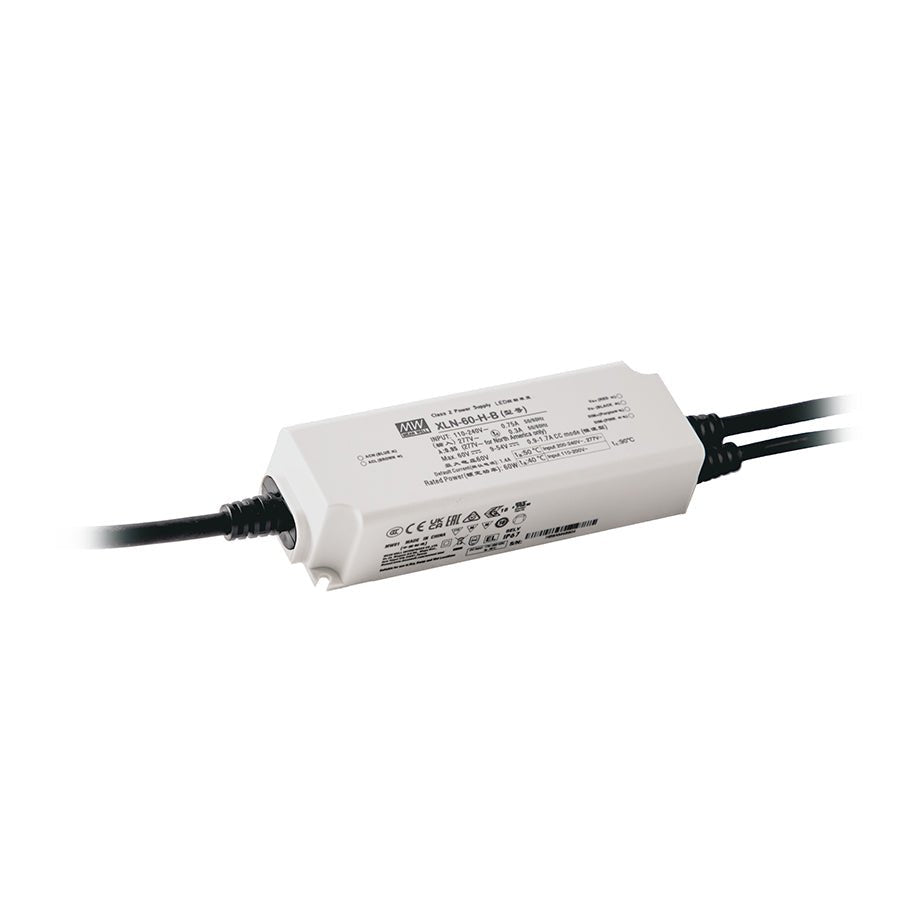

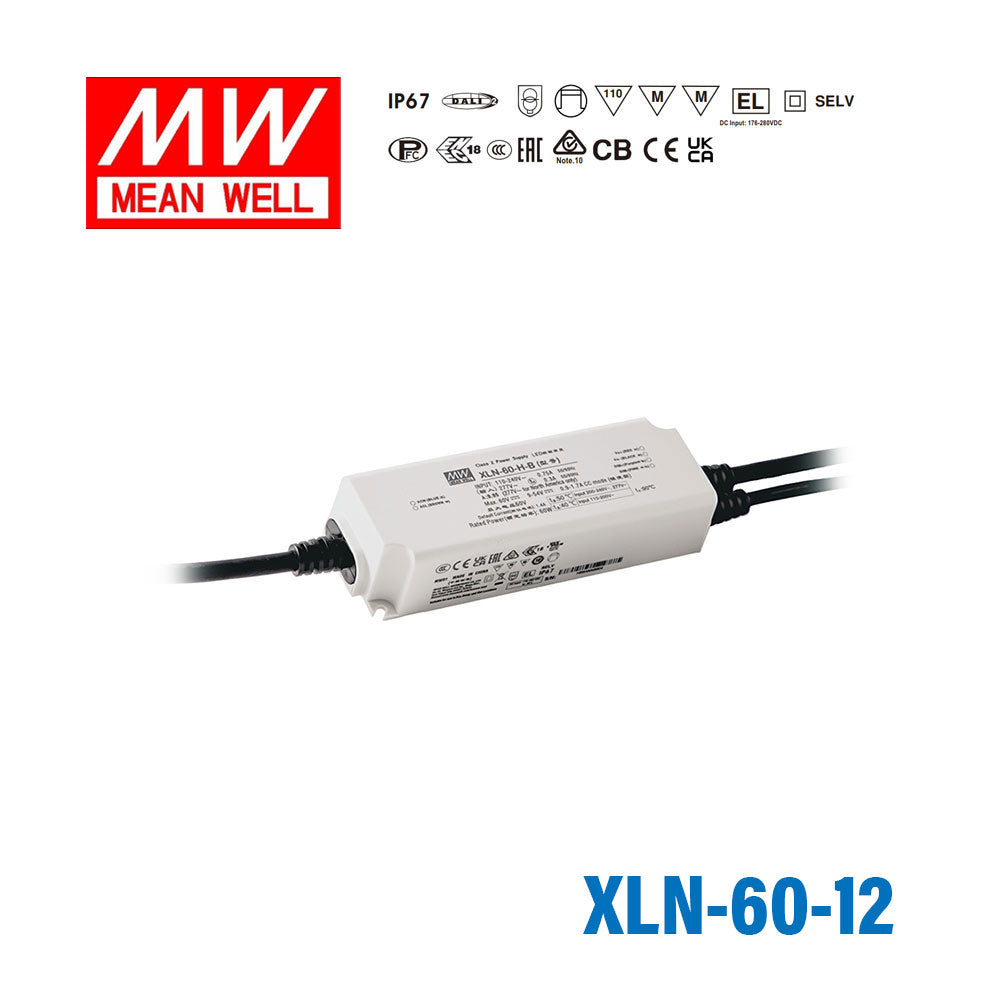

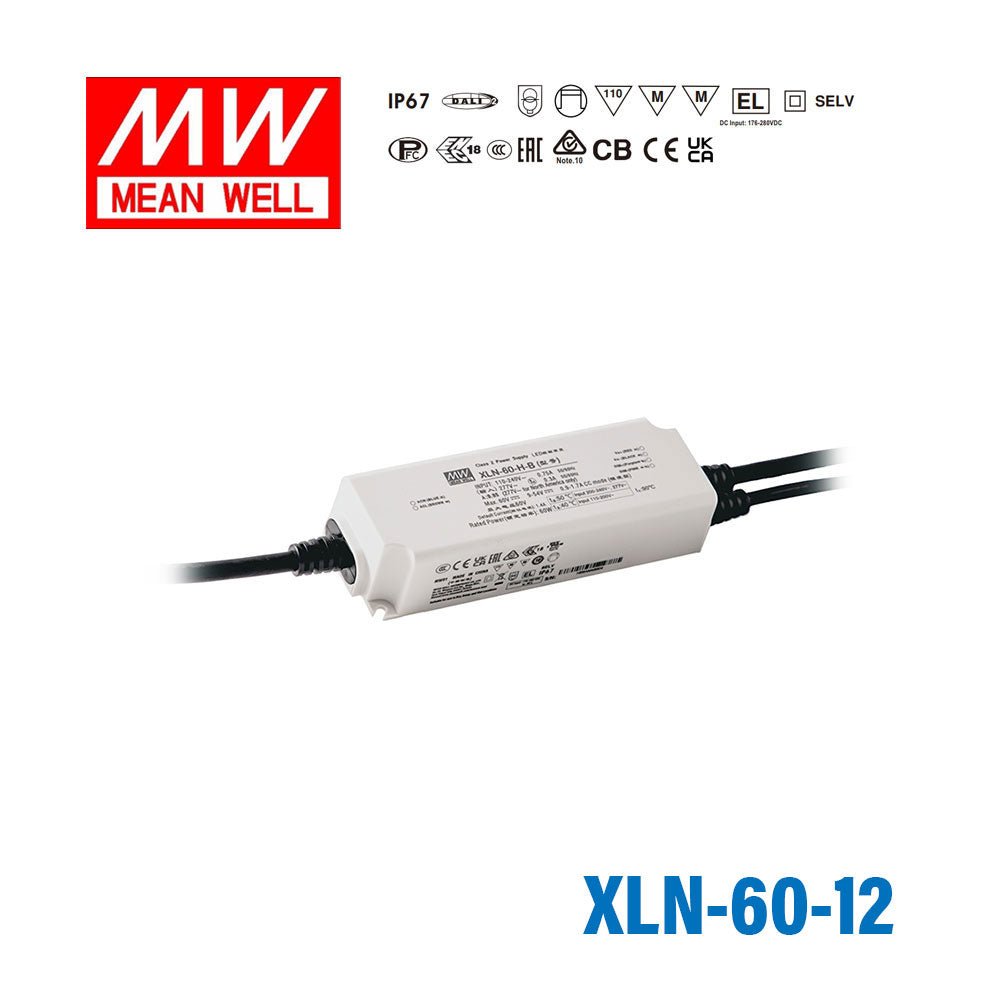

Mean Well XLN-60-12 LED Driver 60W 12V IP67 5A
The Mean Well XLN-60-12 is a 60W constant voltage LED driver with a regulated output of 12V DC at up to 5A. Housed in a fully potted IP67 plastic case with built-in active PFC, it requires no earth connection and is flicker-free to the CE ErP directive.
Accepting 110~305VAC universal input, the XLN-60-12 operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It is a fixed-output, non-dimmable model. Protected against short circuit and over temperature, and backed by a 5-year warranty.
Key Features
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.57 in
-
Width1.93 in
-
Height1.26 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well XLN-60-12?
The Mean Well XLN-60-12 is a 60W constant-voltage LED driver with a 12V output. Its rated output current is 5A, making it suitable for 12V LED loads within the 60W power limit.
What type of LED applications is the XLN-60-12 used for?
The XLN-60-12 is intended for 12V constant-voltage LED applications. Its 60W rating makes it a fit for commercial or project-based LED lighting where a compact AC/DC LED driver is required.
Is the Mean Well XLN-60-12 suitable for damp or outdoor environments?
The XLN-60-12 is fully encapsulated and rated IP67. That rating supports use in demanding environments where protection against dust and water exposure is required.
What temperature range does the XLN-60-12 support?
This model is specified for operation from -25°C to 90°C. Buyers should confirm that the planned application stays within that temperature range.
How does the XLN-60-12 differ from higher-voltage XLN models?
The XLN-60-12 is the 12V version in the XLN 60W constant-voltage range. Other listed output voltage options in the family include 24V and 48V, so the XLN-60-12 is selected when the application requires 12V output.
Is the XLN-60-12 a dimmable LED driver?
The provided product data identifies this SKU with dimming control listed as non-dimmable. If dimming is required, buyers should verify the exact XLN variant and control type before selecting a model.
What warranty does the Mean Well XLN-60-12 include?
The XLN-60-12 is listed with a 5-year warranty. This is useful for B2B buyers comparing long-term support across LED driver options.
