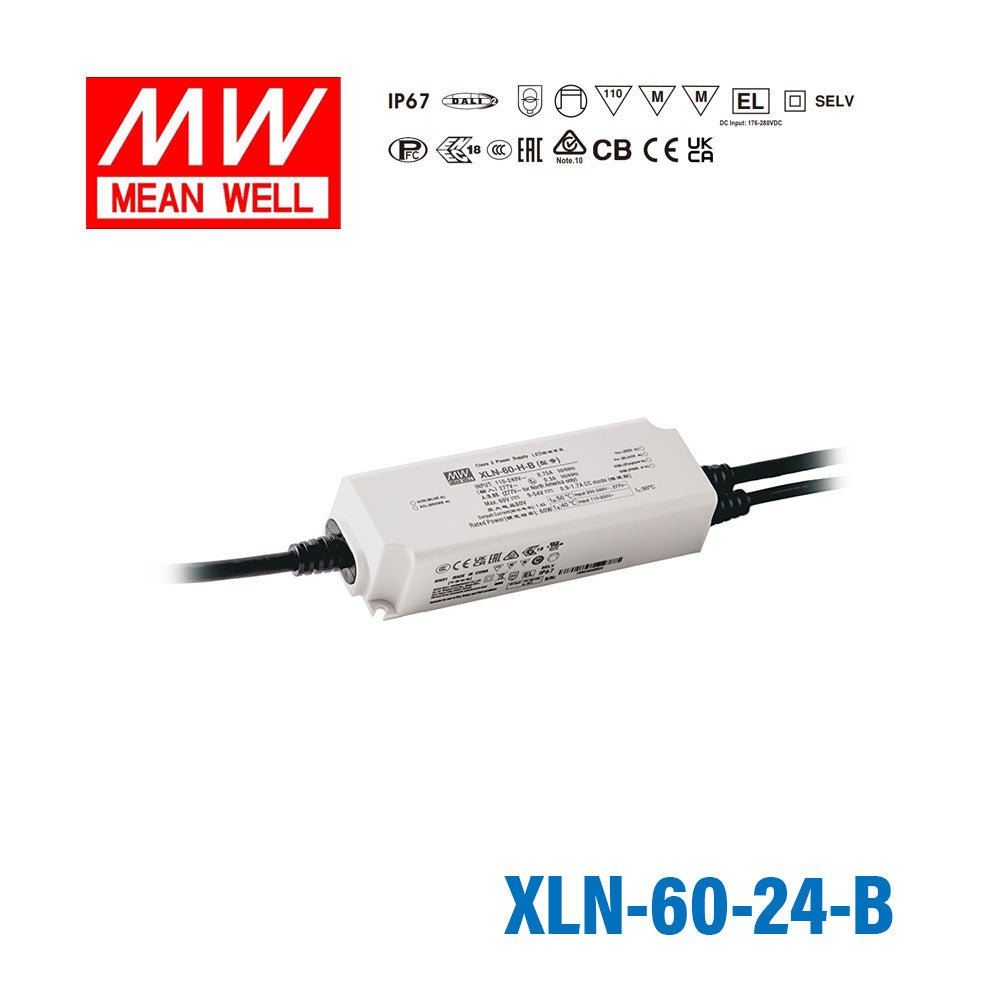

Mean Well XLN-60-24-B LED Driver 60W 24V IP67, 3 in 1 Dimming
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.57 in
-
Width1.26 in
-
Height1.93 in
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well XLN-60-24-B?
The XLN-60-24-B is a 60 W LED driver with a 24 V output and a rated current of 2.5 A. It is designed for constant voltage LED applications that match these electrical requirements.
What dimming controls does the XLN-60-24-B support?
This model supports 3-in-1 dimming control using 0-10 V PWM, 1-10 V, and resistance-based dimming inputs. It is intended for projects where dimming control is required, while still using a 24 V constant voltage LED driver.
Can the XLN-60-24-B be used in outdoor or damp environments?
The XLN-60-24-B is fully encapsulated and rated IP67. That rating makes it suitable for many demanding LED driver environments where protection from dust and water ingress is required.
What types of LED projects is the XLN-60-24-B typically used for?
This driver is a fit for 24 V LED lighting systems that need up to 60 W of power and dimming capability. Its IP67 enclosure and flicker-free design make it relevant for commercial, architectural, and B2B lighting applications.
What operating temperature range is specified for the XLN-60-24-B?
The listed temperature range for this model is -25 °C to 90 °C. Buyers should confirm that the product location and application conditions stay within that specified range.
How is the XLN-60-24-B different from a non-dimming 24 V LED driver?
Unlike a basic fixed-output 24 V driver, the XLN-60-24-B includes 3-in-1 dimming support. It also combines a 60 W power rating, IP67 encapsulation, flicker-free performance, and a 5-year warranty in this specific model.
What warranty period applies to the Mean Well XLN-60-24-B?
The XLN-60-24-B is listed with a 5-year warranty. This can be an important factor for B2B lighting projects where long service life and product support matter.
