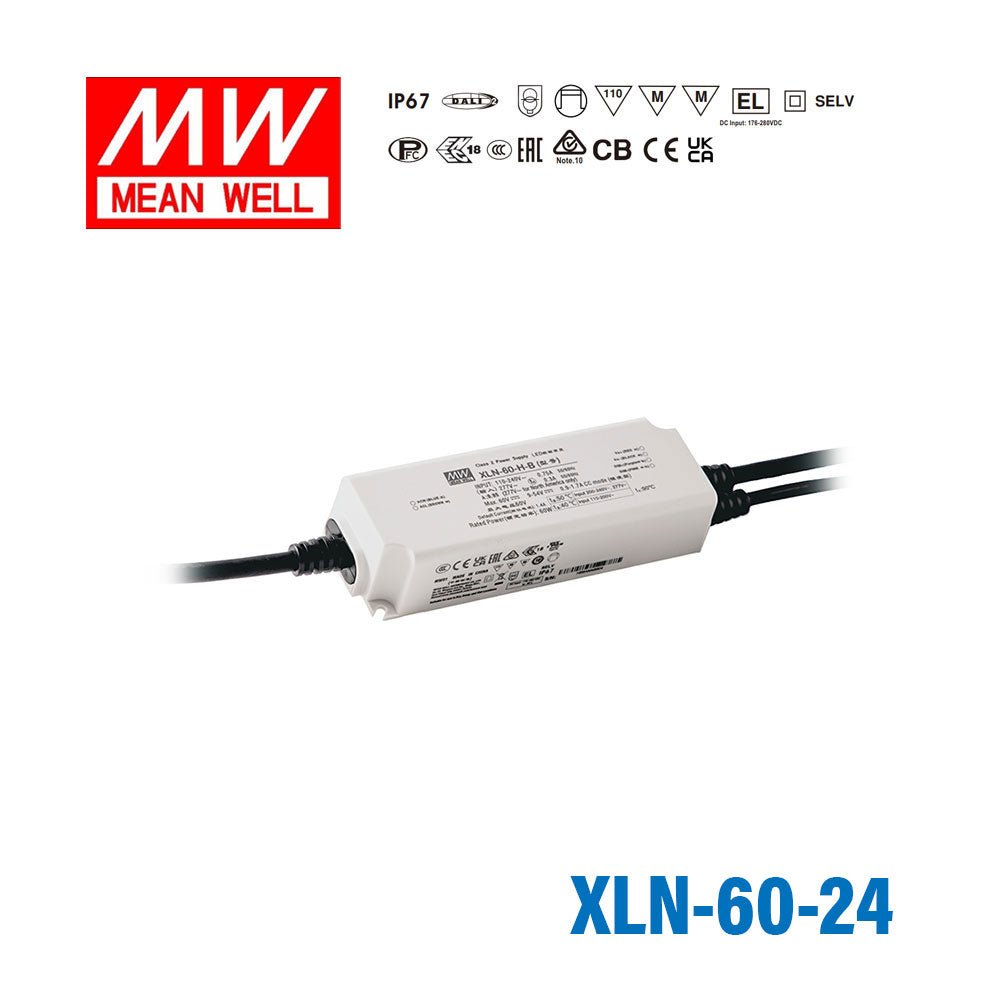

Mean Well XLN-60-24 LED Driver 60W 24V IP67
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.57 in
-
Width1.26 in
-
Height1.93 in
::specification::
Frequently Asked Questions
What are the key output ratings for the Mean Well XLN-60-24?
The Mean Well XLN-60-24 is a 60W constant voltage LED driver with a 24V output. Its rated output current is 2.5A, making it suitable for 24V LED loads within the 60W power limit.
What types of projects is the XLN-60-24 typically used for?
The XLN-60-24 is intended for 24V LED driver applications where a 60W AC-DC power supply is required. Its product data highlights LED driver use, emergency lighting application support, and constant voltage operation.
Can the XLN-60-24 be used in damp or outdoor-rated environments?
This model is fully encapsulated and has an IP67 rating. That makes it suitable for applications that require a waterproof-rated LED driver, provided the full system is designed for the intended environment.
Is the XLN-60-24 compatible with 24V LED products?
Yes, this model provides a 24V constant voltage output. It should be selected for 24V LED loads that do not exceed its 60W power rating or 2.5A rated current.
Is the XLN-60-24 dimmable?
The provided product data lists the dimming control for this SKU as non_dimmable. If dimming is required, buyers should verify the exact XLN series variant and control type before purchase.
What operating temperature range is listed for the XLN-60-24?
The listed temperature range for this model is -25°C to 90°C. This gives buyers a useful reference when checking whether the driver fits the thermal requirements of their application.
What warranty does the Mean Well XLN-60-24 include?
The XLN-60-24 is listed with a 5-year warranty. This warranty period is a key consideration for commercial LED driver sourcing and replacement planning.
