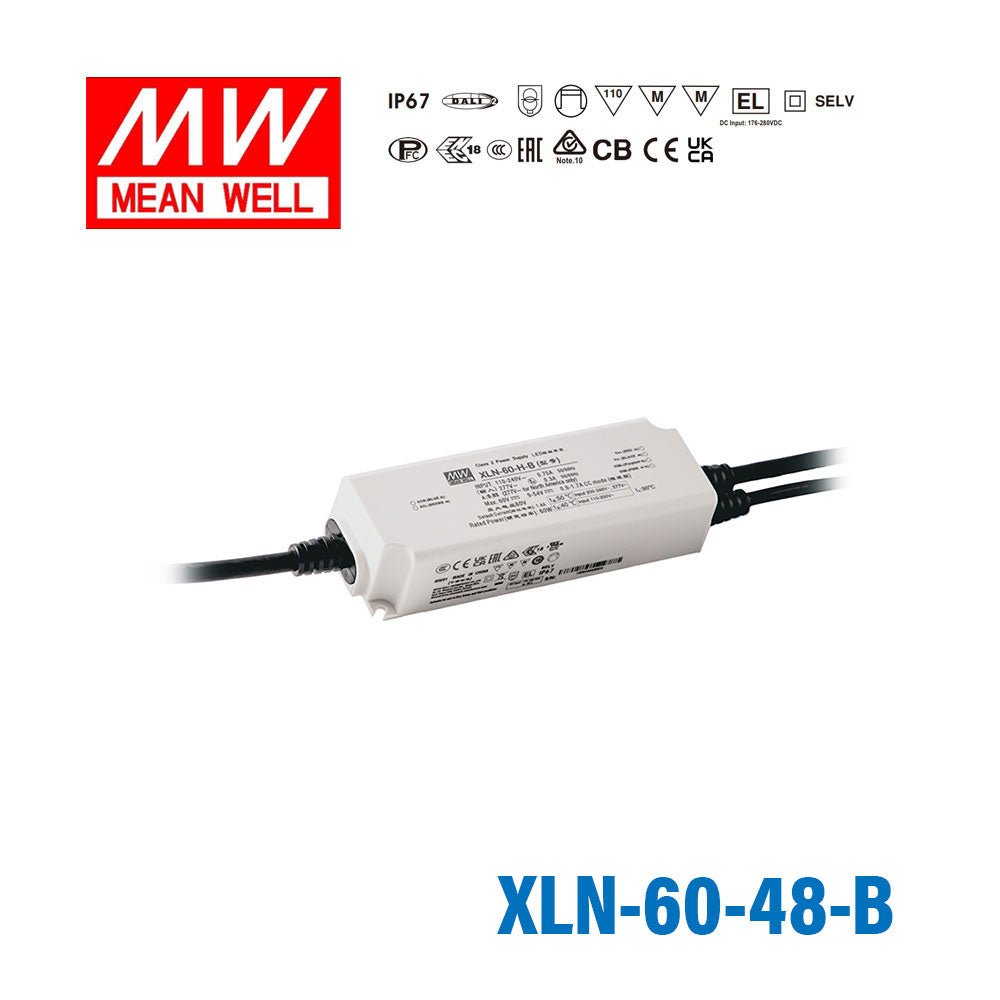

Mean Well XLN-60-48-B LED Driver 60W 48V IP67, 3 in 1 Dimming
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.57 in
-
Width1.26 in
-
Height1.93 in
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well XLN-60-48-B?
The XLN-60-48-B is rated for 60 W output power. It provides a 48 V output with a rated current of 1.25 A.
Is the XLN-60-48-B suitable for outdoor or wet-area LED applications?
Yes, this model is fully encapsulated and rated IP67. That makes it suitable for environments where dust and water resistance are required, within the specified operating temperature range.
What dimming controls does the XLN-60-48-B support?
The XLN-60-48-B supports 3-in-1 dimming control. The listed dimming control types are 0-10 V/PWM, 1-10 V, and resistance dimming.
What applications is this LED driver commonly used for?
This driver is intended for LED lighting applications that require a 48 V, 60 W AC/DC LED driver. Its IP67 rating, plastic housing, PFC design, and dimming support make it relevant for commercial, architectural, and other constant-voltage LED projects that match its electrical ratings.
Does the XLN-60-48-B support flicker-free LED operation?
Yes, the product description lists flicker-free operation and compliance with IEEE1789/ErP. This is useful for buyers looking to reduce visible flicker in compatible LED lighting systems.
What operating temperature range is specified for this model?
The XLN-60-48-B has a listed operating temperature range from -25 °C to 90 °C. Buyers should confirm that the intended environment stays within this range for the application.
How long is the warranty for the XLN-60-48-B?
This model has a 5-year warranty period. The warranty length is one of the key service-life considerations for B2B lighting and power supply buyers.
