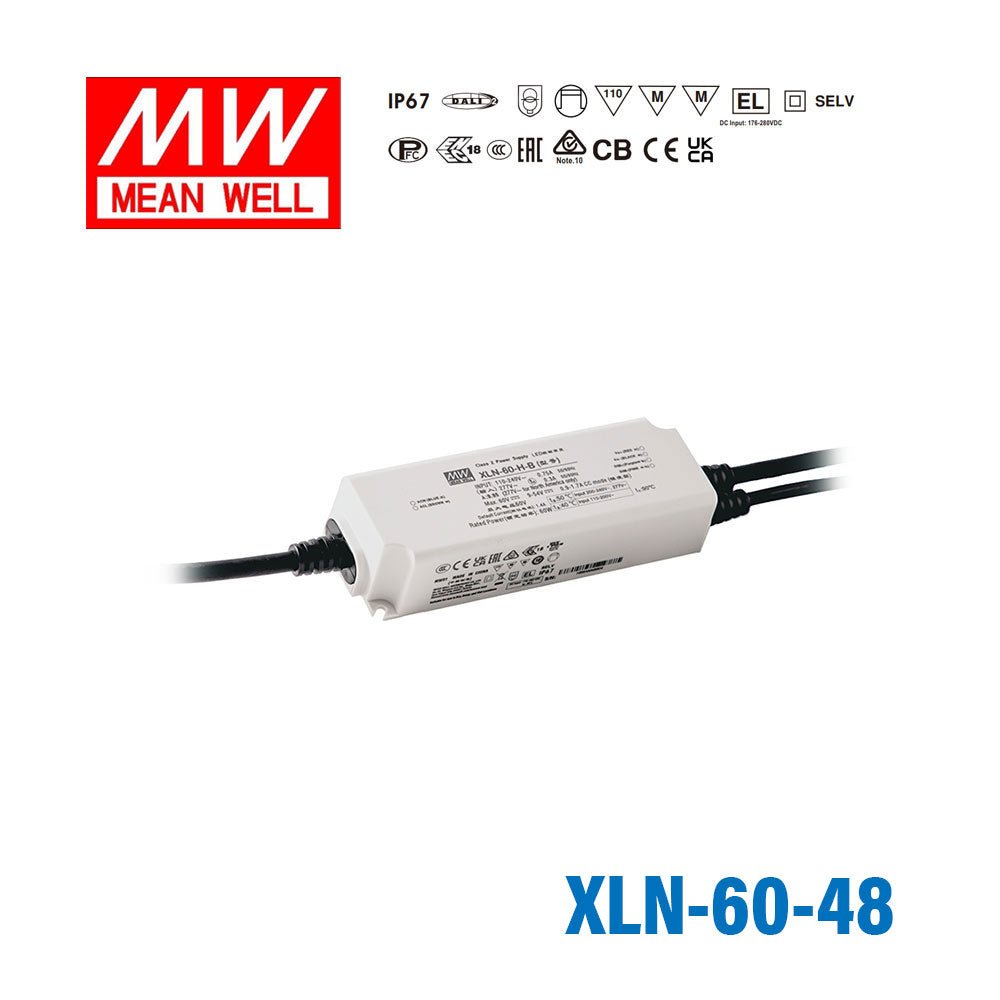

Mean Well XLN-60-48 LED Driver 60W 48V IP67
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.57 in
-
Width1.26 in
-
Height1.93 in
::specification::
Frequently Asked Questions
What are the key electrical ratings of the Mean Well XLN-60-48?
The Mean Well XLN-60-48 is a 60 W LED driver with a 48 V output. Its rated output current is 1.25 A, making it suitable for constant-voltage LED applications that match those ratings.
Is the XLN-60-48 suitable for outdoor or damp environments?
Yes, the XLN-60-48 has a fully encapsulated IP67 design. That rating supports use in demanding environments where protection against dust and water ingress is required.
What types of applications is the XLN-60-48 designed for?
This model is designed for LED driver and AC-DC power supply applications requiring 48 V constant-voltage output. It is also listed as meeting emergency lighting application requirements.
Is the XLN-60-48 dimmable?
The provided product data lists this specific XLN-60-48 configuration as non-dimmable. Buyers needing dimming should confirm they are selecting a version with the required dimming control feature.
What operating temperature range does the XLN-60-48 support?
The listed operating temperature range for the XLN-60-48 is -25 °C to 90 °C. This wide range supports use in many commercial and industrial LED power applications.
How does the XLN-60-48 differ from lower-voltage LED drivers?
The XLN-60-48 provides a 48 V output, while lower-voltage drivers are designed for systems such as 12 V or 24 V loads. It should be selected when the LED system requires a 48 V constant-voltage supply within the 60 W power limit.
What warranty is provided with the Mean Well XLN-60-48?
The XLN-60-48 is listed with a 5-year warranty. This warranty period is part of the product data for this specific Mean Well LED driver model.
