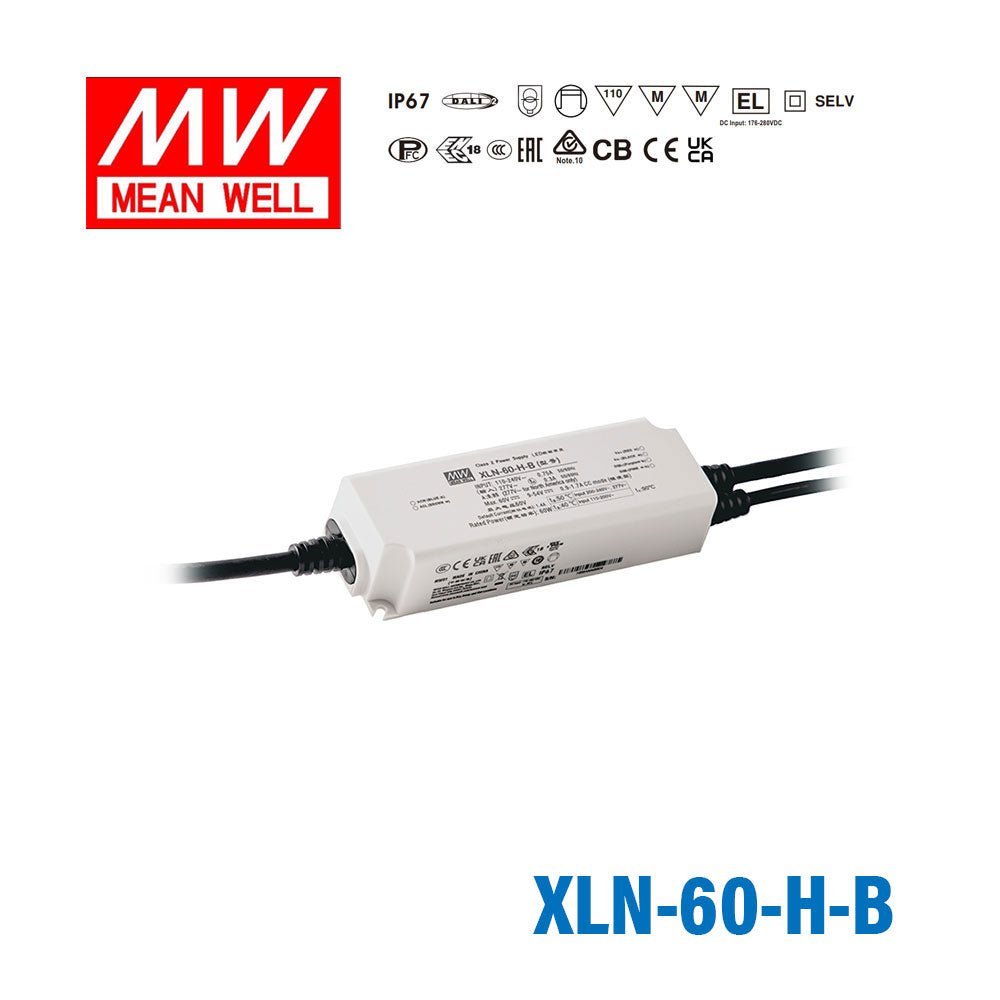

Mean Well XLN-60-H-B LED Driver 60W 1400mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLN-60-H-B LED Driver 60W 1400mA 9~54V Constant Power IP6...
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.57 in
-
Width1.26 in
-
Height1.93 in
::specification::
Frequently Asked Questions
What type of LED load is the Mean Well XLN-60-H-B designed for?
The XLN-60-H-B is a 60W constant power LED driver with a 1400mA rated output current and a 9~54V output range listed in the product name. It is suited to compatible constant-current LED lighting products that fall within those stated output limits.
Does the XLN-60-H-B support dimming?
Yes. This model supports 3 in 1 dimming, with the product data listing 0-10V, 1-10V, PWM, and resistance dimming control options. It also includes dim-to-off functionality according to the description.
Can the output current be adjusted on the XLN-60-H-B?
Yes. The XLN-60-H-B includes NFC current setting, and the description notes multiple stages selectable by NFC setting for H-type models. This helps buyers match the driver to compatible LED loads within the model's supported rating.
Is the XLN-60-H-B suitable for damp or outdoor environments?
The XLN-60-H-B is fully encapsulated and rated IP67. That rating indicates strong protection against dust and water ingress, making it appropriate for demanding lighting environments where an IP67 LED driver is required.
What operating temperature range is listed for this LED driver?
The product data lists an operating temperature range from -25 °C to 90 °C. Buyers should confirm that the final fixture or enclosure environment stays within that rated range.
How does this model differ from a basic non-dimming LED driver?
Compared with a basic fixed-output driver, the XLN-60-H-B adds 3 in 1 dimming support, NFC current setting, IP67 encapsulation, and flicker-free performance listed as compliant with IEEE1789/ErP. It also carries a 5-year warranty.
What warranty is included with the XLN-60-H-B?
The XLN-60-H-B is listed with a 5-year warranty. That makes it a stronger fit for commercial and B2B lighting projects where long service life and manufacturer support matter.
