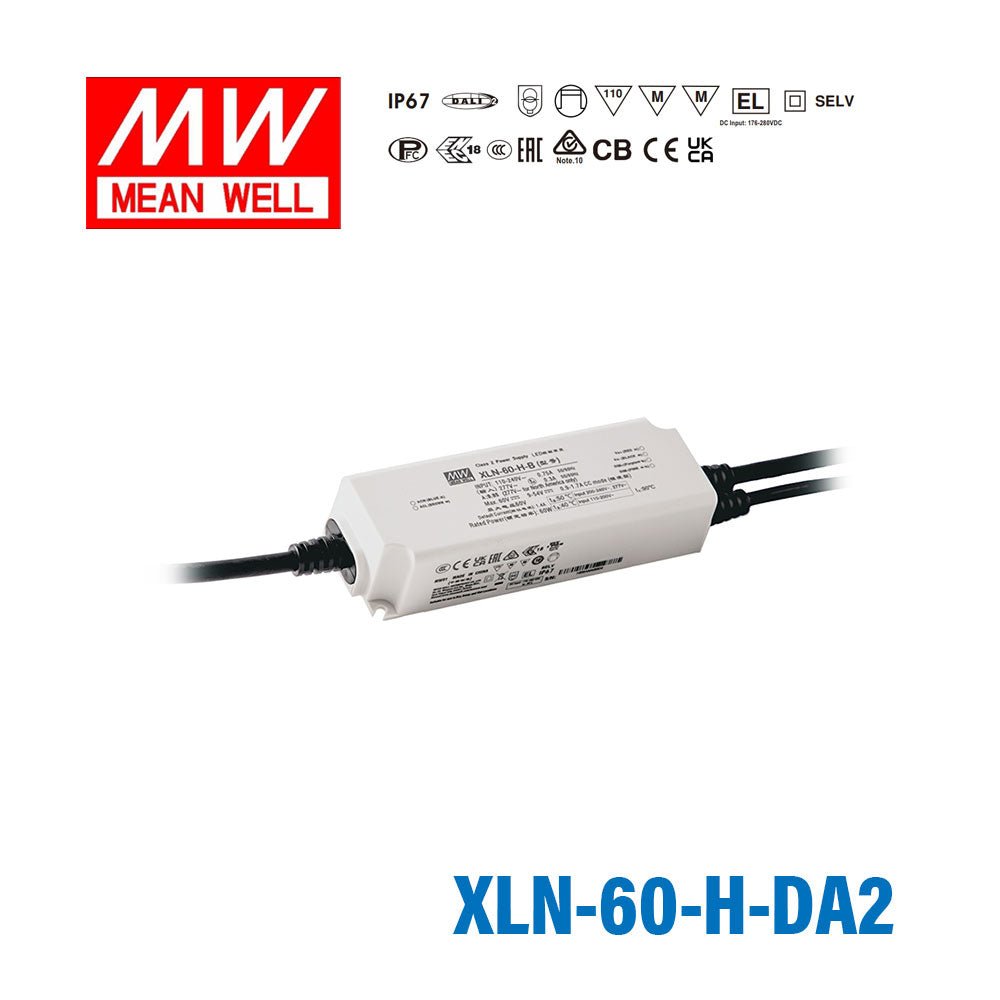

Mean Well XLN-60-H-DA2 LED Driver 60W 1400mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLN-60-H-DA2 LED Driver 60W 1400mA 9~54V Constant Power I...
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.57 in
-
Width1.26 in
-
Height1.93 in
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well XLN-60-H-DA2?
The XLN-60-H-DA2 is a 60W LED driver rated at 1400mA. The product name lists a 9~54V output range for this constant power model.
Does the XLN-60-H-DA2 support DALI dimming?
Yes. This model supports DALI-2 DT6 dimming and also includes push dimming functionality. It is listed with a minimum dimming level below 1%.
Can the XLN-60-H-DA2 be used in demanding environments?
The XLN-60-H-DA2 is fully encapsulated and rated IP67. It is specified for an operating temperature range from -25°C to 90°C.
What types of lighting projects is the XLN-60-H-DA2 suited for?
This driver is suited for LED lighting applications that need a 60W constant power driver with DALI dimming support. Its IP67 rating and flicker-free design make it relevant for professional indoor or protected outdoor lighting projects where those requirements matter.
Does the XLN-60-H-DA2 support NFC current setting?
Yes. The XLN-60-H-DA2 includes NFC current setting for selectable output stages in constant power mode. This is one of the key configuration features of the H-type model.
What differentiates the XLN-60-H-DA2 from a basic non-dimming LED driver?
This model includes DALI-2 DT6 dimming, push dimming, NFC current setting, PFC design, and IP67 encapsulation. It also supports flicker-free operation compliant with IEEE1789/ErP and has standby power consumption below 0.5W.
What warranty does the XLN-60-H-DA2 include?
The XLN-60-H-DA2 is listed with a 5-year warranty. This warranty period applies to this Mean Well LED driver model as specified in the product data.
