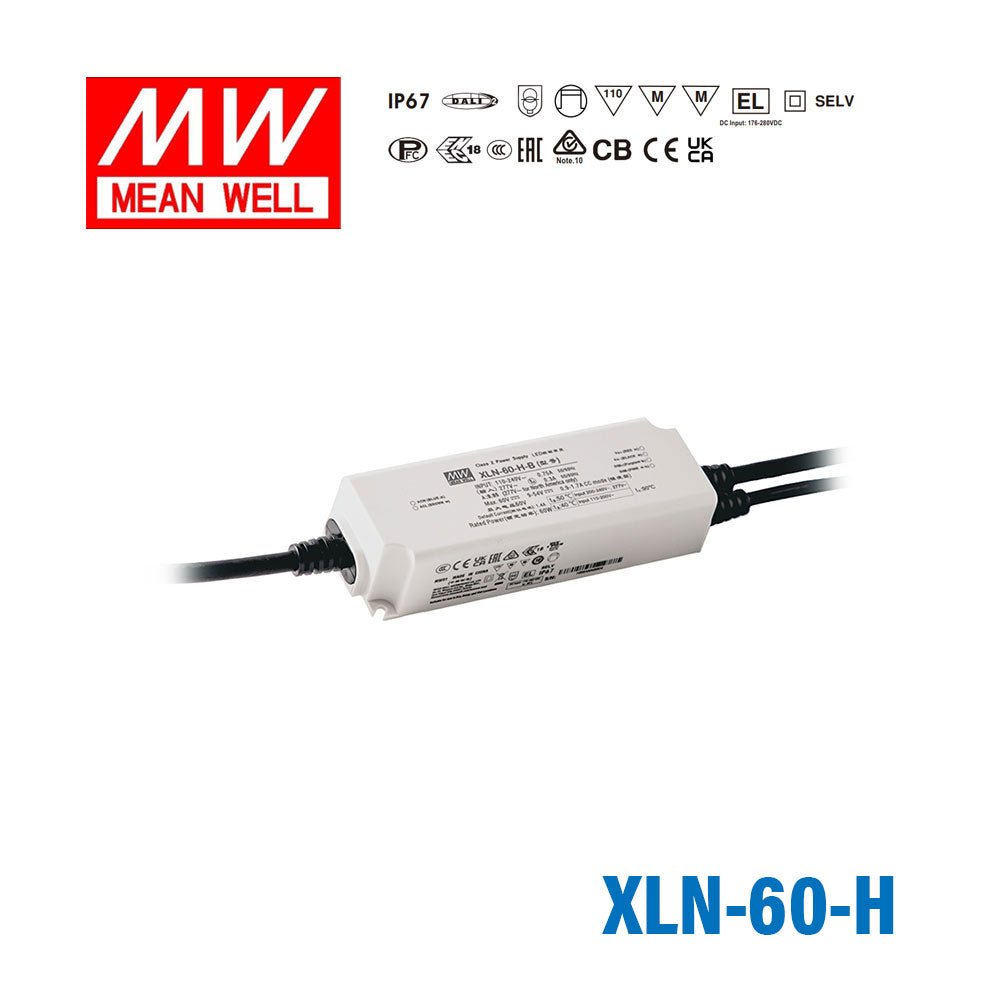

Mean Well XLN-60-H LED Driver 60W 1400mA 9~54V Constant Power IP67, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLN-60-H LED Driver 60W 1400mA 9~54V Constant Power IP67,...
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.57 in
-
Width1.26 in
-
Height1.93 in
::specification::
Frequently Asked Questions
What is the Mean Well XLN-60-H used for?
The Mean Well XLN-60-H is a 60W AC/DC LED driver for LED lighting applications that need a constant power output profile. It is listed in LED driver and power supply categories and is suited for B2B lighting supply use where an IP67 encapsulated driver is required.
What output current does the XLN-60-H provide?
The XLN-60-H is rated for 1400mA output current. The product name also identifies it as a 60W constant power LED driver with a 9~54V output range.
Is the XLN-60-H waterproof?
The XLN-60-H has an IP67 rating and is fully encapsulated according to the product description. This makes it appropriate for environments where a sealed LED driver is needed, within the stated operating temperature limits.
What temperature range is specified for the XLN-60-H?
The listed temperature range for this model is -25°C to 90°C. Buyers should confirm that the product location and operating conditions stay within those limits.
Does the XLN-60-H support NFC current setting?
Yes. The product name and description identify the XLN-60-H as an H-type model with NFC current setting for selectable output stages.
Is the XLN-60-H dimmable?
The catalog field for this item lists the dimming control as non_dimmable. The description references dimming functions in the broader series information, so buyers should use the listed dimming control for this specific SKU when matching requirements.
What warranty is provided for the XLN-60-H?
The XLN-60-H is listed with a 5-year warranty period. This warranty length is part of the product data for this specific model.
