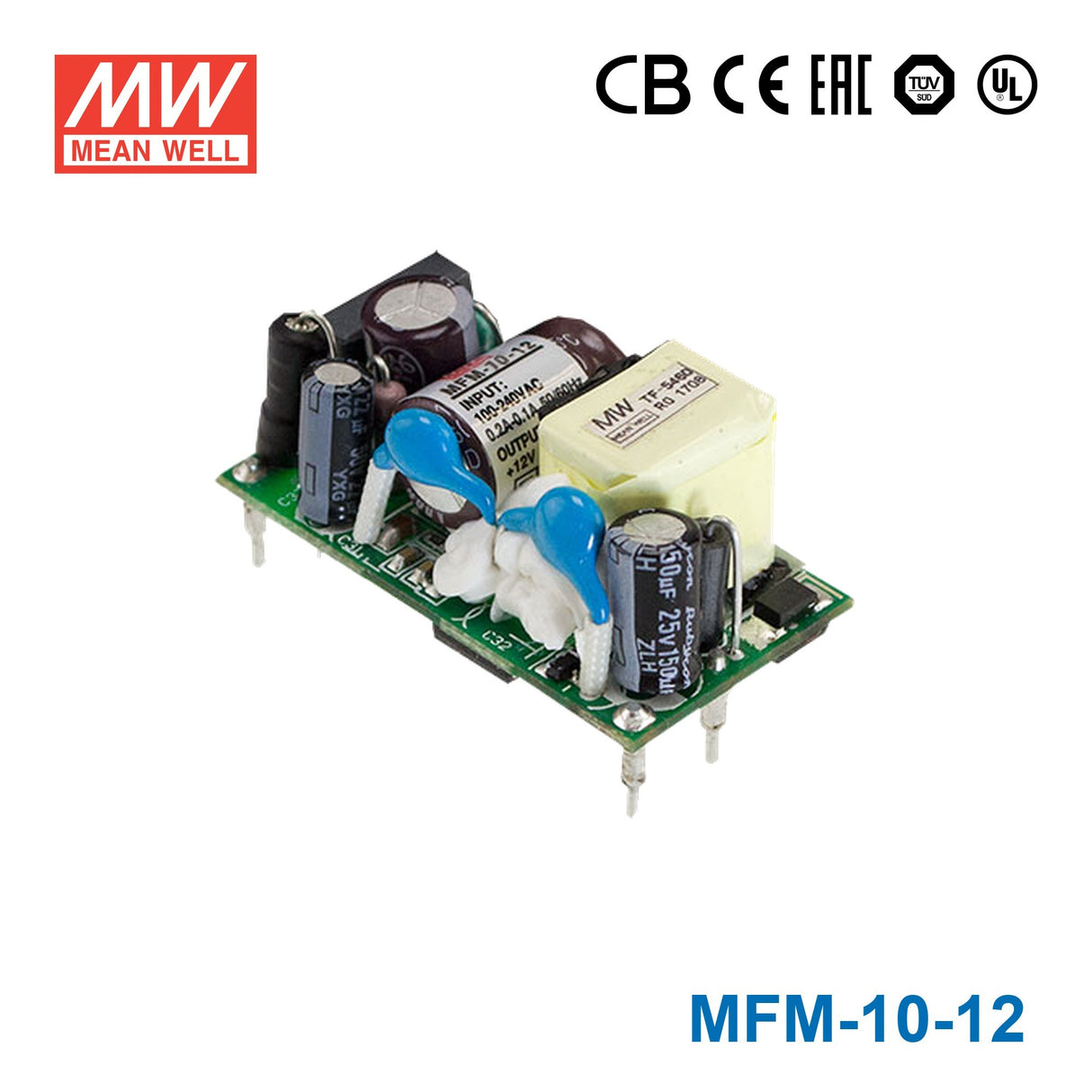

Mean Well MFM-10-12 Power Supply 10W 12V 850mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-10-12 Power Supply 10W 12V 850mA
Touch current<80 μA/264VAC
Key Features
- ✓1.65"x0.88" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating10.2 Watt
-
Output Voltage12 Volt
-
Rated Current0.85 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length1.65 in
-
Width0.88 in
-
Height0.81 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the MFM-10-12 for a 12V PLC accessory or industrial control circuit?
Yes, it is a constant voltage 12V power supply rated for 10.2W and 0.85A. That makes it suitable for low-power 12V control electronics, PLC accessories, and interface circuits that stay within those limits.
Is the MFM-10-12 suitable for embedded 12V automation electronics?
It can fit embedded automation electronics that require regulated 12V DC and less than 0.85A. The compact PCB-type form factor and 42.0 × 22.3 × 20.5 mm dimensions support use in small electronic assemblies.
Can this model power small 12V alarm, monitoring, or communications equipment?
It is a fit for small 12V monitoring, alarm, or communications electronics when the total load remains within 10.2W. The wide 80-264VAC input is also useful when the AC source may vary across standard mains ranges.
How does the MFM-10-12 compare with other MFM series options?
The MFM family includes 3.3V, 5V, 12V, 15V, 24V, and 48V outputs from 4.1W up to 31.2W. Sibling models are MFM-05-3.3 at 4.1W 3.3V 1.25A, MFM-05-5 at 5W 5V 1A, MFM-05-12 at 5W 12V 0.42A, MFM-05-15 at 5W 15V 0.33A, MFM-05-24 at 5.5W 24V 0.23A, MFM-10-3.3 at 8.3W 3.3V 2.5A, MFM-10-5 at 10W 5V 2A, MFM-10-15 at 10W 15V 0.67A, MFM-10-24 at 10W 24V 0.42A, MFM-15-3.3 at 11.6W 3.3V 3.5A, MFM-15-5 at 15W 5V 3A, MFM-15-12 at 15W 12V 1.25A, MFM-15-15 at 15W 15V 1A, MFM-15-24 at 15.1W 24V 0.63A, MFM-20-3.3 at 14.9W 3.3V 4.5A, MFM-20-5 at 20W 5V 4A, MFM-20-12 at 21.6W 12V 1.8A, MFM-20-15 at 21W 15V 1.4A, MFM-20-24 at 21.6W 24V 0.9A, MFM-30-3.3 at 19.8W 3.3V 6A, MFM-30-5 at 30W 5V 6A, MFM-30-12 at 30W 12V 2.5A, MFM-30-15 at 30W 15V 2A, MFM-30-24 at 31.2W 24V 1.3A, and MFM-30-48 at 30.2W 48V 0.63A. The MFM-10-12 sits between the 5W 12V and higher-power 12V versions.
Is the MFM-10-12 intended for indoor or outdoor operating conditions?
The stated operating temperature range is -30°C to +85°C, so the thermal limit is defined in the specs. No IP rating is listed, so the product data does not specify outdoor dust or water protection.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MFM-10 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MFM-10-5 Power Supply 10W 5V 2A | 10W | 5V | 2A | Indoor | $10.19 | View |
| Mean Well MFM-10-3.3 Power Supply 10W 3.3V 2.5A | 8.3W | 3.3V | 2.5A | Indoor | $10.18 | View |
| Mean Well MFM-10-24 Power Supply 10W 24V 420mA | 10W | 24V | 0.42A | Indoor | $10.18 | View |
| Mean Well MFM-10-15 Power Supply 10W 15V 670mA | 10W | 15V | 0.67A | Indoor | $10.18 | View |
