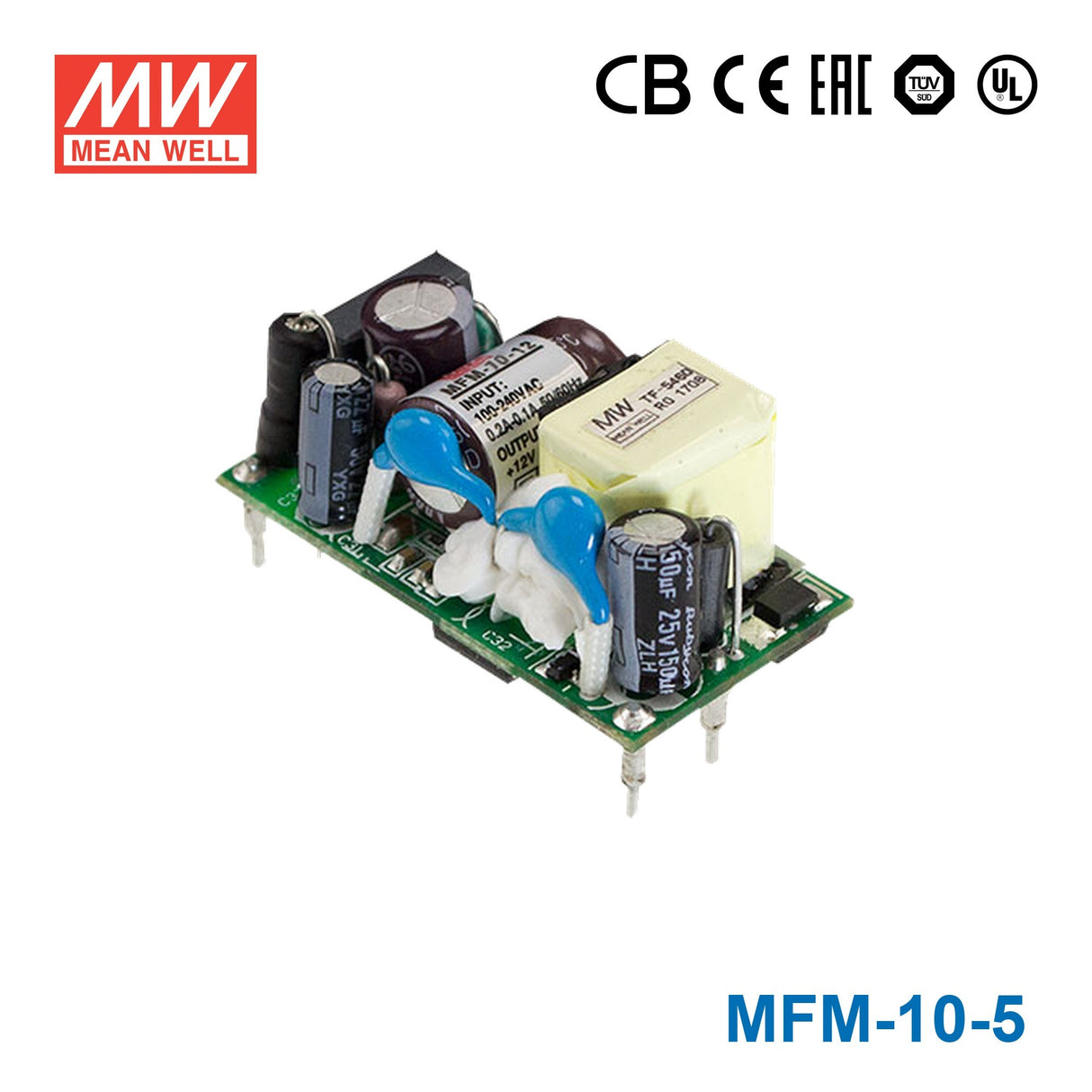

Mean Well MFM-10-5 Power Supply 10W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-10-5 Power Supply 10W 5V
Touch current<80 μA/264VAC
Key Features
- ✓1.65"x0.88" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length1.65 in
-
Width0.88 in
-
Height0.81 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the MFM-10-5 for a 5V embedded system or single-board controller?
Yes, it delivers a constant 5V output at up to 2A with a 10W rating. That makes it suitable for embedded systems and control electronics that need a regulated 5V rail within those output limits.
Is the MFM-10-5 suitable for low-power industrial USB or 5V logic hardware?
It can be used for 5V logic hardware, small industrial electronics, or other 5V loads that stay within 2A and 10W. The PCB-type design is intended for installation inside finished equipment rather than as a standalone external supply.
Can this 5V model power compact automation electronics from AC mains input?
Yes, the input range is 80-264VAC, so it supports universal AC input conditions. That is useful for compact automation electronics that need an internal 5V supply without exceeding 2A output current.
Is the MFM-10-5 rated for outdoor use or washdown areas?
The operating temperature range is -30°C to +85°C, which supports a broad temperature envelope inside equipment. No IP rating is listed, so it should be used in a protective enclosure and not treated as an exposed outdoor or washdown power supply.
