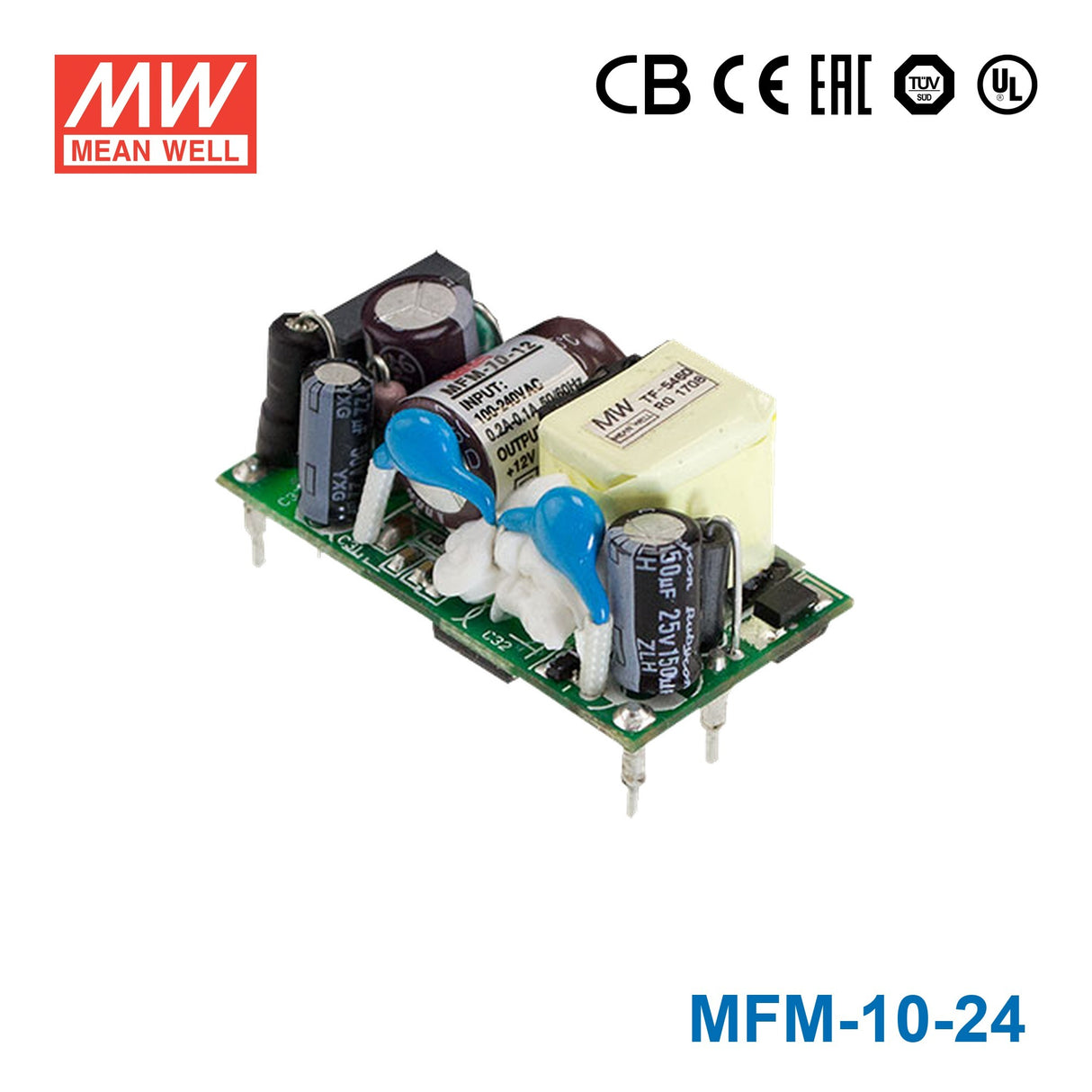

Mean Well MFM-10-24 Power Supply 10W 24V 420mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-10-24 Power Supply 10W 24V 420mA
Touch current<80 μA/264VAC
Key Features
- ✓1.65"x0.88" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating10 Watt
-
Output Voltage24 Volt
-
Rated Current0.42 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length1.65 in
-
Width0.88 in
-
Height0.81 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the MFM-10-24 for a small 24V industrial control board?
Yes, this model is a constant-voltage 24V PCB power supply rated for 10W and 0.42A. That makes it a fit for low-power embedded or industrial control circuits that require a regulated 24V rail within that output limit.
Is the MFM-10-24 suitable for 24V automation sensors or interface modules?
It can be used for 24V automation or interface modules when the total load stays within 10W and 0.42A. Its compact 42.0 × 22.3 × 20.5 mm PCB form factor is intended for space-limited internal designs.
Can this 24V power supply work in a compact embedded device with universal AC input?
Yes, the input range is 80-264VAC, so it is designed for wide AC input conditions. Combined with its 0.018 kg weight and PCB-type construction, it suits compact embedded equipment that needs an internal 24V supply up to 10W.
Is the MFM-10-24 suitable for outdoor or harsh-environment use?
The operating temperature range is -30°C to +85°C, which supports demanding thermal conditions inside equipment. No IP rating is listed in the provided specs, so it should be treated as a PCB power supply for use inside a protective enclosure rather than as an exposed outdoor unit.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MFM-10 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MFM-10-5 Power Supply 10W 5V 2A | 10W | 5V | 2A | Indoor | $10.19 | View |
| Mean Well MFM-10-3.3 Power Supply 10W 3.3V 2.5A | 8.3W | 3.3V | 2.5A | Indoor | $10.18 | View |
| Mean Well MFM-10-15 Power Supply 10W 15V 670mA | 10W | 15V | 0.67A | Indoor | $10.18 | View |
| Mean Well MFM-10-12 Power Supply 10W 12V 850mA | 10.2W | 12V | 0.85A | Indoor | $10.18 | View |
