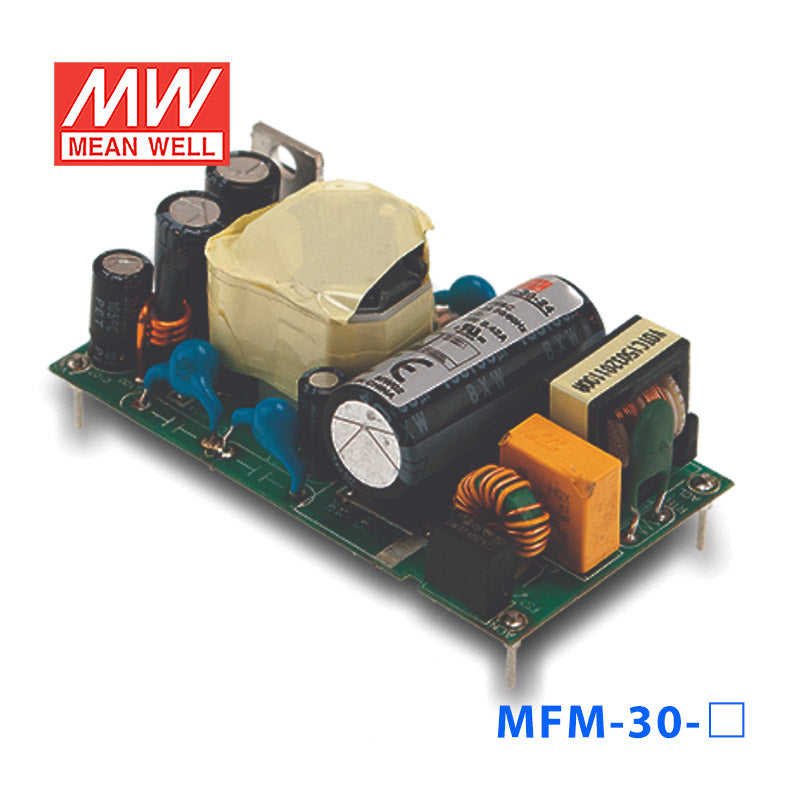

Mean Well MFM-30-24 Power Supply 30W 48V 630mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-30-24 Power Supply 30W 48V 630mA
Touch current <80 μA/264VAC
Key Features
- ✓2.58"x1.38" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating30.2 Watt
-
Output Voltage48 Volt
-
Rated Current0.63 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.58 in
-
Width1.38 in
-
Height0.91 in
-
Weight0.12 lb
::specification::
Frequently Asked Questions
Can I use the MFM-30-48 for 48V telecom or networking equipment?
It can fit 48V constant-voltage electronics if the load stays within 30.2W and 0.63A. That makes it more appropriate for lower-power 48V boards or subsystems than for higher-current 48V equipment.
Is the MFM-30-48 suitable for a compact 48V industrial control circuit?
Yes, for 48V control electronics that need a constant-voltage source and draw no more than 0.63A. The PCB-type format and 65.5 x 35.0 x 23.0 mm size are useful where space is limited inside equipment.
Can this 48V model be used in instrumentation or signal-conditioning equipment?
It is suitable for 48V instrumentation sections that operate within 30.2W and 0.63A. The low no-load power consumption of less than 0.1W may also matter in systems that spend time in standby.
How does the MFM-30-48 compare with the other MFM-30 outputs?
The MFM-30-48 provides 48V at 0.63A with a 30.2W rating. The other 30W family members are MFM-30-12 at 30W, 12V, 2.5A; MFM-30-15 at 30W, 15V, 2A; MFM-30-24 at 31.2W, 24V, 1.3A; MFM-30-3.3 at 19.8W, 3.3V, 6A; and MFM-30-5 at 30W, 5V, 6A.
Is the MFM-30-48 meant for outdoor installations?
The operating temperature range is -40C to +85C, so temperature capability is wide. No IP rating is provided, which points to use inside protected indoor equipment or an enclosure rather than direct outdoor exposure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MFM-30 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MFM-30-5 Power Supply 30W 5V 6A | 30W | 5V | 6A | Indoor | $17.51 | View |
| Mean Well MFM-30-3.3 Power Supply 30W 3.3V 6A | 19.8W | 3.3V | 6A | Indoor | $17.51 | View |
| Mean Well MFM-30-24 Power Supply 30W 24V 1.3A | 31.2W | 24V | 1.3A | Indoor | $17.51 | View |
| Mean Well MFM-30-15 Power Supply 30W 15V 2A | 30W | 15V | 2A | Indoor | $17.51 | View |
| Mean Well MFM-30-12 Power Supply 30W 12V 2.5A | 30W | 12V | 2.5A | Indoor | $17.53 | View |
