Mean Well

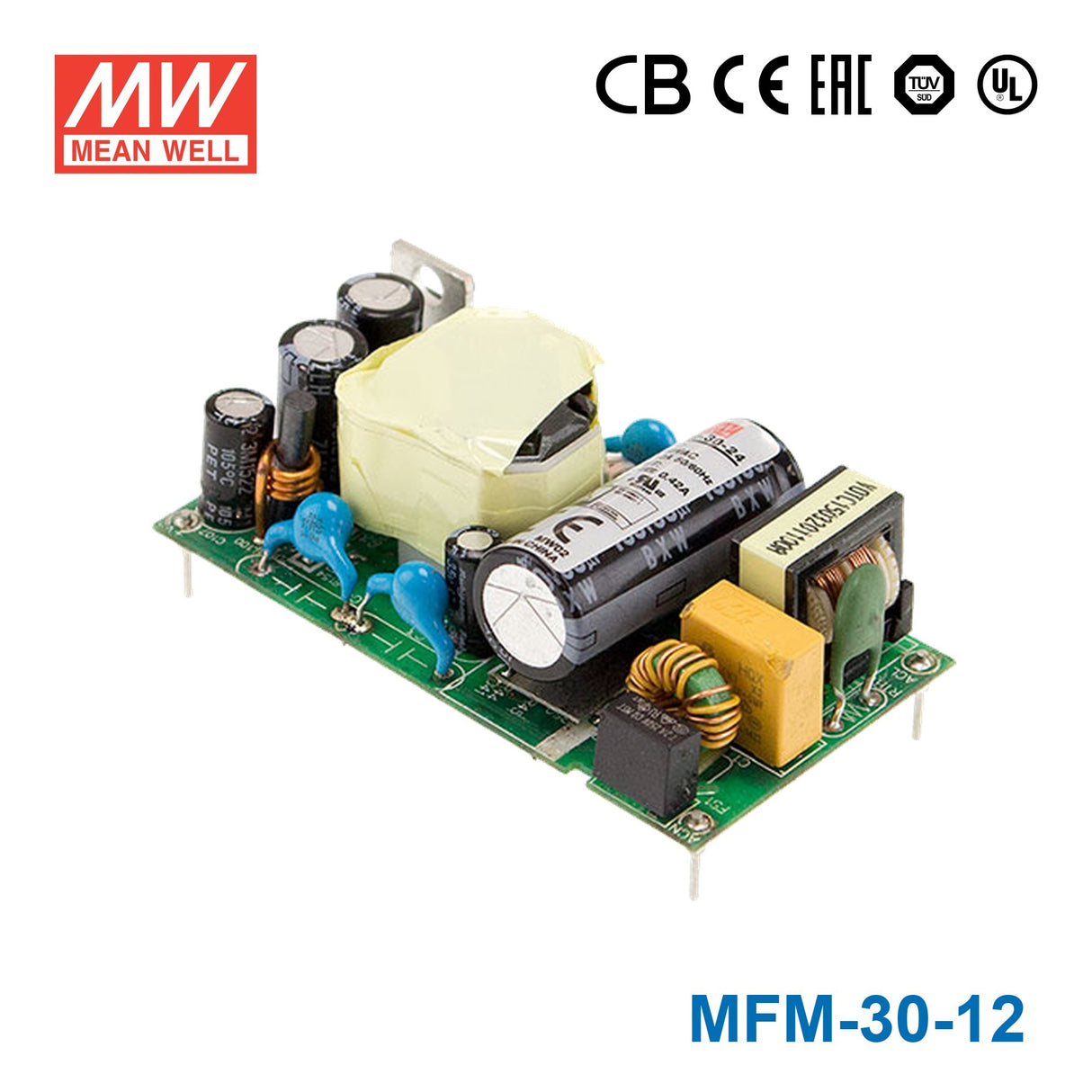

Mean Well MFM-30-12 Power Supply 30W 12V 2.5A

PCB typecompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current
SKU MFM-30-12
$17.53 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

MFM-30-12 is the 12V output model of this series: rated current 2.5A, rated power 30W, typical efficiency 90%.

MFM-30 is a 30W high density and small size (65.5x35x23mm) AC/DC on board type medical power supply series offered in pin type . It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 91%, Class Ⅱ (no FG) double insulation, outstanding dissipation, 3G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC / BS EN/EN60601 - 1 and ANSI/AAMI ES60601 - 1version three with 2 x MOPP level and ultra-low leakage current (<80 μ A). It is very suitable for BF (patient contact) type medical device or relevant equipment.

Features

  • 2.58"x1.38" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • No load power consumption<0.075W
  • Extremely low leakage current
  • Wide operating temp. range -40 ~ +85℃
  • EMI class B for class Ⅱ configuration
  • Protections: Short circuit / Overload / Over voltage
  • No minimum load required
  • 3 years warranty

Specifications

MFM-30-12Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
2.5A
CURRENT RANGENote.2
0 ~ 2.5A
PEAK CURRENT
2.9A
RATED POWER
30W
PEAK LOAD(10sec.)Note.3
34.8W
RIPPLE & NOISE (max.)Note.4
120mVp-p
VOLTAGE TOLERANCENote.5
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
40ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGENote.6
80 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
90%
AC CURRENT (Typ.)
0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENT (max.)Note.7
Touch current <80μA/264VAC

PROTECTION

OVERLOAD
115% ~ 165% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
12.6 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
SOLDERING TEMPERATURE
Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
VIBRATION
10 ~ 500Hz, 3G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.8
5000 meters

SAFETY & EMC

SAFETY STANDARDS
IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved,Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
ConductedBS EN/EN55011 (CISPR11)Class B
RadiatedBS EN/EN55011 (CISPR11)Class B
Harmonic CurrentBS EN/EN61000-3-2Class A
Voltage FlickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN55035, BS EN/EN60601-1-2

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
6325.8K hrs min. Telcordia SR-332 (Bellcore) ; 778.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
65.5*35*23mm (L*W*H) or 2.58″*1.38″*0.90″ inch
PACKING
0.053Kg; 144pcs/8.6Kg/0.97CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. No minimum load required.
  3. 3. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  4. 4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  5. 5. Tolerance : includes set up tolerance, line regulation and load regulation.
  6. 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
  7. 7. Touch current was measured from primary input to DC output.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

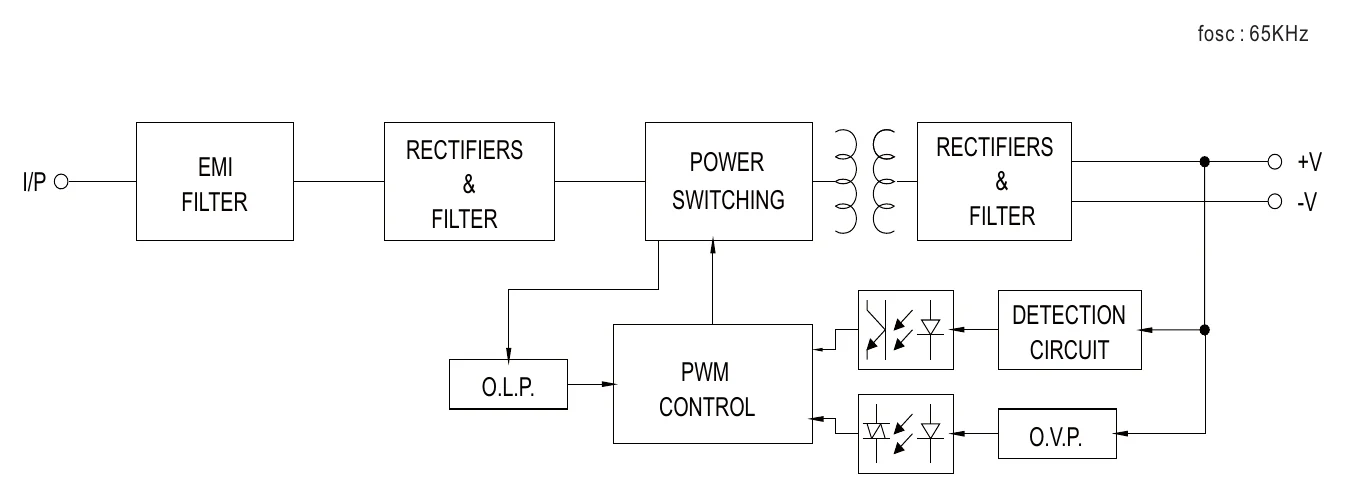

MFM-30-12 Block Diagram
Block Diagram

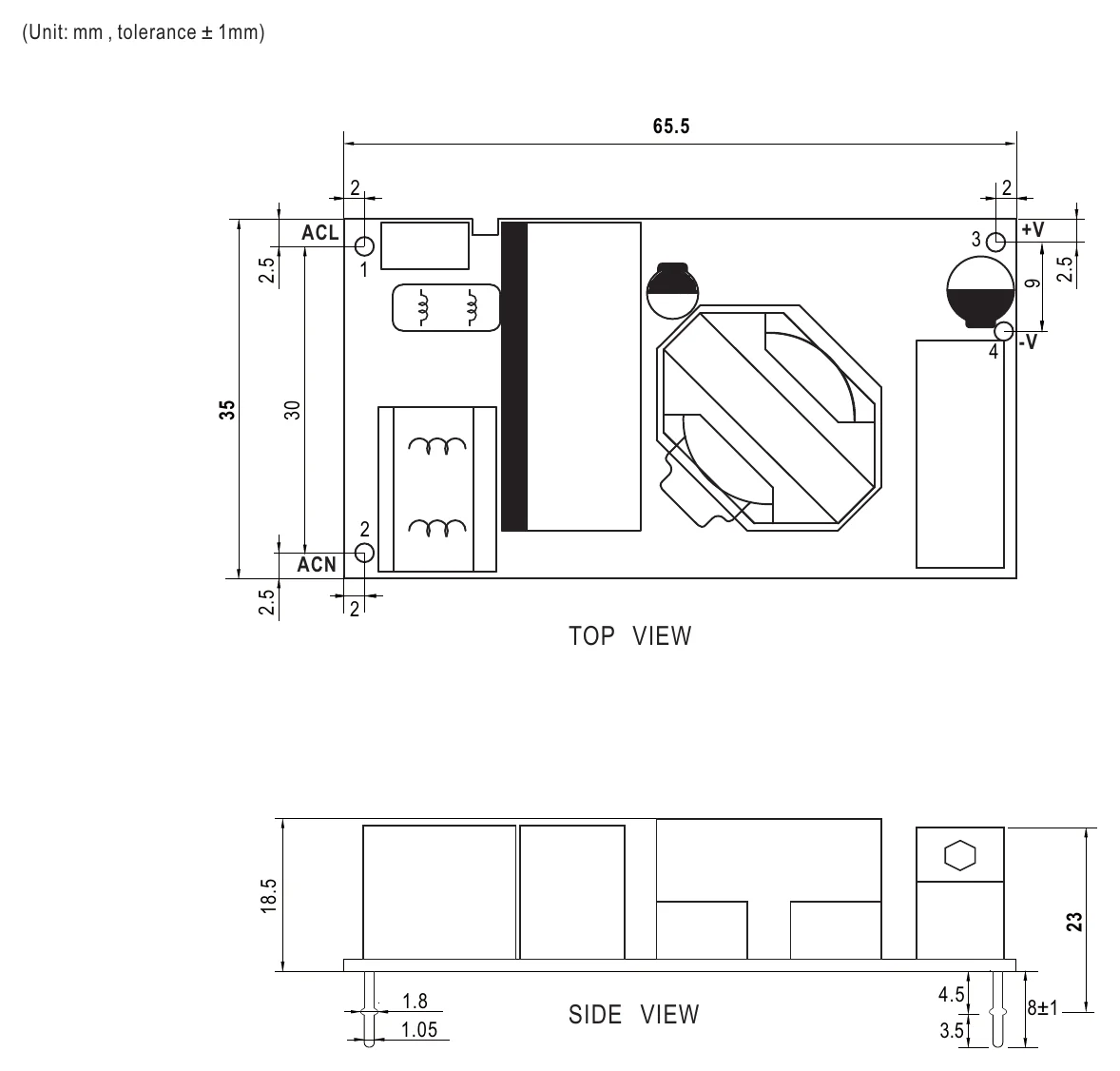

MFM-30-12 Mechanical Specification
Mechanical Specification

Typical applications

  • Portable medical device
  • Mobile clinical workstation
  • Medical computer monitor
  • Medical examination instrument

Downloads

FAQ

Can I use the MFM-30-12 for 12V PLC accessories, relays, or industrial control boards?

Yes, this is a constant voltage 12V supply with up to 2.5A output, which suits many PLC accessories, relays, and compact control boards that operate from 12V DC. Keep the total load within the 30W rating; no minimum load is required.

Is the MFM-30-12 a good choice for embedded 12V equipment inside a machine enclosure?

It is well suited to embedded 12V electronics where a PCB type AC-DC supply is preferred and space still matters. The unit measures 65.5 x 35.0 x 23.0 mm and delivers 12V at up to 2.5A.

Can this model power small 12V automation modules that need more current than entry-level board supplies?

Yes, it supplies a constant 12V at up to 2.5A continuous (30W rated), with a 2.9A peak current for up to 10 seconds, which suits small 12V automation modules within that budget. No minimum load is required, so lightly loaded modules are also fine.

Does the MFM-30-12 handle wider temperature swings in protected equipment?

Its specified operating temperature range is -40C to +85C, with output derating at higher ambient temperatures according to the derating curve. No IP rating is given, so the temperature range should be read as an electrical operating limit for indoor protected equipment, not as proof of outdoor exposure resistance.

How does the MFM-30-12 compare with the other 12V models in the MFM series?

This datasheet covers one 12V model, the MFM-30-12 at 30W and 2.5A. The other MFM-30 outputs are MFM-30-3.3 at 19.8W, 3.3V, 6A; MFM-30-5 at 30W, 5V, 6A; MFM-30-15 at 30W, 15V, 2A; MFM-30-24 at 31.2W, 24V, 1.3A; and MFM-30-48 at 30.2W, 48V, 0.63A.
