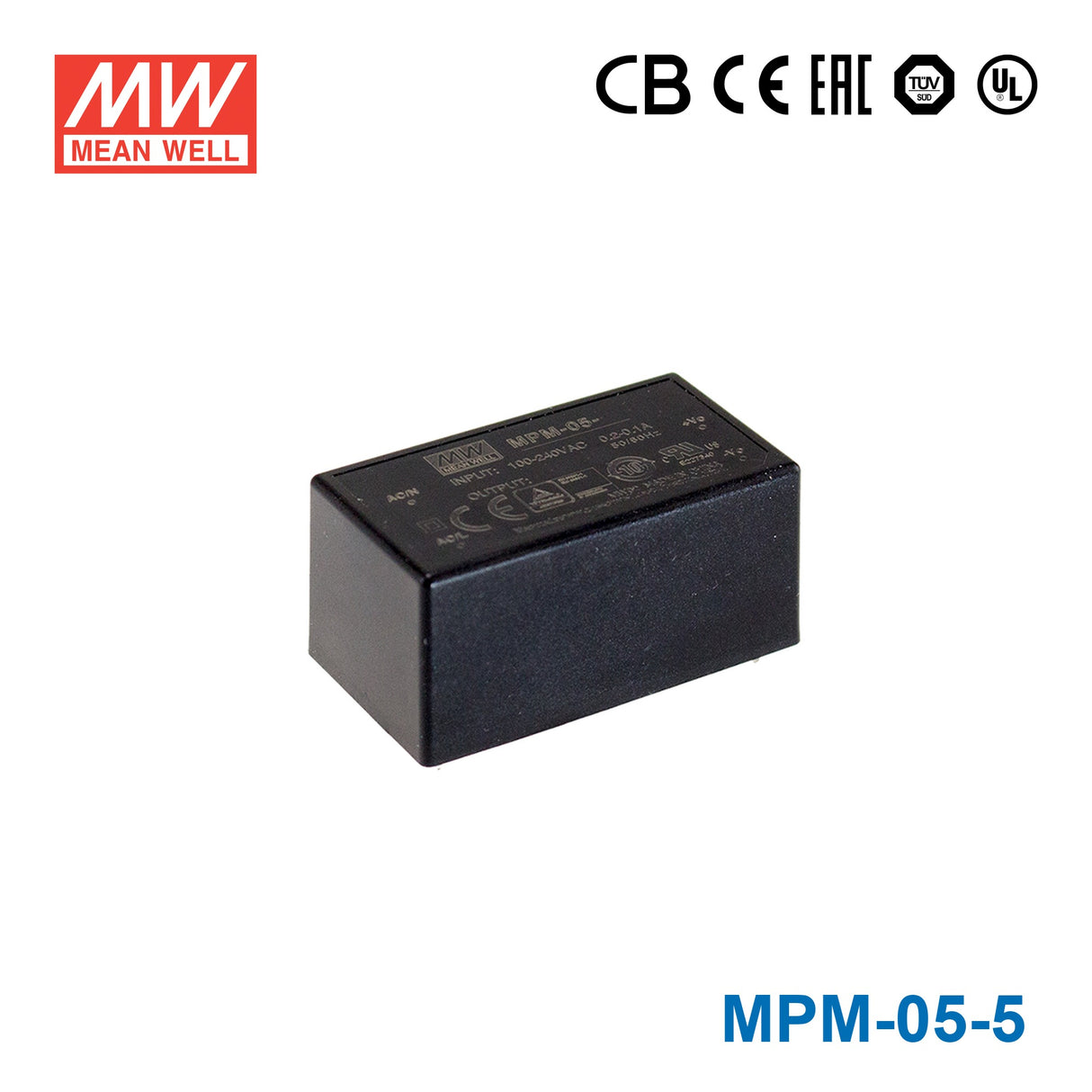

Mean Well MPM-05-5 Power Supply 5W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-05-5 Power Supply 5W 5V
Touch current <80 μA/264VAC
Key Features
- ✓1.8"x1." compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load requiredTypical lifetime>48K hours
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.8 in
-
Width1 in
-
Height0.85 in
-
Weight0.08 lb
::specification::
Frequently Asked Questions
Can I use the MPM-05-5 for a 5V microcontroller or embedded processor board?
Yes, if the board needs constant-voltage 5V and the total draw stays within 1A and 5W. That makes it suitable for low-power embedded, industrial control, and monitoring electronics powered from an 80-264VAC source.
Is the MPM-05-5 suitable for powering a small 5V industrial interface or communications module?
It can be, as long as the 5V load does not exceed 1A. For compact interface, automation, or control modules that need a regulated 5V rail, the encapsulated 45.7 × 25.4 × 21.5 mm form factor is useful where space is tight.
Can this model power a low-power 5V single-board computer or edge device?
It may fit low-power 5V computing or edge hardware if the full load remains at or below 1A and 5W. Buyers should check the device's actual 5V current requirement, because this model is intended for lighter 5V loads rather than higher-current systems.
Is the MPM-05-5 okay for outdoor enclosures or wide-temperature equipment?
The operating temperature range is -40°C to +85°C, so it is specified for broad temperature conditions. However, no IP rating is listed, so the product data does not identify it as weatherproof or suitable for direct outdoor exposure by itself.
How does the MPM-05-5 compare with other low-power MPM versions?
Other low-power versions include MPM-05-3.3 at 4.1W, 3.3V, 1.25A; MPM-05-12 at 5W, 12V, 0.42A; MPM-05-15 at 5W, 15V, 0.33A; and MPM-05-24 at 5.5W, 24V, 0.23A. If more 5V current is needed, larger 5V models include MPM-10-5 at 10W, 2A; MPM-15-5 at 15W, 3A; and MPM-20-5 at 20W, 4A.
