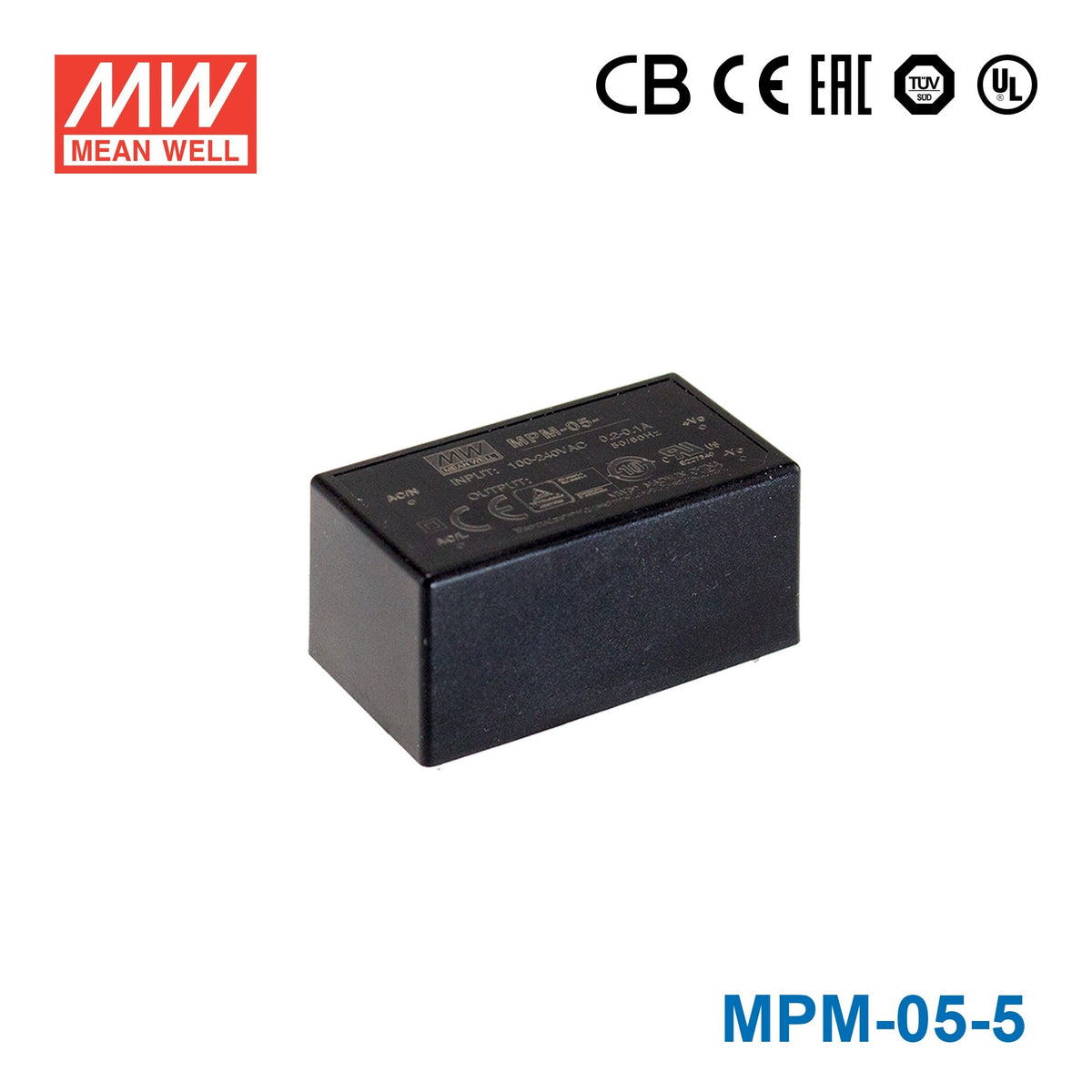

Mean Well MPM-05-5 Power Supply 5W 5V 1A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-05-5 Power Supply 5W 5V 1A
Overview
MPM-05-5 is the 5V output model of this series: rated current 1A, rated power 5W, typical efficiency 78%.
MPM-05 is a 5W high density and small size (45 . 7 * 25 . 4 * 21.5mm) AC/DC module type medical grade power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 82%, Class Ⅱ (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC / BS EN/EN60601 - 1 and ANSI/AAMI ES60601 - 1version three with 2xMOPP level and ultra-low leakage current (<80μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Features
- 1.8"x1" compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.075W
- Extremely low leakage current
- Wide operating temp. range -40 ~ +85℃
- EMI class B for class Ⅱ configuration
- Protections: Short circuit / Overload / Over voltage / Over temperature
- No minimum load required
- Typical lifetime > 48K hours
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 1A
- CURRENT RANGENote.2
- 0 ~ 1A
- PEAK CURRENT
- 1.1A
- RATED POWER
- 5W
- PEAK LOAD(10sec.)Note.3
- 5.5W
- RIPPLE & NOISE (max.)Note.4
- 100mVp-p
- VOLTAGE TOLERANCENote.5
- ±2.5%
- LINE REGULATION
- ±0.3%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 40ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.6
- 80 ~ 264VAC 113V~370VDC
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY (Typ.)
- 78%
- AC CURRENT (Typ.)
- 0.2A/115VAC 0.1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 25A/115VAC 45A/230VAC
- LEAKAGE CURRENT (max.)Note.7
- Touch current <80μA/264VAC
PROTECTION
- OVERLOAD
- 110% ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.8 ~ 6.8V Protection type : Shut off o/p voltage, clamping by zener diode
- OVER TEMPERATURE
- Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.

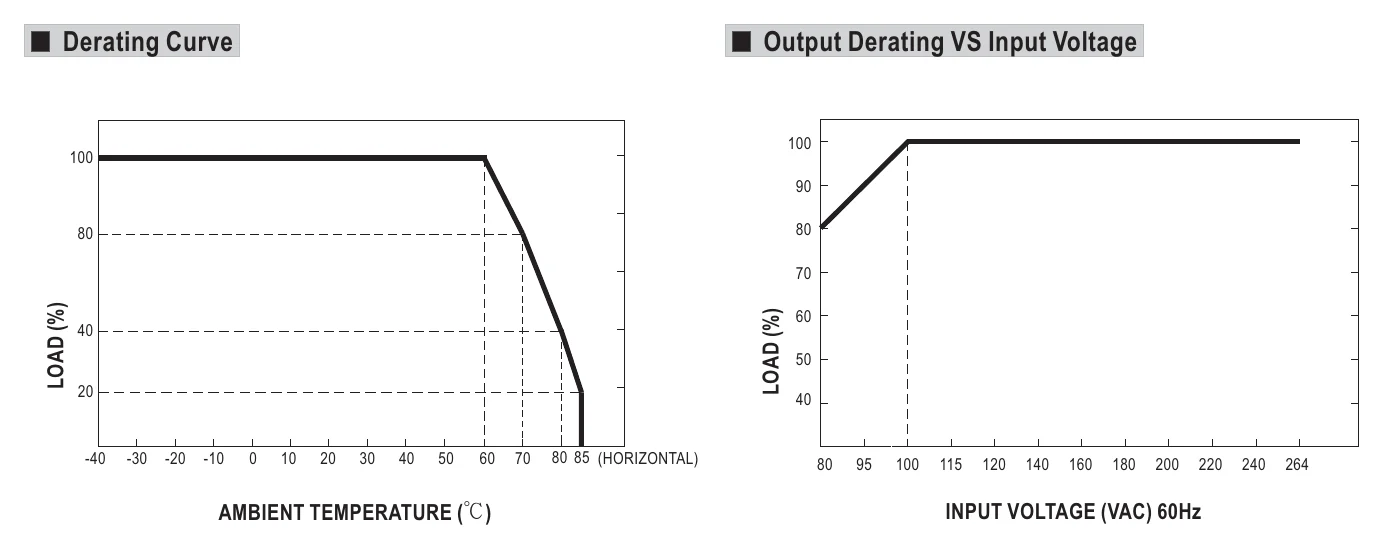

- -40 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +100℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
- OPERATING ALTITUDENote.8
- 5000 meters
SAFETY & EMC
- SAFETY STANDARDS
- IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved;Design refer to BS EN/EN60335-1(by request)
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55011 (CISPR11) Class B Radiated BS EN/EN55011 (CISPR11) Class B Harmonic Current BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035, BS EN/EN60601-1-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
OTHERS
- MTBF
- 9337.3K hrs min. Telcordia SR-332 (Bellcore) ; 1799.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 45.7*25.4*21.5mm (L*W*H) or 1.8*1.0"0.85" inch
- PACKING
- 0.035Kg; 270pcs/10.5Kg/0.94CUFT
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. No minimum load required.
- 3. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power
- 4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 5. Tolerance : includes set up tolerance, line regulation and load regulation.
- 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 7. Touch current was measured from primary input to DC output.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

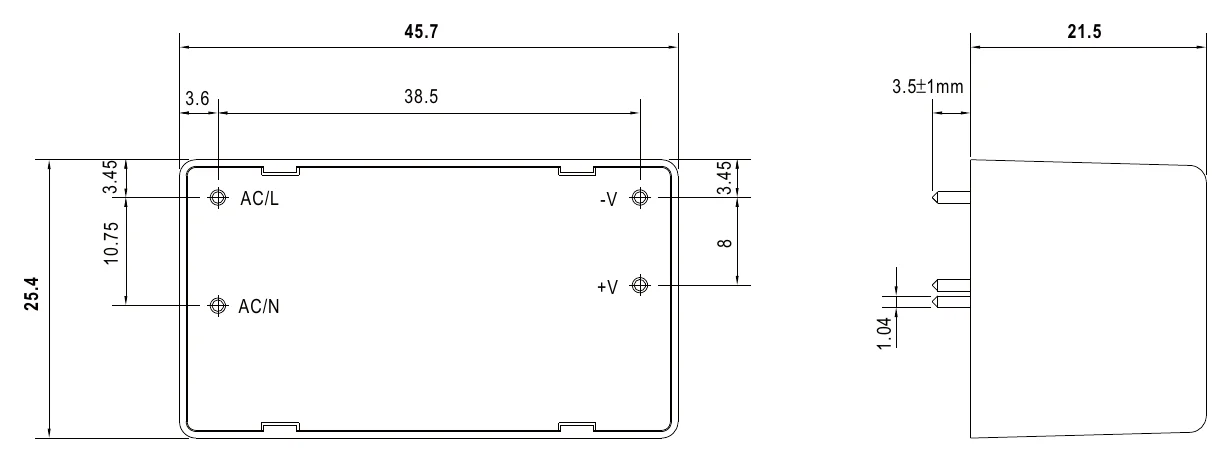

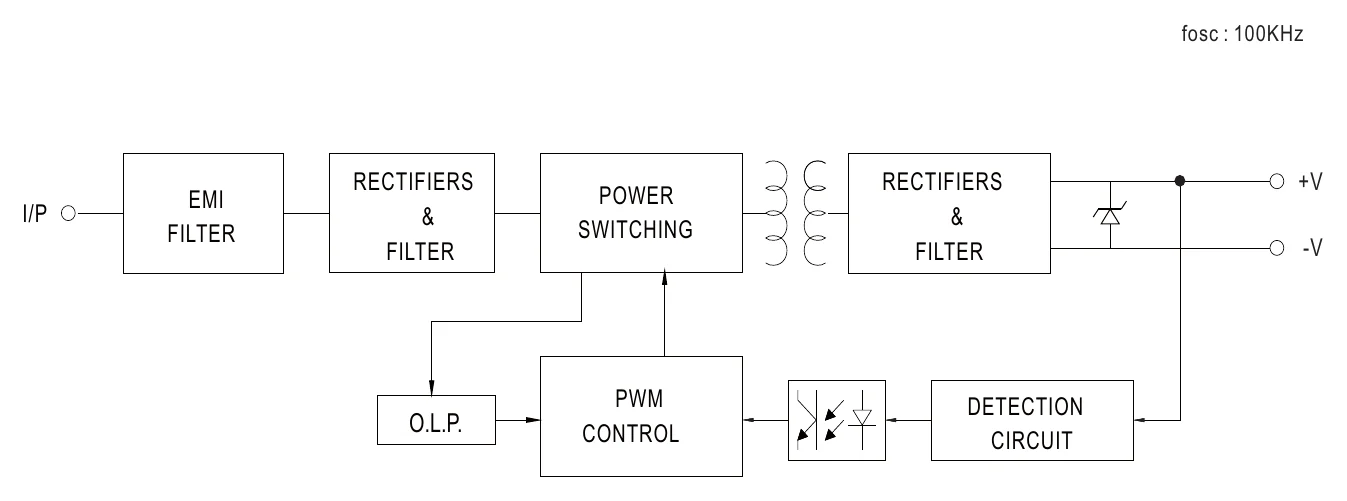

Technical drawings
Typical applications
- Portable medical device
- Mobile clinical workstation
- Medical computer monitor
- Medical examination instrument
Downloads
Certificates7
Catalogues1
FAQ
Can I use the MPM-05-5 for a 5V microcontroller or embedded processor board?
Yes, if the board needs constant-voltage 5V and the total draw stays within 1A and 5W. That makes it suitable for low-power embedded, industrial control, and monitoring electronics powered from an 80-264VAC source.
Is the MPM-05-5 suitable for powering a small 5V industrial interface or communications module?
It can be, as long as the 5V load does not exceed 1A. For compact interface, automation, or control modules that need a regulated 5V rail, the encapsulated 45.7 × 25.4 × 21.5 mm form factor is useful where space is tight.
Can this model power a low-power 5V single-board computer or edge device?
It may fit low-power 5V computing or edge hardware if the full load remains at or below 1A and 5W. Buyers should check the device's actual 5V current requirement, because this model is intended for lighter 5V loads rather than higher-current systems.
Is the MPM-05-5 okay for outdoor enclosures or wide-temperature equipment?
The operating temperature range is -40°C to +85°C, with output derating at higher ambient temperatures per the derating curve. However, no IP rating is listed, so the product data does not identify it as weatherproof or suitable for direct outdoor exposure by itself.
How does the MPM-05-5 compare with other low-power MPM versions?
Other low-power versions include MPM-05-3.3 at 4.1W, 3.3V, 1.25A; MPM-05-12 at 5W, 12V, 0.42A; MPM-05-15 at 5W, 15V, 0.33A; and MPM-05-24 at 5.5W, 24V, 0.23A. All share the 80-264VAC input and the 45.7 × 25.4 × 21.5 mm encapsulated package, so a 5V load above 1A needs a higher-power supply.
