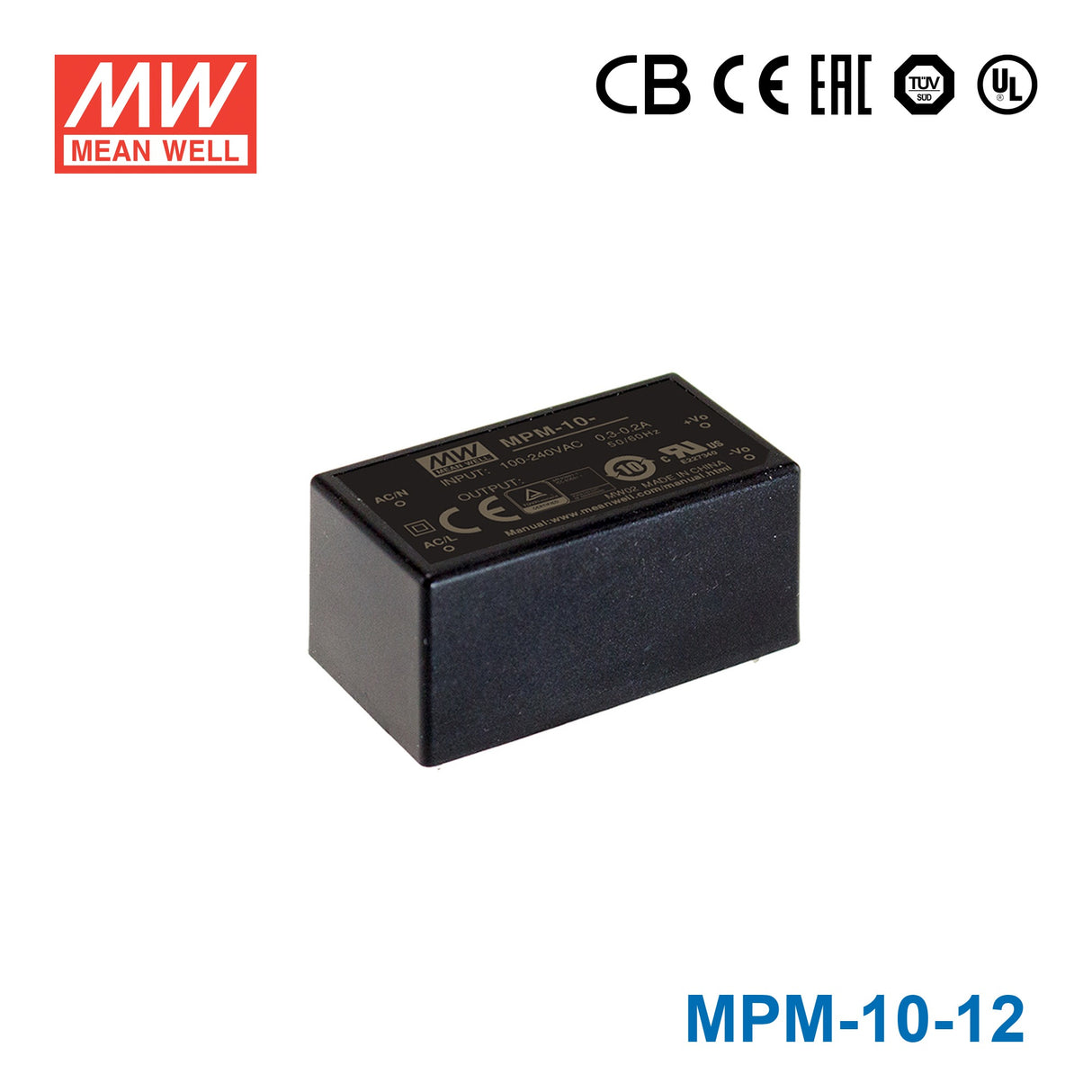

Mean Well MPM-10-12 Power Supply 10W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-10-12 Power Supply 10W 12V
Touch current<80 μA/264VAC
Key Features
- ✓1.8"x1" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating10.2 Watt
-
Output Voltage12 Volt
-
Rated Current0.85 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length1.8 in
-
Width1 in
-
Height0.85 in
-
Weight0.08 lb
::specification::
Frequently Asked Questions
Can I use the MPM-10-12 for a 12V PLC accessory or industrial control load?
Yes, if the 12V load stays within 0.85A and 10.2W. This constant-voltage model is suited to low-power automation, control, and monitoring circuits that need 12VDC from an 80-264VAC input.
Is the MPM-10-12 suitable for 12V sensors, relays, or small automation modules?
It can be a fit for 12V industrial electronics when the total load remains under 0.85A. Compared with a 5W model, the 10.2W rating provides more headroom for small 12V control devices in embedded or automation equipment.
Can this 12V model be used in compact medical or laboratory equipment?
The unit is described as medical safety approved and has extremely low leakage current, which is relevant for low-power equipment design. For 12V loads within 10.2W and 0.85A, it is more suitable than a general encapsulated supply, while final equipment approval still depends on the end product.
Will the MPM-10-12 handle low-temperature or high-temperature installations?
Its specified operating temperature range is -30°C to +85°C, which supports a broad range of indoor equipment environments. No IP rating is listed, so the product data does not classify it as an exposed outdoor supply.
What are the main 12V alternatives in the MPM series?
For 12V output, the family includes MPM-05-12 at 5W and 0.42A, MPM-10-12 at 10.2W and 0.85A, MPM-15-12 at 15W and 1.25A, MPM-20-12 at 21.6W and 1.8A, MPM-30-12 and MPM-30-12ST at 30W and 2.5A, MPM-45-12 and MPM-45-12ST at 45W and 3.75A, and MPM-65-12 and MPM-65-12ST at 65W and 5.42A. The highest listed 12V option is MPM-90-12 or MPM-90-12ST at 80.4W and 6.7A.
