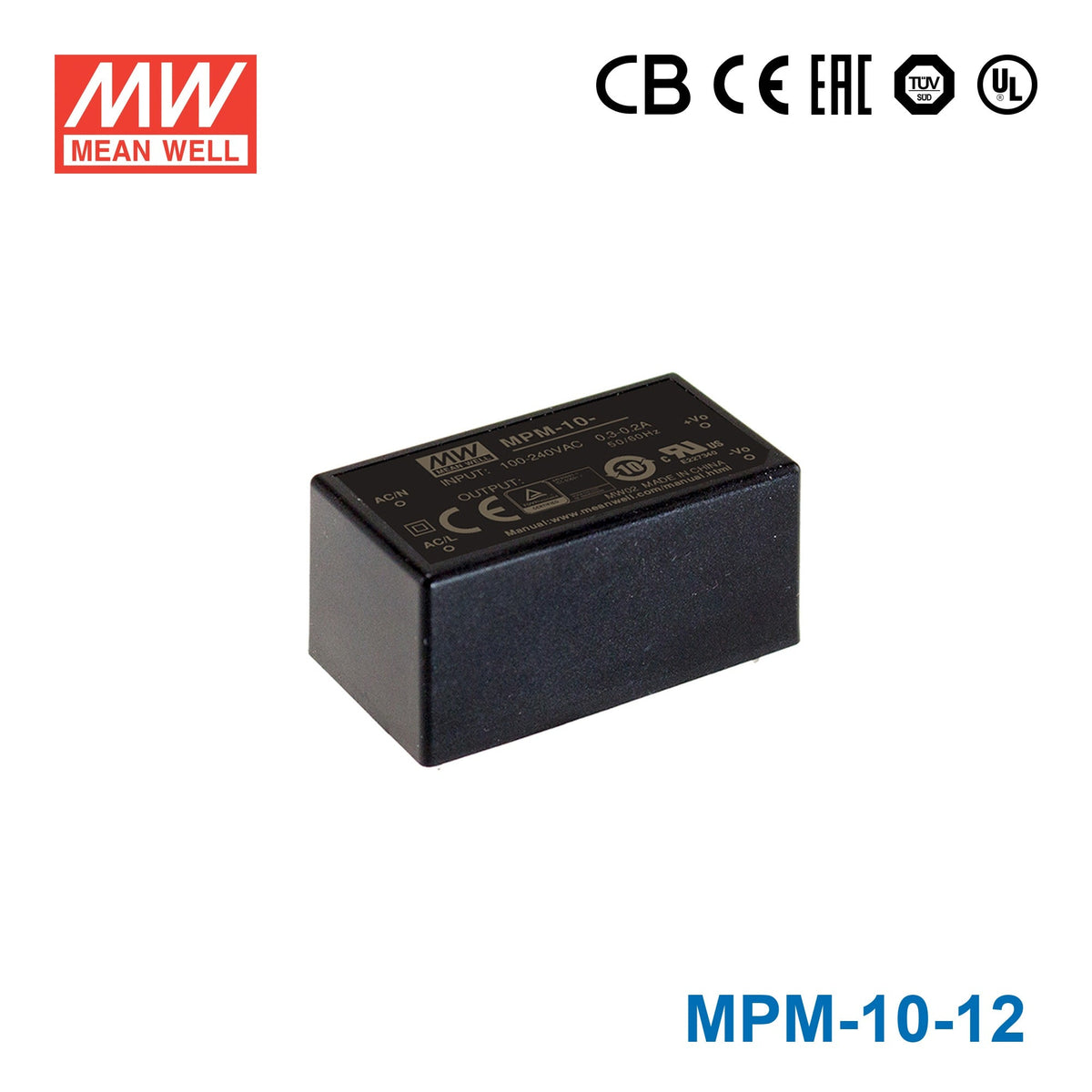

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MPM-10-12 Power Supply 10W 12V

Name: Mean Well MPM-10-12 Power Supply 10W 12V
Brand: Mean Well
SKU: MPM-10-12
Price: 11.85 USD
Availability: InStock

encapsulated, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current

SKU:

MPM-10-12

$11.85 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

1.8"x1" compact size

Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

Suitable for BF application with appropriate system consideration

No load power consumption<0.075W

Extremely low leakage current

Wide operating temp. range -30~+85°C

EMI class B for class II configuration

Protections: Short circuit/ Overload/ Over voltage/Over temperature

No minimum load required

3 years warranty

General Specification

AC input voltage range	80~264VAC
AC inrush current	COLD START 25A/115VAC
Leakage current	Touch current<80 μA/264VAC
Overload protection	110 ~ 180% rated output power
Over voltage protection	115%~151% rated output voltage
Setup, rise, hold up time	1000ms, 30ms, 40ms
Withstand voltage	I/P-O/P:4KVAC
Working temperature	-30~+85°C
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards	IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved ; Design refer to BS EN/EN60335-1(by request)
EMC standards	EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No	291A
Dimension (LxWxH)	45.7x25.4x21.5
Packing	270pcs / 10.5kg

Specifications

Brand

Mean Well
Series

MPM Series
Power Rating

10.2 Watt
Output Voltage

12 Volt
Rated Current

0.85 Ampere
Input Voltage

80V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~85°C
Warranty

3 Year
Length

1.8 in
Width

1 in
Height

0.85 in
Weight

0.08 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

1.8"x1" compact size

Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

Suitable for BF application with appropriate system consideration

No load power consumption<0.075W

Extremely low leakage current

Wide operating temp. range -30~+85°C

EMI class B for class II configuration

Protections: Short circuit/ Overload/ Over voltage/Over temperature

No minimum load required

3 years warranty

General Specification

AC input voltage range

80~264VAC

AC inrush current

COLD START 25A/115VAC

Leakage current

Touch current<80 μA/264VAC

Overload protection

110 ~ 180% rated output power

Over voltage protection

115%~151% rated output voltage

Setup, rise, hold up time

1000ms, 30ms, 40ms

Withstand voltage

I/P-O/P:4KVAC

Working temperature

-30~+85°C

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes

Safety standards

IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved ; Design refer to BS EN/EN60335-1(by request)

EMC standards

EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Case No

291A

Dimension (LxWxH)

45.7x25.4x21.5

Packing

270pcs / 10.5kg
