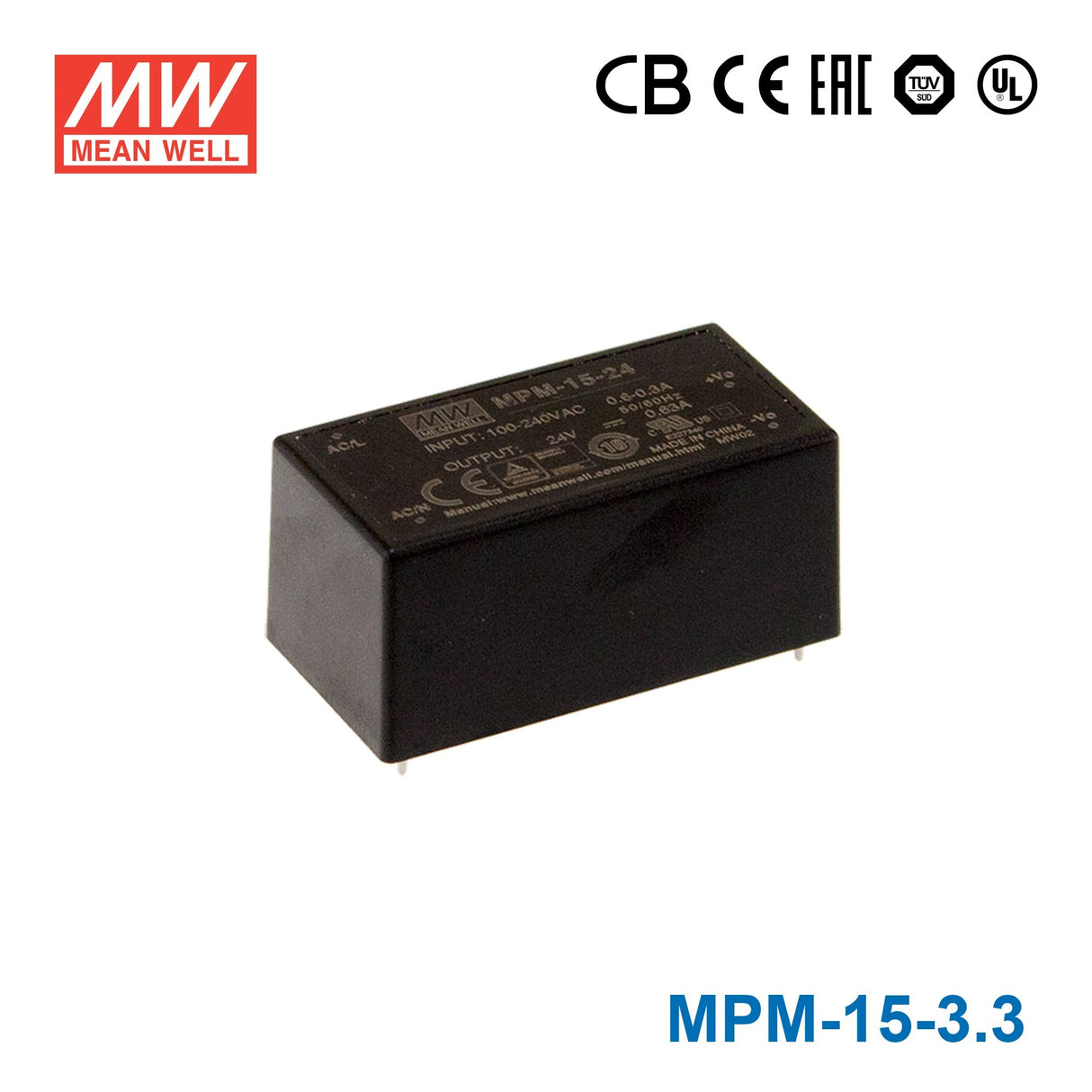

Mean Well MPM-15-3.3 Power Supply 15W 3.3V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-15-3.3 Power Supply 15W 3.3V
Touch current <80 μA/264VAC
Key Features
- ✓2.06"x1.07" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating11.6 Watt
-
Output Voltage3.3 Volt
-
Rated Current3.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.06 in
-
Width1.07 in
-
Height0.94 in
-
Weight0.12 lb
::specification::
Frequently Asked Questions
Can I use the MPM-15-3.3 for a 3.3V embedded controller or SBC inside industrial equipment?
Yes, it is intended for constant-voltage 3.3V applications up to 11.6W and 3.5A, which fits many embedded control boards and processors. The compact 52.4 x 27.2 x 24.0 mm body also helps in space-constrained equipment.
Is the MPM-15-3.3 a good fit for powering 3.3V logic, memory, or communication boards?
It can fit low-voltage digital assemblies that require a regulated 3.3V rail and draw no more than 3.5A. For boards with heavier 3.3V current demand, the current limit is the number to check first.
Can this model power 3.3V industrial electronics in test or medical devices?
It can be used for low-power 3.3V electronics in test, monitoring, or medical equipment when the total load remains within 11.6W. The listed features include medical safety approval and extremely low leakage current, which are relevant in those environments.
What are the other 3.3V options in the MPM series compared with the MPM-15-3.3?
For 3.3V outputs, the family includes MPM-05-3.3 at 4.1W and 1.25A, MPM-10-3.3 at 8.3W and 2.5A, MPM-15-3.3 at 11.6W and 3.5A, MPM-20-3.3 at 14.9W and 4.5A, and MPM-30-3.3 plus MPM-30-3.3ST at 19.8W and 6A. That gives a straightforward step-up path in available 3.3V current within the same series.
Is the MPM-15-3.3 suitable for outdoor use or wide-temperature enclosures?
The operating temperature range is -40C to +85C, which supports use in equipment exposed to a wide internal temperature range. No IP rating is provided, so the specs do not support describing it as outdoor-rated or weatherproof.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPM-15 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-15-5 Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $12.97 | View |
| Mean Well MPM-15-24 Power Supply 15W 24V | 15.1W | 24V | 0.63A | Indoor | $13.01 | View |
| Mean Well MPM-15-15 Power Supply 15W 15V | 15W | 15V | 1A | Indoor | $13.01 | View |
| Mean Well MPM-15-12 Power Supply 15W 12V | 15W | 12V | 1.25A | Indoor | $12.97 | View |
