Mean Well

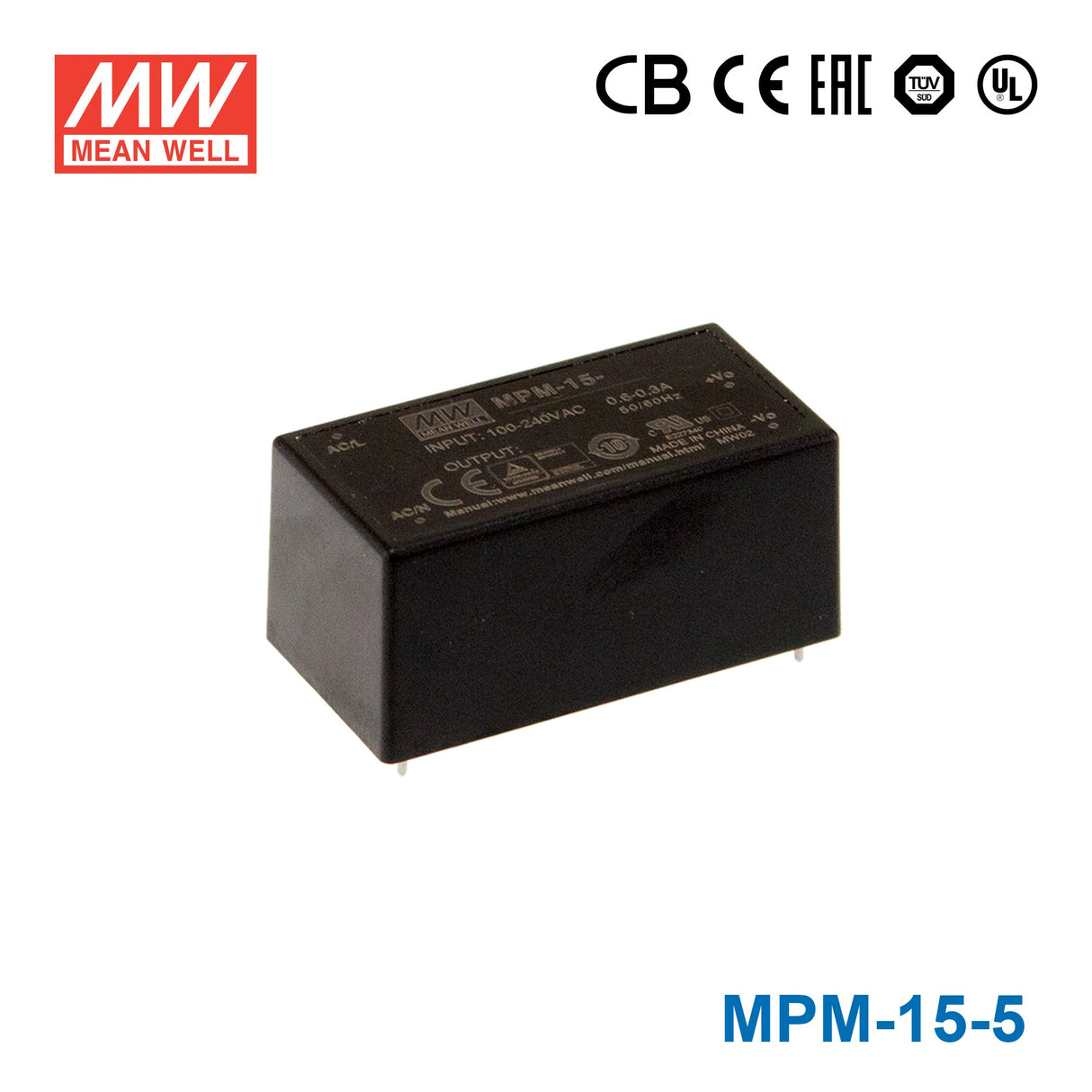

Mean Well MPM-15-5 Power Supply 15W 5V 3A

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current
SKU MPM-15-5
$12.97 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

MPM-15-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 85.5%.

MPM-15 is a 15W high density and small size (52 . 4 * 27 . 2 * 24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.1W, a high efficiency up to 87%, Class Ⅱ (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, 2G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC / BS EN/EN60601 - 1 and ANSI/AAMI ES60601 - 1version three with 2xMOPP level and ultra-low leakage current (<80μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.

Features

  • 2.06"x1.07" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • No load power consumption<0.1W
  • Extremely low leakage current
  • Wide operating temp. range -40 ~ +85℃
  • EMI class B for class Ⅱ configuration
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • No minimum load required
  • 3 years warranty

Specifications

MPM-15-5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
3A
CURRENT RANGENote.2
0 ~ 3A
PEAK CURRENT
3.3A
RATED POWER
15W
PEAK LOAD(10sec.)Note.3
16.5W
RIPPLE & NOISE (max.)Note.4
150mVp-p
VOLTAGE TOLERANCENote.5
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1500ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
40ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGENote.6
80 ~ 264VAC 113V~370VDC
FREQUENCY RANGE
47 ~ 440Hz
EFFICIENCY (Typ.)
85.5%
AC CURRENT (Typ.)
0.6A/115VAC 0.3A/230VAC
INRUSH CURRENT (Typ.)
COLD START 20A/115VAC 45A/230VAC
LEAKAGE CURRENT (max.)Note.7
Touch current <80μA/264VAC

PROTECTION

OVERLOAD
110% ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.8~ 6.8V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
SOLDERING TEMPERATURE
Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.8
5000 meters

SAFETY & EMC

SAFETY STANDARDS
IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005/A2:2021, CAN/CSA C22.2 No. 60601-1:2014+A2,IEC 60335-1:2010/AMD2:2016, Dekra BS EN/ EN 60335-1:2012+A11+A13+A1+A14+A2+A15 ,EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55011 (CISPR11)Class B
Radiated emissionBS EN/EN55011 (CISPR11)Class B
Harmonic currentBS EN/EN61000-3-2Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITYNote.9

BS EN/EN55035, BS EN/EN60601-1-2

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
7319.8K hrs min. Telcordia SR-332 (Bellcore) ; 1210.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
52.4*27.2*24mm (L*W*H) or 2.06″*1.07″*0.94″ inch
PACKING
0.056Kg; 240pcs/14.4Kg/0.94CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. No minimum load required.
  3. 3. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  4. 4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  5. 5. Tolerance : includes set up tolerance, line regulation and load regulation.
  6. 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
  7. 7. Touch current was measured from primary input to DC output.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

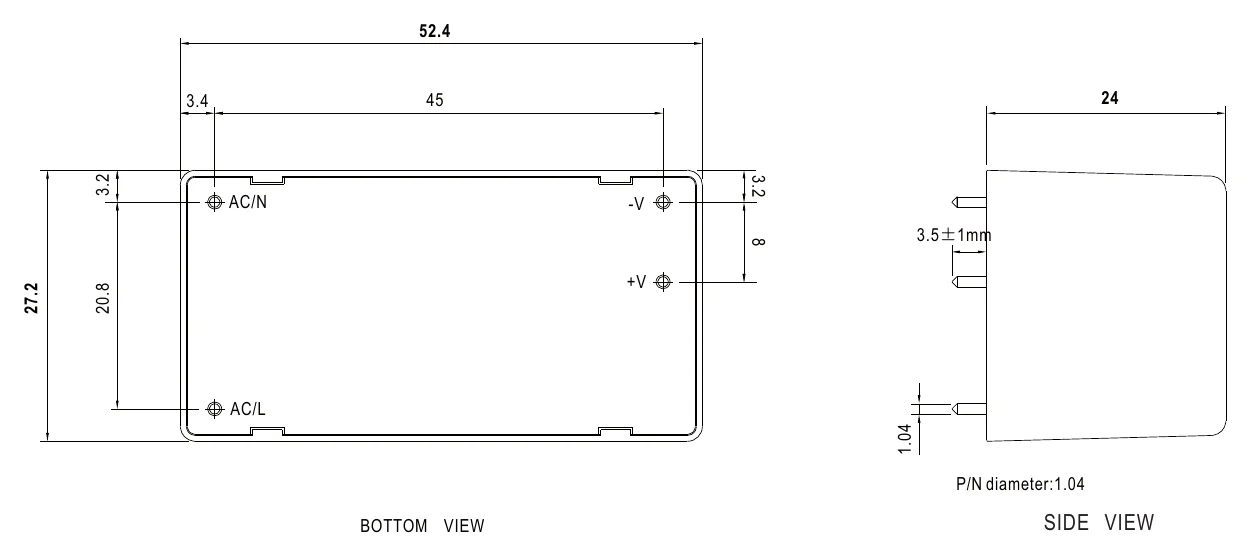

MPM-15-5 M P M - 1 5 series
M P M - 1 5 series

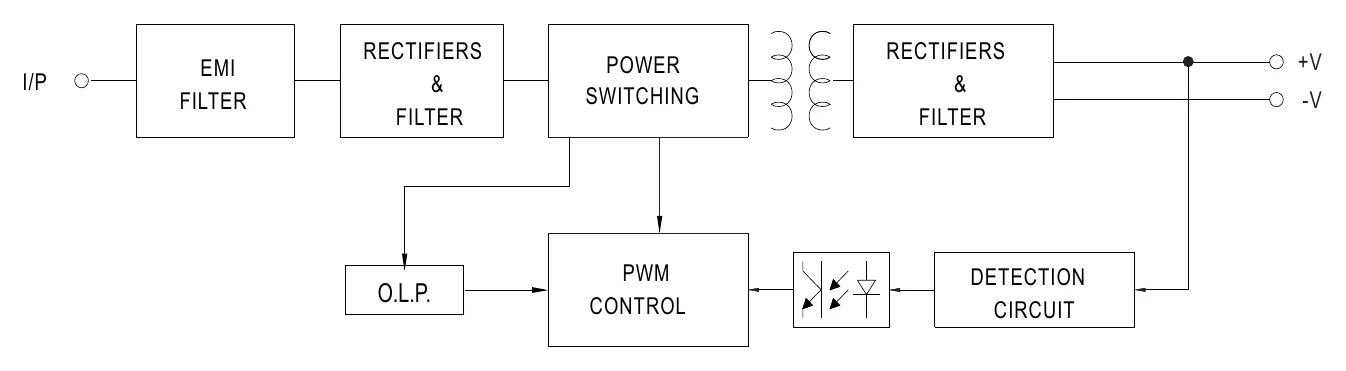

MPM-15-5 RECTIFIERS
RECTIFIERS

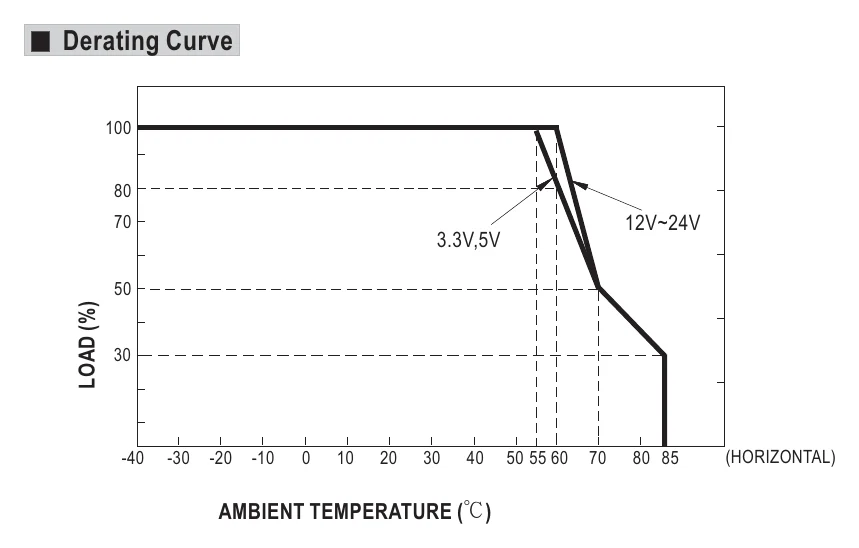

MPM-15-5 Derating Curve
Derating Curve
MPM-15-5 Illustration (page 4)
Illustration (page 4)

Typical applications

  • Portable medical device
  • Mobile clinical workstation
  • Medical computer monitor
  • Medical examination instrument

Downloads

FAQ

Can I use the MPM-15-5 for a 5V industrial controller, HMI, or embedded board?

Yes, this constant-voltage model provides 5V at up to 3A with a 15W power rating, which suits many low-power control and embedded electronics. It is a compact option when the load fits within that 3A ceiling.

Is the MPM-15-5 suitable for powering USB-level 5V electronics inside equipment?

It can be used for enclosed 5V electronics that need a stable supply and draw no more than 3A total. The wide 80-264VAC input is also useful where the same equipment may be used on different AC mains systems.

Can this 5V power supply be used for medical or laboratory electronics?

It can fit low-power 5V medical or lab electronics when the total load stays within 15W. The listed features include medical safety approval, no-load power consumption under 0.1W, and extremely low leakage current.

Can the MPM-15-5 be used in outdoor cabinets or hot industrial enclosures?

Its specified operating range is -40C to +85C, with output derating required at higher temperatures per the derating curve, so it is suited to equipment that experiences wide internal temperatures. No IP rating is listed, so the provided specs support enclosed indoor use rather than direct outdoor exposure.
