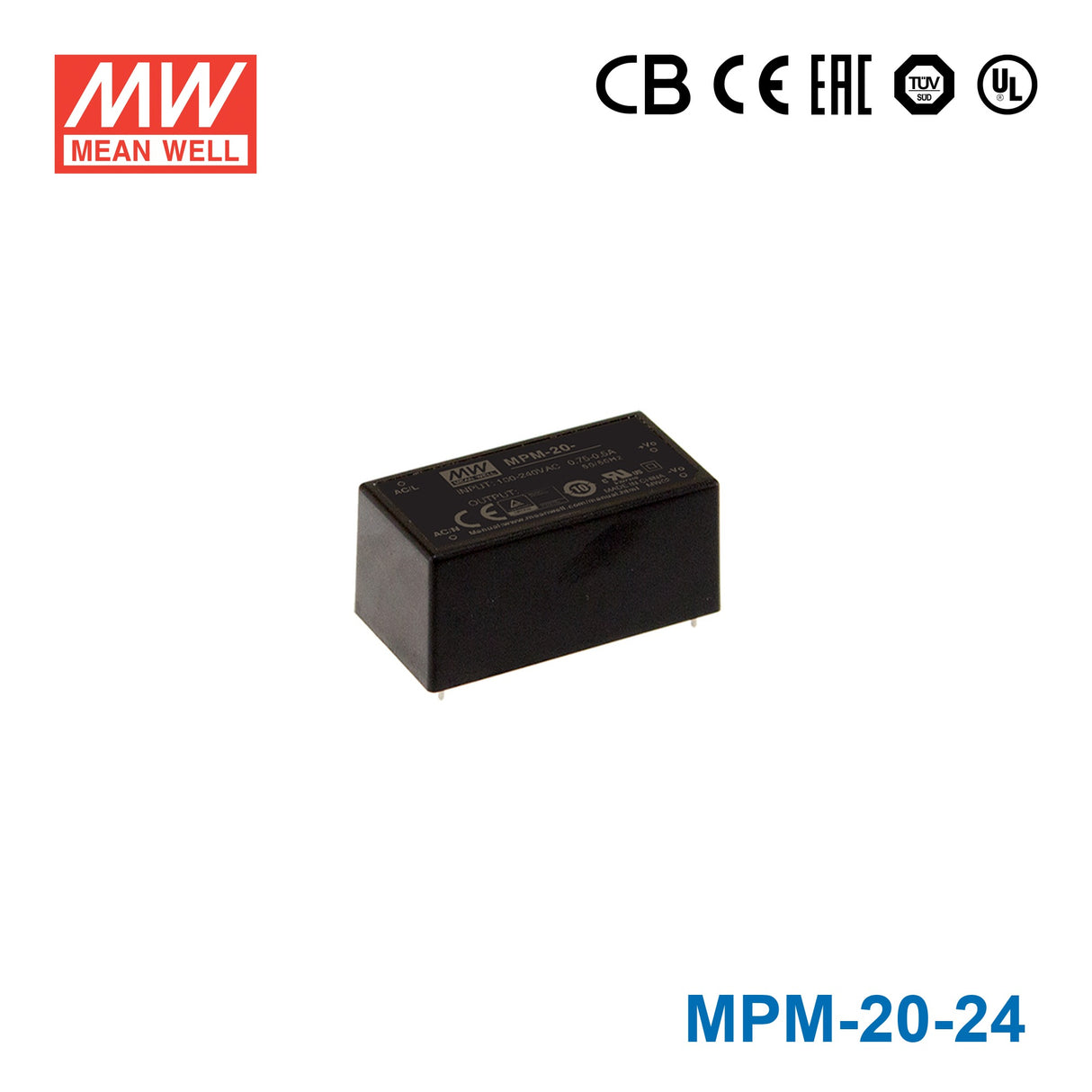

Mean Well MPM-20-24 Power Supply 20W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-20-24 Power Supply 20W 24V
Touch current<80 μA/264VAC
Key Features
- ✓2.06"x1.07" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -35~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating21.6 Watt
-
Output Voltage24 Volt
-
Rated Current0.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-35°C~85°C
-
Warranty3 Year
-
Length2.06 in
-
Width1.07 in
-
Height0.94 in
-
Weight0.12 lb
::specification::
Frequently Asked Questions
Can I use the MPM-20-24 for a small 24V PLC or relay control panel?
Yes, it is a constant-voltage 24V supply rated for 21.6W and 0.9A, which fits low-power 24V control loads within that limit. Its 80-264VAC input also suits panels that may be fed from different AC mains ranges.
Is the MPM-20-24 suitable for embedded 24V sensors and interface boards?
It can fit embedded 24V electronics that need a stable 24V output and draw no more than 0.9A. The compact 52.4 × 27.2 × 24.0 mm package also helps where internal space is limited.
Can this power a compact 24V industrial communications or control device?
It is appropriate for compact 24V equipment when the total load stays within 21.6W and 0.9A. The encapsulated construction and approvals including CB, CE, EAC, TÜV, and UL are typically relevant where certified panel components are preferred.
Would the MPM-20-24 work for medical or lab equipment that uses a low-power 24V rail?
This model is medical safety approved, so it is a better fit than a general-purpose unit when the equipment requires a 24V constant-voltage rail up to 0.9A. Buyers should still match the end device load to the supply's 21.6W maximum.
Is the MPM-20-24 intended for outdoor or harsh-environment use?
The operating temperature range is -35°C to +85°C, so the temperature specification is broad. However, no IP rating is listed in the specs, so this product page does not indicate outdoor ingress protection and it is better evaluated as an enclosed use power supply unless the finished equipment provides that protection.
How does the MPM-20-24 compare with other 24V models in the MPM series?
The 24V siblings listed are MPM-05-24 at 5.5W and 0.23A, MPM-10-24 at 10W and 0.42A, MPM-15-24 at 15.1W and 0.63A, MPM-20-24 at 21.6W and 0.9A, MPM-30-24 and MPM-30-24ST at 31.2W and 1.3A, MPM-45-24 and MPM-45-24ST at 45.1W and 1.88A, MPM-65-24 and MPM-65-24ST at 65W and 2.71A, and MPM-90-24 and MPM-90-24ST at 90W and 3.75A. This places the MPM-20-24 in the middle of the 24V range for both wattage and current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPM-20 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-20-5 Power Supply 20W 5V | 20W | 5V | 4A | Indoor | $16.36 | View |
| Mean Well MPM-20-3.3 Power Supply 20W 3.3V | 14.9W | 3.3V | 4.5A | Indoor | $16.36 | View |
| Mean Well MPM-20-20 Power Supply 20W 15V | 21W | 15V | 1.4A | Indoor | $16.36 | View |
| Mean Well MPM-20-12 Power Supply 20W 12V | 21.6W | 12V | 1.8A | Indoor | $16.36 | View |
