Mean Well

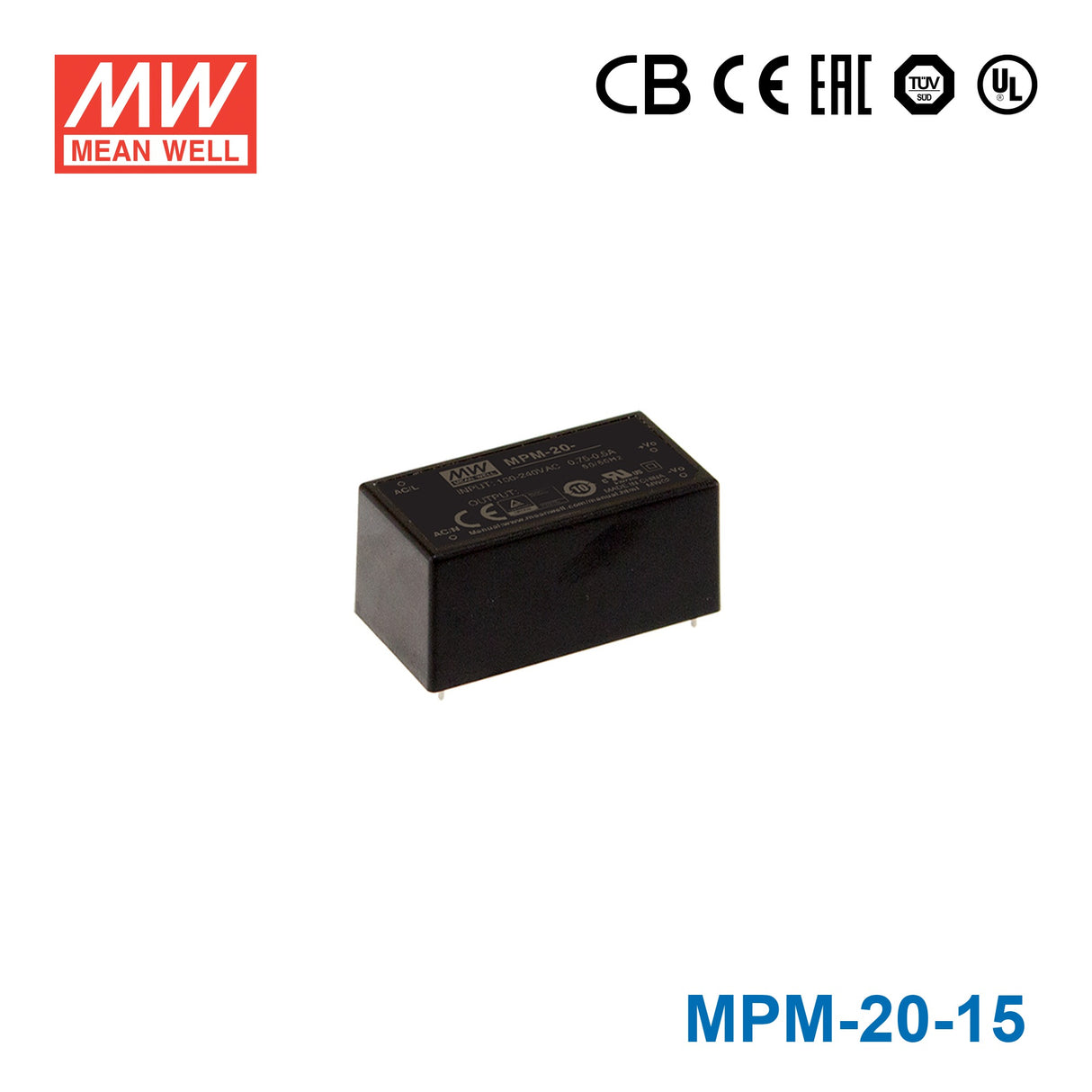

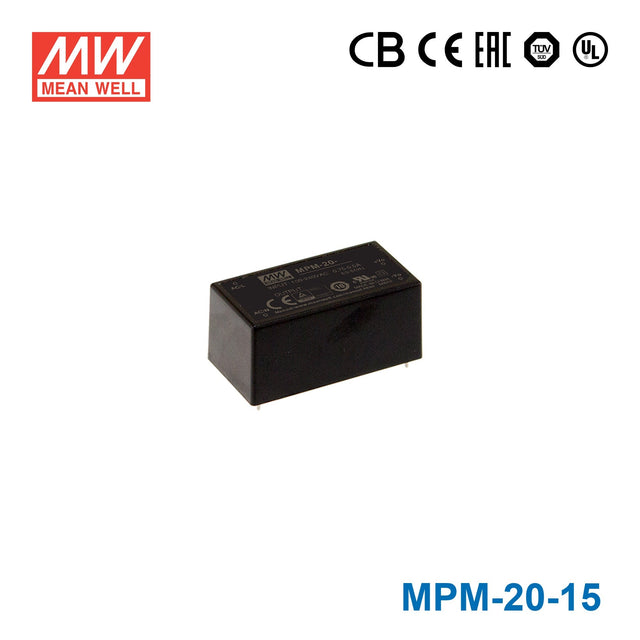

Mean Well MPM-20-15 Power Supply 20W 15V 1.4A

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current
SKU MPM-20-15
$16.36 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

MPM-20-15 is the 15V output model of this series: rated current 1.4A, rated power 21W, typical efficiency 87%.

MPM-20 is a 20W high density and small size (52 . 4 * 27 . 2 * 24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.1W, a high efficiency up to 87%, Class Ⅱ (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, 2G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC / BS EN/EN60601 - 1 and ANSI/AAMI ES60601 - 1version three with 2xMOPP level and ultra-low leakage current (<80μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.

Features

  • 2.06"x1.07" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • No load power consumption<0.1W
  • Extremely low leakage current
  • Wide operating temp. range -35 ~ +85℃
  • EMI class B for class Ⅱ configuration
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • No minimum load required
  • 3 years warranty

Specifications

MPM-20-15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
1.4A
CURRENT RANGENote.2
0 ~ 1.4A
PEAK CURRENT
1.54A
RATED POWER
21W
PEAK LOAD(10sec.)Note.3
23.1W
RIPPLE & NOISE (max.)Note.4
180mVp-p
VOLTAGE TOLERANCENote.5
±2.0%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1500ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
40ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGENote.6
80 ~ 264VAC 113V~370VDC
FREQUENCY RANGE
47 ~ 440Hz
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 20A/115VAC 45A/230VAC
LEAKAGE CURRENT (max.)Note.7
Touch current <80μA/264VAC

PROTECTION

OVERLOAD
110% ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.3 ~ 20.3V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-35 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 55℃)
SOLDERING TEMPERATURE
Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.8
5000 meters

SAFETY & EMC

SAFETY STANDARDS
IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005/A2:2021, CAN/CSA C22.2 No. 60601-1:2014+A2,IEC 60335-1:2010/AMD2:2016, Dekra BS EN/ EN 60335-1:2012+A11+A13+A1+A14+A2+A15 ,EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55011 (CISPR11)Class B
Radiated emissionBS EN/EN55011 (CISPR11)Class B
Harmonic currentBS EN/EN61000-3-2Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITYNote.9

BS EN/EN55035, BS EN/EN60601-1-2

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
7319.8K hrs min. Telcordia SR-332 (Bellcore) ; 1210.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
52.4*27.2*24mm (L*W*H) or 2.06″*1.07″*0.94″ inch
PACKING
0.056Kg; 240pcs/14.4Kg/0.94CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. No minimum load required.
  3. 3. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  4. 4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  5. 5. Tolerance : includes set up tolerance, line regulation and load regulation.
  6. 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
  7. 7. Touch current was measured from primary input to DC output.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

MPM-20-15 RECTIFIERS
RECTIFIERS
MPM-20-15 Derating Curve
Derating Curve
MPM-20-15 Illustration (page 4)
Illustration (page 4)

Typical applications

  • Portable medical device
  • Mobile clinical workstation
  • Medical computer monitor
  • Medical examination instrument

Downloads

FAQ

Can I use the MPM-20-15 for a 15V industrial control or measurement device?

Yes, this is a constant-voltage 15V supply rated for 21W and 1.4A, which fits low-power control or measurement electronics that require 15V and stay within that current limit. Its 80-264VAC input also supports use across a wide AC input range.

Is the MPM-20-15 suitable for 15V analog or embedded electronics inside a compact enclosure?

It can be used for enclosed 15V analog, interface, or embedded assemblies drawing up to 1.4A. The 52.4 x 27.2 x 24.0 mm package is useful when the power section has limited mounting space.

Can this power supply be used in medical or lab systems that need 15V DC?

It can fit low-power 15V medical or laboratory equipment when the load remains within 21W. The features list includes medical safety approval, no-load power consumption under 0.1W, and extremely low leakage current.

Can the MPM-20-15 be used outdoors or in equipment exposed to cold and heat?

It is specified for operation from -35C to +85C, with output derating at higher ambient temperatures per the derating curve, so it is suited to equipment that sees a wide internal temperature range. No IP rating is provided, so the product specs support protected indoor or enclosed use rather than exposed outdoor use.
