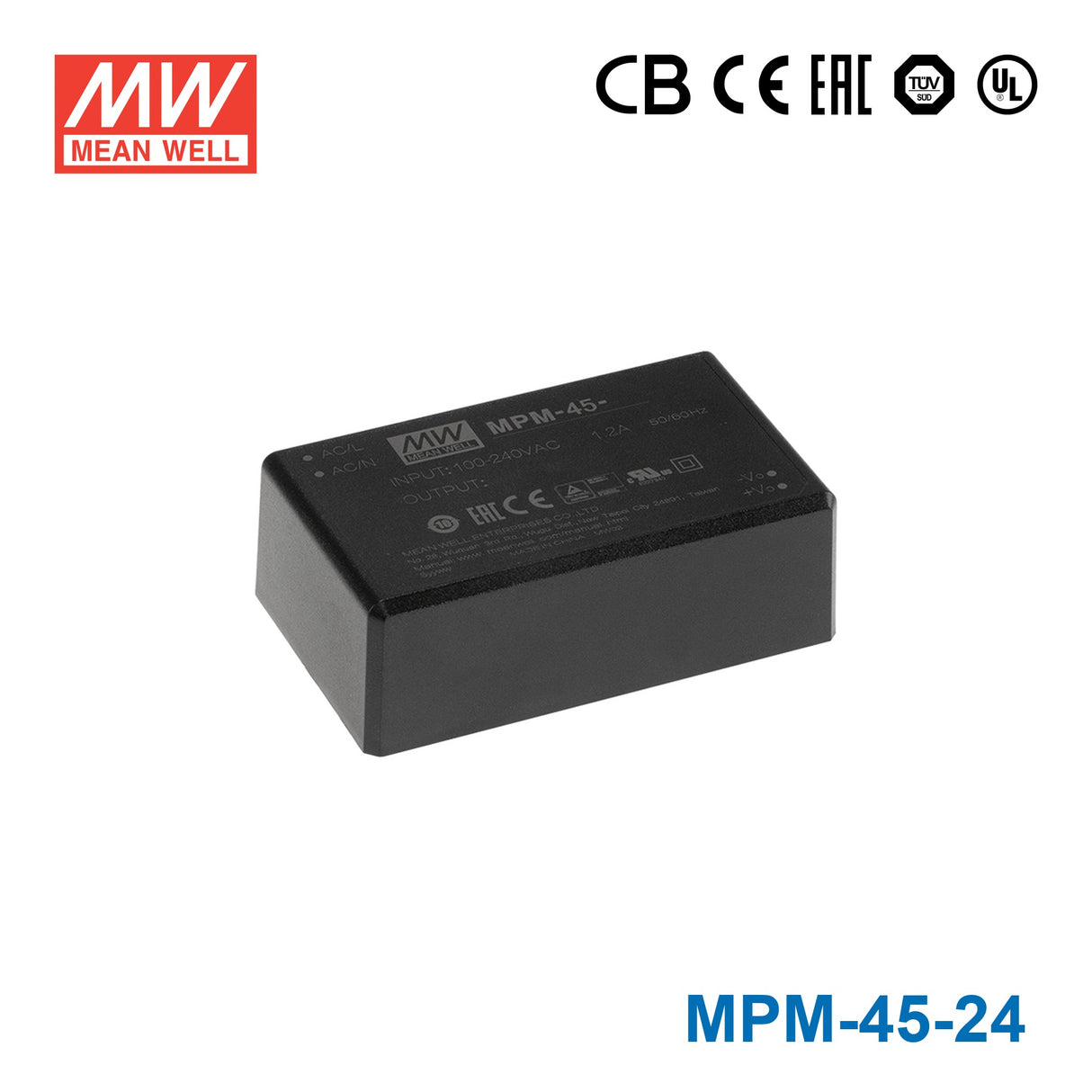

Mean Well MPM-45-24 Power Supply 45W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-45-24 Power Supply 45W 24V
EMI Class B without additional components
Isolation Class II
No minimum load required
50W peak(10 sec)
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required50W peak(10 sec)
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating45.1 Watt
-
Output Voltage24 Volt
-
Rated Current1.88 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length3.43 in
-
Width2.05 in
-
Height1.16 in
-
Weight0.41 lb
::specification::
Frequently Asked Questions
Can I use the MPM-45-24 to power a 24V PLC, I/O module, or automation controller?
Yes, if the equipment requires constant voltage 24V DC and the total load does not exceed 45.1W or 1.88A. The 80-264VAC input range also suits a wide range of industrial AC inputs.
Is this power supply suitable for 24V embedded systems or industrial communications hardware?
It can be a fit for 24V embedded electronics, communications devices, or control modules that need a regulated 24V output and stay within 1.88A. The compact 87.0 x 52.0 x 29.5 mm size can help in smaller housings or control assemblies.
Can the MPM-45-24 be used for 24V sensor networks or monitoring equipment?
It is intended for constant-voltage 24V loads, so it can support sensor or monitoring equipment when the total draw remains at or below 45.1W and 1.88A. The encapsulated design and extremely low leakage current may also be useful in sensitive industrial or medical-adjacent equipment.
Is the MPM-45-24 rated for outdoor environments or only wide operating temperatures?
The provided temperature rating is -30°C to +80°C, so the unit is specified for broad temperature conditions. No IP rating is listed, so the specs do not establish outdoor, wet, or washdown suitability.
How does the MPM-45-24 compare with other MPM models around the same output class?
The 45W-range siblings are MPM-45-12 and MPM-45-12ST at 45W, 12V, 3.75A; MPM-45-15 and MPM-45-15ST at 45W, 15V, 3A; MPM-45-24 and MPM-45-24ST at 45.1W, 24V, 1.88A; MPM-45-48 and MPM-45-48ST at 45.1W, 48V, 0.94A; and MPM-45-5 and MPM-45-5ST at 40W, 5V, 8A. This model is the 24V, 1.88A option in that group.
