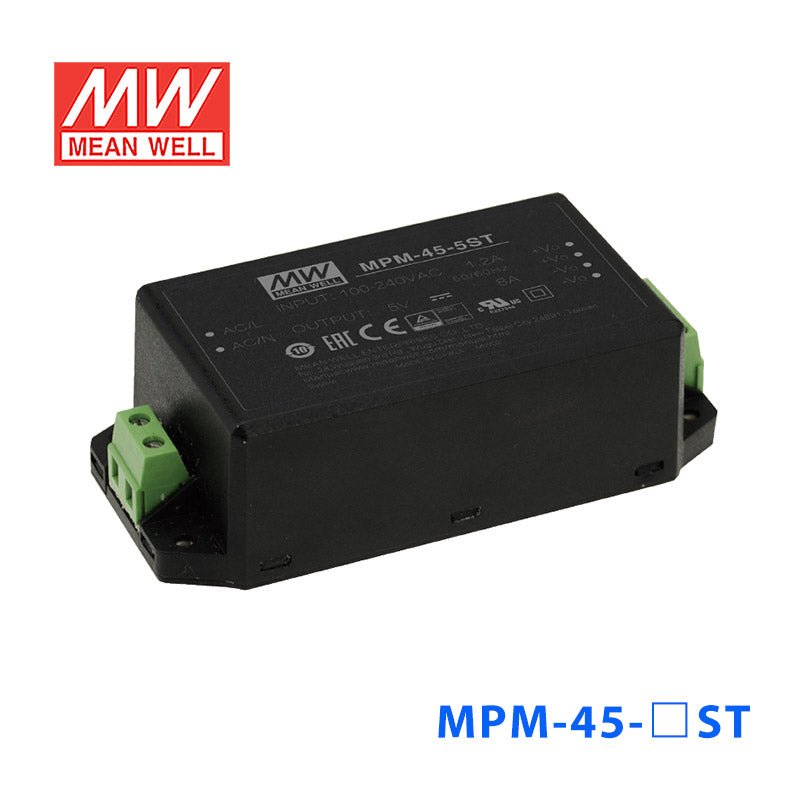

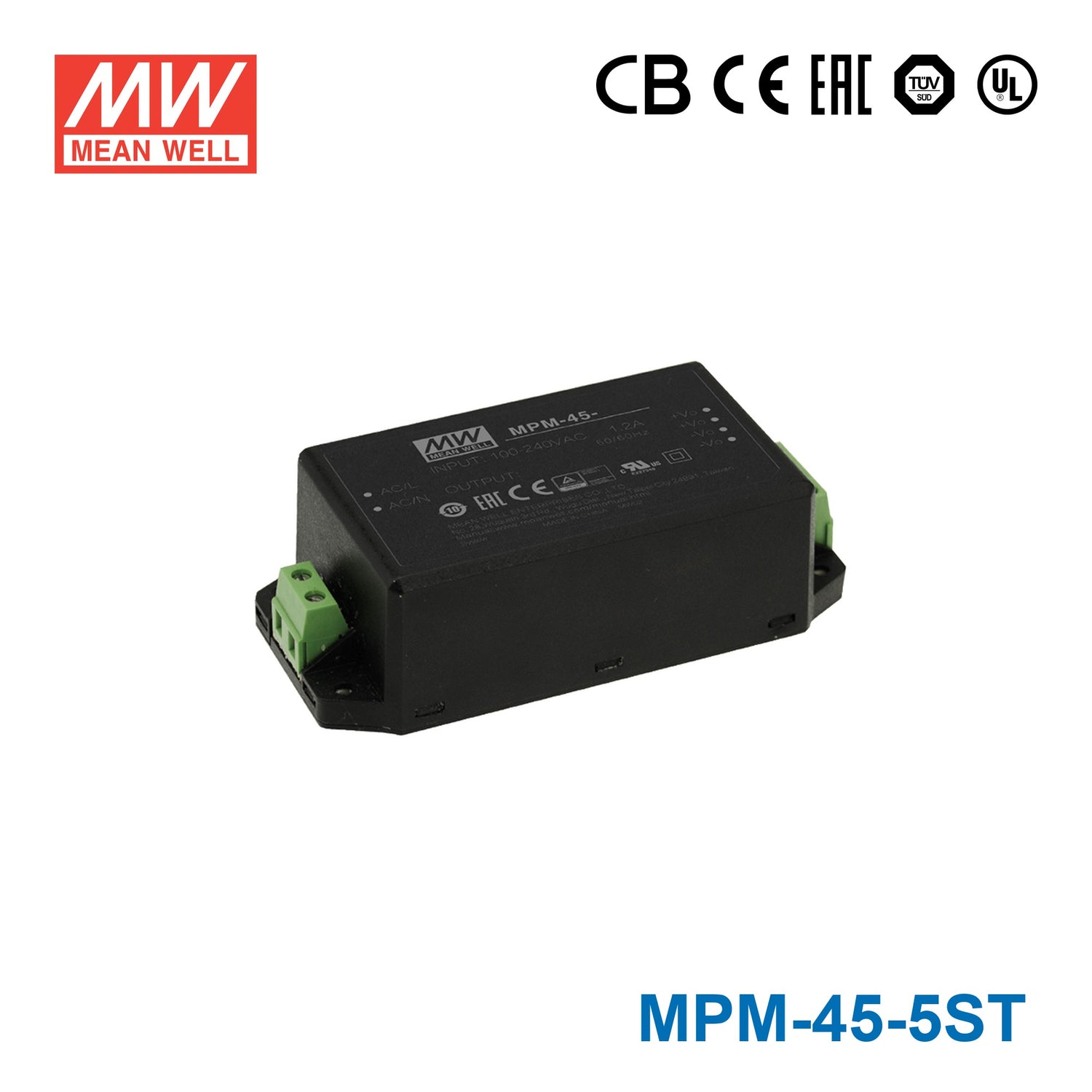

Mean Well MPM-45-5ST Power Supply 45W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-45-5ST Power Supply 45W 5V
Description
Description
Features
| 3.43"x2.05" compact size |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No-load power consumption<0.1W |
| Extremely low leakage current |
| Wide operating temp. range -40~+85°C |
|
EMI Class B without additional components Isolation Class II |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
|
No minimum load required 50W peak(10 sec) |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC; 113~370VDC |
| AC inrush current | Cold start 30A/115VAC |
| Leakage current | Touch current<100 μA/264VAC |
| Overload protection | 115 ~ 135% rated output power |
| Over-voltage protection | 106 ~ 144% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -30~+80°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request) |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | IRM60 |
| Dimension (LxWxH) | 87x52.2x29.5 |
| Packing | 60pcs / 12.1kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating40 Watt
-
Output Voltage5 Volt
-
Rated Current8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.45 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-45-5ST for 5V industrial controllers or processor boards?
Yes, when the equipment requires constant 5V output and the total demand stays within 40W and 8A. That makes it suitable for higher-current 5V control electronics, embedded processors, and digital subsystems.
Is the MPM-45-5ST suitable for 5V instrumentation or test equipment?
It can be used for 5V instrumentation and electronic assemblies that need up to 8A from a constant voltage source. The encapsulated construction and compact format can help in tightly packed equipment designs.
Can this model support a 5V backplane or multiple 5V loads in one enclosure?
Yes, as long as the combined 5V load does not exceed 40W or 8A. This is the main sizing check for a 5V backplane, multiple controller boards, or several 5V electronic loads powered from one supply.
Is the MPM-45-5ST rated for outdoor or washdown conditions?
The operating temperature range is -30°C to +80°C, which addresses temperature but not ingress protection. Since no IP rating is listed in the provided specs, the product data does not claim dust-tight, waterproof, or washdown suitability.
What is the difference between the MPM-45-5ST and the rest of the MPM 45-series?
The MPM 45-series spans 5V at 40W and 8A, 12V at 45W and 3.75A, 15V at 45W and 3A, 24V at 45.1W and 1.88A, and 48V at 45.1W and 0.94A. This model is the ST version of the 5V option, and the non-ST MPM-45-5 keeps the same electrical ratings in a smaller 87.0 x 52.0 x 29.5 mm housing.
Other MPM-45 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-45-5 Power Supply 45W 5V | 40W | 5V | 8A | Indoor | $24.96 | View |
| Mean Well MPM-45-48ST Power Supply 45W 48V | 45.1W | 48V | 0.94A | Indoor | $27.07 | View |
| Mean Well MPM-45-48 Power Supply 45W 48V | 45.1W | 48V | 0.94A | Indoor | $24.96 | View |
| Mean Well MPM-45-24ST Power Supply 45W 24V | 45.1W | 24V | 1.88A | Indoor | $27.07 | View |
| Mean Well MPM-45-24 Power Supply 45W 24V | 45.1W | 24V | 1.88A | Indoor | $24.96 | View |
| Mean Well MPM-45-15ST Power Supply 45W 15V | 45W | 15V | 3A | Indoor | $27.07 | View |
| Mean Well MPM-45-15 Power Supply 45W 15V | 45W | 15V | 3A | Indoor | $24.96 | View |
| Mean Well MPM-45-12ST Power Supply 45W 12V | 45W | 12V | 3.75A | Indoor | $27.07 | View |
| Mean Well MPM-45-12 Power Supply 45W 12V | 45W | 12V | 3.75A | Indoor | $24.96 | View |
