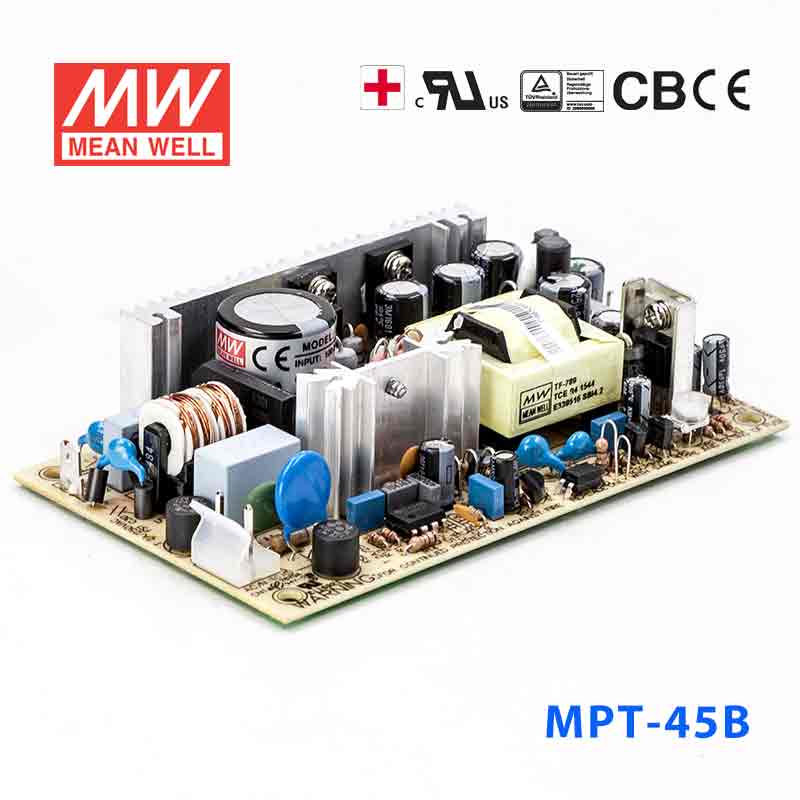

Mean Well MPT-45B Power Supply 45W 5V 12V -12V
<0.75mA
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current<0.5mA
- ✓Protections: Short circuit/ Overload/ Over voltage
- ✓Cooling by free air convection
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 65KHz
- ✓2 years warranty
-
BrandMean Well
-
SeriesMPT Series
-
Power Rating42.6 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.1 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the MPT-45B for equipment that needs 5V, 12V, and -12V outputs?
Yes, this model is listed with 5V, 12V, and -12V outputs for multi-rail applications. Its main listed output is 5V at 3A, and the total rated power is 42.6W.
Is the MPT-45B a good fit for embedded or industrial electronics with a negative 12V rail?
It can be used where a system needs a 5V main rail plus 12V and -12V outputs from one power supply. The product is specified for 42.6W total power and 3A on the listed 5V output.
Can the MPT-45B support mixed-signal or interface boards that use both positive and negative rails?
Yes, the listed outputs of 5V, 12V, and -12V make it relevant for electronics that require both positive and negative DC rails. It is a constant-voltage power supply with 90-264VAC input.
Is the MPT-45B suitable for outdoor or high-exposure environments?
The defined operating temperature range is -10°C to +60°C. The provided specs do not include an IP rating, so the product data does not specify outdoor, wet, or dust-tight use.
What is the difference between the MPT-45A and MPT-45B?
MPT-45A is listed at 40.5W with outputs of 5V, 12V, and -5V, while MPT-45B is 42.6W with outputs of 5V, 12V, and -12V. Both list a 5V main output at 3A, but they differ in total rated power and negative output rail.
