Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

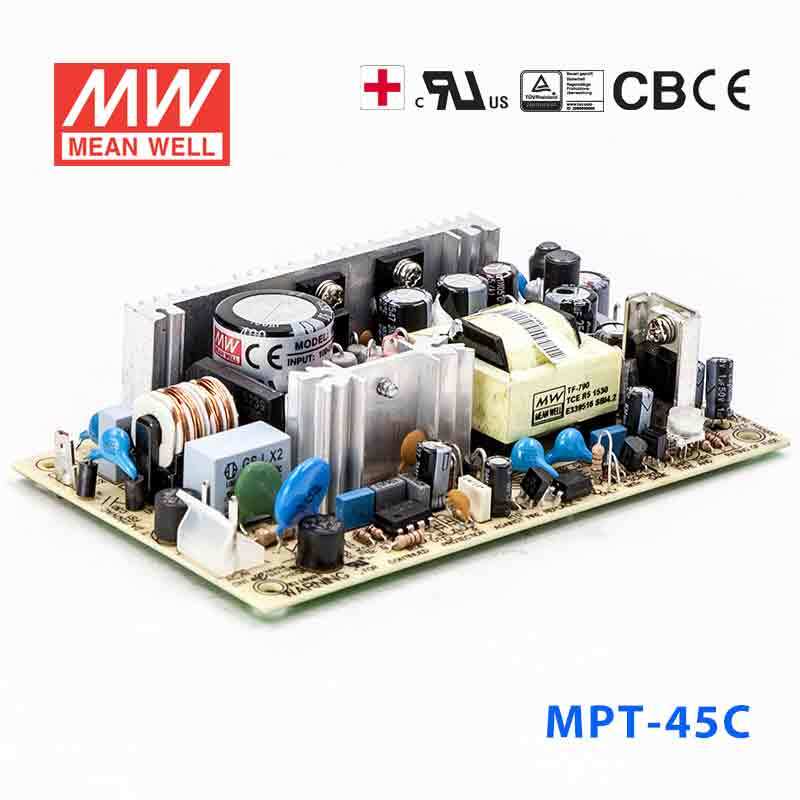

Mean Well MPT-45C Power Supply 45W 5V 15V -15V
<0.75mA
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current<0.5mA
- ✓Protections: Short circuit/ Overload/ Over voltage
- ✓Cooling by free air convection
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 65KHz
- ✓2 years warranty
-
BrandMean Well
-
SeriesMPT Series
-
Power Rating43.5 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.1 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the MPT-45C for a 5V embedded controller with analog signal conditioning?
Yes. This model provides constant-voltage 5V output with up to 3A and 43.5W, and its product configuration includes 15V and -15V rails for mixed-signal boards. That makes it a practical fit for embedded control hardware that combines 5V logic with analog circuitry.
Is the MPT-45C suitable for industrial instrumentation or measurement electronics?
It can be a good match for instrumentation electronics that need regulated 5V logic power and use the 15V and -15V outputs shown in the product name. The constant-voltage design and 43.5W rating make it more appropriate for control and signal-processing assemblies than for higher-power 5V loads.
Can this power supply run a 5V automation control board inside a machine cabinet?
Yes, if the board is designed for constant-voltage 5V input and stays within 3A output current and 43.5W total power. Its compact 127.0 × 76.0 × 28.0 mm size also helps when space is limited inside a protected control enclosure.
Is the MPT-45C a good choice for low-power test or lab control electronics?
It is suitable for low-power electronic assemblies that need regulated 5V plus the 15V and -15V rails named for this model. With 43.5W total power and 3A on the 5V output, it fits lighter-duty control and analog support tasks better than larger 5V systems.
Can the MPT-45C be used in outdoor or harsh exposed locations?
The listed operating temperature is -10°C to +60°C, but no IP rating is provided in the specs. That points to indoor use or installation inside a protected enclosure rather than direct outdoor exposure.
How does the MPT-45C compare with nearby MPT 5V models?
In the provided sibling list, MPT-45A is 40.5W at 5V and 3A, MPT-45B is 42.6W at 5V and 3A, and MPT-45C is 43.5W at 5V and 3A. The next step up is MPT-65A at 60W and 5.5A, MPT-65B at 63.5W and 5.5A, and MPT-65C at 65W and 5.5A, while MPT-200A, MPT-200B, MPT-200C, and MPT-200D are all 200W at 5V.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPT Series Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPT-65C Power Supply 65W 5V 15V -15V | 65W | 5V | 5.5A | Indoor | $49.52 | View |
| Mean Well MPT-65B Power Supply 65W 5V 12V -12V | 63.5W | 5V | 5.5A | Indoor | $49.52 | View |
| Mean Well MPT-65A Power Supply 65W 5V 12V -5V | 60W | 5V | 5.5A | Indoor | $49.52 | View |
| Mean Well MPT-45B Power Supply 45W 5V 12V -12V | 42.6W | 5V | 3A | Indoor | $44.83 | View |
| Mean Well MPT-45A Power Supply 45W 5V 12V -5V | 40.5W | 5V | 3A | Indoor | $44.83 | View |
