Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

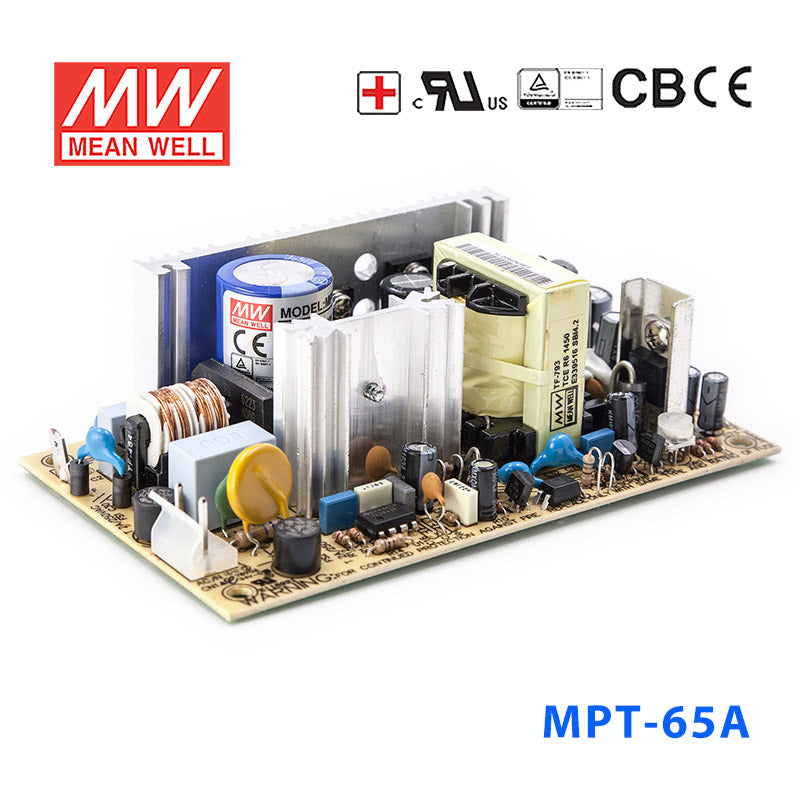

Mean Well MPT-65A Power Supply 65W 5V 12V -5V
<0.75mA
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current<0.5mA
- ✓Protections: Short circuit/ Overload/ Over voltage
- ✓Cooling by free air convection
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 65KHz
- ✓2 years warranty
-
BrandMean Well
-
SeriesMPT Series
-
Power Rating60 Watt
-
Output Voltage5 Volt
-
Rated Current5.5 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~55°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
Can I use the MPT-65A for a 5V industrial controller that also needs 12V and -5V rails?
Yes. This model provides constant-voltage 5V output with up to 5.5A and 60W total power, and the product configuration includes 12V and -5V rails. That makes it suitable for control boards and electronic assemblies that combine logic and support voltages.
Is the MPT-65A suitable for older embedded systems or interface cards with mixed supply rails?
It can be a practical fit for embedded boards that use regulated 5V logic and also rely on the 12V and -5V outputs identified in the model name. Compared with the lower-power MPT-45 units, the 5.5A 5V output gives more headroom for denser 5V electronics.
Can this model power a 5V HMI or operator interface assembly in an automation panel?
Yes, if the assembly is designed for constant-voltage 5V input and remains within 5.5A and 60W. The 127.0 × 76.0 × 42.0 mm form factor also suits enclosed panel builds where space planning matters.
Would the MPT-65A work for control electronics that need more 5V capacity than a 3A supply?
Yes. Its 5V output is rated for 5.5A, which is a clear increase over the 3A rating shown for the MPT-45A, MPT-45B, and MPT-45C siblings. That makes it better suited to 5V control hardware with higher logic-side demand.
Is the MPT-65A intended for indoor or outdoor use?
The operating temperature range is -10°C to +55°C, but the provided specs do not list an IP rating. On that basis, it is better treated as an indoor power supply or one mounted inside a protective enclosure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPT Series Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPT-65C Power Supply 65W 5V 15V -15V | 65W | 5V | 5.5A | Indoor | $49.52 | View |
| Mean Well MPT-65B Power Supply 65W 5V 12V -12V | 63.5W | 5V | 5.5A | Indoor | $49.52 | View |
| Mean Well MPT-45C Power Supply 45W 5V 15V -15V | 43.5W | 5V | 3A | Indoor | $34.24 | View |
| Mean Well MPT-45B Power Supply 45W 5V 12V -12V | 42.6W | 5V | 3A | Indoor | $44.83 | View |
| Mean Well MPT-45A Power Supply 45W 5V 12V -5V | 40.5W | 5V | 3A | Indoor | $44.83 | View |
