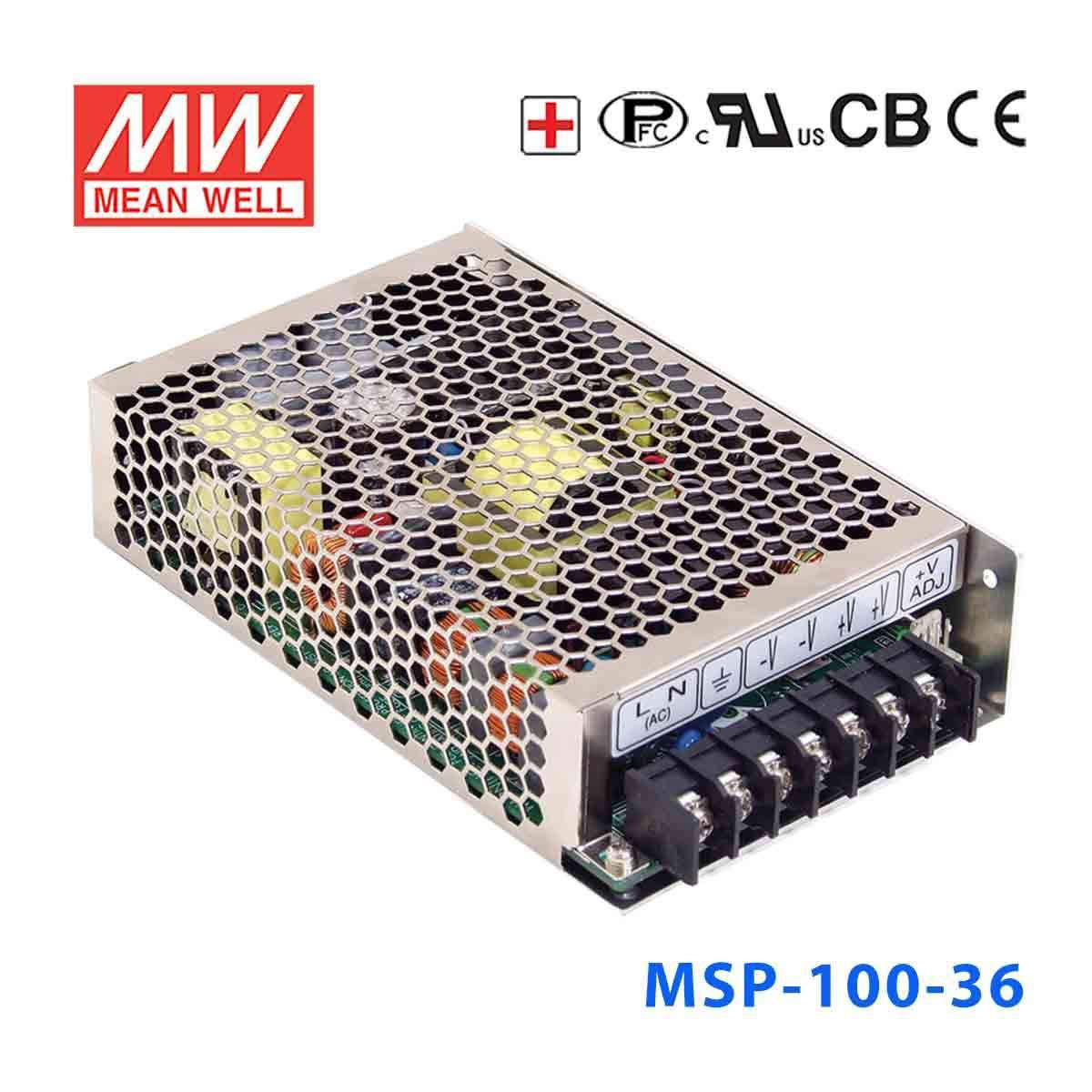

Mean Well MSP-100-36 Power Supply 104.4W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-100-36 Power Supply 104.4W 36V
The MSP-100 is a 100W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating104.4 Watt
-
Output Voltage36 Volt
-
Rated Current2.9 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight0.84 lb
::specification::
Frequently Asked Questions
Can I use the MSP-100-36 for 36V industrial control or motion-related equipment?
Yes, if the equipment requires constant 36V DC and the load stays within 2.9A. This model is rated for 104.4W, so it suits 36V industrial electronics or automation devices that fit within that power window.
Is the MSP-100-36 appropriate for 36V test, measurement, or embedded hardware?
It can be used where a stable 36V constant-voltage source is required and current demand does not exceed 2.9A. The total available output is 104.4W, which defines the sizing limit for the connected hardware.
Can this 36V supply be used in automation systems that need a wide AC input range?
Yes, the input is rated at 85-264VAC, which supports operation across a broad AC range. On the output side, it delivers constant 36V DC up to 2.9A and 104.4W.
Is the MSP-100-36 suitable for outdoor control boxes or only protected enclosures?
The operating temperature range is -40°C to +60°C, so the unit is specified for wide temperature conditions. Since no IP rating is listed, the provided specs do not establish outdoor exposure or water/dust ingress protection.
What is the difference between the MSP-100-36 and the other MSP-100 variants?
This version provides 36V at 2.9A with 104.4W output. The rest of the MSP-100 range includes 3.3V 20A 66W, 5V 17A 85W, 7.5V 13.5A 101.3W, 12V 8.5A 102W, 15V 7A 105W, 24V 4.5A 108W, and 48V 2.2A 105.6W.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MSP-100 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-100-7.5 Power Supply 101.3W 7.5V | 101.3W | 7.5V | 13.5A | Indoor | $55.83 | View |
| Mean Well MSP-100-5 Power Supply 85W 5V | 85W | 5V | 17A | Indoor | $55.85 | View |
| Mean Well MSP-100-48 Power Supply 105.6W 48V | 105.6W | 48V | 2.2A | Indoor | $55.85 | View |
| Mean Well MSP-100-3.3 Power Supply 66W 3.3V | 66W | 3.3V | 20A | Indoor | $55.85 | View |
| Mean Well MSP-100-24 Power Supply 108W 24V | 108W | 24V | 4.5A | Indoor | $55.83 | View |
| Mean Well MSP-100-15 Power Supply 105W 15V | 105W | 15V | 7A | Indoor | $55.85 | View |
| Mean Well MSP-100-12 Power Supply 102W 12V | 102W | 12V | 8.5A | Indoor | $55.83 | View |
