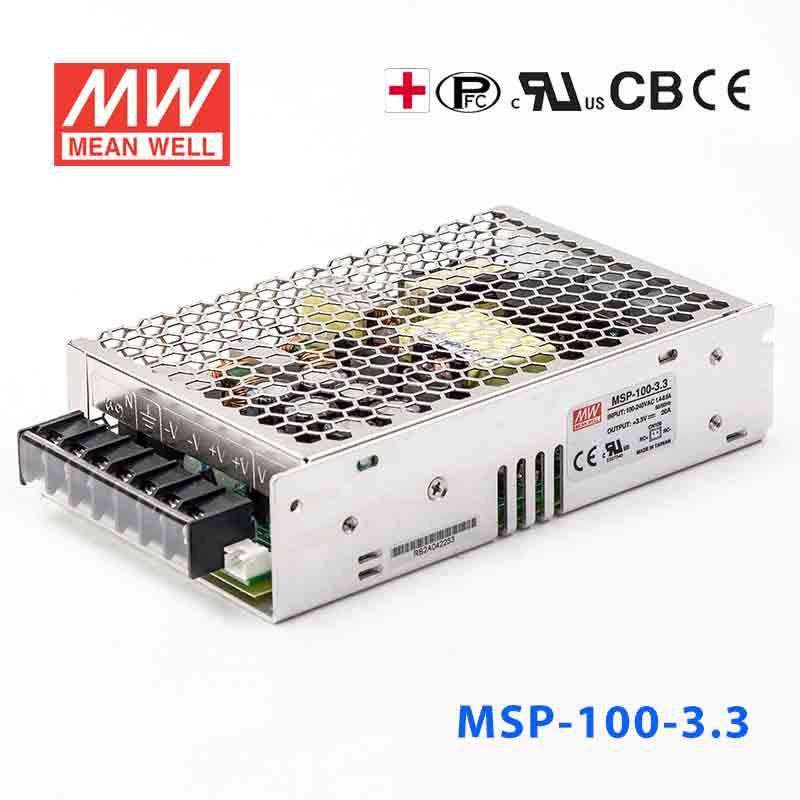

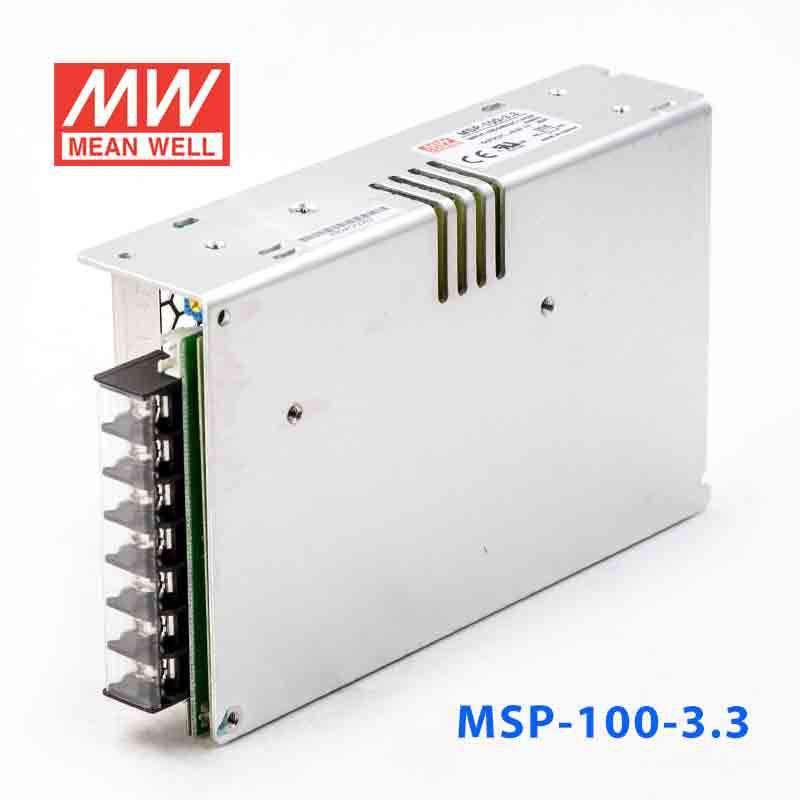

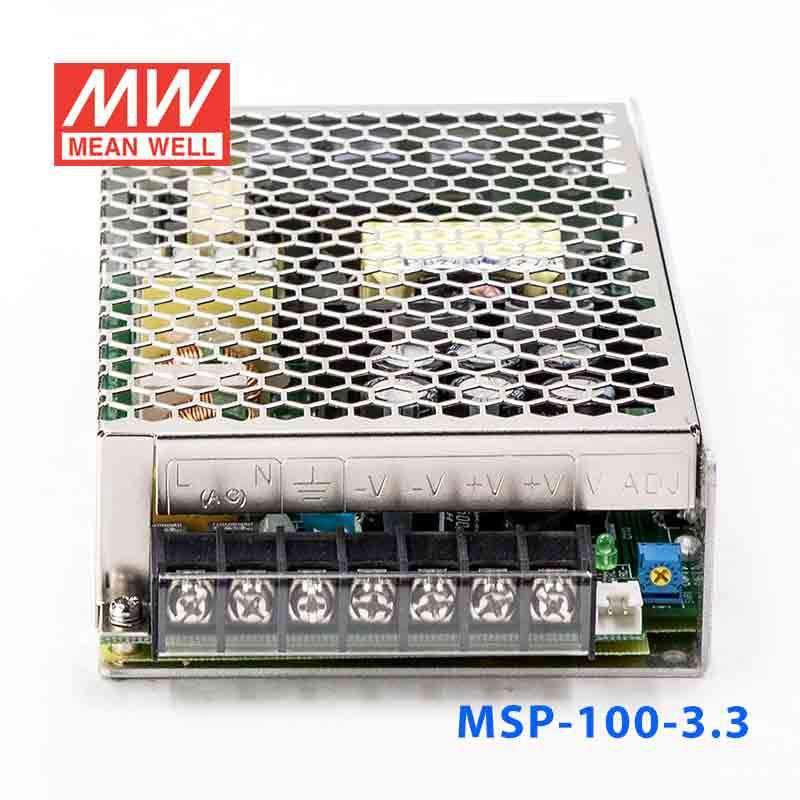

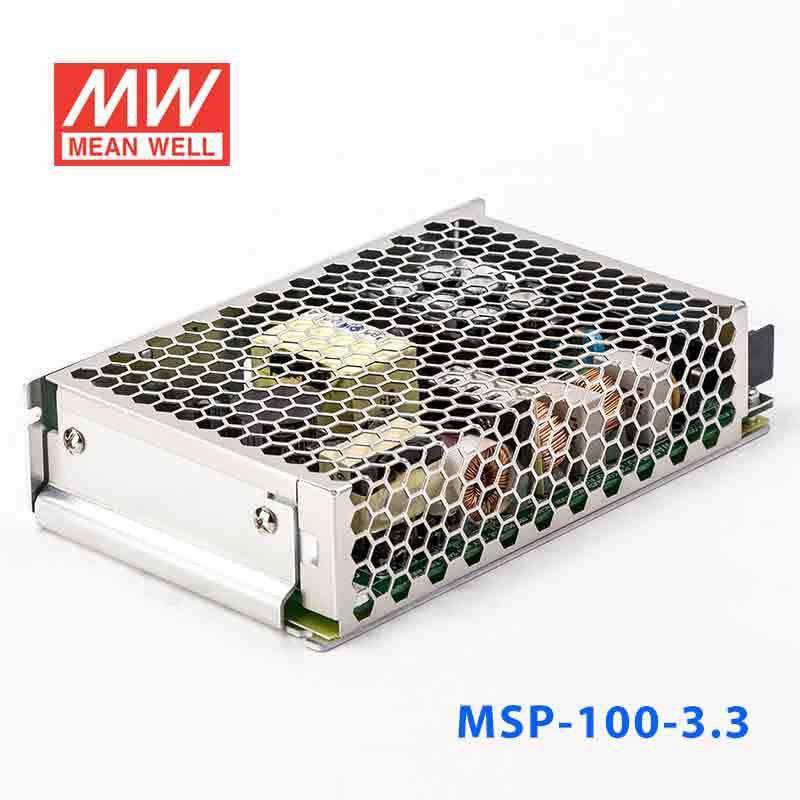

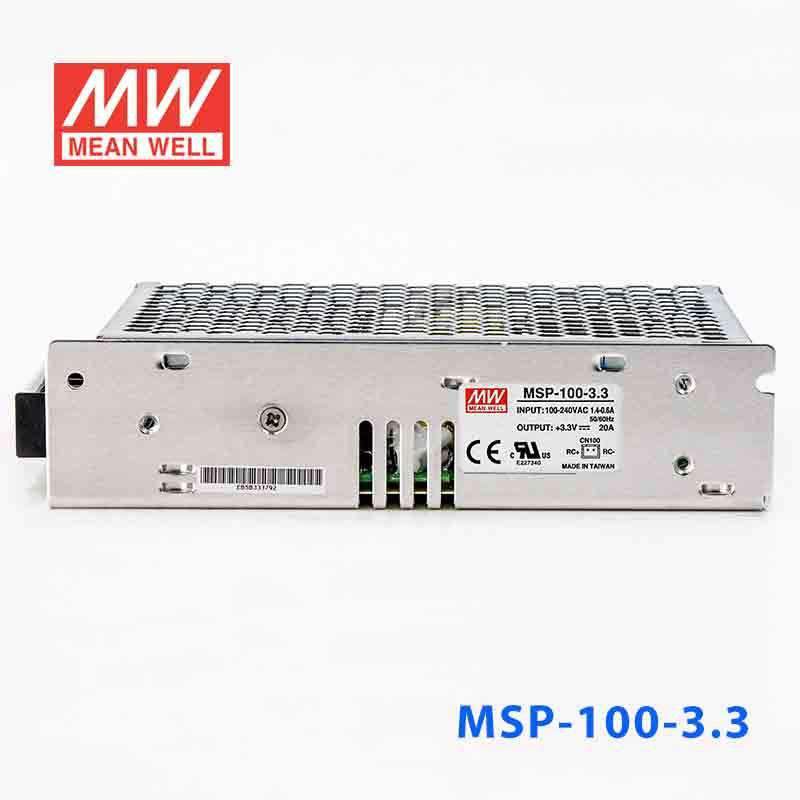

Mean Well MSP-100-3.3 Power Supply 66W 3.3V

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W
$55.85 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage
Protections: Over temperature (optional)
Cooling by free air convection
1U low profile 38mm
Medical safety approved (MOOP level)
Built-in remote ON-OFF control
No load power consumption<0.5W
All using 105 long life electrolytic capacitors
5 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) 35A/115VAC 65A/230VAC
Over current protection 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
Over voltage protection 110%~140% Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -40~+60ºC (refer to output derating curve)
Safety standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm) 159x 97x 38 mm

Specifications

  • Brand
    Mean Well
  • Series
    MSP Series
  • Power Rating
    66 Watt
  • Output Voltage
    3.3 Volt
  • Rated Current
    20 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~60°C
  • Warranty
    5 Year
  • Length
    6.26 in
  • Width
    3.82 in
  • Height
    1.5 in
  • Weight
    0.84 lb
