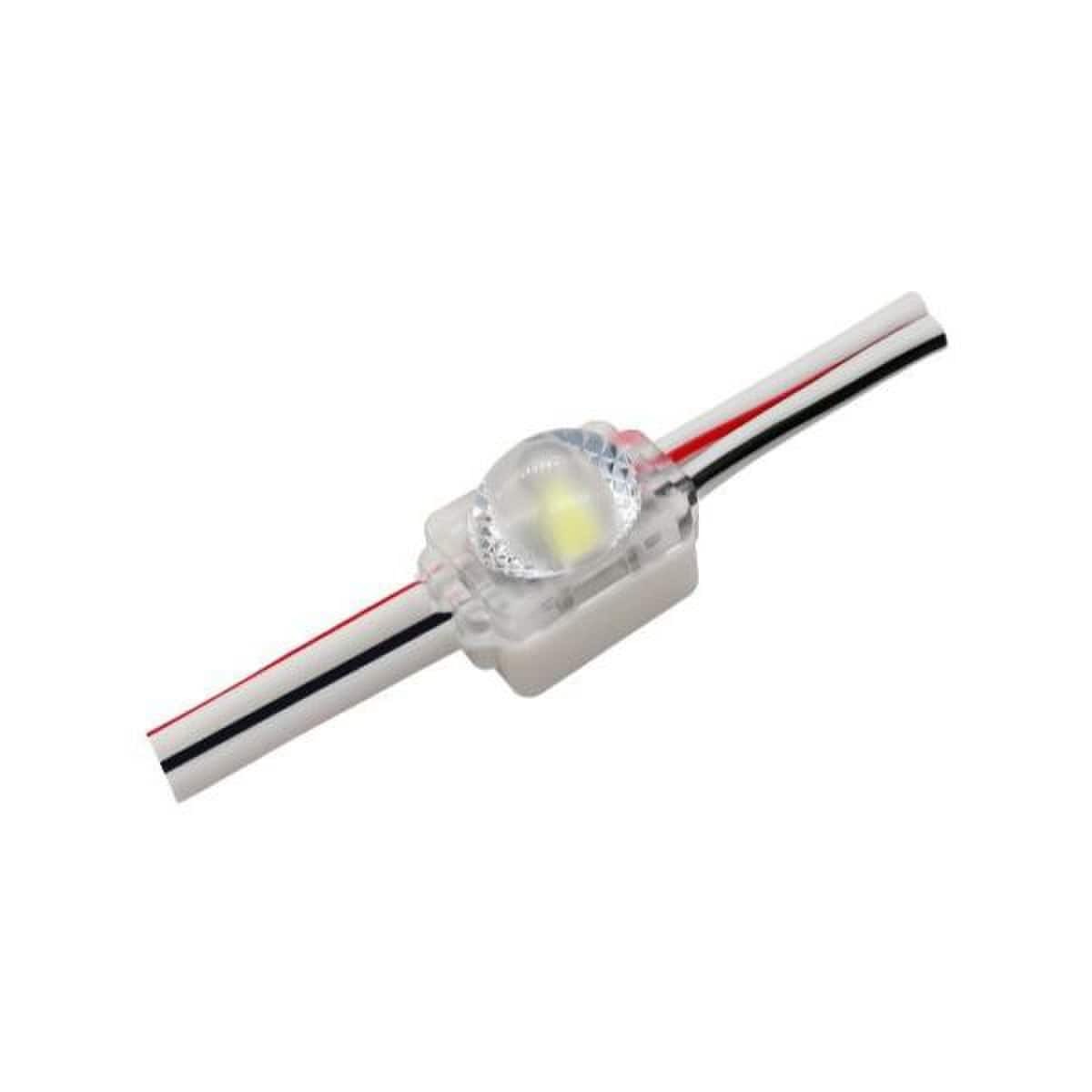

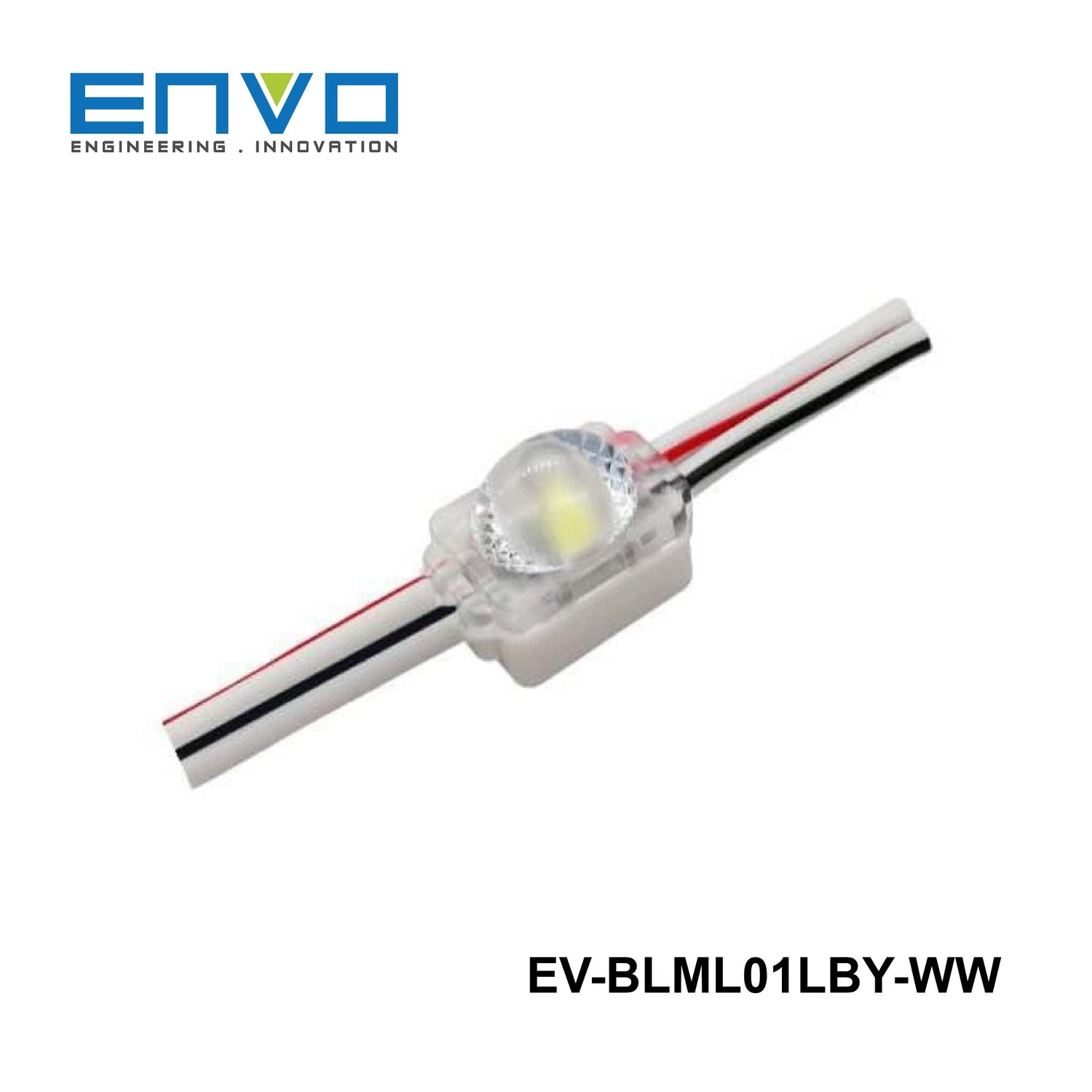

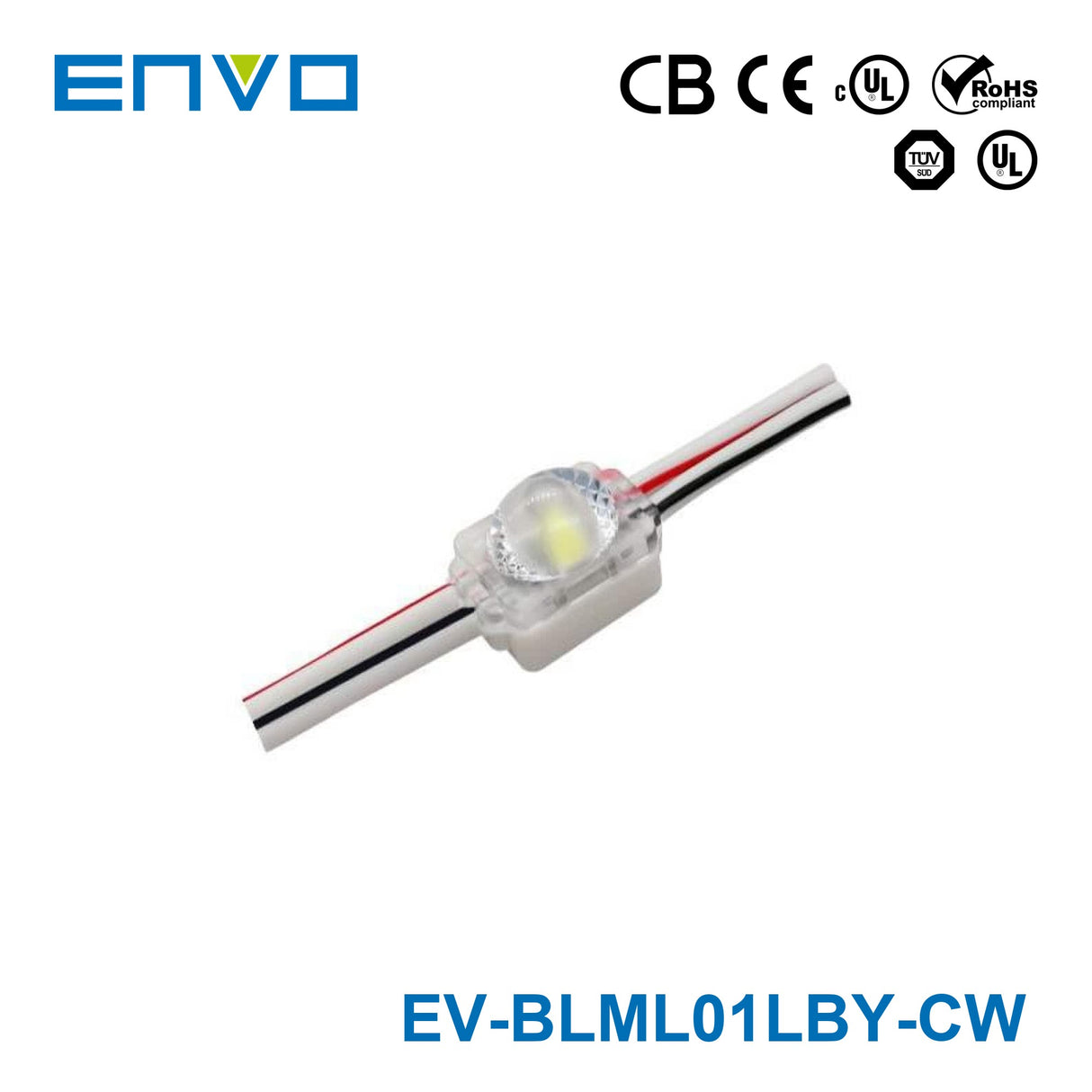

ENVO MiniLux LED Module Backlit - Single LED
The ENVO MiniLux Backlit Single LED module is engineered for shallow illuminated channel letters and backlit sign cabinets where space is at a premium, with a recommended lightspace depth of 30–80 mm targeting the tight cavities where standard modules would overcrowd the build or create uneven hotspots. The proprietary Diamondback lens produces a wide 180°×140° dual-axis beam that spreads light uniformly across the sign face, while the compact 14×9×8.8 mm footprint and 64 mm pitch give installers a predictable layout grid and easier cable routing in narrow letter returns. Running on a standard 12V DC supply, fully dimmable and IP67 rated, it is backed by a 7-year warranty and certified to CB, CE, cUL, RoHS, TÜV, and UL standards.
Key Features
- ✓ Input voltage: 12V DC
- ✓ Power: 0.24W per module
- ✓ Lumen output: 29 lm
- ✓ Beam angle: 180° × 140° (Diamondback optic)
- ✓ Module dimensions: 14 × 9 × 8.8 mm
- ✓ Module pitch: 64 mm
- ✓ Max modules per series: 40
- ✓ Rated current: 0.02A
- ✓ CRI: 80
- ✓ Dimmable
- ✓ Ingress protection: IP67
- ✓ Operating temperature: −25°C to +60°C
- ✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
- ✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL
- ✓ 7 year warranty
-
BrandEnvo
-
SeriesMiniLux
-
Power Rating0.24 Watt
-
Rated Current0.02 Ampere
-
Dimming ControlDimmable
-
Standards MetCB,CE,cUL,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length0.55 in
-
Width0.35 in
-
Height0.35 in
-
Weight0 lb
::specification::
Frequently Asked Questions
What applications is the ENVO MiniLux LED Module Backlit designed for?
This LED module family is intended for shallow-depth illuminated letters and light boxes. It is suited to signage depths from 3-8 cm where compact size and even backlighting are important. The wide optic helps spread light across tight sign cavities with fewer dark areas.
What is the difference between the available color temperature options in this MiniLux family?
The main difference across the variants is color temperature. The family is available in 3000K warm white, 4000K neutral white, and 7000K cool white, while the listed power, beam angle, CRI, dimming capability, lifetime, and warranty remain the same. This lets buyers choose the light appearance that best matches the signage design.
What are the core performance specs of the ENVO MiniLux LED Module Backlit family?
Each module is rated at 0.24 W and uses a 12V power input. The family has a 180° x 140° beam angle, CRI 80, and a rated lifetime of 50,000 hours. The listed warranty period is 5 years.
Is this LED module suitable for shallow or space-constrained signage builds?
Yes. The module is specifically described for shallow-depth applications such as letters and light boxes with 3-8 cm depth. Its compact body, listed at 14 mm long, 9 mm wide, and 8.8 mm high, makes it a strong fit where internal space is limited.
Does this MiniLux LED module provide broad light coverage for sign faces?
Yes. This family uses a Diamondback optic lens with a 180° x 140° beam angle to deliver wide light distribution. That broad spread is intended to improve uniformity and reduce visible shadowing in backlit signage.
Is the ENVO MiniLux LED Module Backlit dimmable, and is it built for long service life?
Yes, the family is listed as dimmable. It is also rated for 50,000 hours of life and backed by a 5-year warranty, which makes it suitable for projects where durability and maintenance intervals matter.
