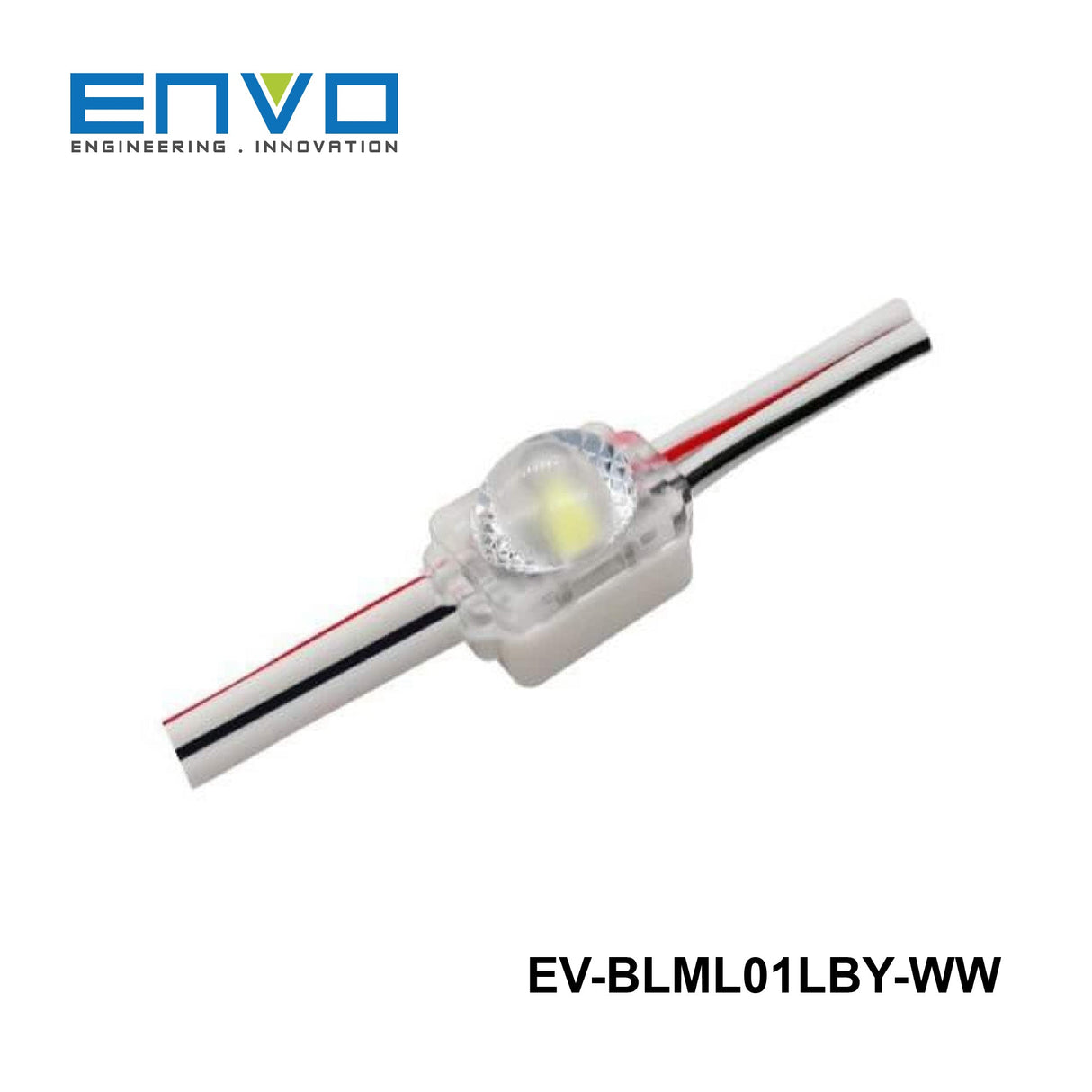

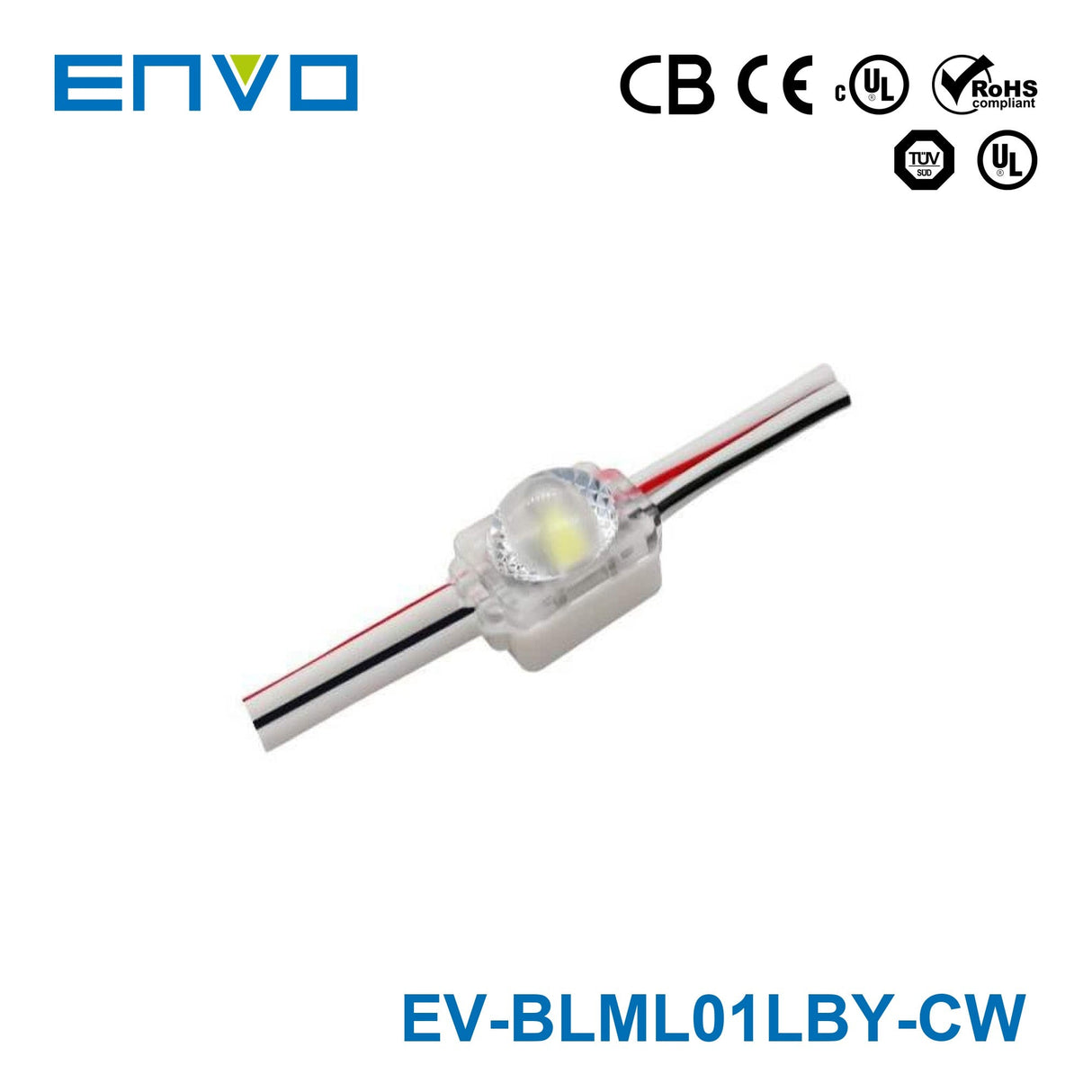

ENVO MiniLux LED Module Backlit - Single LED

This LED module family is intended for shallow-depth illuminated letters and light boxes. It is suited to signage depths from 3-8 cm where compact size and even backlighting are important. The wide optic helps spread light across tight sign cavities with fewer dark areas.

The main difference across the variants is color temperature. The family is available in 3000K warm white, 4000K neutral white, and 7000K cool white, while the listed power, beam angle, CRI, dimming capability, lifetime, and warranty remain the same. This lets buyers choose the light appearance that best matches the signage design.

Each module is rated at 0.24 W and uses a 12V power input. The family has a 180° x 140° beam angle, CRI 80, and a rated lifetime of 50,000 hours. The listed warranty period is 5 years.

Yes. The module is specifically described for shallow-depth applications such as letters and light boxes with 3-8 cm depth. Its compact body, listed at 14 mm long, 9 mm wide, and 8.8 mm high, makes it a strong fit where internal space is limited.

Yes. This family uses a Diamondback optic lens with a 180° x 140° beam angle to deliver wide light distribution. That broad spread is intended to improve uniformity and reduce visible shadowing in backlit signage.

Yes, the family is listed as dimmable. It is also rated for 50,000 hours of life and backed by a 5-year warranty, which makes it suitable for projects where durability and maintenance intervals matter.
