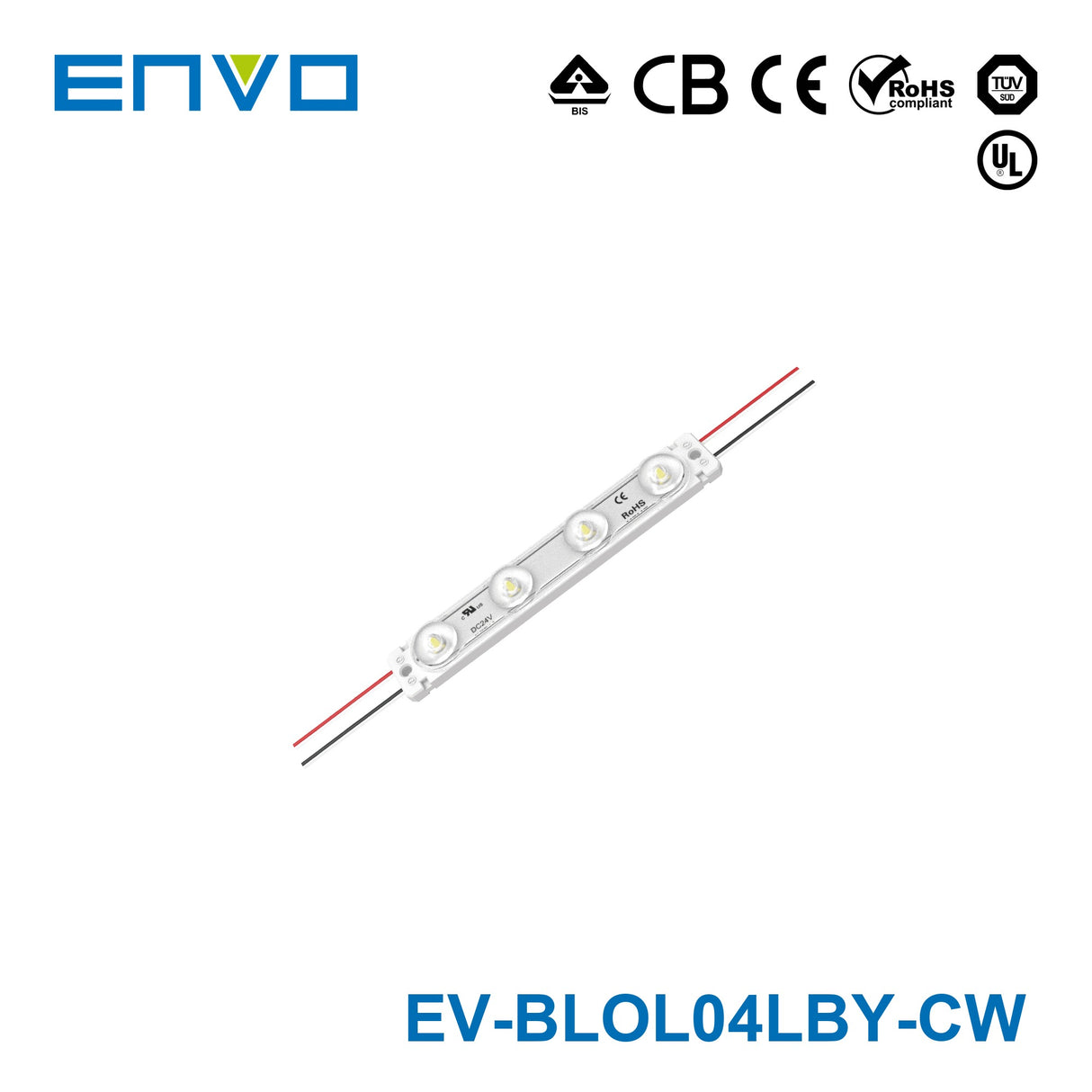

ENVO OptiLume LED Module Backlit - Quad LED
The ENVO OptiLume Backlit Quad LED module is a high-output 24V backlighting module engineered for large commercial channel letters and deep backlit sign cabinets where elevated brightness and string efficiency are priorities. Its wide 170° beam angle produces even, high-intensity illumination across the full sign face from four LEDs, allowing greater module spacing without creating dark bands or hotspots in the sign cavity. Running on a 24V DC constant voltage supply and fully dimmable, it carries IP67 water and dust resistance for indoor and outdoor sign installations, certified to CB, CE, RoHS, TÜV, and UL standards.
Key Features
- ✓ Input voltage: 24V DC
- ✓ Power: 1.3W per module
- ✓ Beam angle: 170°
- ✓ Module dimensions: 108 × 10.6 × 10.6 mm
- ✓ Module pitch: 218 mm
- ✓ Max modules per series: 20
- ✓ Rated current: 0.06A
- ✓ CRI: 80
- ✓ Dimmable
- ✓ Ingress protection: IP67
- ✓ Operating temperature: −25°C to +60°C
- ✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
- ✓ Safety certifications: CB, CE, RoHS, TÜV, UL
- ✓ 7 year warranty
-
BrandEnvo
-
SeriesOptiLume
-
Power Rating1.32 Watt
-
Rated Current0.06 Ampere
-
Dimming ControlDimmable
-
Standards MetBIS,CB,CE,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length4.25 in
-
Width0.42 in
-
Height0.42 in
-
Weight0.05 lb
::specification::
Frequently Asked Questions
What is the ENVO OptiLume LED Module Backlit - Quad LED designed for?
This LED module is designed for illuminating letters and light boxes in commercial and public settings. It is intended for applications such as airports, metros, banks, buildings, and shopping malls where bright, even backlit signage is needed.
What sign depth is this LED module suitable for?
The OptiLume Quad LED module is suitable for illuminated letters and light boxes with depths from 6 cm to 20 cm. That makes it a practical option for a wide range of backlit signage formats.
What color temperature options are available in this product family?
This parent product family is available in three color temperature options: 3000K, 4000K, and 6500K. These options let buyers choose a warmer, neutral, or cooler light appearance while keeping the same core module format and performance.
Are the different variants equal in brightness and power?
Yes. Based on the variant data provided, each version delivers 200 lumens and uses 1.32 W of power. The main difference across the family is color temperature rather than output or wattage.
What are the main performance specifications of this LED module?
This module has a 170-degree beam angle, CRI 80, dimmable control, and a rated lifetime of 50,000 hours. It also carries a 5-year warranty, supporting long-term commercial signage use.
Is this LED module compatible with 24V signage systems?
Yes. The parent model is identified as a 24V power input product, and the category data also places it within 24V signage module groups. Buyers looking for 24V backlit signage modules can use this family as a relevant option.
What makes this module suitable for even backlighting?
The module uses wide 170-degree optics to spread light broadly across the sign face. This helps support more uniform illumination in letters and light boxes where consistent visual coverage is important.
