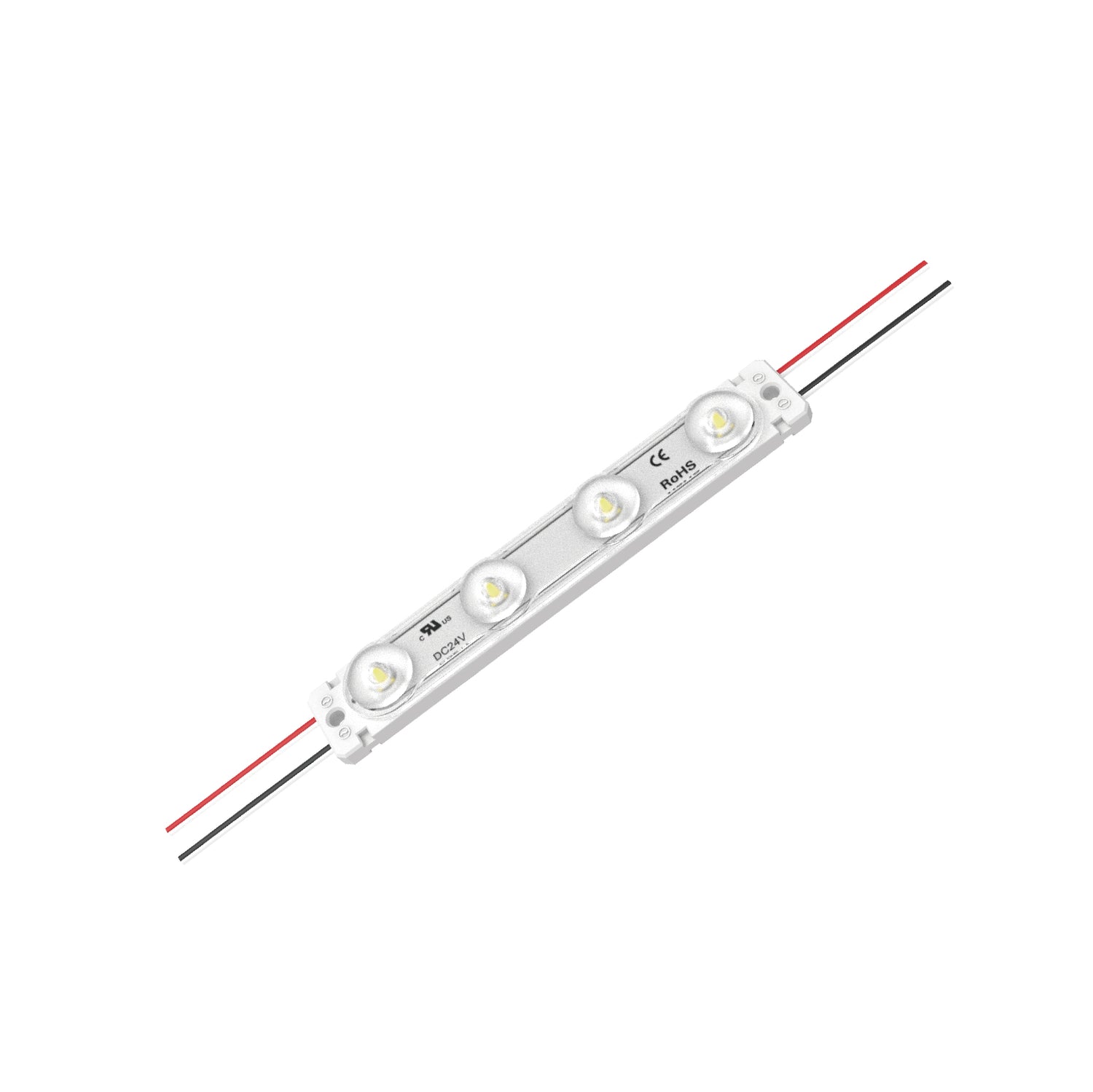

ENVO OptiLume LED Module Backlit - Quad LED
Overview
Features
- Powered by high output 2835.
- Light efficacy more than 150LM/W.
- Constant voltage, CC optional.
- No Polarity limit input for CC and CV.
- Dimmable
- Integrated transparent 170°optic lens.

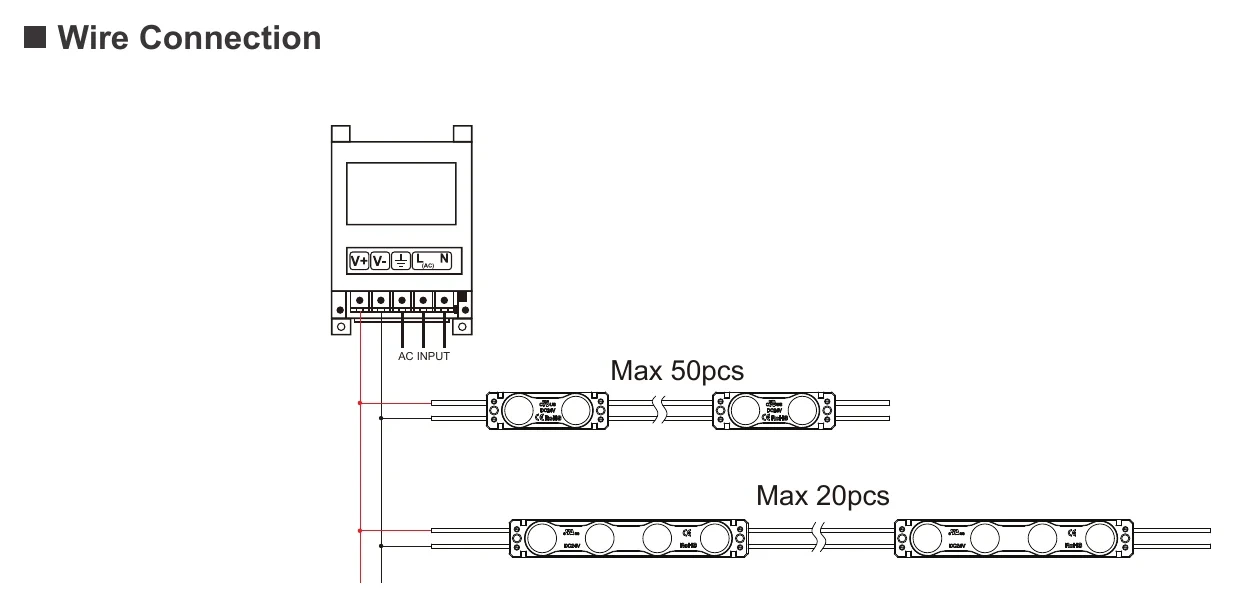

- 50/20 pcs per string.
- CE, ROHS, UL, TUV, BIS, CB and LM-80 certified
Specifications
Variants
| SKU | LED Colour |
|---|---|

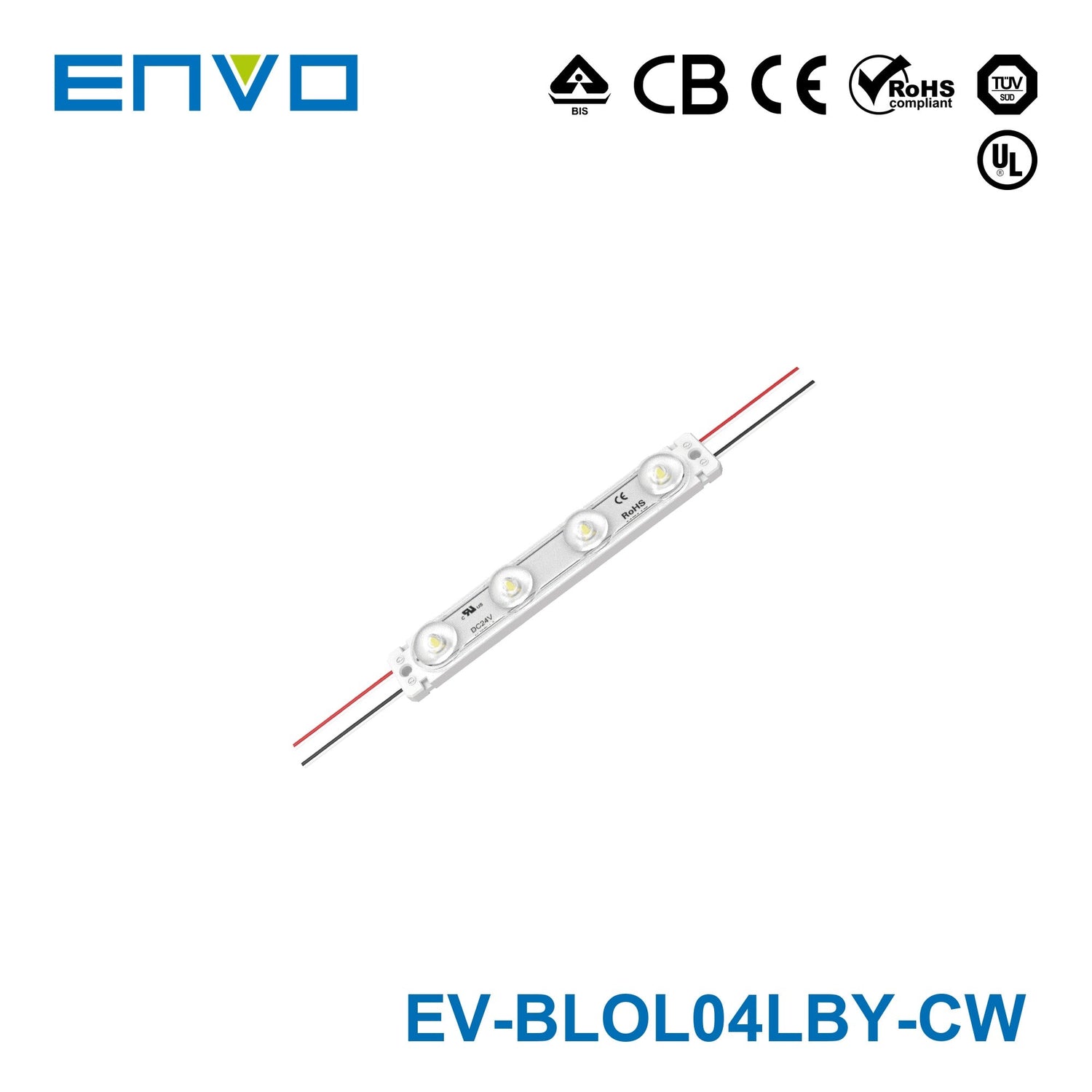

| EV-BLOL04LBY-CW | Cool White 6500K |
| EV-BLOL04LBY-NW | Natural White 4000K |
| EV-BLOL04LBY-WW | Warm White 3000K |
Parameters

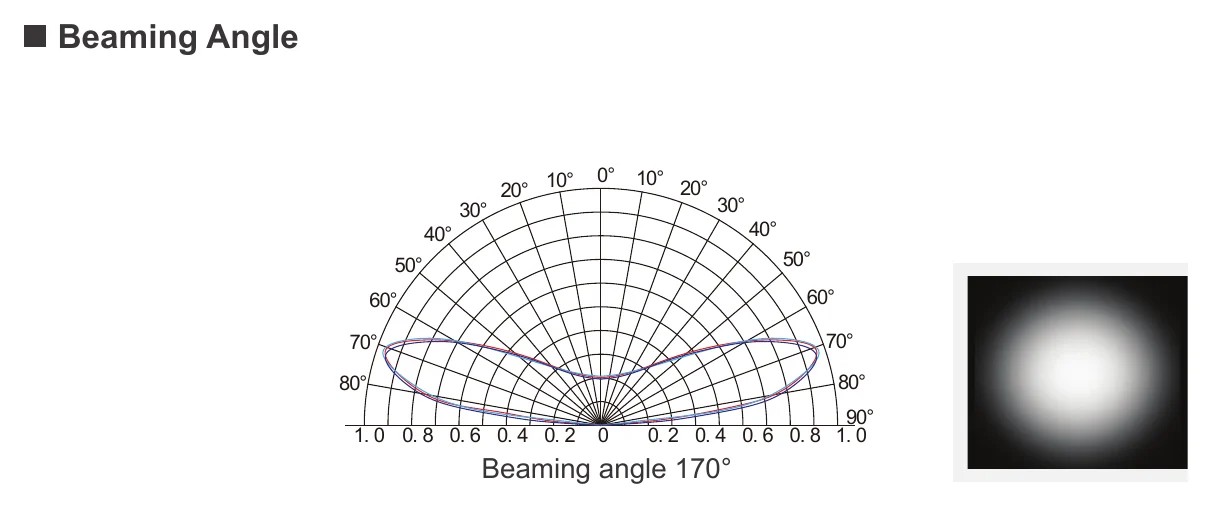

- Beaming Angle (°)
- 170°
- CRI (Ra)
- ≥70
- Voltage (V)
- DC24
- Power (W)
- 1.32
- Driving Method
- Constant Voltage
- Dimension (mm)
- 108*17*10.6
- Working Tem. (°C)
- -25 ~ +60
- Storage Tem. (°C)
- −25 ~ +70
- Protection Grade
- IP67
Certifications & ratings
- Certification marks
- CE, RoHS, UL, TÜV, BIS, CB, LM-80

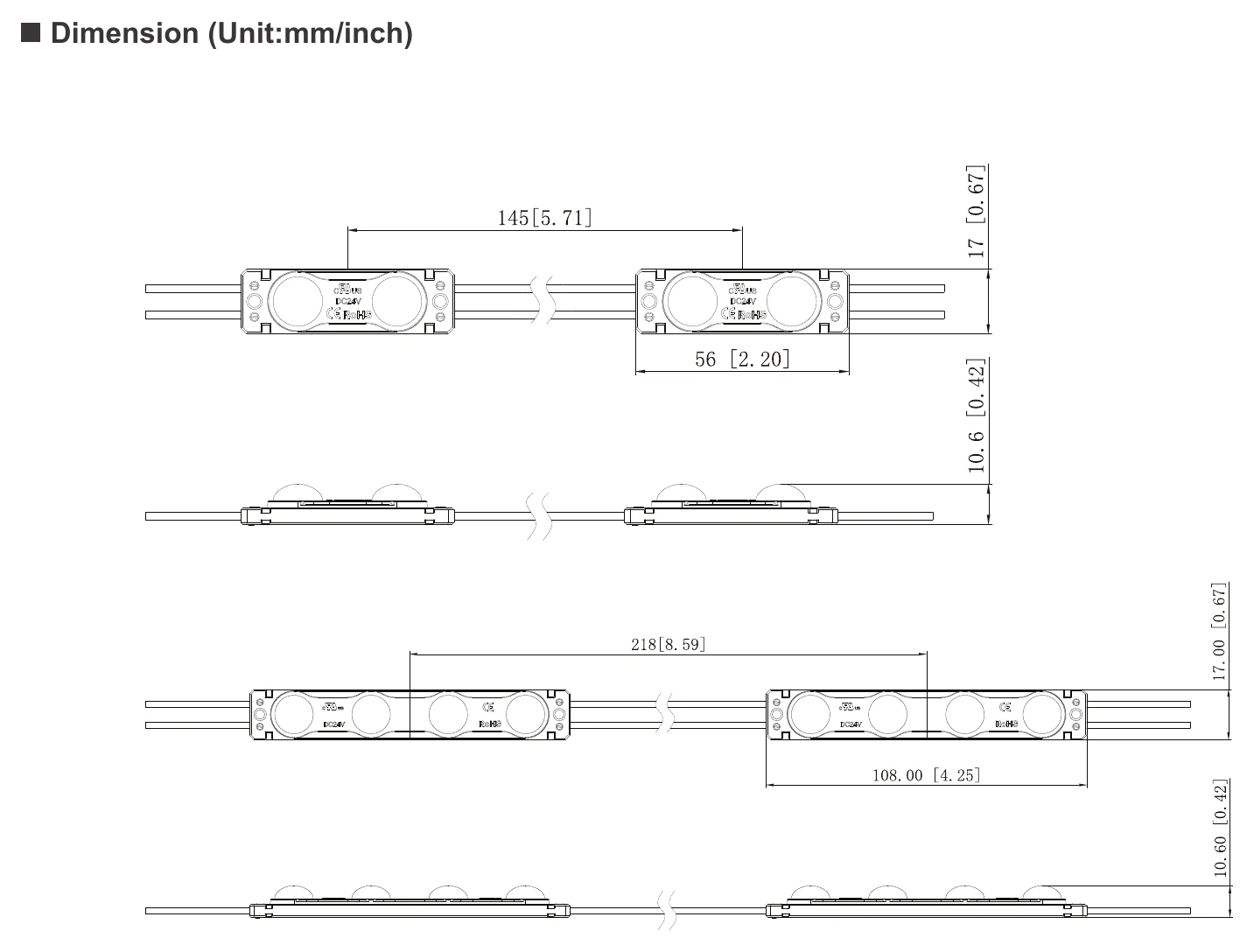

Technical drawings
Typical applications

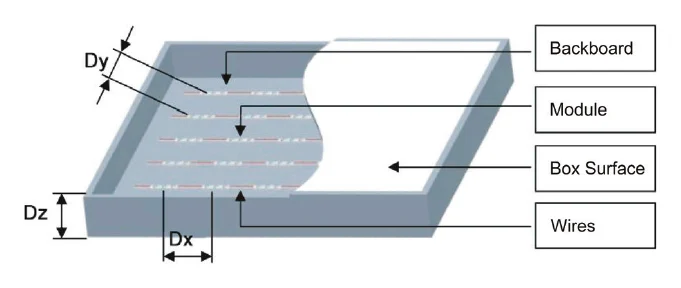

- Apply to 6-20 cm depth illuminated letter or light box at airports,metros, banks, buildings and shopping malls, etc.
Downloads
Datasheet1
FAQ
What is the ENVO OptiLume LED Module Backlit - Quad LED designed for?
This LED module is designed for illuminating letters and light boxes in commercial and public settings. It is intended for applications such as airports, metros, banks, buildings, and shopping malls where bright, even backlit signage is needed.
What sign depth is this LED module suitable for?
The OptiLume Quad LED module is suitable for illuminated letters and light boxes with depths from 6 cm to 20 cm. That makes it a practical option for a wide range of backlit signage formats.
What color temperature options are available in this product family?
This parent product family is available in three color temperature options: 3000K, 4000K, and 6500K. These options let buyers choose a warmer, neutral, or cooler light appearance while keeping the same core module format and performance.
Are the different variants equal in brightness and power?
Yes. Based on the variant data provided, each version delivers 200 lumens and uses 1.32 W of power. The main difference across the family is color temperature rather than output or wattage.
What are the main performance specifications of this LED module?
This module has a 170-degree beam angle, CRI 80, dimmable control, and a rated lifetime of 50,000 hours. It also carries a 5-year warranty, supporting long-term commercial signage use.
Is this LED module compatible with 24V signage systems?
Yes. The parent model is identified as a 24V power input product, and the category data also places it within 24V signage module groups. Buyers looking for 24V backlit signage modules can use this family as a relevant option.
What makes this module suitable for even backlighting?
The module uses wide 170-degree optics to spread light broadly across the sign face. This helps support more uniform illumination in letters and light boxes where consistent visual coverage is important.
