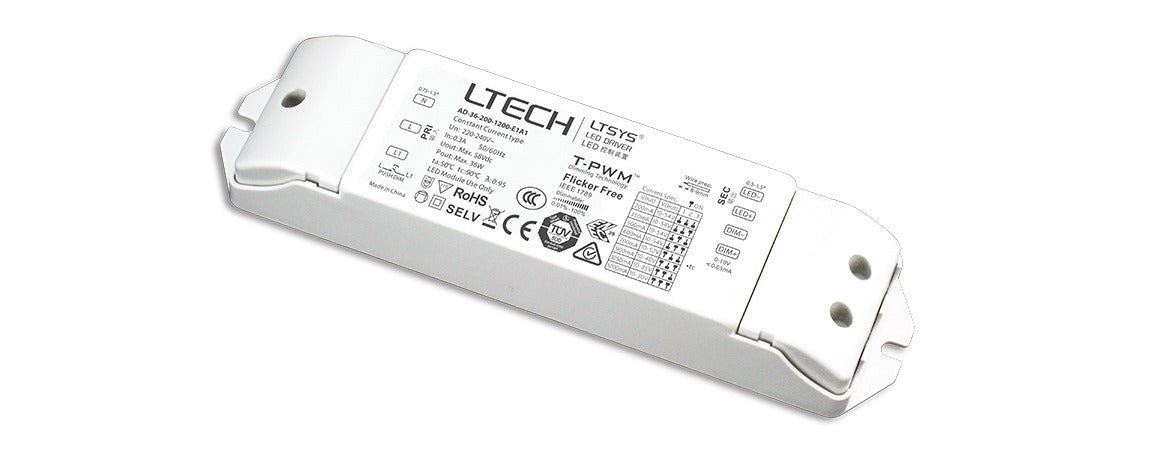

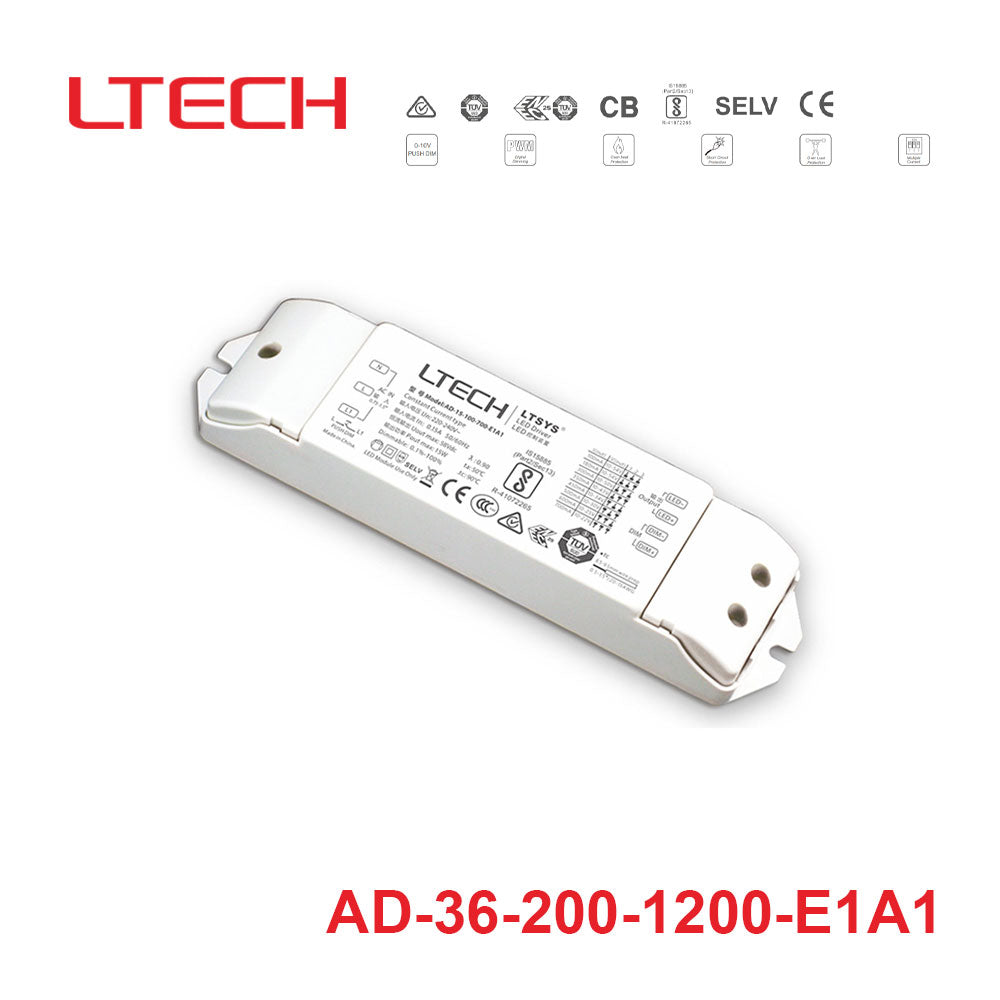

LTECH AD-36-200-1200-E1A1 36W 200~1200mA CC 0/1-10V LED Driver - Selectable Output

• Dimming interface: 0-10V (1-10V/10V PWM/RX)
• Push DIM
• With soft-on and fade in function
• visual more comfortable.
• T-PWM digital dimming.
• Automatic recognition of 0-10V
• 1-10V input signal.
• 0-100% flicker-free
• High Frequency Exemption
• Innovative thermal management technology
• intelligent power life protection.
• Dimming range:0~100%
• LED start at 0.01% possible.
• Multiple current& wide voltage
• suitable for different power LED.
• Non-load output voltage 0V to prevent damages to LED caused by poor contact.
• Short circuit / Over-heat / Over load / Non-load protection
• recover automatically
• Suitablefor internal lights application for I/II/III
• 5 years warranty (Rubycon capacitor)

• Brand
  Ltech
• Series
  Ltech 0/1-10V Series
• Power Rating
  36 Watt
• Output Voltage
  58 Volt
• Rated Current
  0.2 Ampere
• Input Voltage
  220V~240V
• No of Output
  1
• Dimming Control
  0-10V,1-10V
• Standards Met
  CB,CCC,CE,EMEC,RCM,ROHS,TUV
• Operation Mode
  Constant Current
• Warranty
  5 Year
• Length
  6.57 in
• Width
  1.61 in
• Height
  1.26 in
• Weight
  0.37 lb
