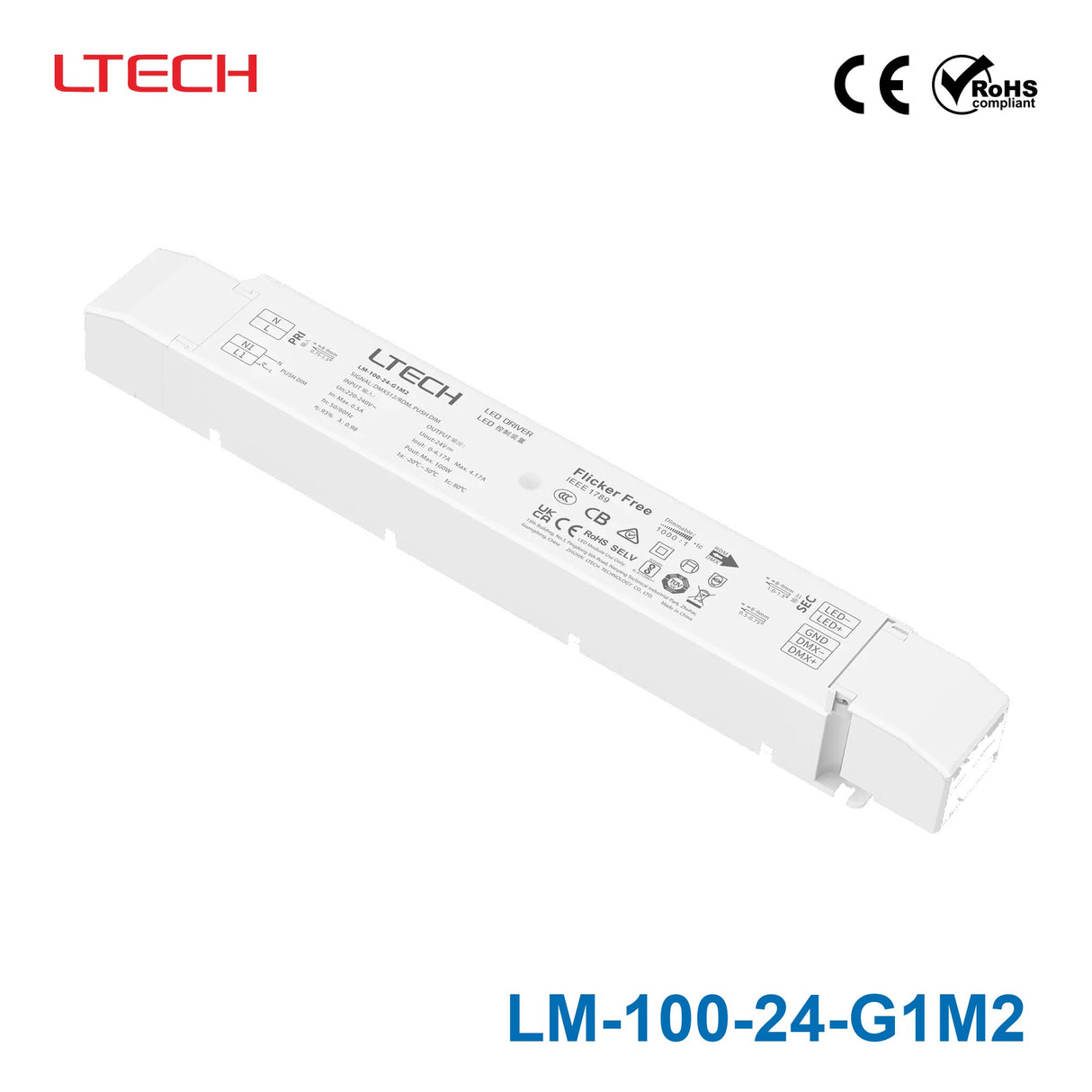

Ltech LM-100-24-G1M2 100W 24VDC CV DMX LED Driver - DMX dimmable
- Dimming interface: DMX512/RDM
- Push DIM.
- Supports RDM remote device management protocol.
- Withsoft-onandfadeinfunction
- visualmorecomfortable
- 0-100% flicker-free
- High Frequency Exemption
- In line with the EU energy efficiency ERP directive
- standby power consumption < 0.5W
- Innovative thermal management technology
- intelligent power life protection.
- Short circuit / Over-heat / Over load protection
- short circuit protection
- recover automatically
- Full protective plastic housing.
- Suitable for indoor I/II/IIItype lamps application
- 5 years warranty (Rubycon capacitor).
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4.17 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What type of LED application is the Ltech LM-100-24-G1M2 designed for?
The LM-100-24-G1M2 is a constant-voltage 24VDC LED driver intended for LED lighting applications that require DMX dimming control. Its 100W output makes it suitable for larger 24V lighting loads than smaller low-wattage drivers. This model is positioned for indoor lighting projects where smooth dimming and stable output are important.
Does this LED driver support DMX control?
Yes. This model supports DMX512/RDM dimming, so it is built for projects that use DMX-based lighting control systems. It also supports RDM remote device management, which can be useful in more advanced commercial or architectural lighting environments.
What are the main electrical specs of the LM-100-24-G1M2?
This model is rated for 100W output at 24VDC with a rated current of 4.17A. It is a constant-voltage driver rather than a constant-current unit. Those specs make it appropriate for 24V LED products designed to run from a regulated 24VDC source.
Is the dimming performance suitable for professional lighting use?
The product description states 0-100% flicker-free dimming, which is a strong advantage for applications where smooth light control matters. It also includes a soft-on and fade-in function for more comfortable visual transitions. That combination makes this model better suited to premium dimming applications than basic non-dimmable drivers.
Can this driver be used in demanding indoor environments?
It is specified for operation from -20°C to 50°C, which covers a broad range of normal indoor commercial and light industrial conditions. The housing is full plastic, and the unit includes short circuit, over-heat, and overload protection. These features support reliability in indoor installations where thermal and load protection matter.
What protection and efficiency features does this model include?
The LM-100-24-G1M2 includes short circuit, over-heat, and overload protection, with automatic recovery noted for short circuit protection. The description also states standby power consumption below 0.5W and compliance with the EU ERP energy efficiency directive. These details make it a stronger choice for projects that value both protection features and lower standby consumption.
What warranty comes with the Ltech LM-100-24-G1M2?
This model is listed with a 5-year warranty. The product description specifically references a 5-year warranty with Rubycon capacitor usage. That is a meaningful differentiator for buyers comparing long-life LED driver options.
